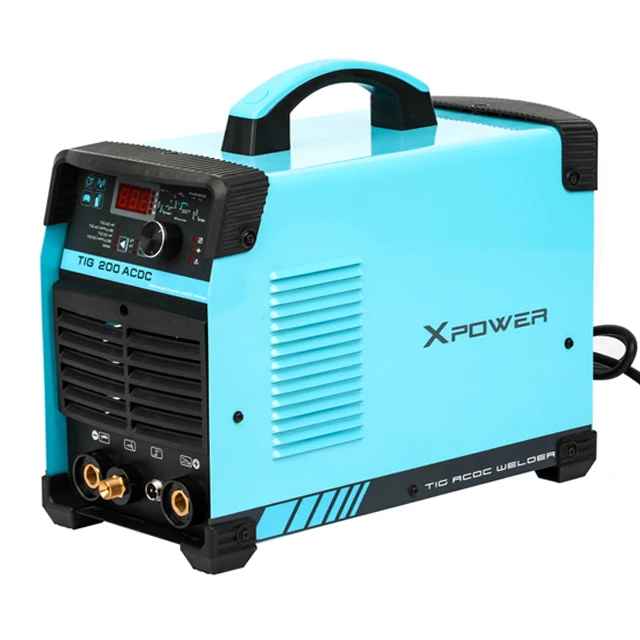

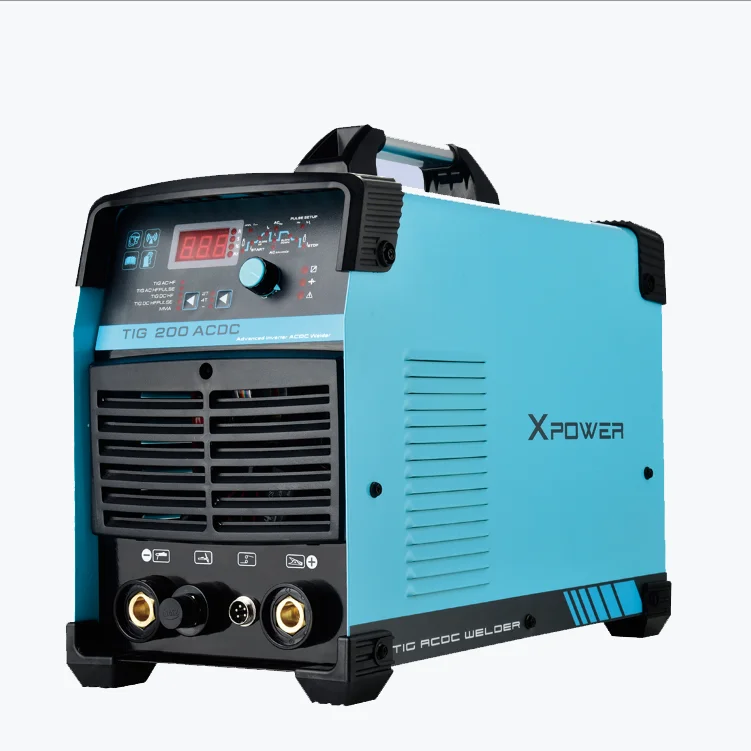

Electricweldingmachine, gas-shielded welding
machin
e
, plasma cutting machine, argon arc welding machine, main unit one-year warranty
Product Description
Features
(1) Digital control,MCU technology,automatic parameter saving.
(2)IGBT inverter technology.
(3) Hight frequency toguarantee lighter and smaller welder with higher efficiency.
(4) Multi-function design to meet various welding demands.It is suitable for DC TIG welding,MMA welding,spot welding,pulse TIG welidng,AC TIG welding etc.
(5) Simple-to-use operator interface.
(6) Less spatter,stable arc and good shaping.
(7)Applicable for DC TIG welding of carbon steel,stainless steel,alloy steel,and other non-ferrous metals.especially for AC TIG welding of aluminum and aluminum alloy products.
|
ITEM
|
UNIT
|
TIG-200PACDC
|
|
Input power voltage
|
V
|
AC230V
|
|
Input power frequency
|
Hz
|
50/60
|
|
Input Current
|
A
|
31
|
|
Rated input capacity
|
KVA
|
7.1
|
|
Output current range(TIG)
|
A
|
5-200A
|
|
Output current range(MMA)
|
A
|
10-160
|
|
Pre-flow Time
|
S
|
0.1-10
|
|
Post-flow Time
|
S
|
0.5-15
|
|
Down Slope
|
S
|
0-15
|
|
Balance
|
|
15-85
|
|
Arc Starting
|
|
HF
|
|
AC Frequency
|
|
20-250
|
|
Pulse Frequency
|
|
0.2-200
|
|
No-load voltage
|
V
|
56V
|
|
|
35%
|
200
|
|
Rated Duty Cycle
|
60%
|
129
|
|
|
100%
|
100
|
|
Electrode Diameter
|
mm
|
1.5-4.0
|
|
Efficiency
|
%
|
85
|
|
Protection grade
|
|
IP22S
|
|
Insulation Class
|
|
B
|
|
Dimensions
|
mm
|
440*210*360
|
|
Weight
|
KG
|
11
|
