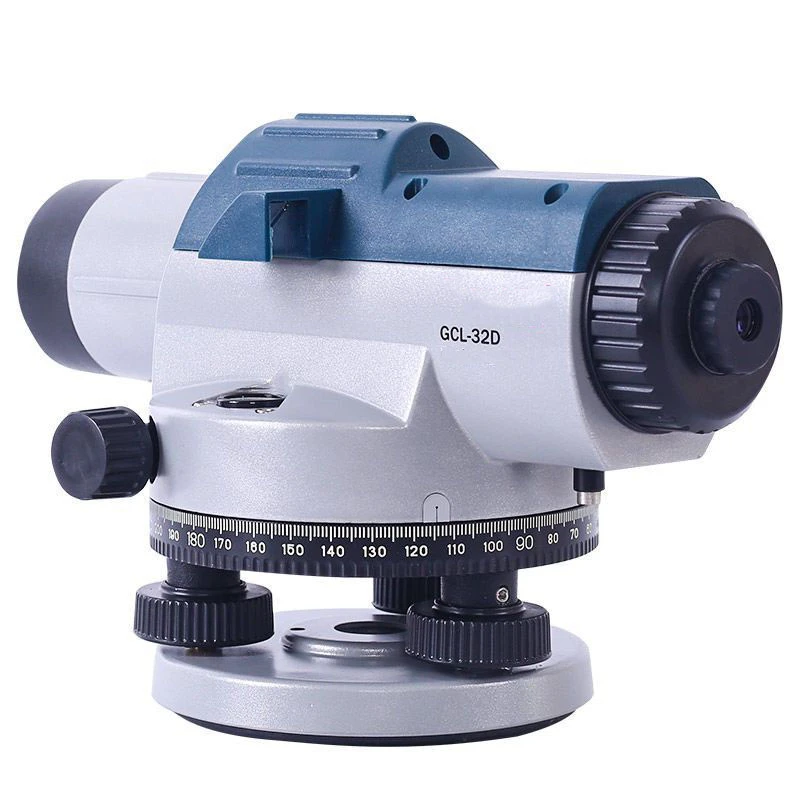

GCL32D Optical Level Device Optical Laser Level Auto Level 32x Optical Auto Level Mapping Level
In strument model: GCL32D
In strument model: GCL32D
Measuring range: 120 meters
Single measurement height accuracy: 1mm/30m
Standard deviation per kilometer round trip: ±1mm
Level Accuracy: 8'/2mm
Leveling range: ±15'
Dial Unit: 1
Tripod adapter: 5/8'' thread
Compensator Type: Magnetic Damping
Telescopic Imaging: Upright Erectile
Magnification: 32 times
Field of View: 1°30'
Objective lens diameter: 36mm
Minimum measuring distance: 0.3 meters
Protection class: L P54 (dust and water resistant
Weight: 2.5kg
Single measurement height accuracy: 1mm/30m
Standard deviation per kilometer round trip: ±1mm
Level Accuracy: 8'/2mm
Leveling range: ±15'
Dial Unit: 1
Tripod adapter: 5/8'' thread
Compensator Type: Magnetic Damping
Telescopic Imaging: Upright Erectile
Magnification: 32 times
Field of View: 1°30'
Objective lens diameter: 36mm
Minimum measuring distance: 0.3 meters
Protection class: L P54 (dust and water resistant
Weight: 2.5kg
