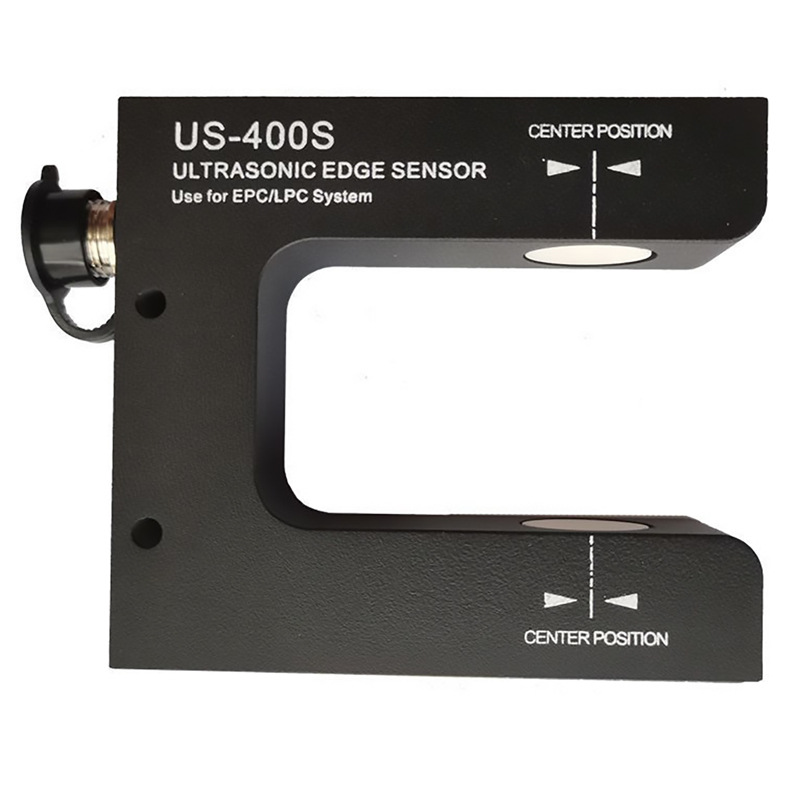

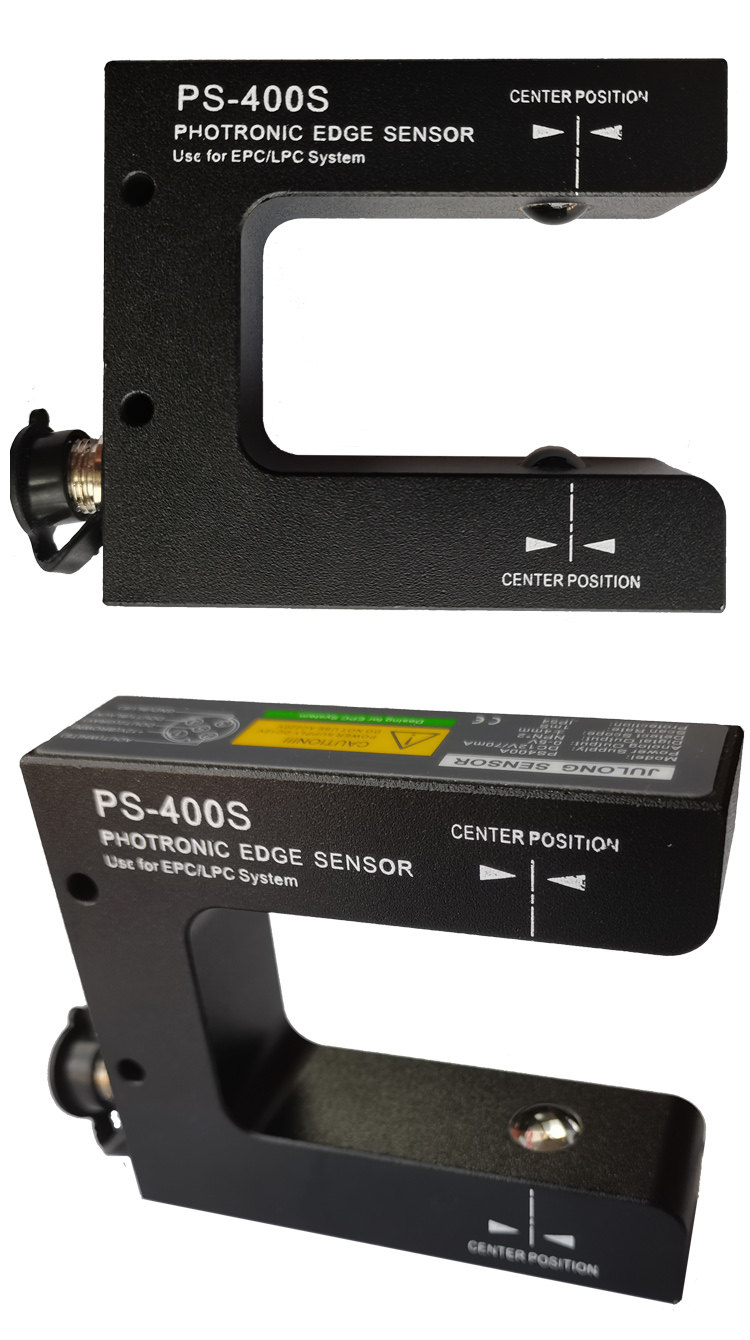

Correction Sensor Photoelectric US-400S Ultrasonic PS-400S Edge-to-Edge Tracking Slot-Type Photoelectric Switch
Main Technical Parameters
Tracking Method: Edge-to-Edge Tracking
Power Supply Input: DC 10~30V
Output Signal: Dual-channel analog 0~5V, dual-channel NPN-type switch signal
Detection Range: 8mm (±4mm)
Detection Accuracy: ±0.02mm
Detection Method: Photoelectric Through-beam
Carrier Frequency/Response Frequency: 100 kHz/1 kHz
Protection Rating: IP54
Weight: 250g
Operating Environment: -10°C to 80°C, RH 90% or below
Housing Material: Aluminum Alloy
Material Calibration: Required
