Window Tint Glass Tester Solar Film Transmission Meter for UV IR VL Regection
Note: Battery cannot be included during the shipping !!!

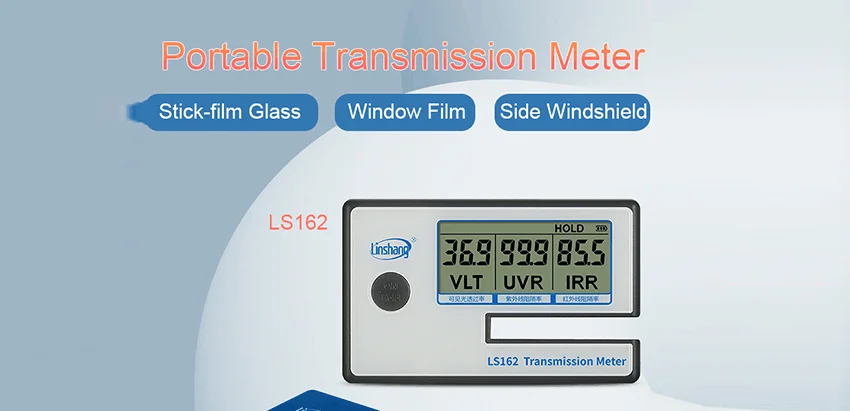

Transmission Meter is special for film, window tint, filmed glass and side windshield test, it ’ s a small size, portable product for transmission value measurement. It ’ s able to simultaneously measure and display UV, Visible and Infrared transmission values.
- The testing slot is up to 8mm, can test filmed glass directly.
- Compact, portable, battery powered, ultra-low power consumption.

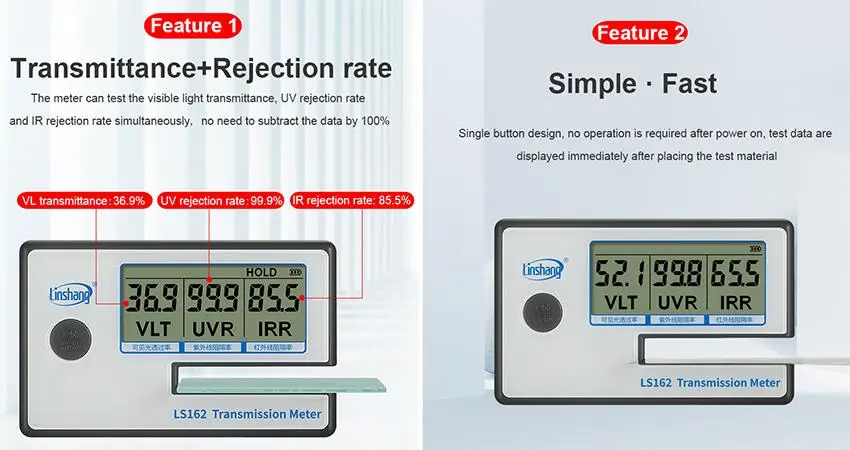

- UV rejection meter, IR rejection meter, Visible light Transmittance Meter, Three functions in ONE device.

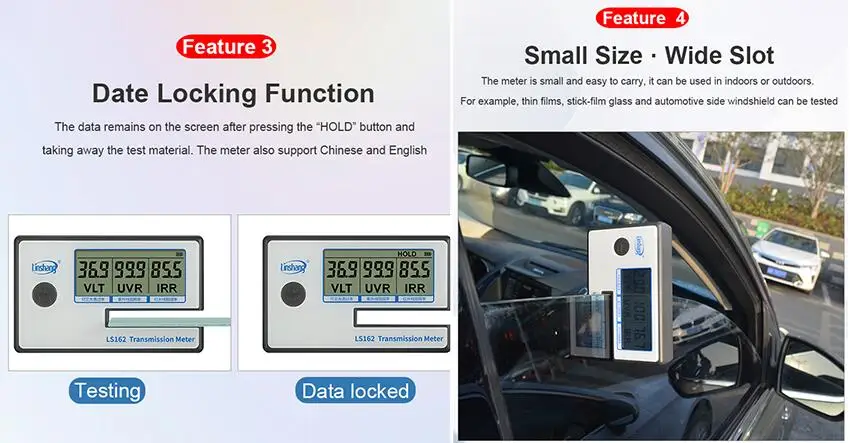

- Simple operation, rapid measurement, putting the testing sample in the “OPENING”, UV, VL and IR transmission values of the sample will simultaneously display immediately.
- Suitable for measure film, filmed glass, window tint, side windshield etc.
- Test for performance demonstrate, production, QA, inspection and so on many occasions.
1. Size: 93mm *52mm *25mm (L*W*H)
2. Weight: 165g
3. Thickness of testing sample: < 0.8mm
4. Resolution: 0.1%
5. Accuracy: +/- 2% (Colorless and transparent material)
6. VL Peak wavelength: 550nm
7. UV Peak wavelength: 365nm
8. IR Peak wavelength: 950nm
9. Battery: 4*AAA alkaline battery (not include）
Package include:
- 1pcs Transmission meter
- 1pcs User Manual
- 1pcs Certificate / Warranty Card
- 1pcs Cloth Packing Bag
