GPD MicroPC 2 (Intel N300 Version) - Technical Specifications

1. Performance & Core Components

• Processor (CPU): Intel Processor N300

  • Cores/Threads: 8 Cores / 8 Threads

  • Architecture: Gracemont (Efficient-core only, part of the Alder Lake-N series)

  • Base Frequency: Up to 3.8 GHz (Max Turbo Frequency)

  • Cache: 6 MB Intel Smart Cache

  • TDP: 7W (low power consumption for fanless or quiet fan designs)

• Memory (RAM): 16GB LPDDR5

  • Speed: 4800 MHz

  • Type: Onboard, dual-channel (soldered to the motherboard)

• Storage:

  • Capacity: 512GB NVMe SSD (M.2 2280 slot)

  • Expandability: The SSD is user-replaceable/upgradable.

2. Display

• Size: 7-inch

• Type: IPS Panel, Capacitive

• Resolution: Full HD (1920 x 1080 pixels)

• Brightness: 500 nits (Excellent for outdoor/high-ambient light visibility)

• Touchscreen: 10-point multi-touch support

• Features: Supports 180° lay-flat design

3. Graphics

• Integrated GPU: Intel UHD Graphics (integrated with the N300 processor)

• Execution Units: 32 EUs

• Base Frequency: ~750 MHz

  • Note: Suitable for basic tasks, light photo editing, and very light/old games. Not designed for modern AAA gaming.

4. Design & Dimensions

• Weight: Approximately 490g (~1.08 lbs)

• Dimensions (L x W x H): 173 x 136 x 23 mm (6.81 x 5.35 x 0.91 inches)

• Build: Main shell material is ABS plastic.

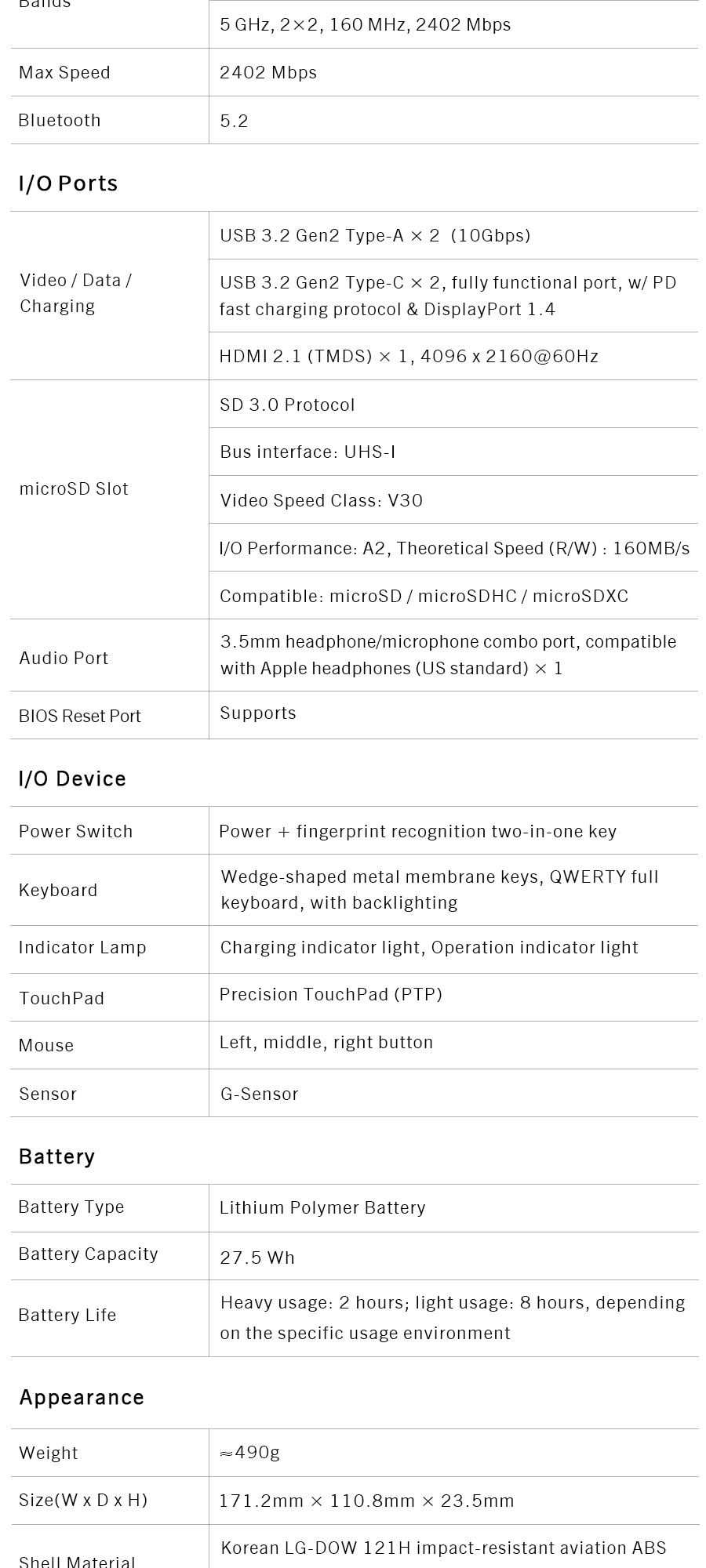

5. Connectivity & Ports

• Networking:

  • Wi-Fi: Wi-Fi 6 (802.11ax)

  • Bluetooth: Bluetooth 5.2

• I/O Ports:

  • USB-C: 1x USB 3.2 Gen 2 (Supports data, video output, and PD charging)

  • USB-A: 2x USB 3.2 Gen 2

  • RJ-45: 1x Gigabit Ethernet port

  • HDMI: 1x HDMI 2.0b output port

  • Audio: 1x 3.5mm headphone/microphone combo jack

  • Storage Expansion: 1x microSD (TF) card reader

6. Input & Interface

• Keyboard: 66-key QWERTY keyboard with a numeric keypad section and customizable function keys.

• Touchpad: Built-in multi-touch touchpad.

• Buttons: 3 programmable mouse buttons (left, right, middle).

7. Power & Battery

• Battery Capacity: 10,000 mAh (Typical) / 38.5Wh

• Adapter: 65W USB-C PD (Power Delivery) Fast Charging.

• Estimated Battery Life: ~8 hours (Varies significantly by usage, e.g., video playback, web browsing, or load).

8. Operating System

• Pre-installed OS: Windows 11 Pro

Key Selling Points Summary:

• Ultra-Portable Form Factor: Extremely lightweight and compact clamshell design.

• Rugged & Bright Display: The 500-nit 1080p screen is a standout feature for use in various lighting conditions.

• Comprehensive I/O: Excellent selection of modern (USB-C, Wi-Fi 6) and legacy (Ethernet) ports.

• Enhanced Multi-core Performance: The 8-core N300 processor offers a significant performance boost over previous 4-core models for multi-threaded tasks.
