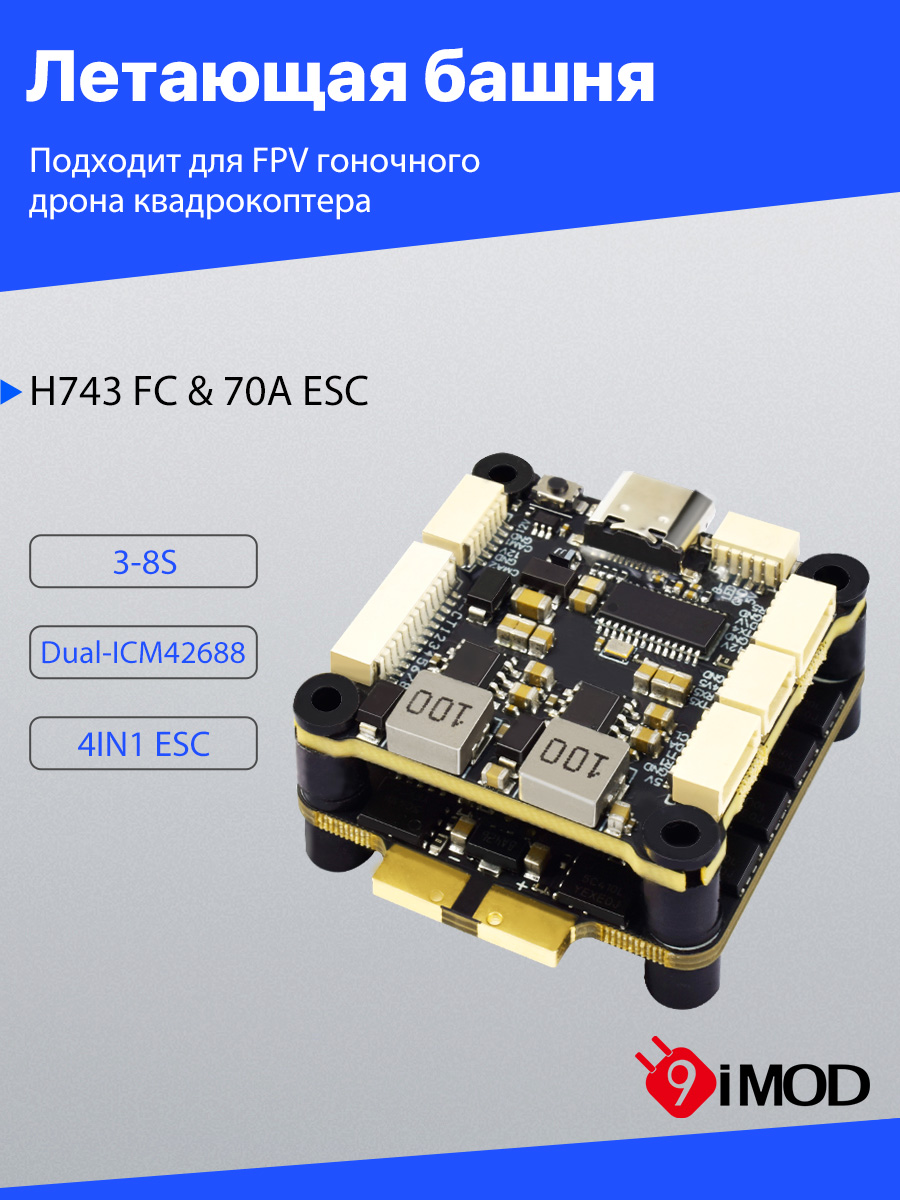

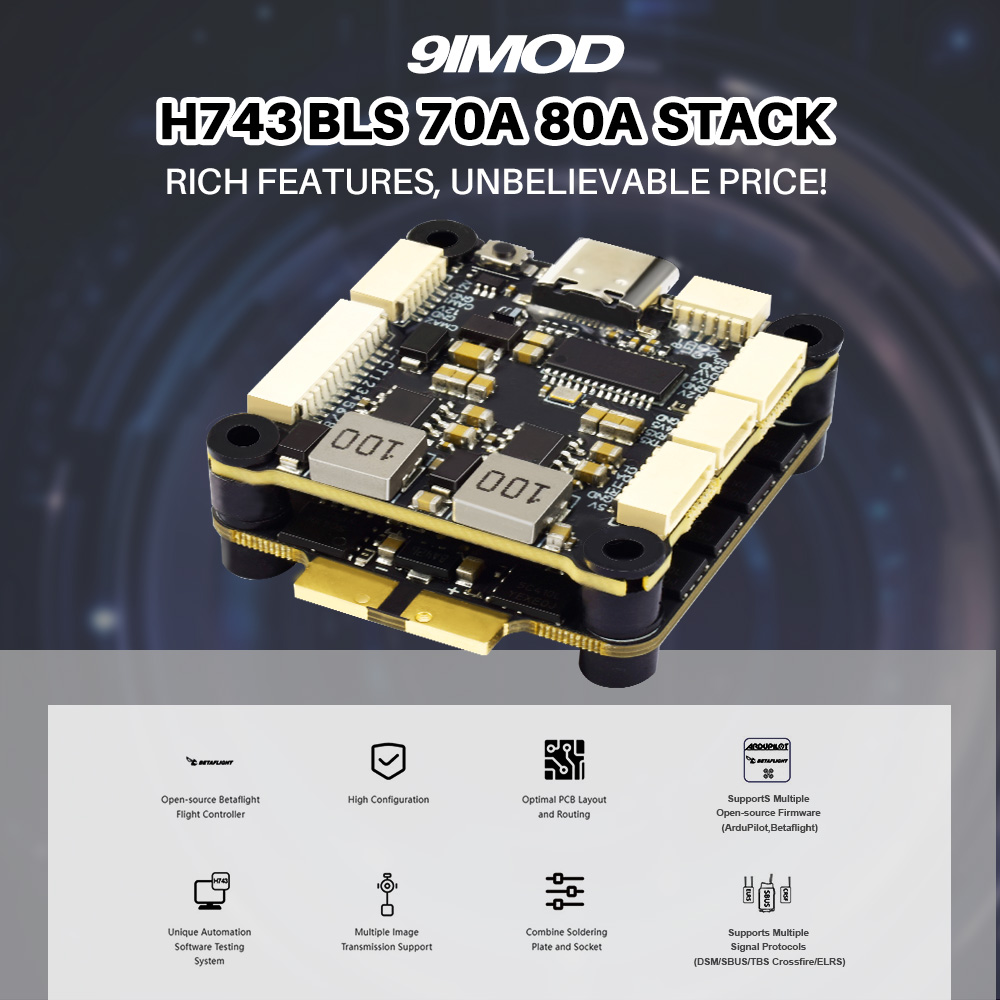

9IMOD H743 Flight Stack H743 Flight Control 4in1 70A/80A ESC 3-8S Lipo 30.5x30.5mm Dual ICM42688 Gyro 7 UART For RC FPV Racing Drone
Features:
1. Open-source Betafight Flight Controller.

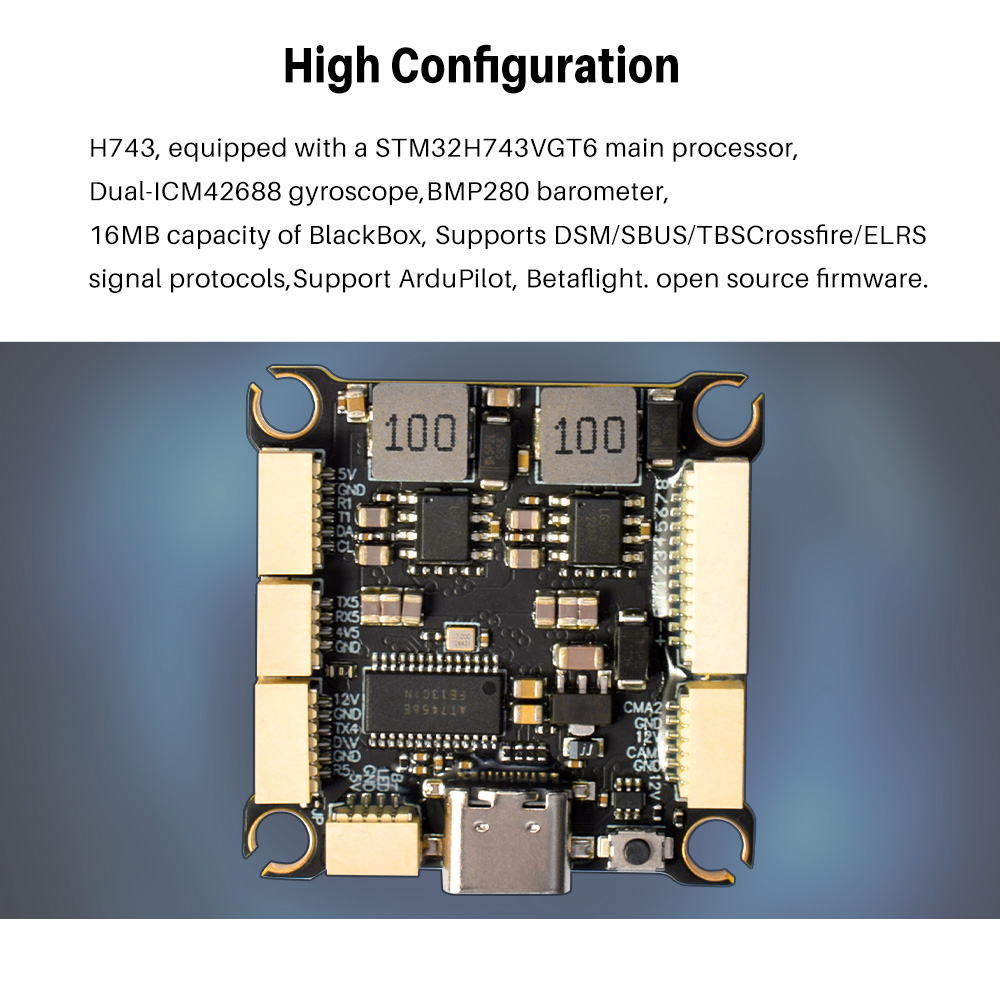

2. High Configuration: STM32H743VGT6 master, Dual-ICM42688 gyroscope, BMP280 barometer.
3. Supports connectivityto all DJl Air Units.
4. lt offers 7 available UART ports, 12 PWM outputs, I2C and an OSD.
5. Built-in OSD module, one-step parameterization.
6. Standard sockets and pads all lead out, convenient for users with different needs.
7. ESC Equipped with a TVS transient suppression diode onboard, it better absorbs surge voltage, providing enhanced protection for the ESC.
8. ESC adopts MOS with high cost performance, which hasgood current resistance and long durability, good stability.
9. High-performance processor can support Dshot300/600 protocolat, and the accelerator is smooth and powerful.
10. H743 FC Support Beataflight firmware, ESC Support BlueJay,bidirectional DSHOT.
11. Supports multiple signal protocols (DSM/SBUS/TBSCrossfire/ELRS).
12. Support multiple open source firmware (ArduPilot, Betaflight).
Description:
The H743 flight controller offers 7 UART ports, 12 PWM outputs, I2C and an OSD to integrate additional sensors and peripherals, making it a flexible solution for complex UAV manufacturing.

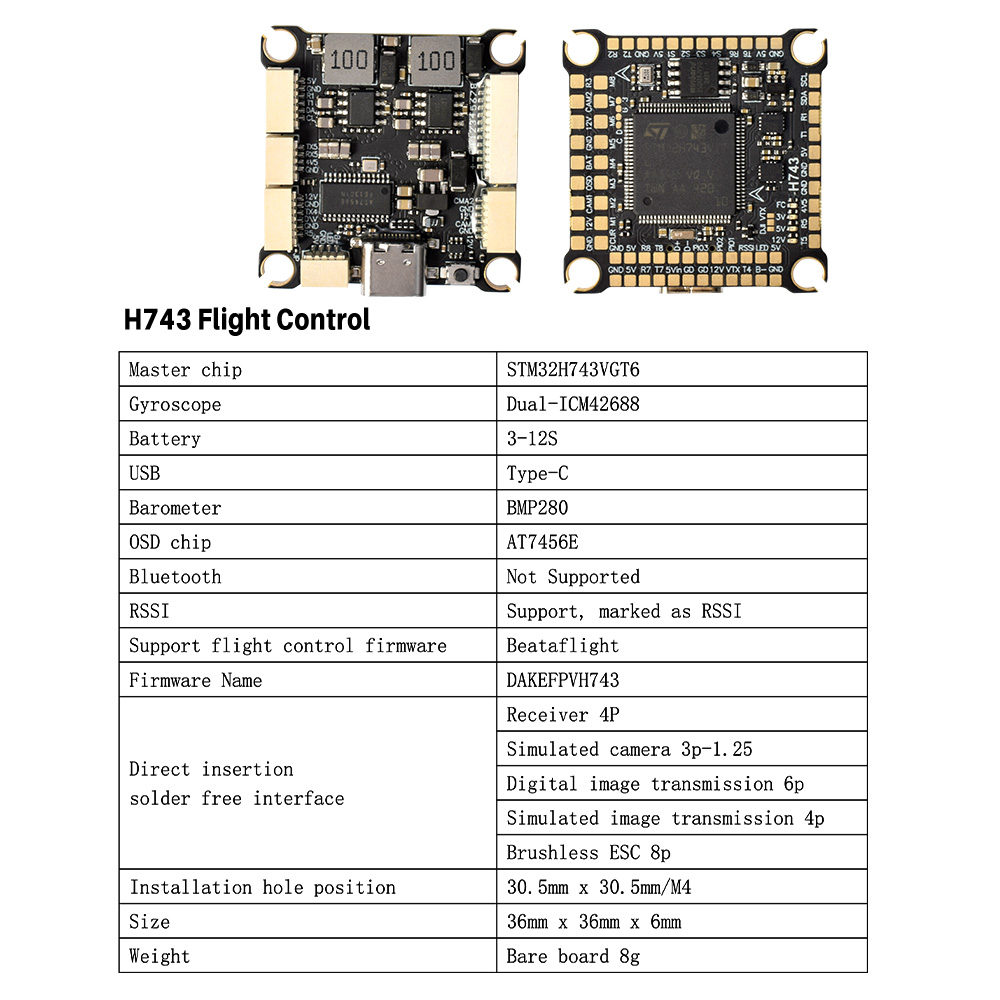

H743 Flight Control Specifications:
Master chip: STM32H743VGT6
Gyroscope: Dual-ICM42688
Battery: 3-12S
USB: Type-C
Barometer: BMP280
OSD chip: AT7456E
Bluetooth: Not Supported
RSSI: Support,marked as RSSI
Support flight control firmware: Beataflight
Firmware Name: DAKEFPVH743
Installation hole position: 30.5x30.5mm/M4
Size: 36mm x36mx8m
Weight: Bare board 8g
PWM outputs: 12
UART ports: 7
DSM protocol: not supported
INVA: Not supported
H743: Cannot support CAN
H743Pro: Supports CAN
Flash memory: 16MB

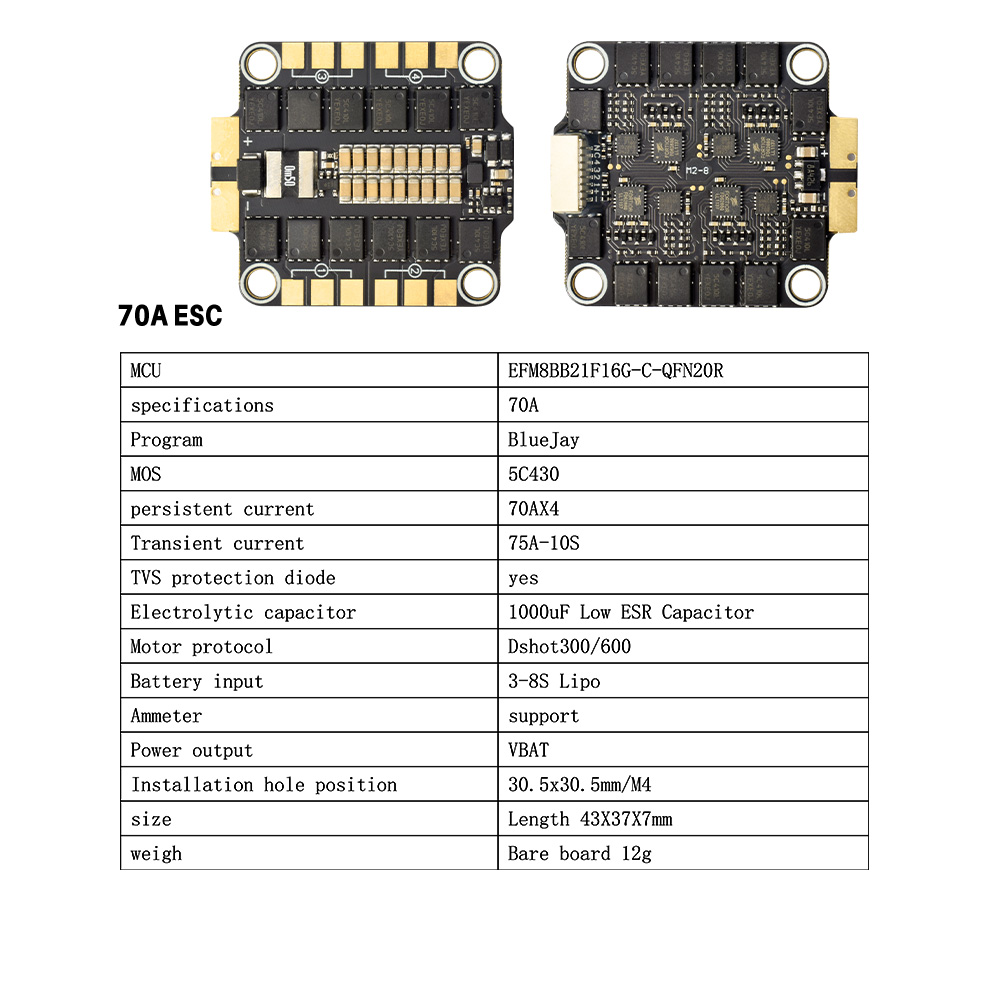

70A 4IN1 ESC Specifications:
MCU: EFM8BB21F16G-C-QFN20R
Specifi cations: 70A
Program: BlueJay
MOS: 5C430
Continlous crent: 70AX4
Transient curent: 75A-10S
TVS protection diode: YES
Electrolytic capacitor: 1000uF Low ESR Capacitor
Motor protocol: Dshot300/600
Battery imput: 3-8S Lipo
Ameter: support
Power Output: VBAT
Installation hole position: 30.5x30.5mm/M4
Size: Length 43x37x7mm
Weight: Bare board 12g
80A 4IN1 ESC Specifications:
MCU: EFM8BB21F16G-C-QFN20R
Specifi cations: 80A
Program: BlueJay
MOS: 5C430
Continlous crent: 80AX4
Transient curent: 85A-10S
TVS protection diode: YES
Electrolytic capacitor: 4700uF Low ESR Capacitor
Motor protocol: Dshot300/600
Battery imput: 3-8S Lipo
Ameter: support
Power Output: VBAT
Installation hole position: 30.5x30.5mm/M4
Size: Length 60x56x7mm
Weight: Bare board 30g

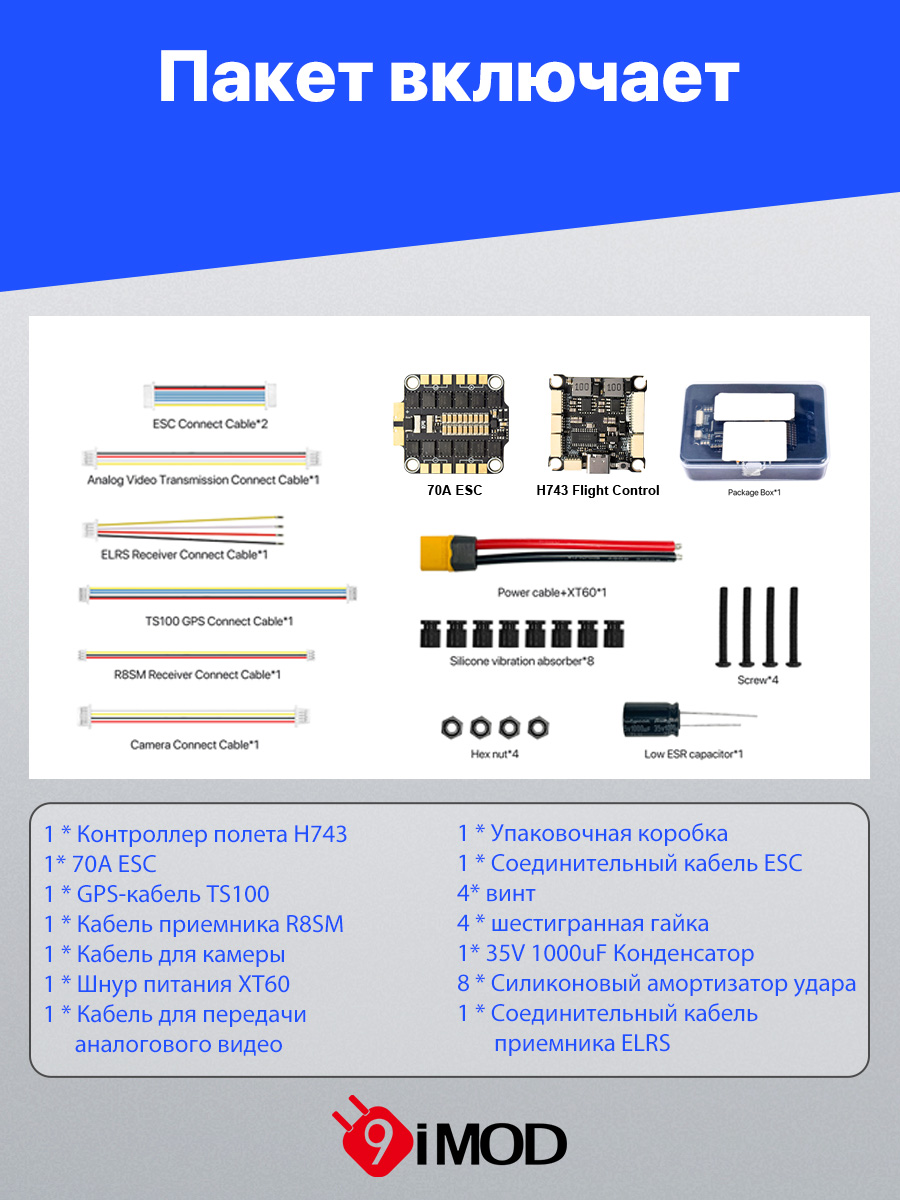

Package contents:
As you choose
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.No warranty,if you receive a defect item,please contact us at once with item picture.
4.Use the vouchers for more saving.
After purchase:
1.If you are satisfied,please express your use feeling.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. If you receive a defect item,please contact us at once with item picture or video.
