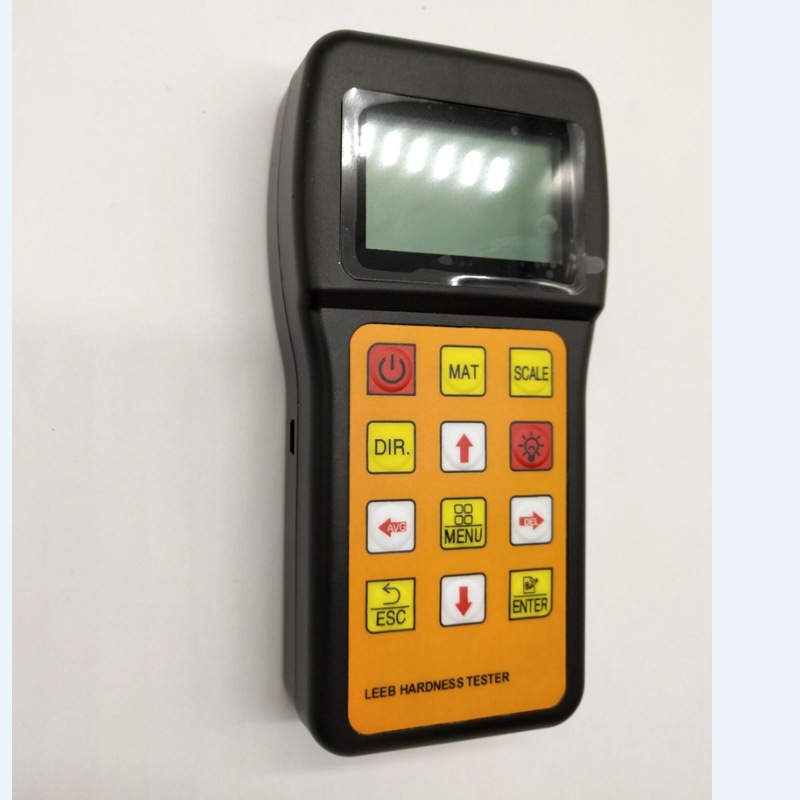

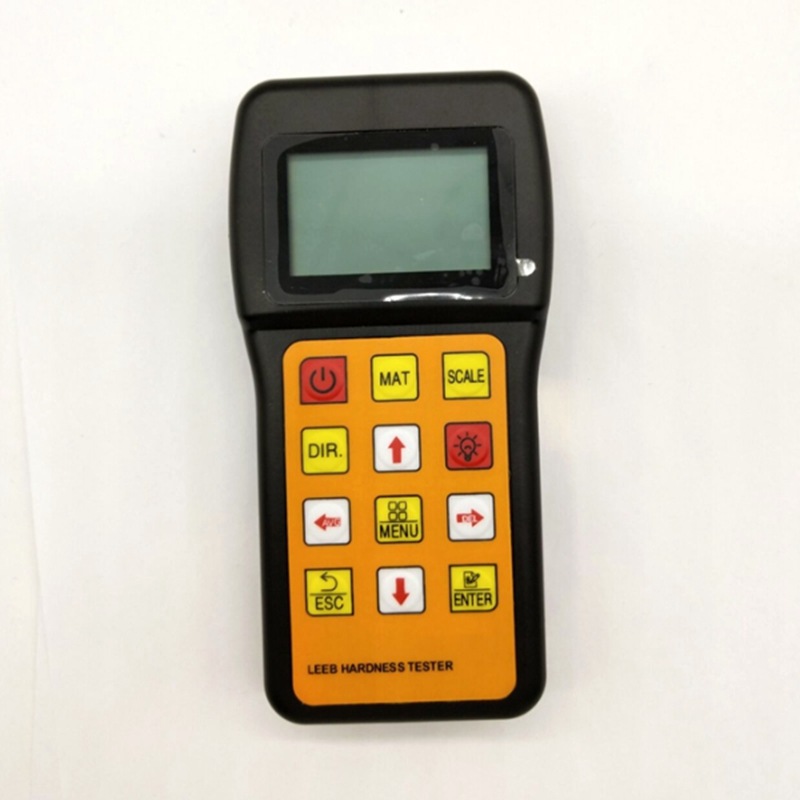

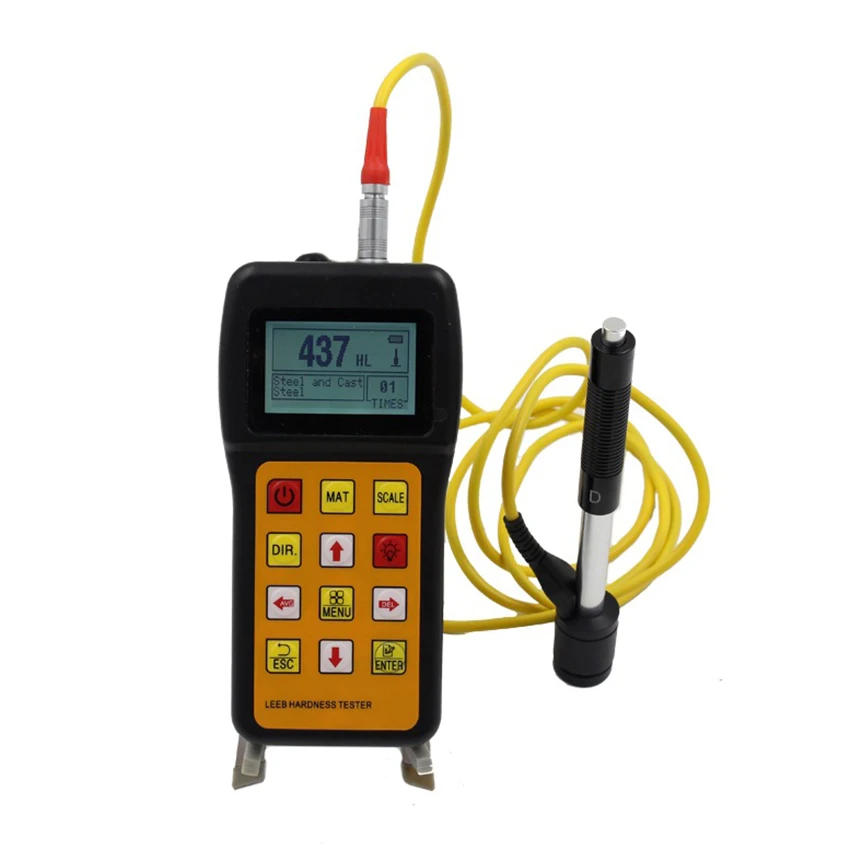

Name: JH180 Portable Leeb Hardness Tester

Measuring range: (170-960)HLD, (19-651)HB, (13.5-101.7)HRB,

(17.9-69.5)HRC, (59.1-88)HRA, (80-1042)HV, (30.6~102.6) HS

Measuring direction: 360°

Applicable materials: steel and cast steel, alloy tool steel,

stainless steel, gray cast iron, ductile cast iron, cast aluminum alloy,

copper-zinc alloy (brass), copper-tin alloy (bronze), pure copper, forged steel

Indication error and indication repeatability; D-type impact device

±6HLD (indication error) ±6HLD (indication repeatability)

Hardness system: Shore (HS), Richter (HL), Brinell (HB),

Rockwell (HRC/HRB/HRA), Vickers (HV), etc. 7 types

Upper and lower limit setting range: (170-960)HLD

Indicating value calibration: with the function of indicating value software calibration

Data storage: 373-2688 groups (the number of impacts is 32～1)

Continuous working time: about 360 hours(when the backlight is not turned on)

Power supply: AA alkaline battery (battery not delivered)

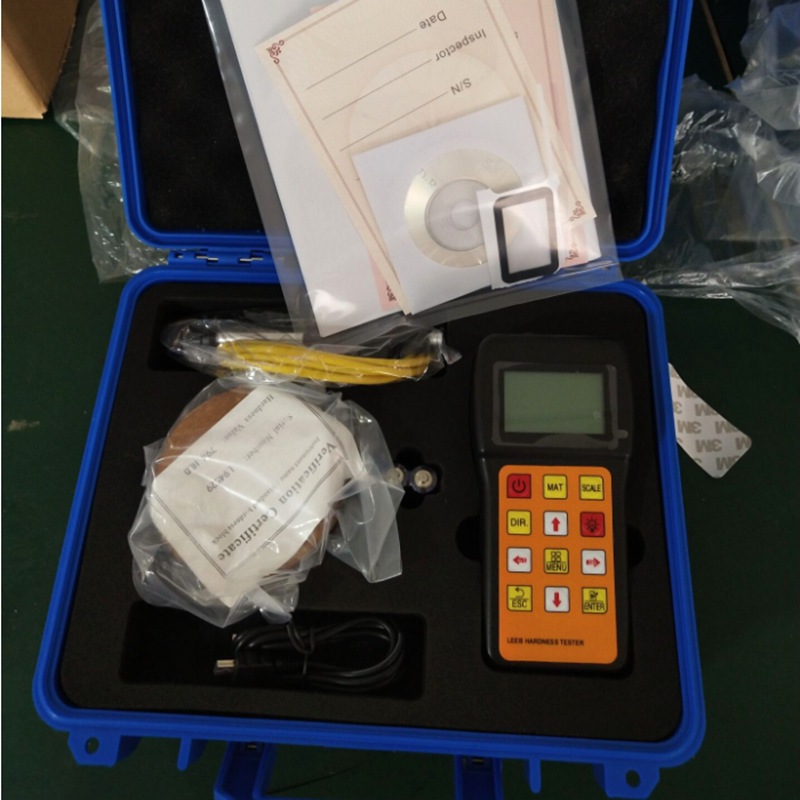

Package Included:

Hardness tester host *1

D-type impact device*1

Leeb hardness block*1

Nylon brush A*1

Small support ring*1

USB communication cable*1

Instrument case*1
