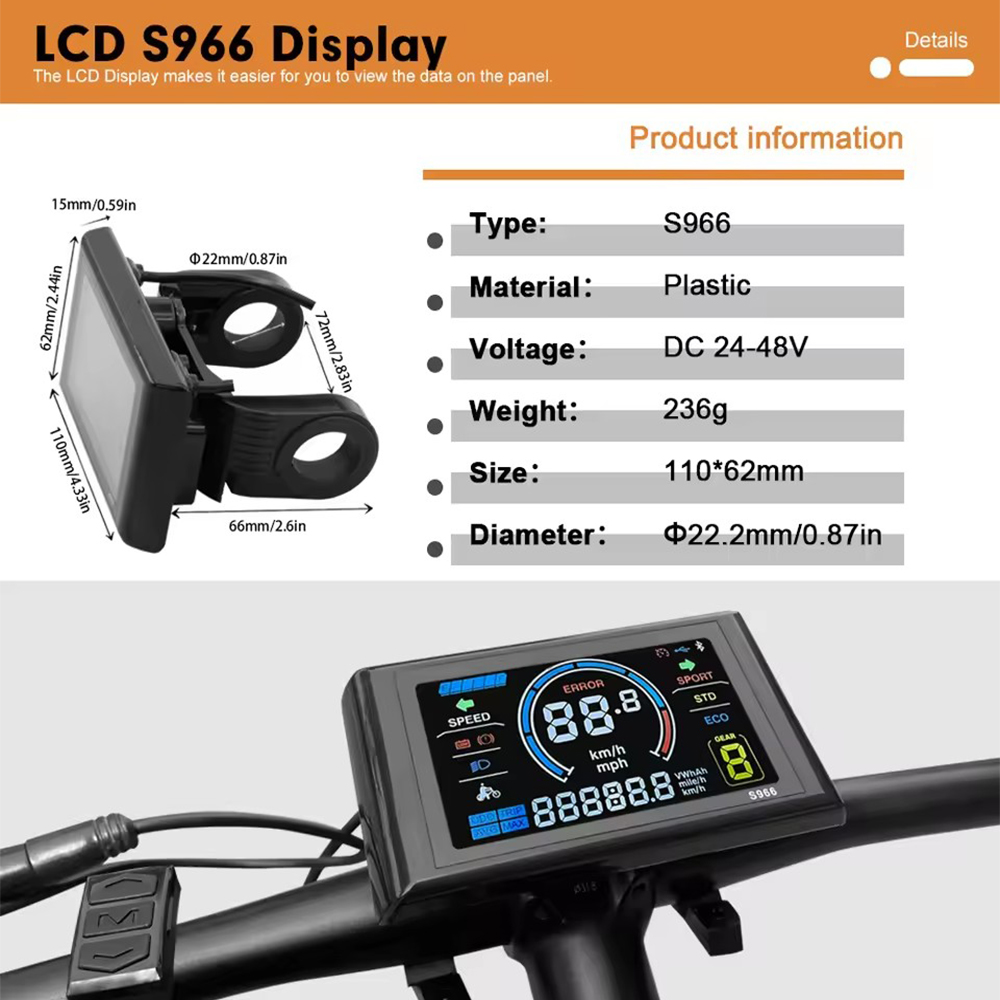

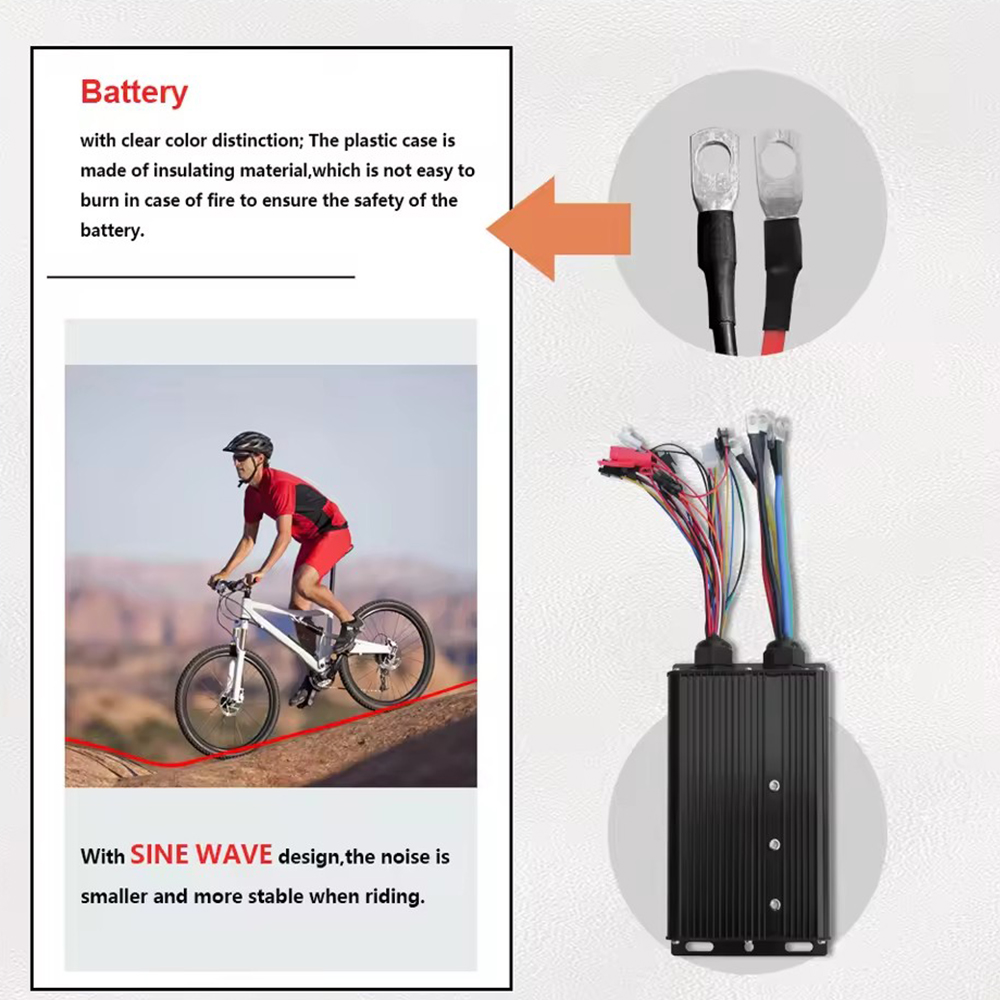

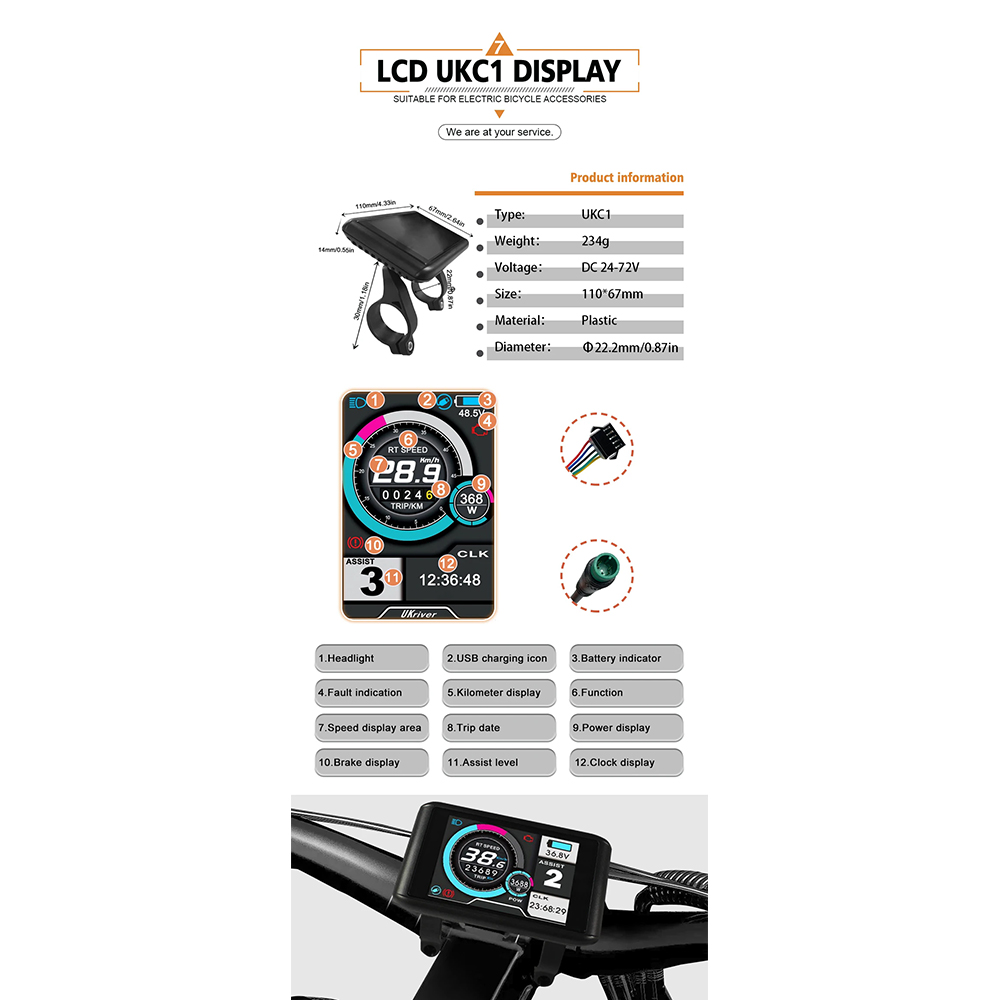

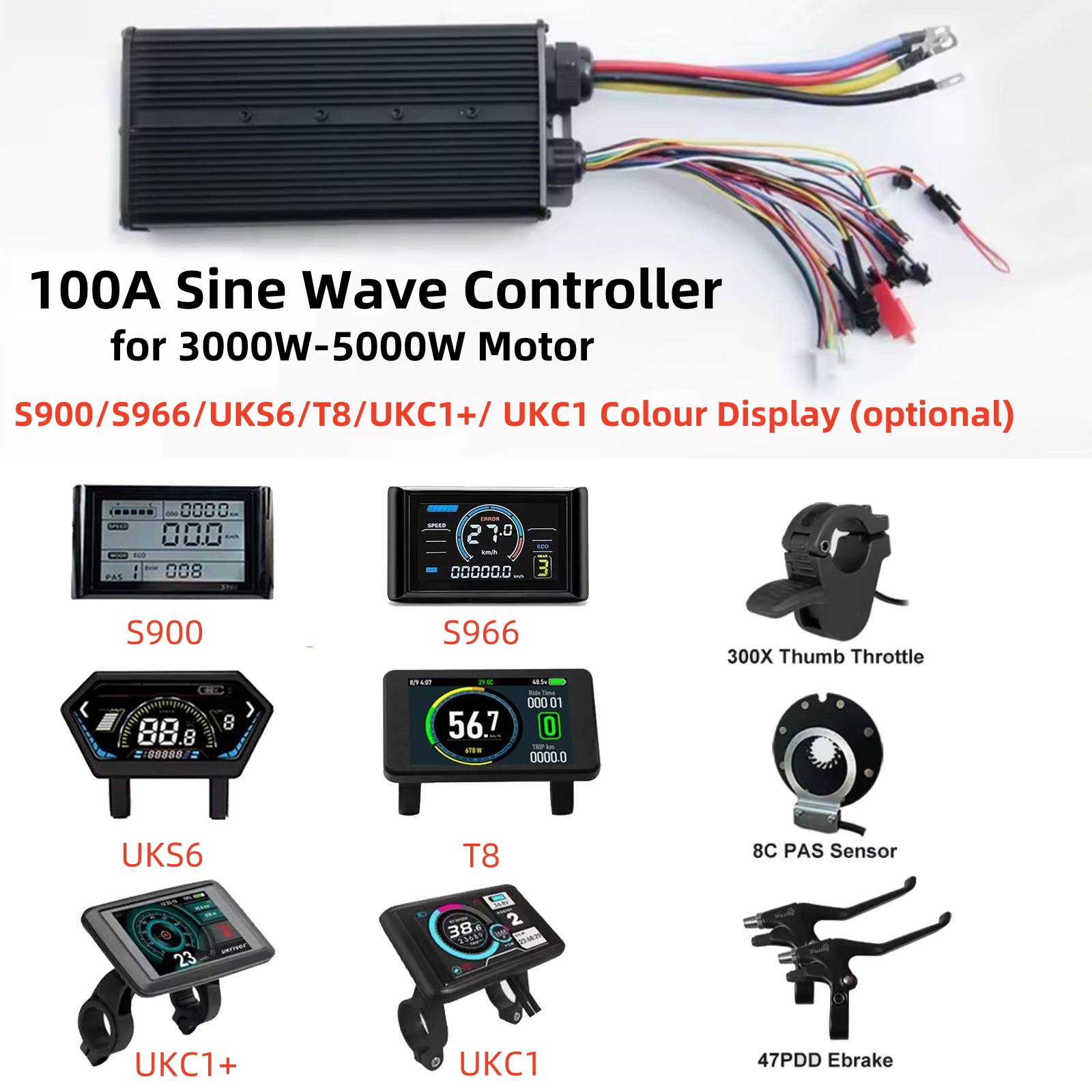

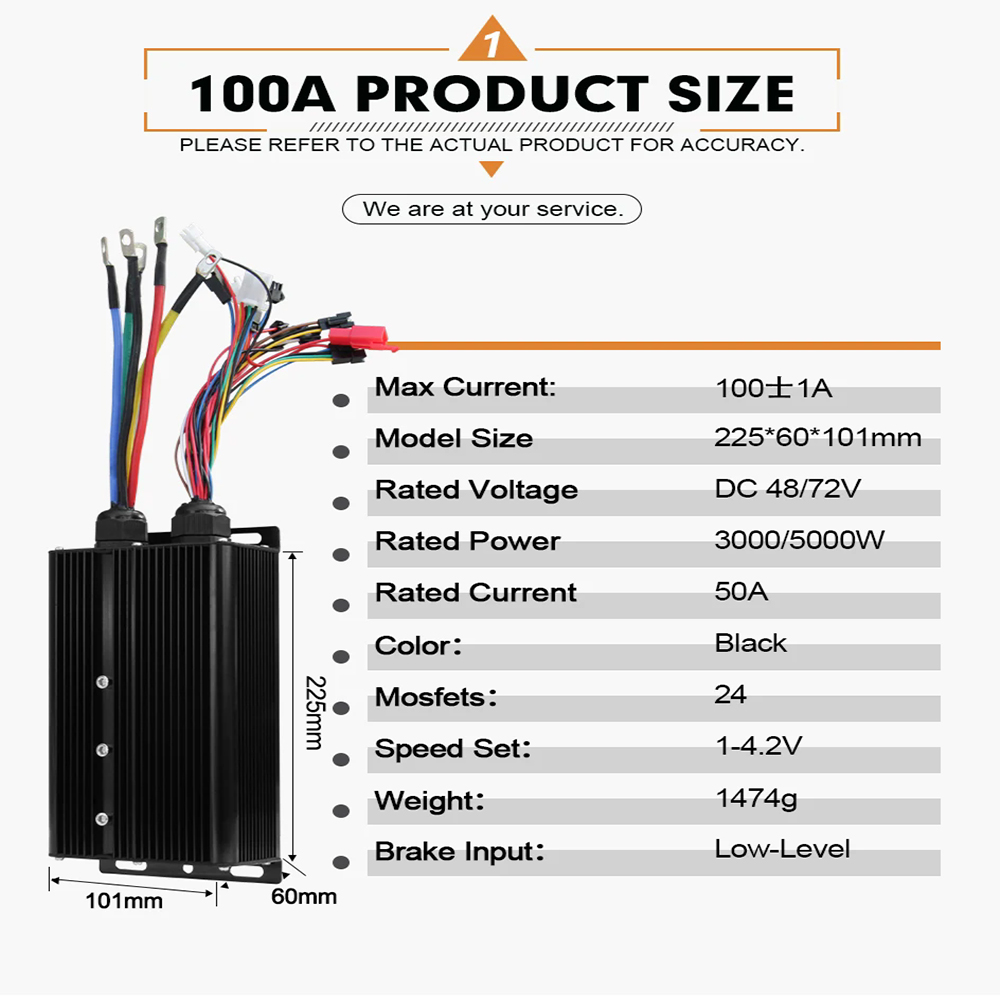

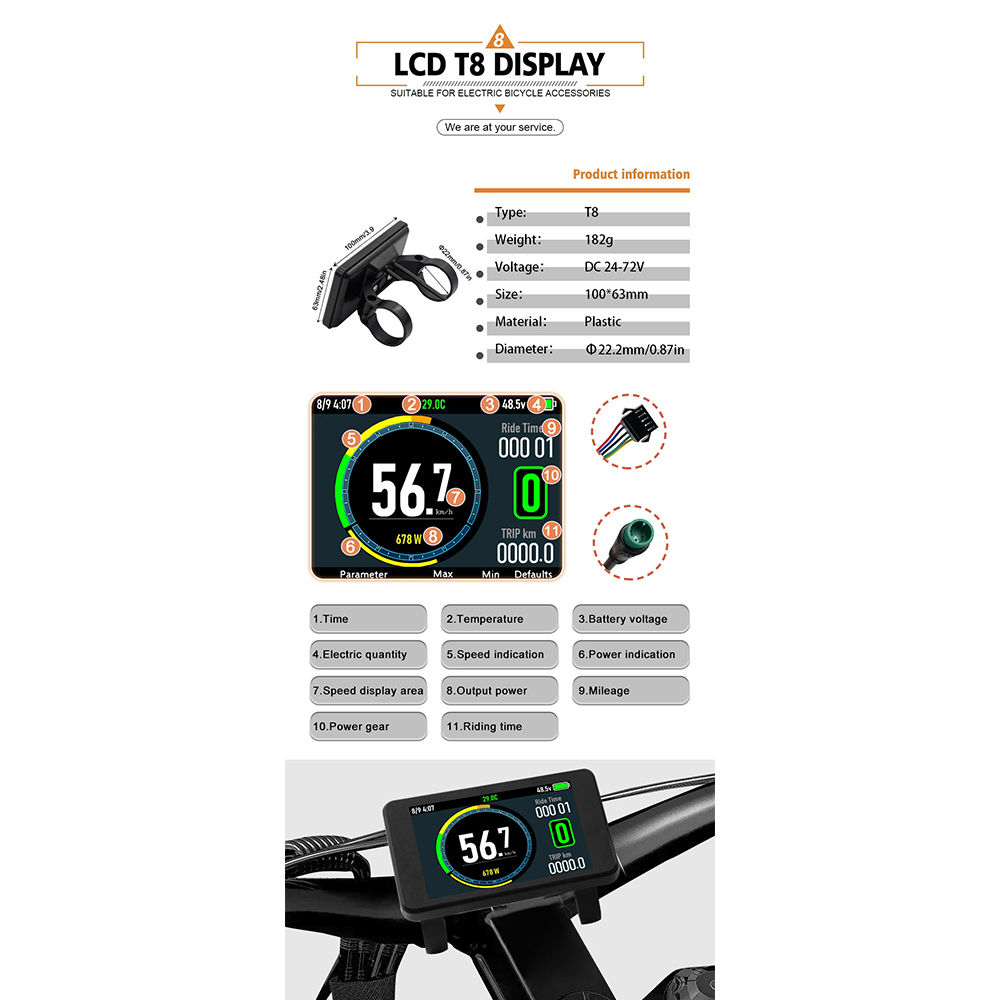

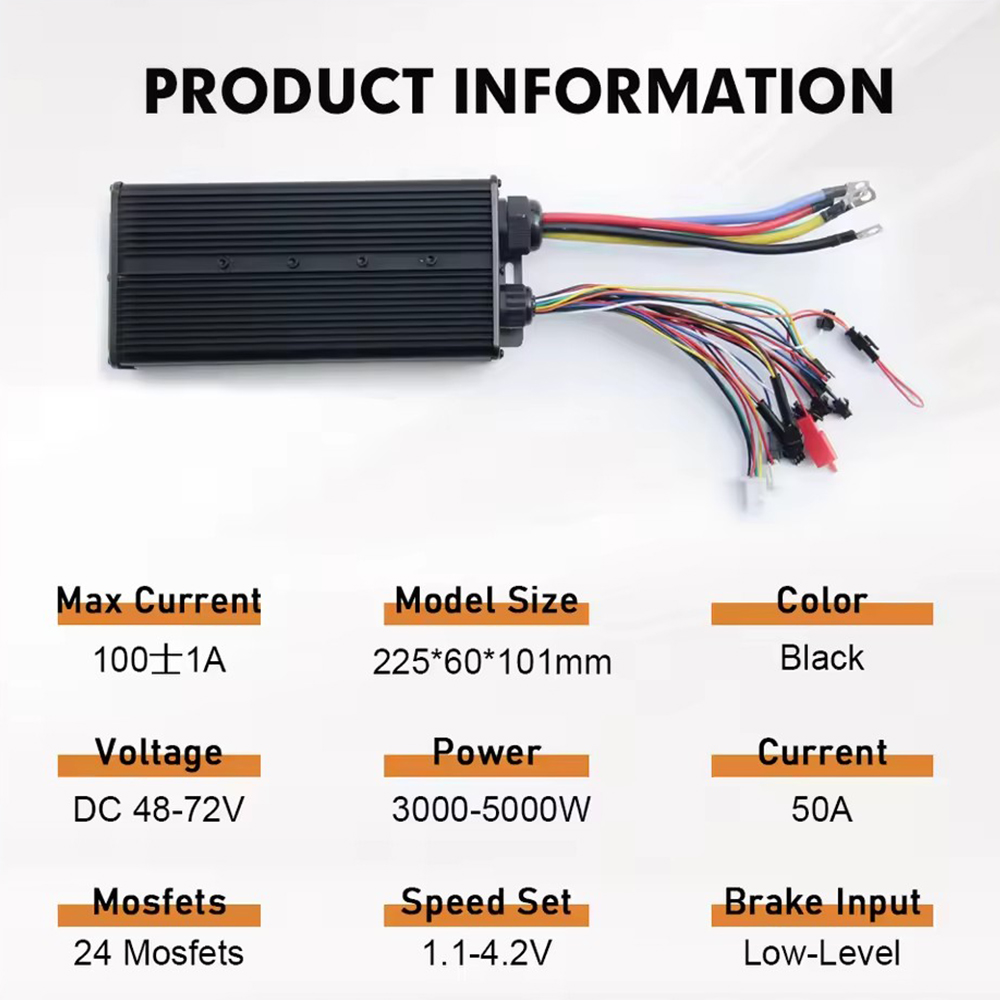

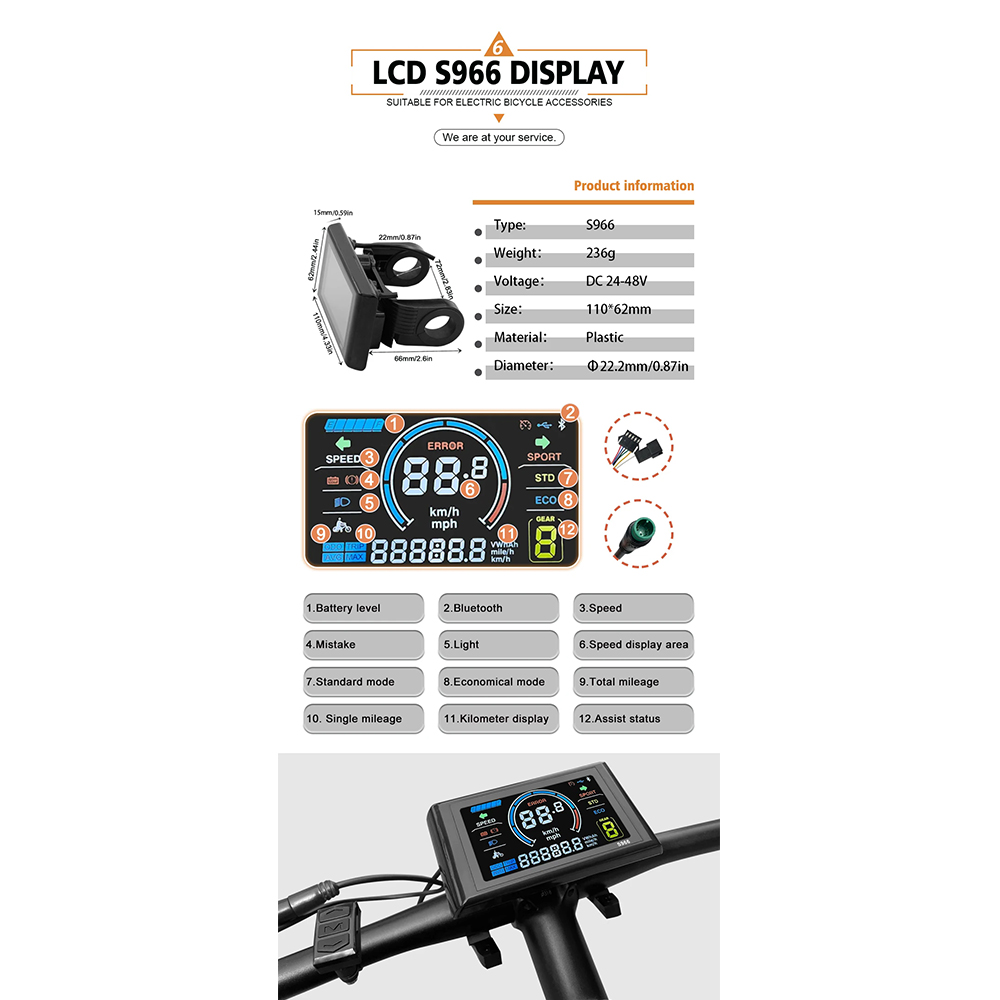

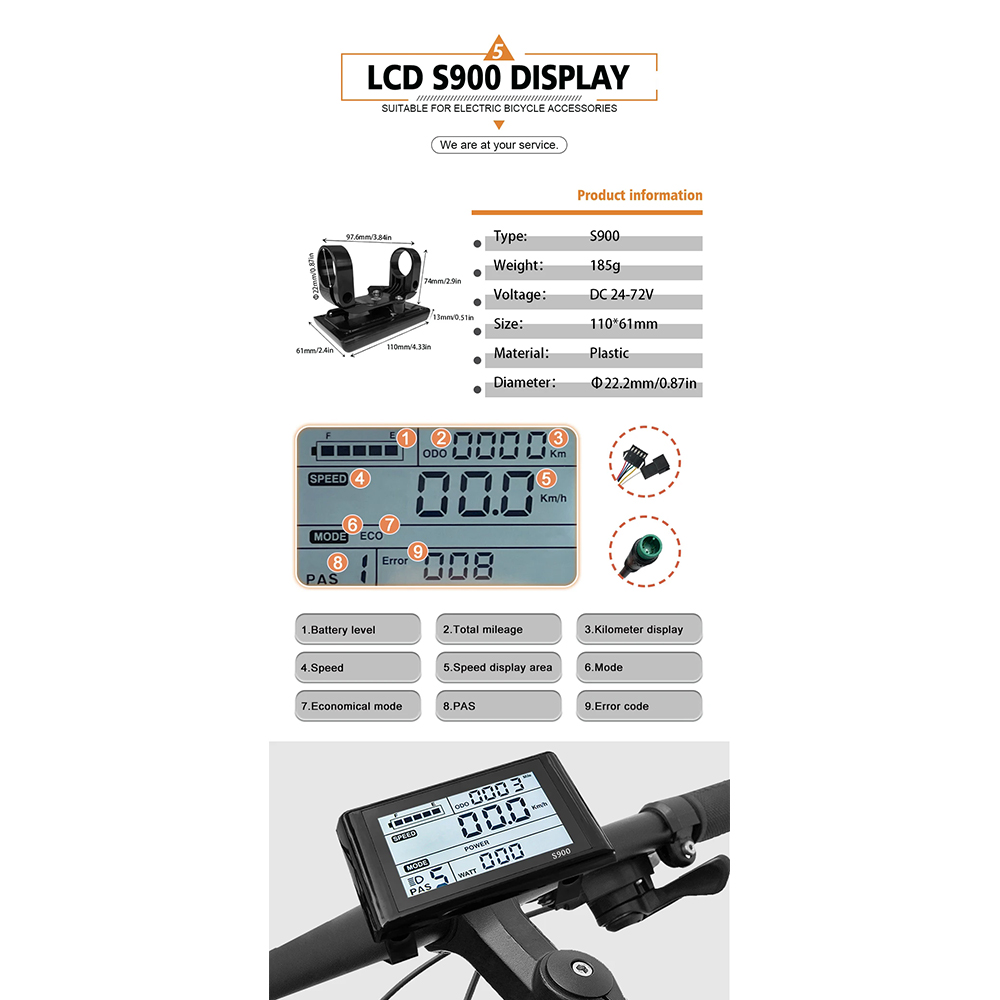

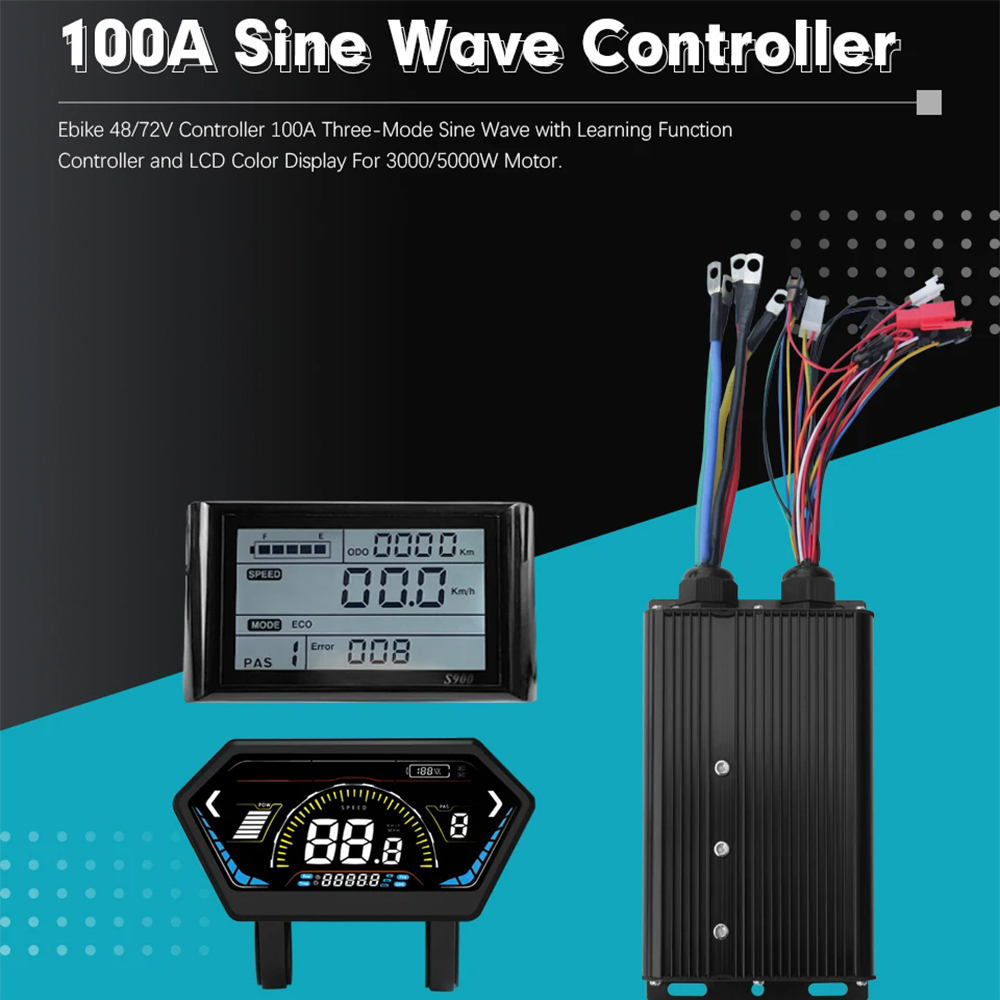

100A Controller : 1.Maximum current:100±1A 2.Size:225*101*60 mm 3.Weight:1474g 4.Mosfets:24 mosfets 5.Cable length:all about 13-18cm 6.Rated voltage:DC48V/72V 7.Speed set:1.1-4.2V 8.Rated current:50A 9.Features: a.The Display is easy to install, with clear screen display and powerful functions b.Brushless Hub Motor for 3000W/5000W, Electric Bike, Electric Bike Kit c.The controller has a headlight function, making it more convenient and safe for you to ride at night LCD Display 1.Type :LCD Color Display 2.Voltage :24V 36V 48V 52V 60V 72V 3.Plug :5Pin Female SM Plug 4.Holder Diameter :φ22mm 5.Cable Length:30cm ( SM ) 6.model:S900/UKC1/S966/UKC1+/UKS6/T8 300X Thumb Throttle: 1.Type: 300X 2.Working voltage (V): 5V 3.Output voltage (V): 0.8-4.2V 4.Turning angle (°): 0-70 5.Application: 24V 36V 48V 72V 6.Type: SM connector 7.Wiring mode: three-core wiring 8.Waterproof: IPX5 9.Material: PC+ABS 10.Color: Black 47PDD Brake Lever 1.Colour: Black 2.Cable length: 180cm/70.9in (normal connector) 3.Weight: 266g (a set) 4.Waterproof:IP76 5.Material: Aluminum Alloy Package includes: 1 * 1 set Sine Wave 3-Mode Controller
