Features:
ESC:
Sensored 8S ESC, Fully upgraded performance.

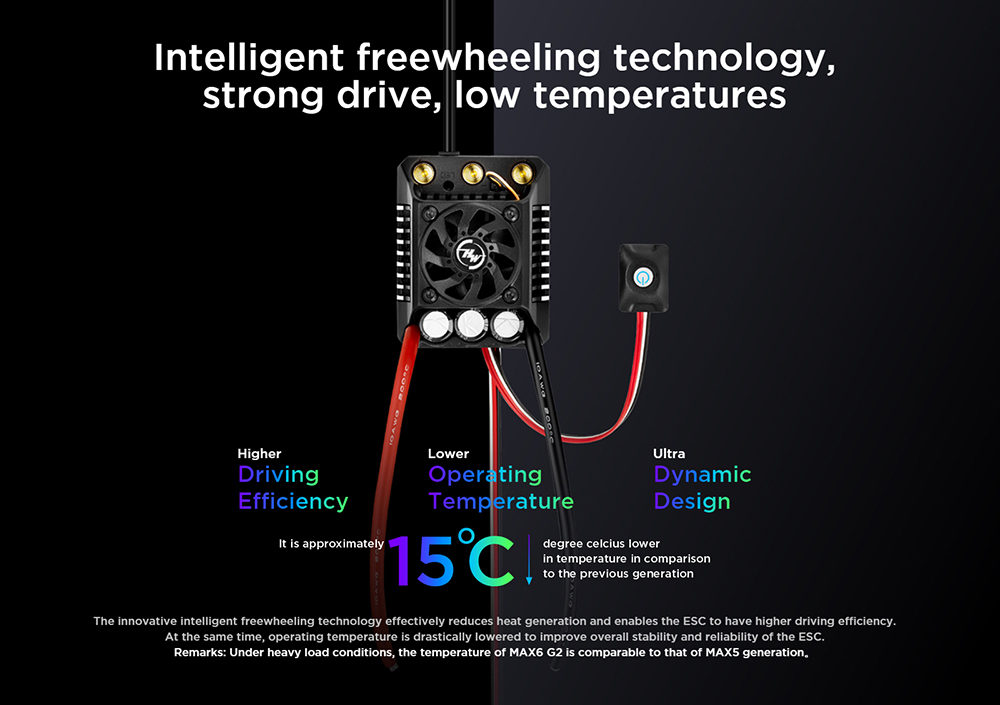

Intelligent freewheeling technology, strong drive, low temperatures.

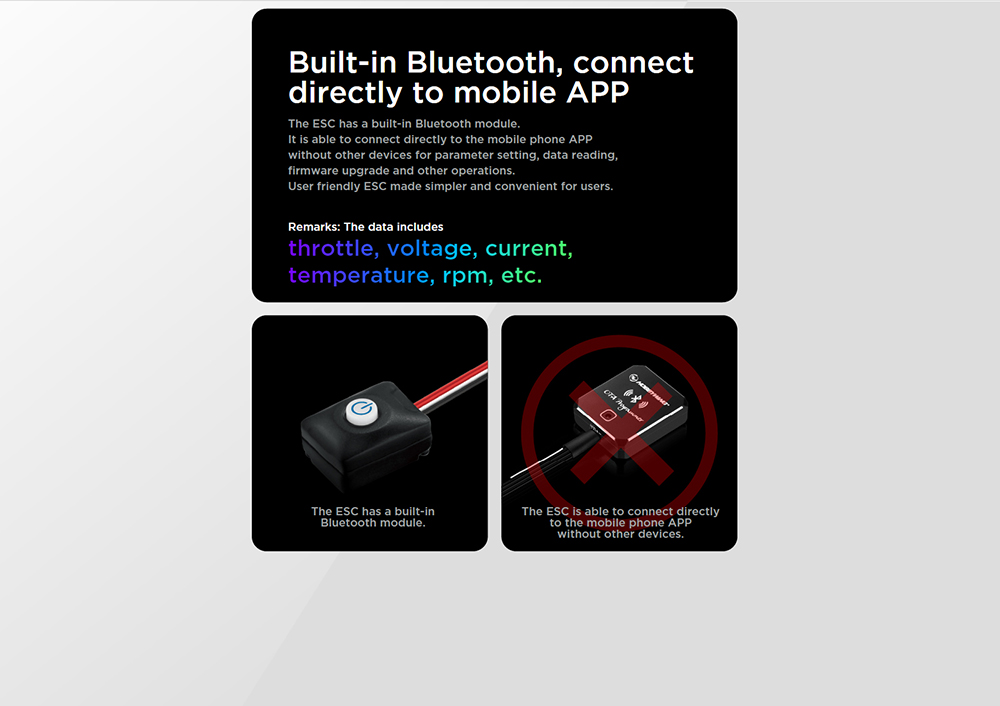

Built-in Bluetooth, connect directly to mobile APP.

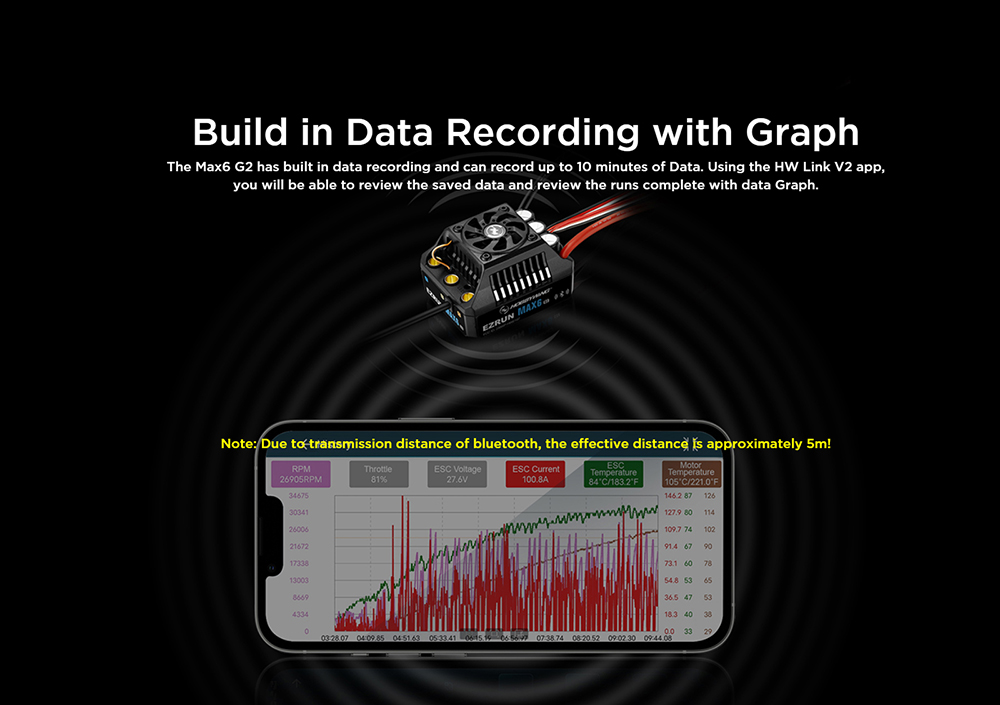

Build in Data Recording with Graph.

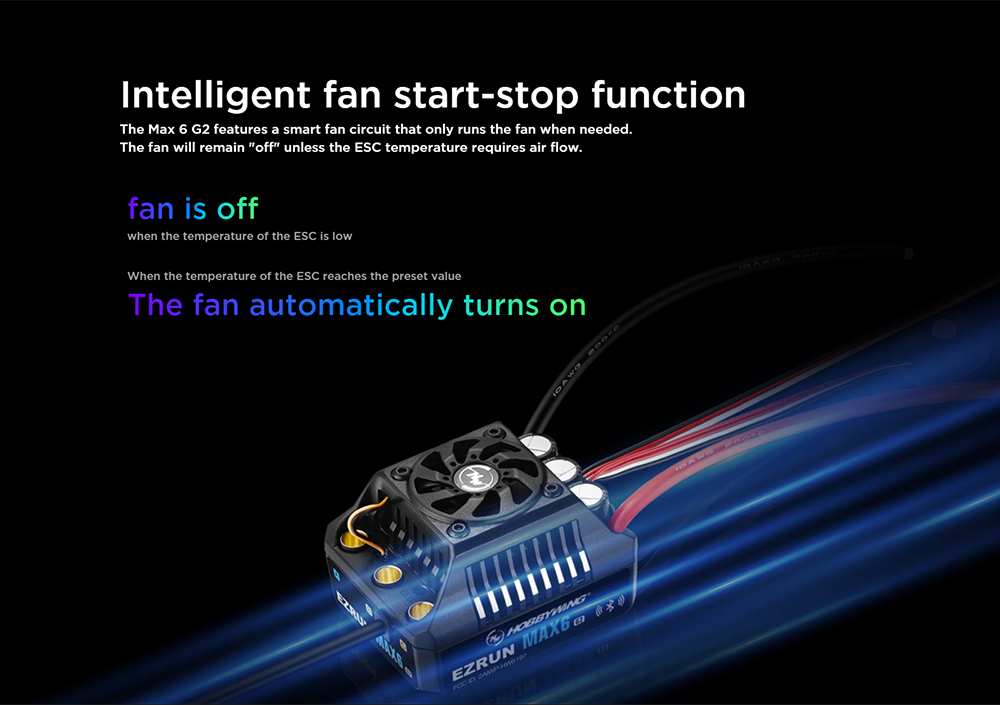

Intelligent fan start-stop function.

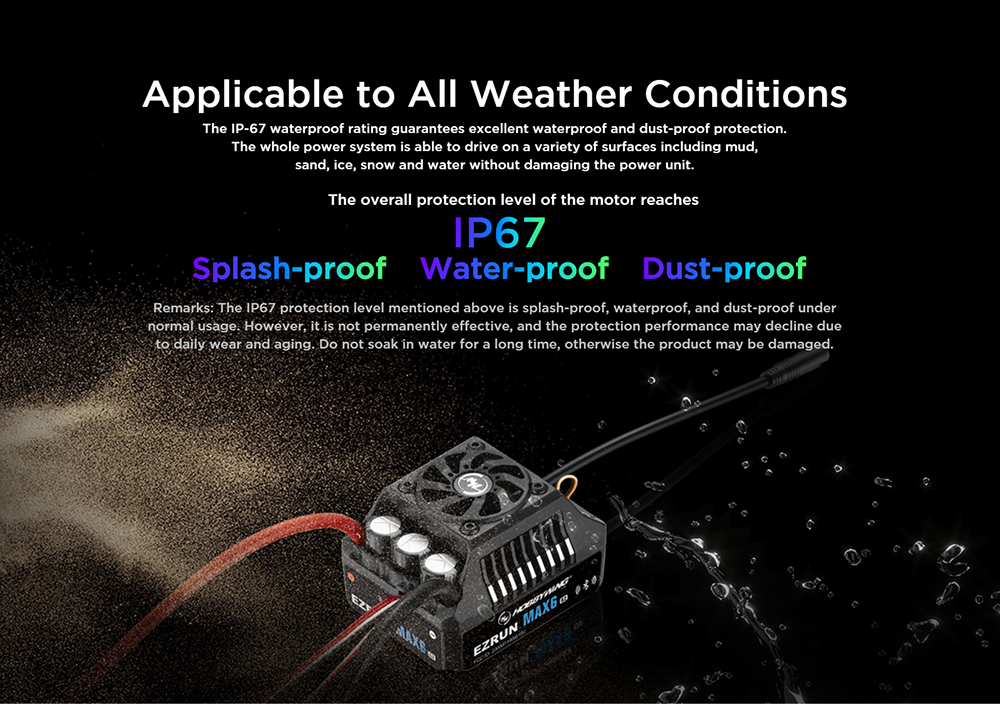

IP67 Waterproof, Applicable to All Weather Conditions.
Powerful BEC, maximum output current of up to 25A. The output voltages are switchable between 6V/7.4V/8.4V.

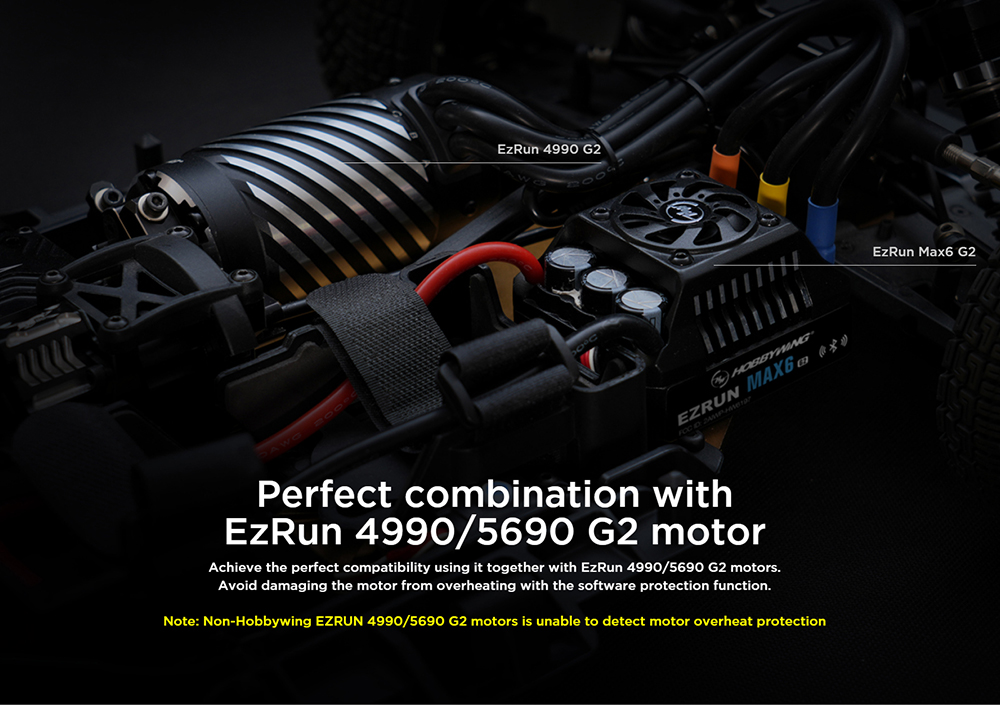

Perfect combination with EzRun 4990/5690 G2 motor.

Specifications:

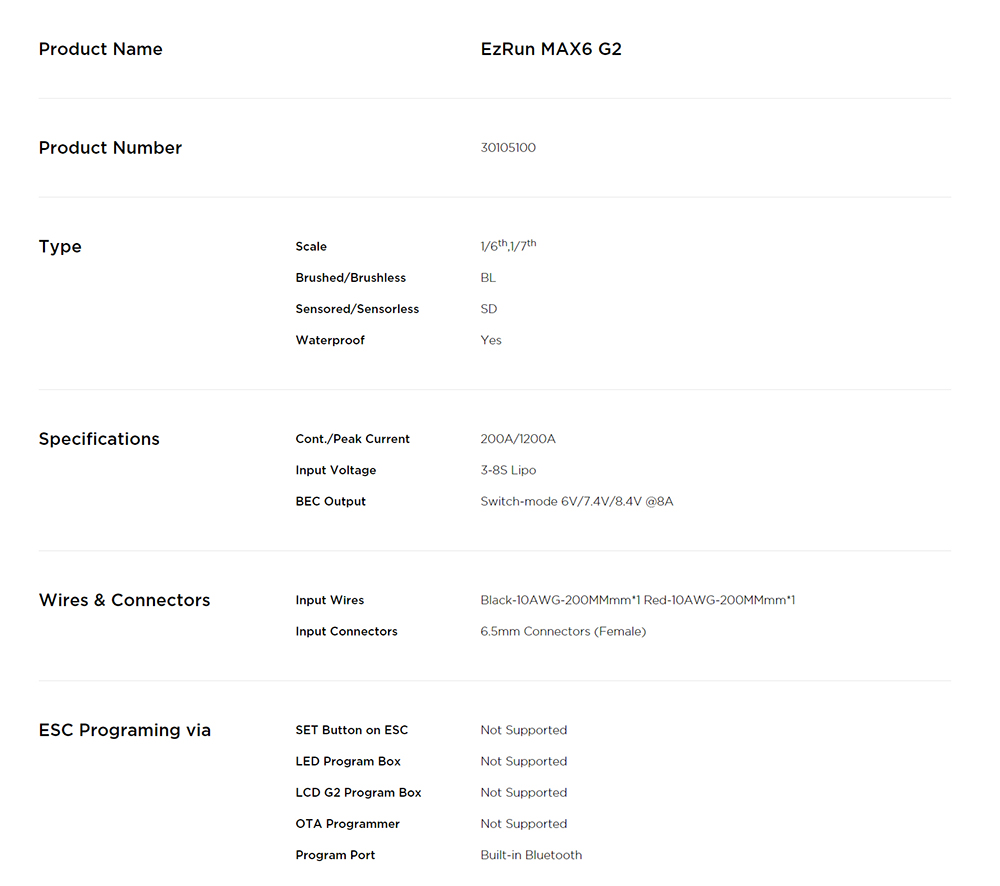

EzRun MAX6 G2 ESC
Item Number: 30105100
Scale: 1/6th, 1/7th
Type: Brushless Sensored
Waterproof: yes
Cont./Peak Current: 200A/1200A
Input Voltage: 3-8S Lipo
BEC output: Switch mode 6V/7.4V/8.4V @8A
Wires & Connectors:
Input Wires: Black-10AWG-200MMmm*1 Red-10AWG-200MMmm*1
Output Connectors: Connectors (Female)
ESC Programing via
SET Button on ESC: Not Support
LED Program Box: Not Support
LCD G2 Program box: Not Support
OTA Programmer: Not Support
Program Port: Built-in Bluetooth

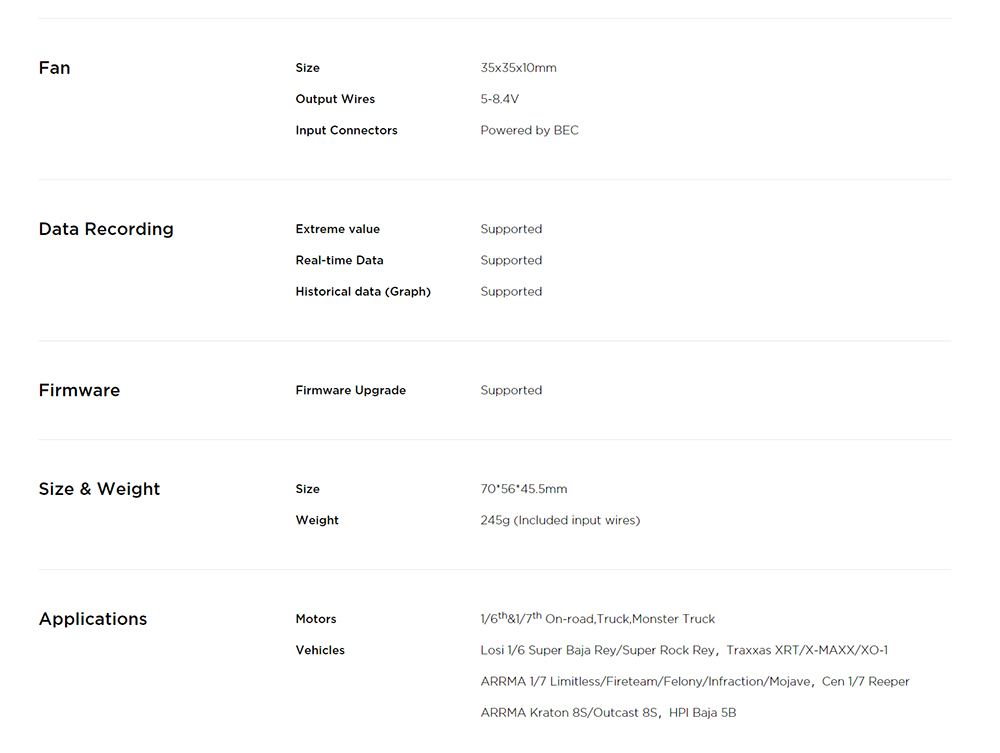

Fan:
Size: 35x35x10mm
Output Wires: 5-8.4V
Input Connectors: Powered by BEC
Data Recording:
Extreme value: Support
Real-time data: Support
Historical data (graph): Support
Firmware:
Firmware online upgrade: Support
Size & Weight:
Size: 70*56*45.5mm
Weight: 245g(Input wires included)
Applications:

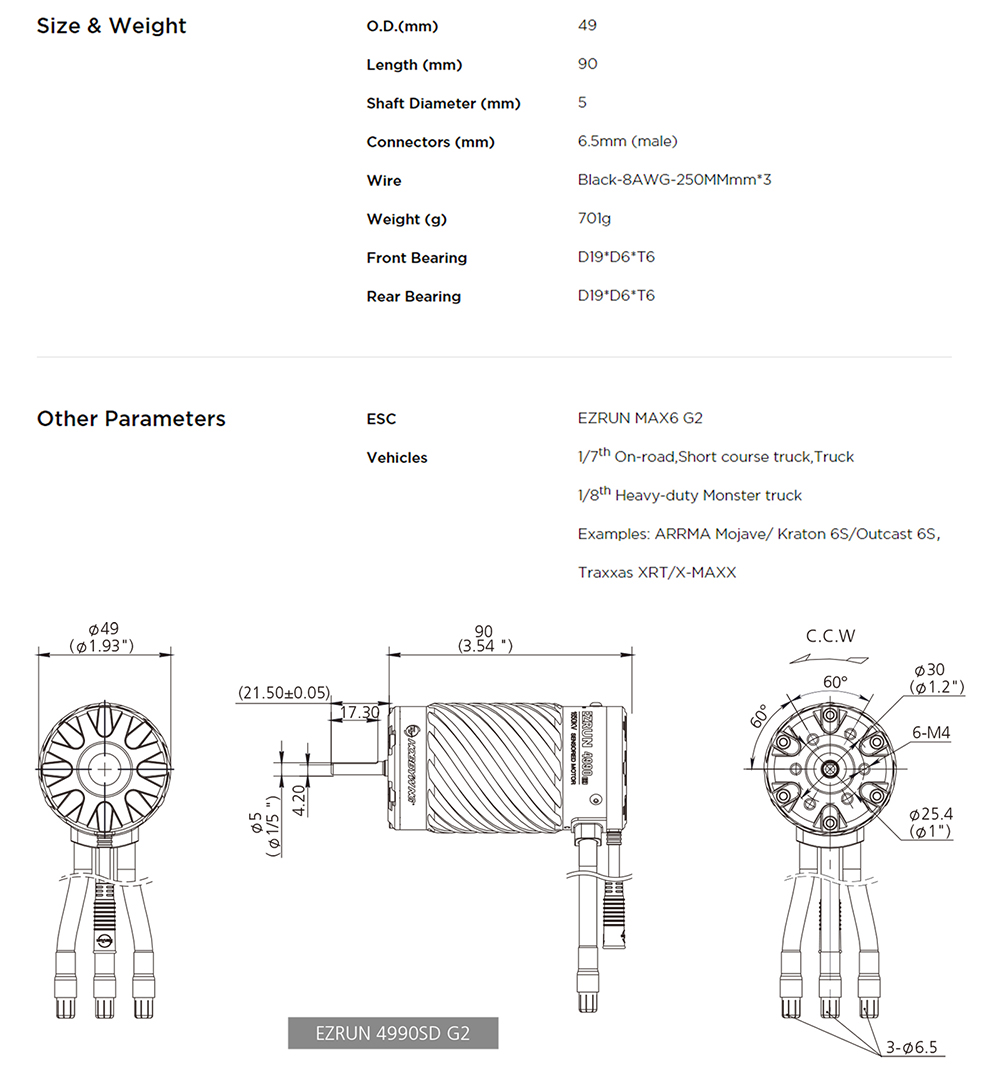

Motor: 4990, 5690 motor
Suitable RC car: 1/6th&1/7th On-road,Truck,Monster Truck
Vehicles:
For Losi 1/6 Super Baja Rey、Traxxas XRT、Traxxas X-MAXX
For ARRMA 1/7 Limitless、ARRMA 1/7 Fireteam、ARRMA 1/7 Mojave
For Cen 1/7 Reeper、HPI Baja 5B

Other Parameters:
ESC: EZRUN MAX6 G2
Vehicles:
1/7th On-road,Short course truck,Truck
1/8th Heavy-duty Monster truck
Examples: For ARRMA LIMITLESS TRAXXAS
For XRT ARRMA Mojave EXB

Package(optional):
1 * 200A ESC

Note:
Only the above package content, other products are not included.
