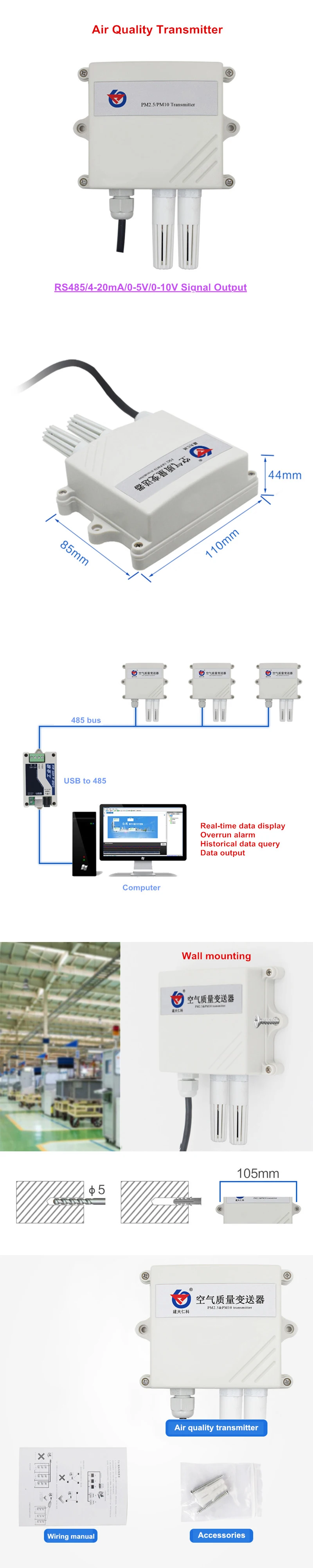

PM2.5 PM10 Air Quality Transmitter Dust Detector Sensor Particles Transmitter
Technical Parameters:
RS485 model:
1. DC power supply: 10-30V DC (0-10V can only be 24V power supply)
2. Output signal:
485 communication (Modbus protocol)
Baud rate: 2400, 4800 (default), 9600
Data bit length: 8 bits
Parity mode: No
Stop bit length: 1 bit
Default Modbus communication address: 1
Support function code: 03
3. Parameter setting: Configure with the provided configuration software via 485 interface
4. Maximum power consumption:
Current output: 1.2W
Voltage output: 1.2W
RS485 output: 0.4W
5. Output signal:
Current output: 4-20mA
Voltage output: 0-5V/0-10V
RS485 output: RS485 (Modbus protocol)
6. Load capacity:
Voltage output: output resistance ≤250Ω
Current output: ≤600Ω
7. Measurement range:
PM2.5: 0-1000 μg/m3
PM10: 0-1000μg/m3
8. Resolution: 1μg/m3
9. Warm-up time: ≤ 2MIN
10. Response speed: ≤90S
Analog model:
1. DC power supply: 10-30V DC
2. Maximum power consumption:
Current output: 1.2W
Voltage output: 1.2W
3. Resolution: 1μg/m3
4. Accuracy: ±10%
5. Working environment: -20 ° C -60 ° C, 0% RH-80% RH
6. Measurement:
PM2.5: 0-1000 μg/m3
PM10: 0-1000μg/m3
7. Warm-up time: ≤ 2MIN
8. Response speed: ≤90S
9. Output signal:
Current output: 4-20mA
Voltage output: 0-5V/0-10V
6. Load capacity:
Voltage output: output resistance ≤250Ω
Current output: ≤600Ω
Features:
1.Wall-mounted design
2. Air vent design
3. High precision probe
4. Multiple output signals
Common troubleshooting:
1) PLC can not collect data
A: Please check the device output type; whether the device is powered on.
2) the collected signal and the actual difference is very large
A: Please check the equipment range and data conversion relationship.
3) The transmitter output is beating
A: The distance between the transmitter and the collector is too long, resulting in signal disorder.
4) how to quickly determine the problem
A: temporarily do not take the post-acquisition equipment, multimeter to measure the transmitter signal output.
|
|
