Specification:

Motor:360W/180W/240W /120W
Voltage:  24V  18V(can be used in the range of 18V-32V)
Output Voltage: DC 12V (FIXED OUTPUT)
Output Current: 10A/15A/20A/30A(MAX)
Output Rated Power: 120W/180W/240W/360W
Efficiency: 97% (half load); 95% (full load)

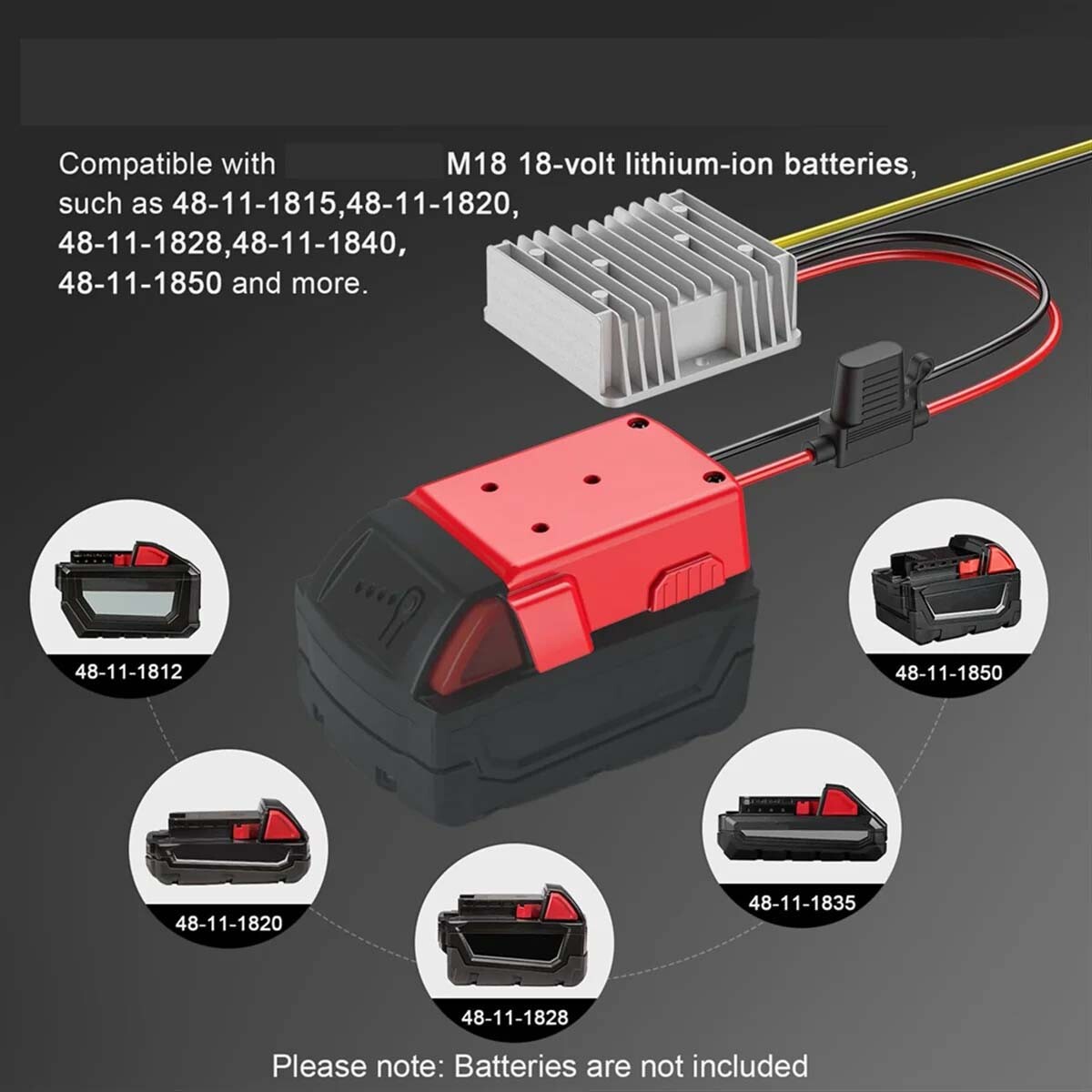

Compatibility: The DC power adapter works with Milwaukee 20V Li-ion battery(Battery NOT Included).We focus on providing reliable tools. You can save money on the battery and charger if you already have them before
Upgraded Low Voltage Protection: This voltage converters built in over low voltage protection, auto shut off if the battery voltage is lower than 14.4v, protect your 12V devices from over power. Max output current 12V/15A

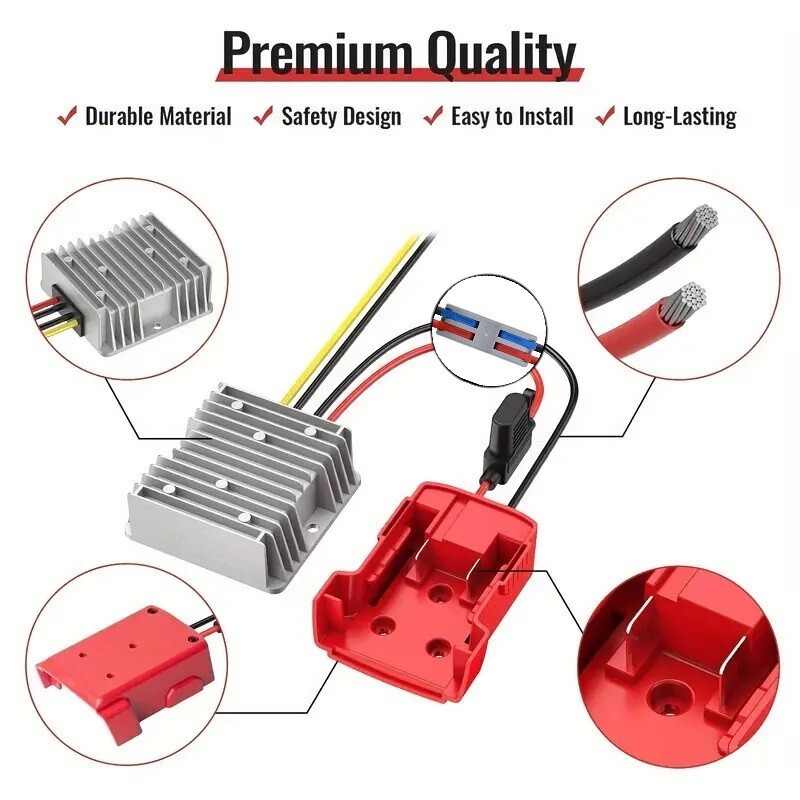

High Quality Material & Safe to Use: The automatic buck converter is made of high quality chip and high quality plastic, stable and safe. This inverter is excellent power transformers, can let you enjoy the fun of DIY
Widely Application: IWide voltage input: 18-32V , output voltage: 12V, output current: 15A, power: 180W widely used in motor, dashcam, car truck, vehicle, golf cart, led strip light, electric fan, camera, light, screen, monitoring system, solar pad and DIY etc

1. Wiring method
Input
Red wire (﹢): Connect the positive pole of the adapter (red wire);
Black wire (-): Connect the negative pole of the adapter (black wire);
Output
Yellow wire (﹢): Connect to the positive pole of the load (﹢);
Black wire (-): connected to the negative pole of the load (-);
2. Things to note
a. The buck does not have a reverse connection protection function. Please be sure to confirm the positive and negative poles of the adapter and the load before wiring to avoid reverse connection and burning the buck and the load;
b. The input end must ensure sufficient voltage and power to drive the output device;
c. The voltage of the device driven by the output end must be the same as the voltage output by the buck converter, and the power required by the load device cannot be greater than the maximum carrying power of the converter;

Package includes:

1 x 1xLithium battery adapter  (No Battery)

1 * 120W/180W/240W Step Down Converter

or

Only 120W/180W/240W/360W Step Down Converter

Or

1 x 1xLithium battery adapter

Notes:

• Due to manual measurement, there will be an error of 1-3cm.
• The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

Note：

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

24V to 12V 10A-30A Voltage Converter Only


Feature
1、This is a non-isolated DC regulated power supply module which can provide stable performance 2、100% full power, it has high stability output, the conversion efficiency is up to 92-96% 3、It is made of die-cast aluminum alloy casing which is sealed with high quality thermal silica gel, small size and easy to install 4、Wide voltage input, built-in overcurrent, overvoltage, over-stable, open circuit and other automatic protecting functions 5、Long service life, it has 100,000 hours of service life.

Features:
1. This is a non-isolated DC regulated power supply module which can provide stable performance
2. 100% full power, it has high stability output, the conversion efficiency is up to 92-96%
3. It is made of die-cast aluminum alloy casing which is sealed with high quality thermal silica gel, small size and easy to install
4. Wide voltage input, built-in overcurrent, overvoltage, over-stable, open circuit and other automatic protecting functions
5. Long service life, it has 100,000 hours of service life.

Condition: 100% Brand New

Shell Material: Die-cast aluminum alloy

10A

Input rated voltage: 24V DC(wide voltage 18-35V)

Input voltage range: 18 ~ 35V DC

Output voltage: 12V DC

Output current: 10A (max), 120W

Conversion efficiency: Over 90%

Static consumption: Less than 20MA

No-load adjustment rate: 2%

Load regulation: 3%

Operating temperature: -25°C ~ +65°C

Wire lengths: About 12~13cm

Waterproof Rating: Ip67

Size: 66 x 58 x 23mm/2.52 x 2.28 x 0.87inch

Weight:approx.100g

15A

Specification:
Condition: 100% Brand New
Input Voltage: 24V DC
Input Voltage Range: 18-32V DC
Output Voltage: 12V
Output Current: 15A
Output Rated Power: 180W
Output Peak Power: 130%
No-Load Current: < 15mA
Operating Temperature: -35℃ to +80℃
Waterproof Rating: IP68
Heat Dissipation Method: Natural Heat Dissipation in Die-Cast Aluminum Housing

20A

Material: aluminum

Size: 74x74x32mm(L*W*H)

Input voltage: DC24V (wide voltage 18-35V)

Output current: 20A

Output voltage: DC12V

Output power: 240W

Output ripple: 150MV

Working temp: -40~85 ℃

Waterproof rating: IP68

Over-voltage protection: YES

Over-current protection: YES

Over-temperature protection: YES

Short-circuit protection: YES

Cooling way: Free air convection

30A

Input voltage: DC 24 V (wide voltage 18-35V)

Output parameter : DC 12 V ± 0.25V

Output power: 30A 360W

Working temperature: (-40 ℃-80℃) when it is more than 40℃,please make lower power, or enhance heat dissipation

Full load temperature rise: 50℃

Load regulation: ± 1%

Voltage regulation rate: ± 2%

Minimum pressure: 2V

Size: 74x74x32mm(L*W*H)

Package List:

1 * Step Down Converter

Wiring:
Input: red line (+) positive, black line (-) negative
Output: yellow (white) line (+) positive, black (-) negative

(Note: The product has no polarity protection. Please carefully connect the wiring carefully. If the connection is wrong, the power supply will be damaged.)

Size: 74x74x32mm(L*W*H)
