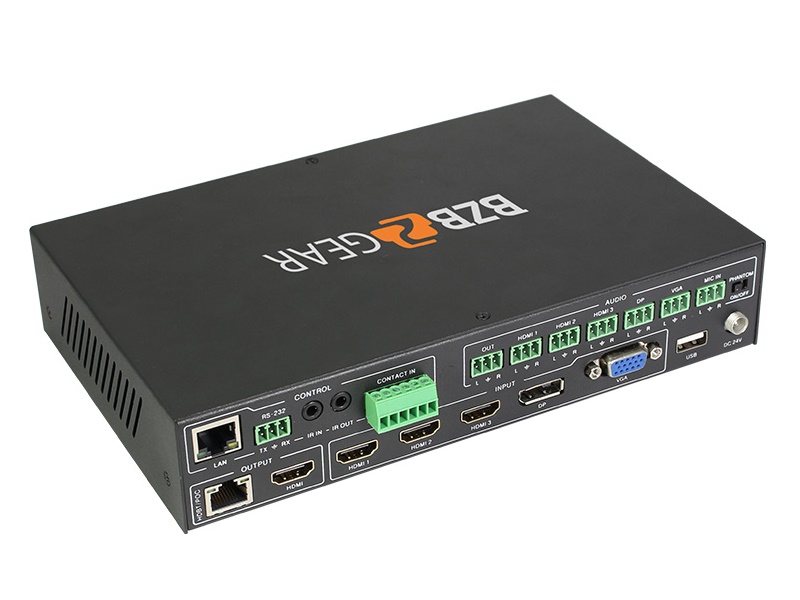

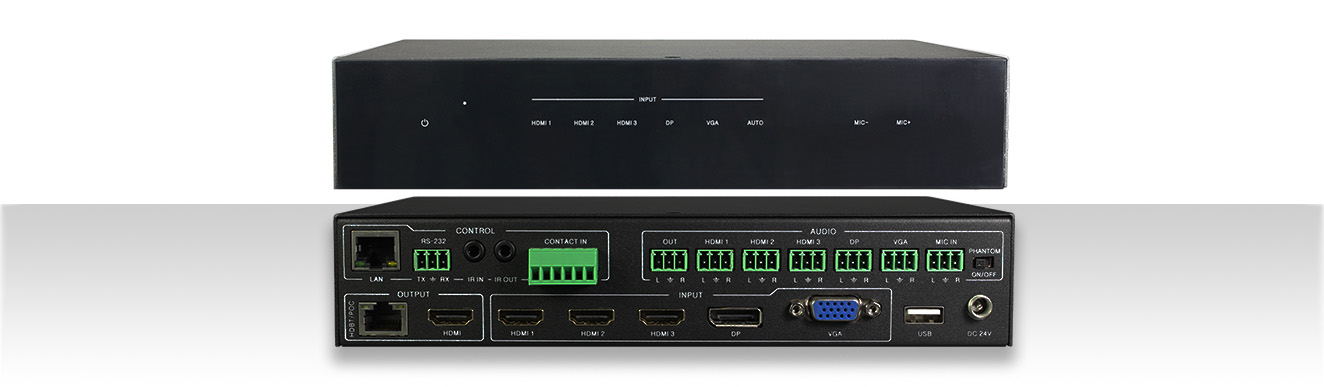

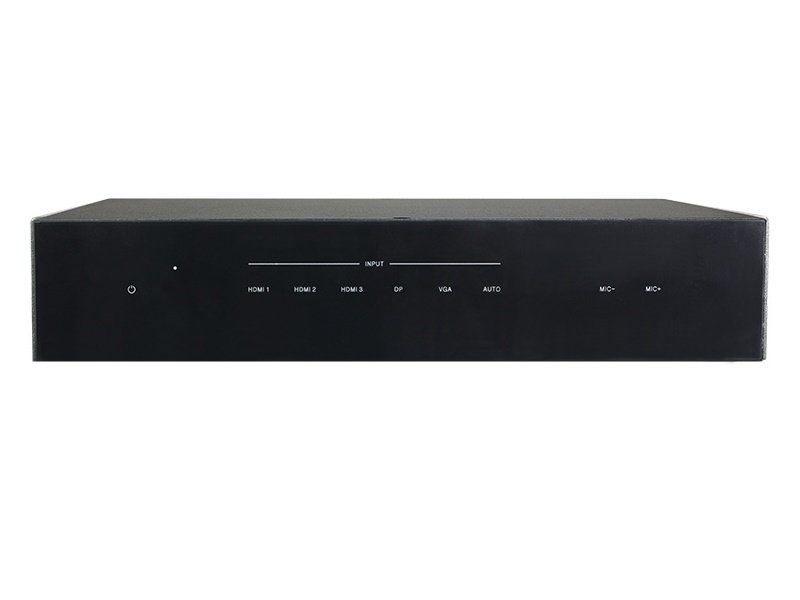

BZBGEAR BZ-SC-51UHD-HDBT 5x1 Multiformat 4K60 Presentation Switcher/Scaler w/HDMI/VGA/DP and HDBASET/HDMI Out

The BZ-SC-51UHD-HDBT Presentation Switcher delivers a crisp 4k@60Hz (4:4:4) resolution supporting 5-Source inputs including 3-HDMI ports, 1-VGA (YPbPr/CVBS) and 1-DisplayPort, with perfect scaling to the HDMI 2.0b output and HDBaseT mirrored outputs. This presentation switcher offers flexible connections for audio which includes unbalanced audio, MIC In and lines out. The audio processor is equipped with an auto-mixer and auto gain control to mix or reduce background sound to amplify the audio source. The unit offers easy configuration and control through IR, Telnet, WebGUI, and RS-232.

Cost effective and featured packed, this presentation device is a great solution for business professionals, and classrooms and conference rooms.

Manufacturer: BZBGEAR
SKU: BZ-SC-51UHD-HDBT
Condition: New
Warranty: 3 Years

Features

  • Supports HDMI 2.0b, and it is HDCP 2.2 compliant
  • 3xHDMI, 1xVGA(YPbPr/CVBS), 1xDisplayPort, 1xMIC In, 4 unbalanced audio input, HDMI and HDBaseT(230ft/70M) outputs (Mirrored)
  • HDMI/DP video resolutions up to 4K2K@60Hz(4:4:4),4K2K@30Hz, 1080p@120Hz
  • Supports VGA resolutions up to 1920x1200@60Hz
  • Supports Output resolutions up to 4K2K@30Hz
  • Features automatic and manual switching modes
  • It supports EDID management
  • It supports pass-through of PCM 2CH
  • Permits control using Touch Panel button, WebGUI, IR remote, Desk Plate, and RS-232 control

Product Video


For a detailed demonstration on how this product connects and operates, check out our video!

  • Device capabilities and compatibility.
  • Type of connections available.
  • How to set up and use software if applicable.
  • Useful tricks and tips.

Specifications


Technical
HDMI Compliance HDMI 2.0b
DP Compliance DisplayPort 1.2a
HDCP Compliance HDCP 2.2 and HDCP 1.4
Video Input Resolutions HDMI/DisplayPort: up to 4K2K@50/60Hz(4:4:4)
CVBS: PAL/NTSC3.58/NTSC4.43/SECAM/PAL M/PAL N
YPBPR: 480i to1080p
VGA: 640x480/60 to1920x1200/60
HDMI/HDBT OutputResolutions 4K2K/30,4K2K/25,1920x1080p60, 1920x1080p50, 1280x720p/60, 1280x720p/50, 1024x768/60,1280x800/60, 1360x768/60,1400x1050/60,1680x1050/60, 1920x1200/60
Audio Formats LPCM 2.0CH
ESD Protection Human body model � �8kV (air-gap discharge) & �4kV (contact discharge)

Connections
Input ports 3x HDMI Type A [19-pin female] 1x Display Port [female] 1x VGA [female] 1 x MIC input[3-pin phoenix port] 5x Stereo inputs [3-pin phoenix port]
Output ports 1x HDMI Output Type A [19-pin female] 1x HDBaseT Out [RJ45] 1x Stereo Output [3-pin phoenix port]
Control interfaces 1x IR in [3.5mm mini jack] 1x IR out [3.5mm mini jack] 1x CONTACT IN [6-pin phoenix port] 1x RS-232 [3-pin phoenix port 1x Web GUI [RJ45] 1x USB Type A [5-pin female]

Mechanical
Housing Metal
Color Black
Dimensions 150mm [W] x 220mm [D] x 44mm [H]
Weight 1250 [g]
Power Supply DC 24V/1A Adaptor (US/EU standards, CE/FCC/UL certified)
Power Consumption 9W [Main unit] 18W [Main unit + HDBaseT Receiver]
Operation Temperature 32 - 104�F / 0 - 40�C
Storage temperature -4 - 140�F / -20 - 60�C
Relative Humidity 20 - 90% RH (no condensation)

Package contents

  • 1x 5x1 4K60 Presentation Switcher

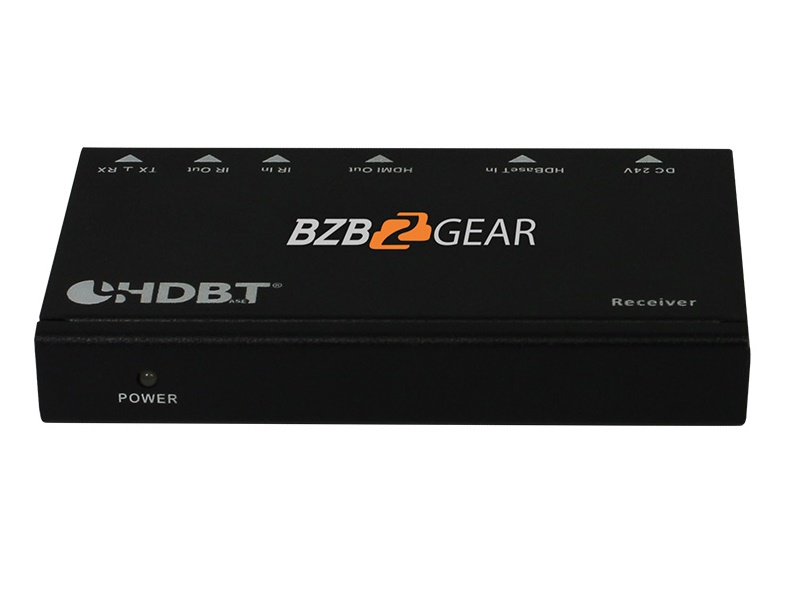

  • 1x HDBT Receiver
  • 2x Mounting ears
  • 1x Remote Control Unit
  • 2x IR Receiver Cable(with carrier wave)
  • 2x IR Emitter Cable
  • 1x 24V/1A Power Adapter
  • 1x 3RCA(Female) to D-SUB(Male) Cable
  • 1x User Manual

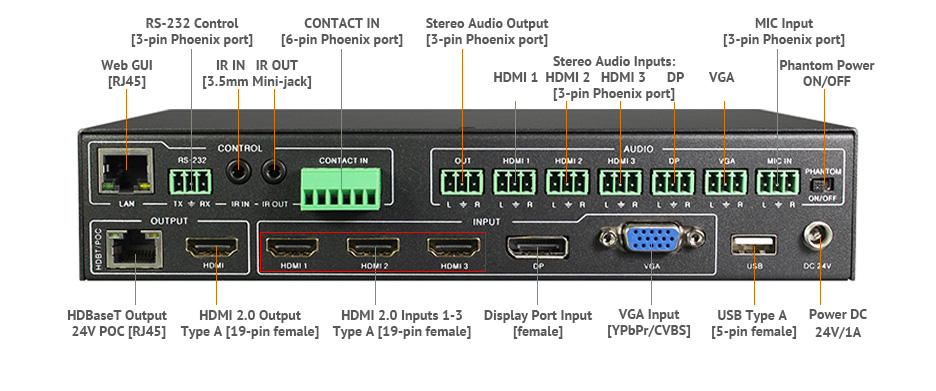

Device interface

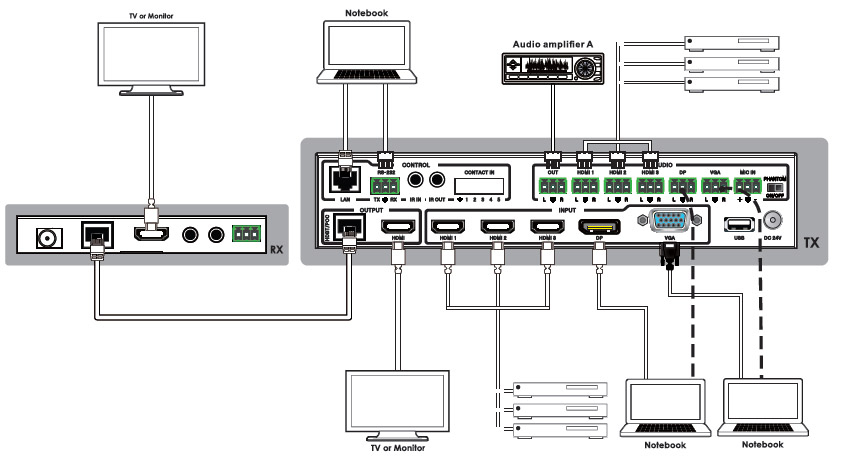

Diagram
