Attention:

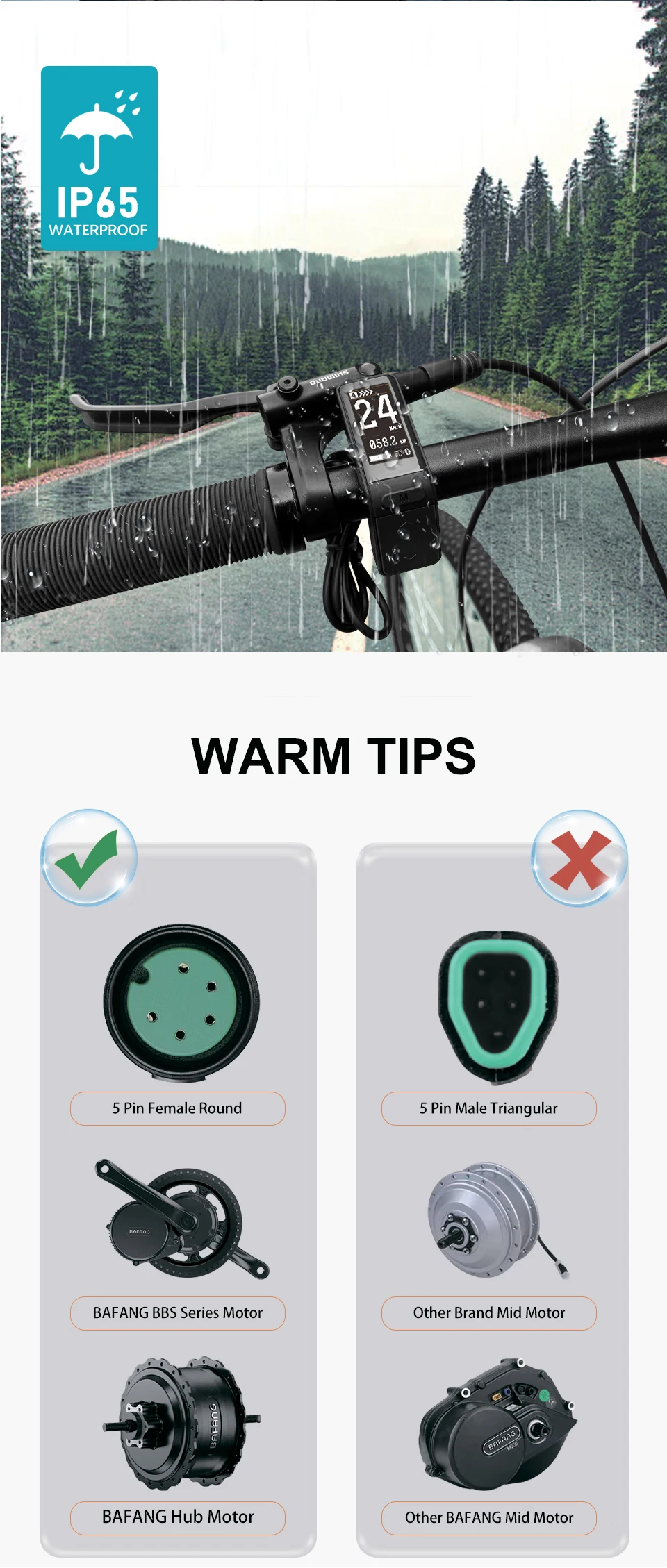

The BaFang Display can only be matched with the BaFang mid mounted motor, for example, these models: BBS M400 G330 G510 G340 M615 BBSHD

Please ensure that your controller matches my monitor before purchasing.

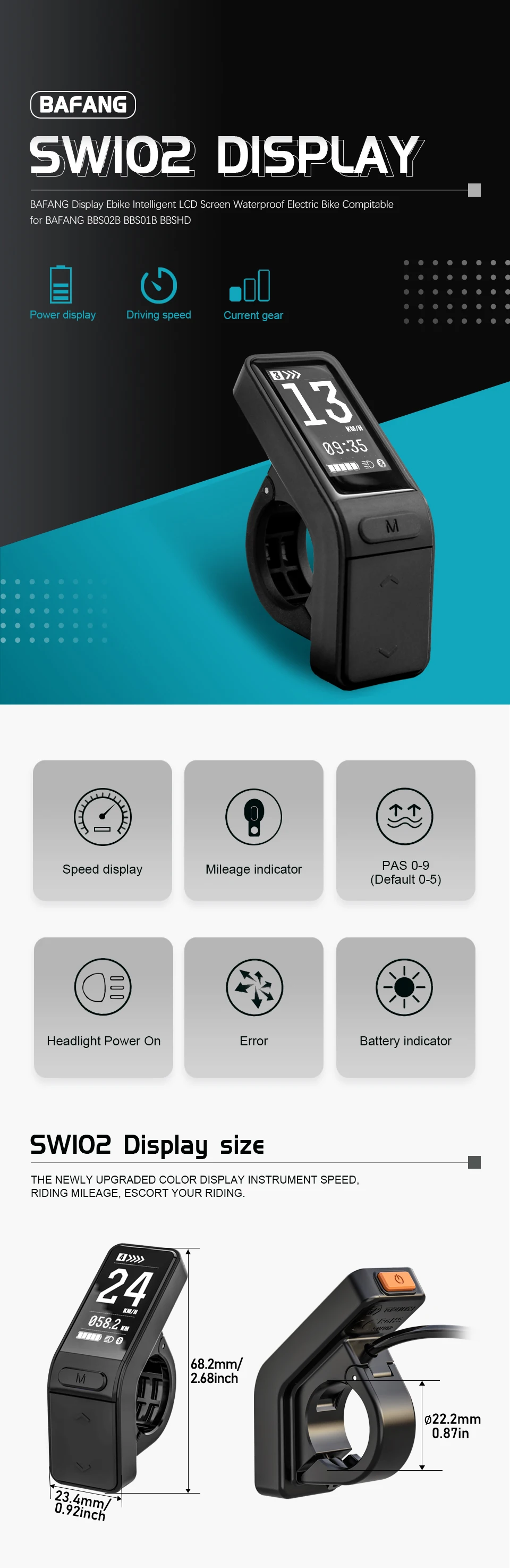

  SW102 display

Bafang SW102 Display LCD Colour Screen with 5 Pin Female Plug Waterproof Connector Use for BBS01 BBS02 BBSHD Motor Conversion Kit

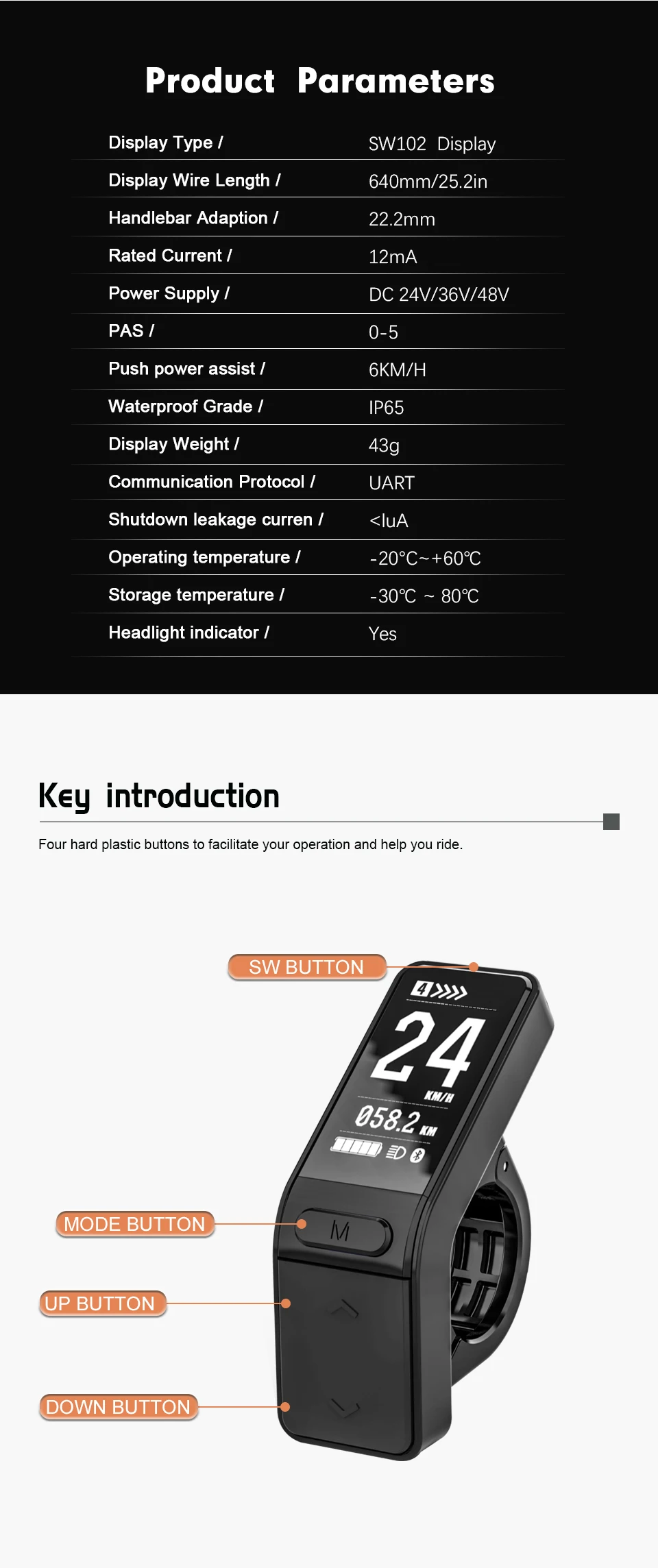

  Specification

•Power supply: DC 24V/36V/48V

•Screen specifications: 1.3 "OLED (64 * 128 dots)

•Communication method: UART (default)

•Operating temperature: -20 ° C~60 ° C

•Storage temperature: -30 ° C~80 ° C

•Communication method: UART

•Rated working current: 12mA

•Turn off leakage current<1uA

•Waterproof rating: IP65

•Compatible motor: Suitable for BAFANG BBS01 BBS02 BBSHD mid mounted motor

Function Introduction

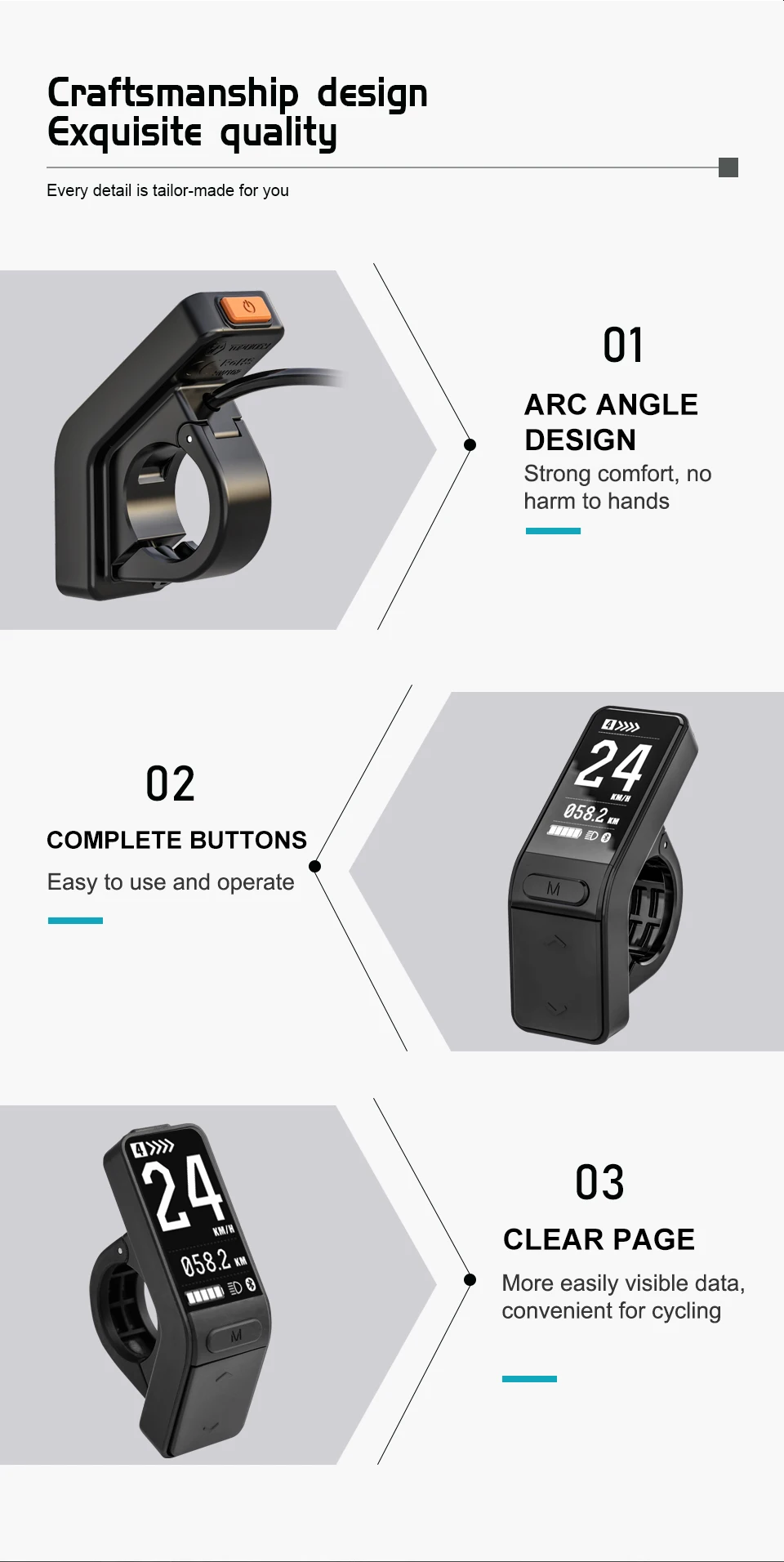

•Four buttons, easy to operate

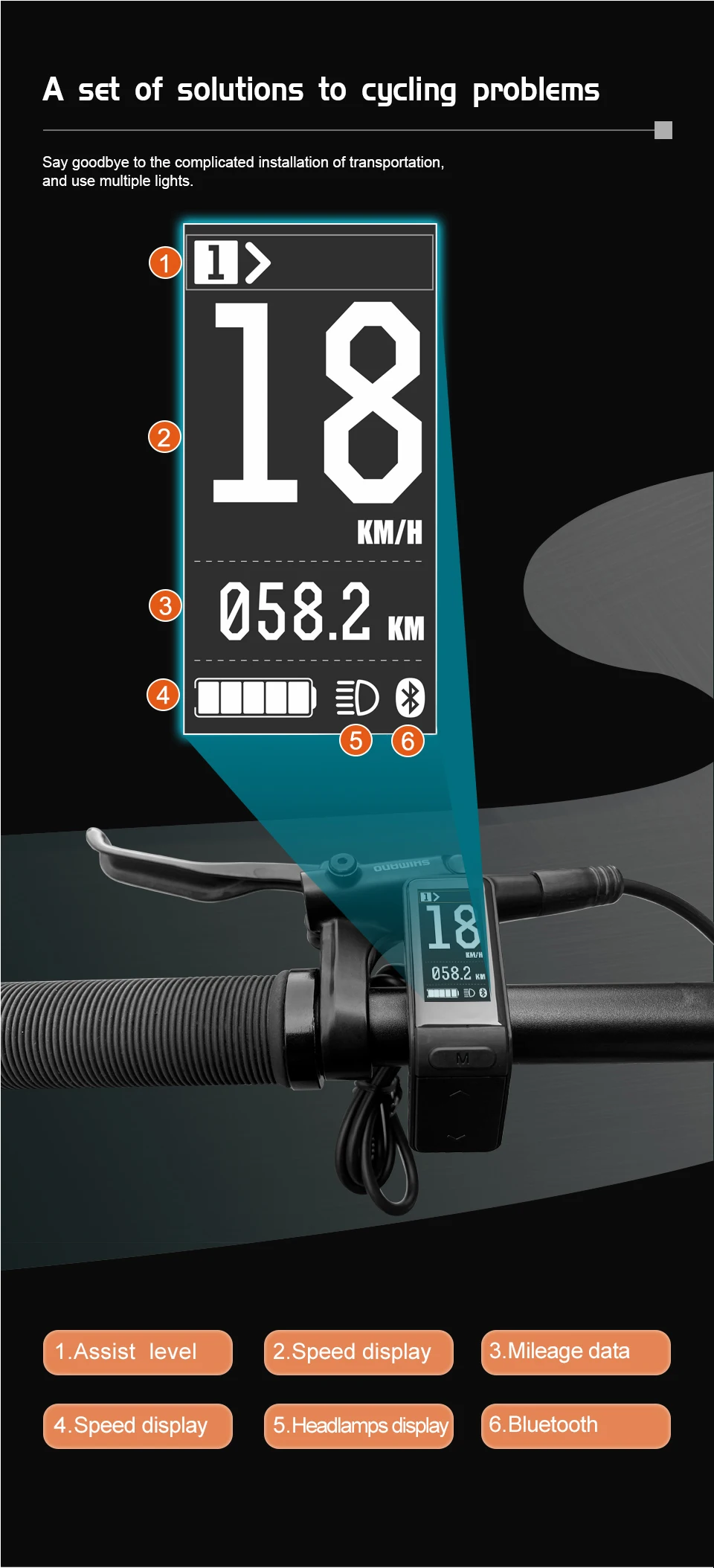

•Speed display: real-time speed (SPEED), maximum speed (MAX), average speed (AVG)

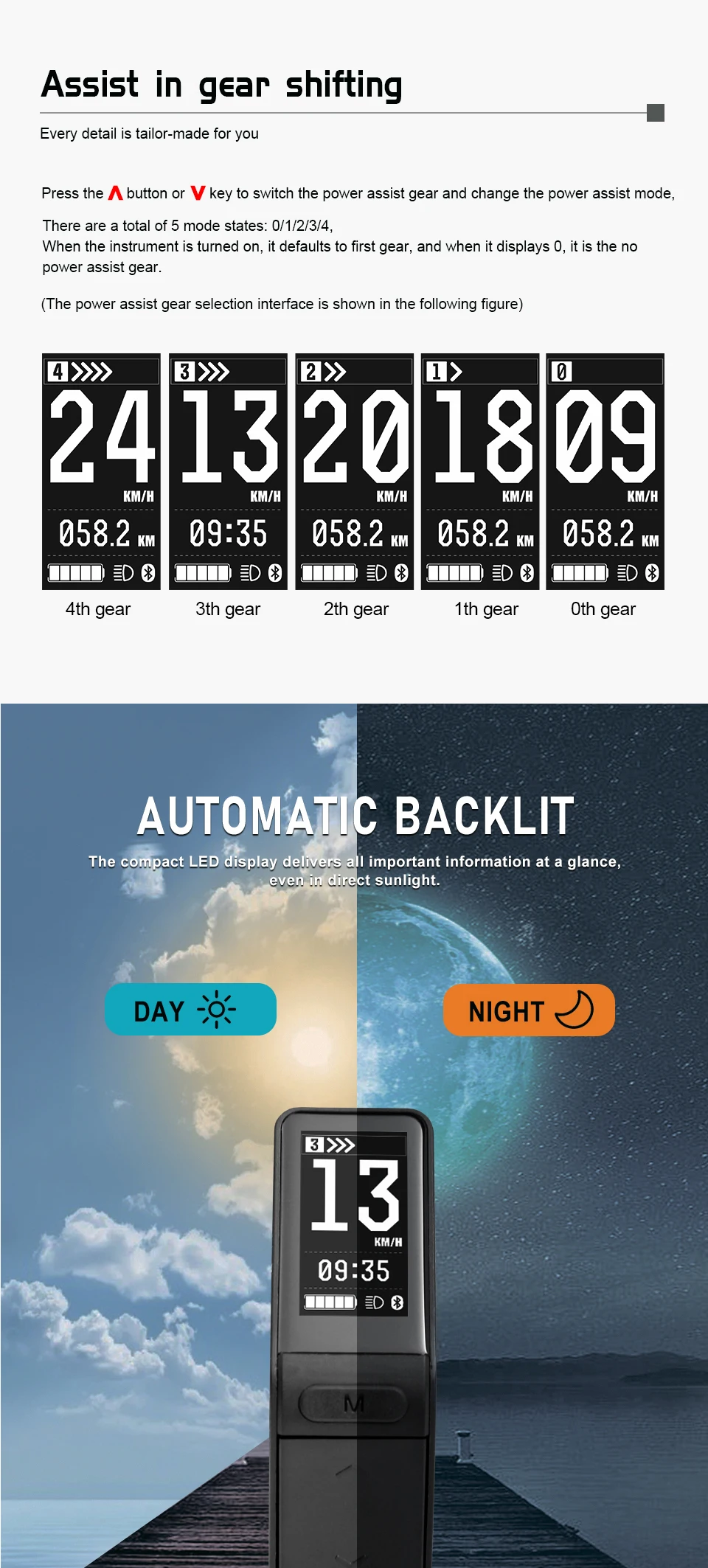

•Five speed power assist gear control: 0-4 gears

• Mileage display: cumulative mileage ODO, single trip, cycle time

•Mileage display: subtotal mileage (TRIP), total mileage (ODO)

•Level 6 power indicator: 1-5 segments of power, and undervoltage prompt; Provide battery BMS information display.

• Output power indication: real-time display of output power

•Speed limit adjustment function; Adjustable speed limit setting

• Current limit adjustment function: Adjustable setting to limit current

•Backlight brightness adjustment: Level 1 is the darkest, Level 5 is the brightest

• Gear control: The number of gears can be set to 3/5/6/9 as needed

•USB charging port, current: 500mA/5V.

•Error code indication (the communication interface of the connecting cable facilitates system maintenance and parameter settings)

  PACKING LIST

1.Bafang LCD display

2.Display holder and gaskets
