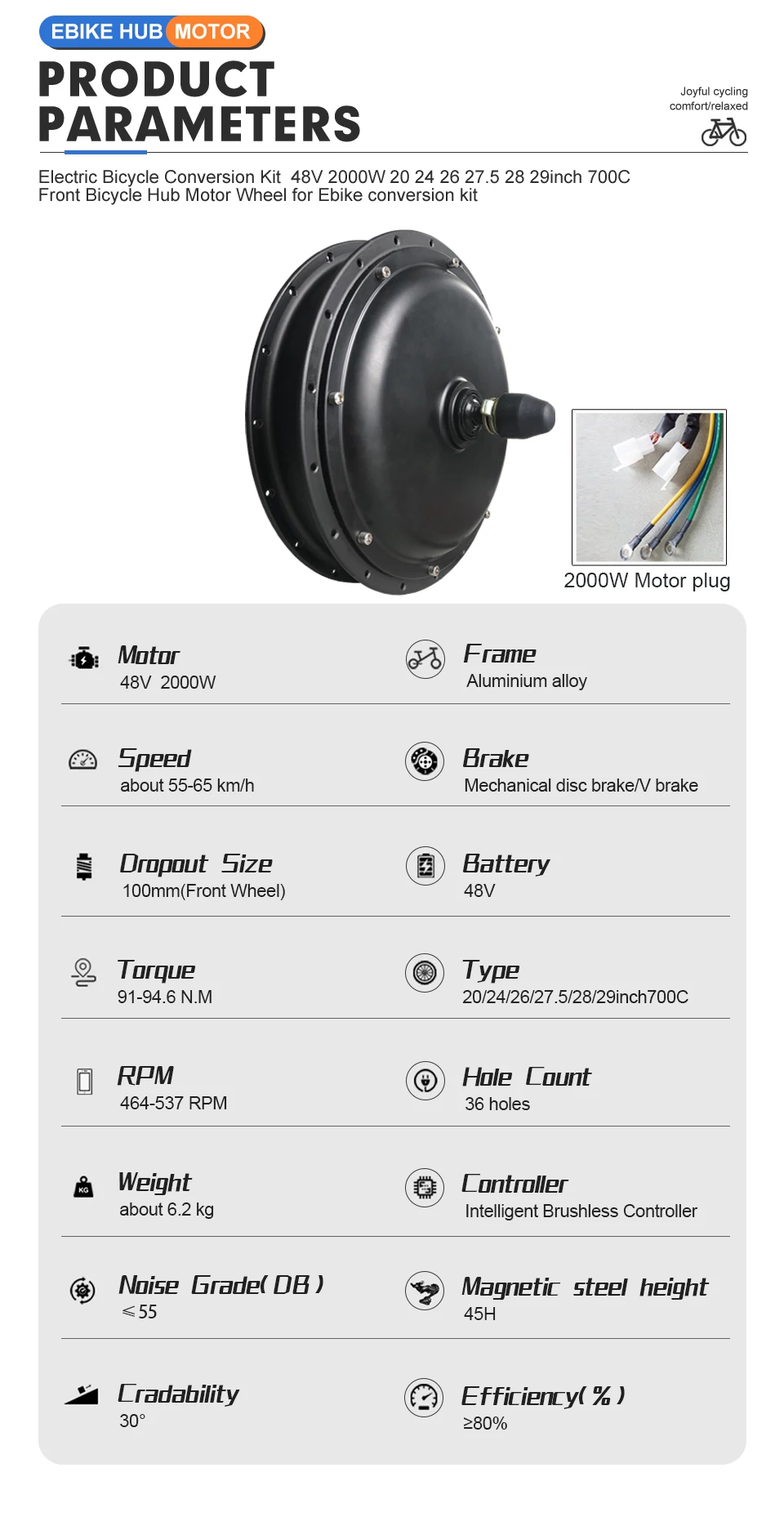

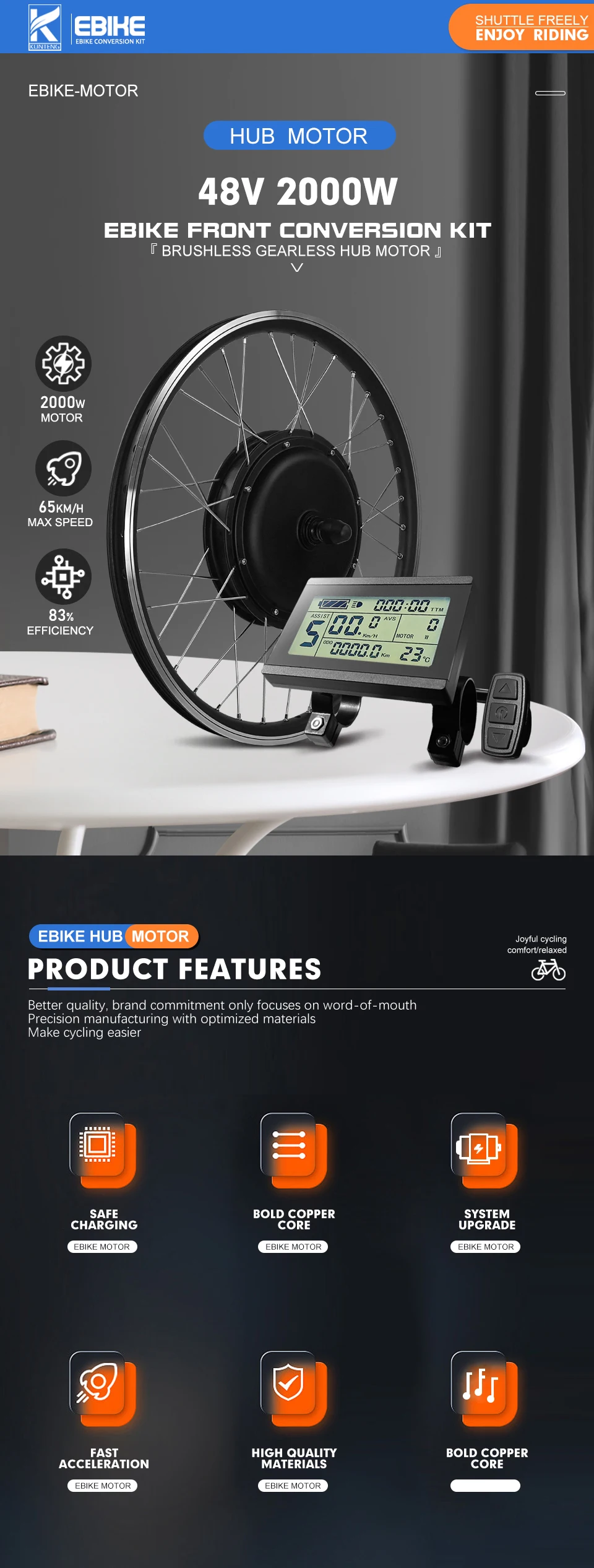

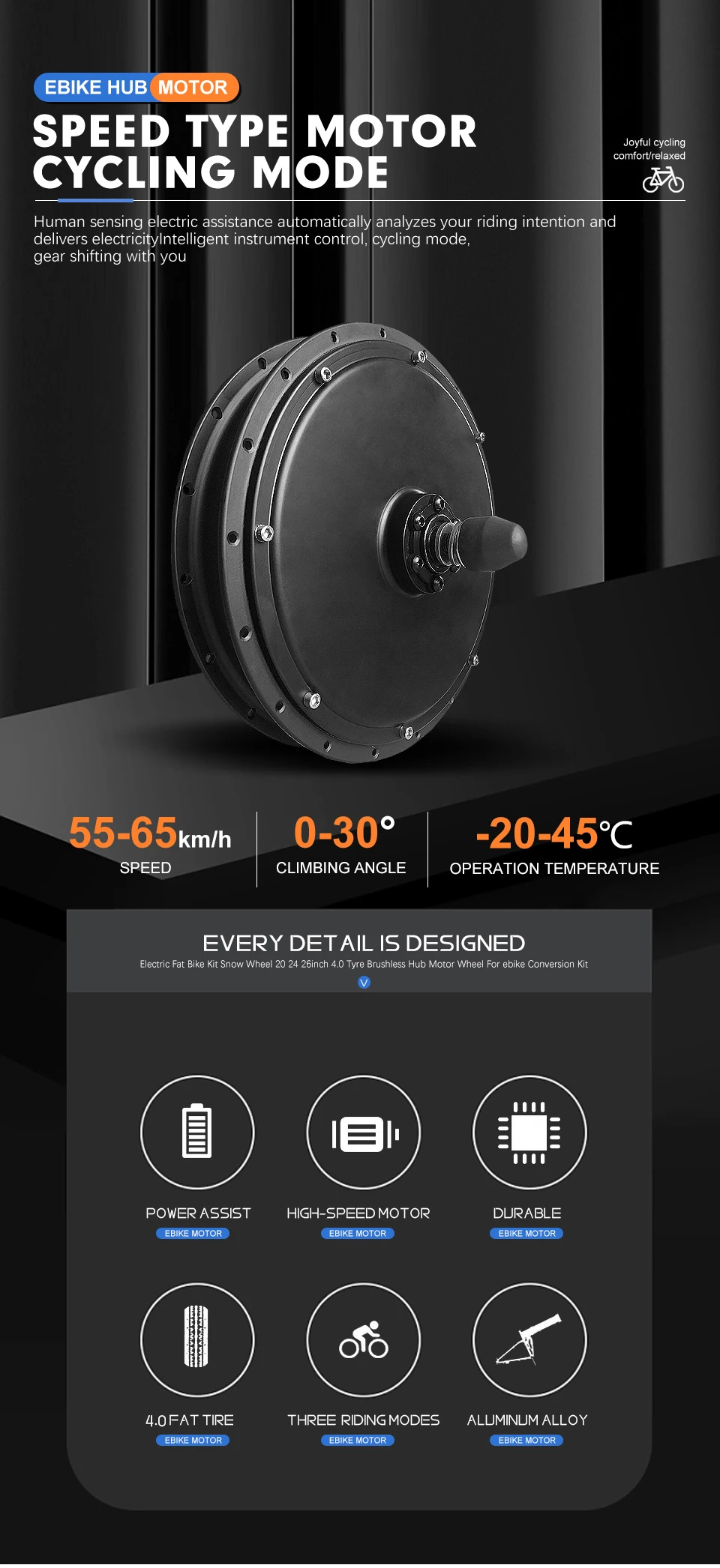

48V 2000W Front/Rear Hub Motor:

Construction:Gearless drive

Rated Voltage (DCV):48

Rated Power (W):2000

Max Speed (KM/H):55-65

Speed (Rpm): 464-537

Torque (N.M): 91-94.6

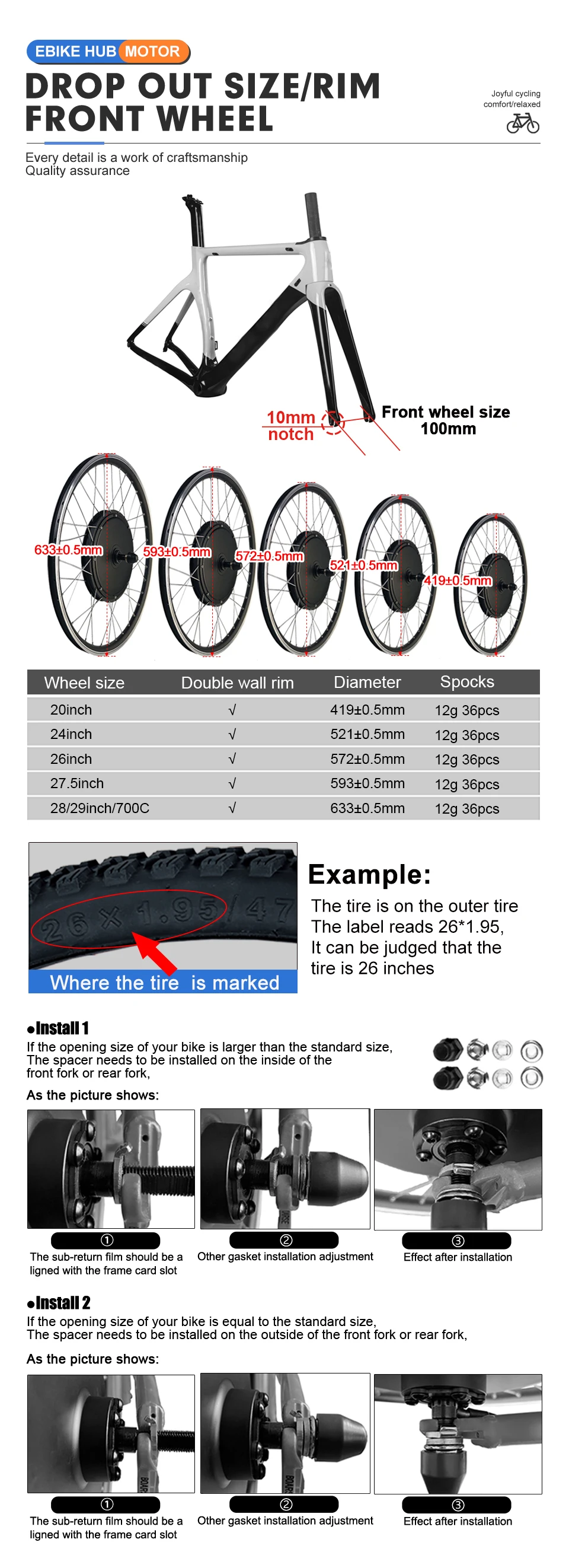

Front drive open size (mm):100

Rear drive open size (mm):135-142

Efficiency (%)≥ 80

Color:Black

Weight (kg):7kg

Noise Grade (dB)< 55

Operating Temperature:-20-45℃

Rim:Double-wall Aluminium Alloy Rim

Wheel Diameter (Inch):20"/24"/26"/27.5"/28"/29"/700C---Optional

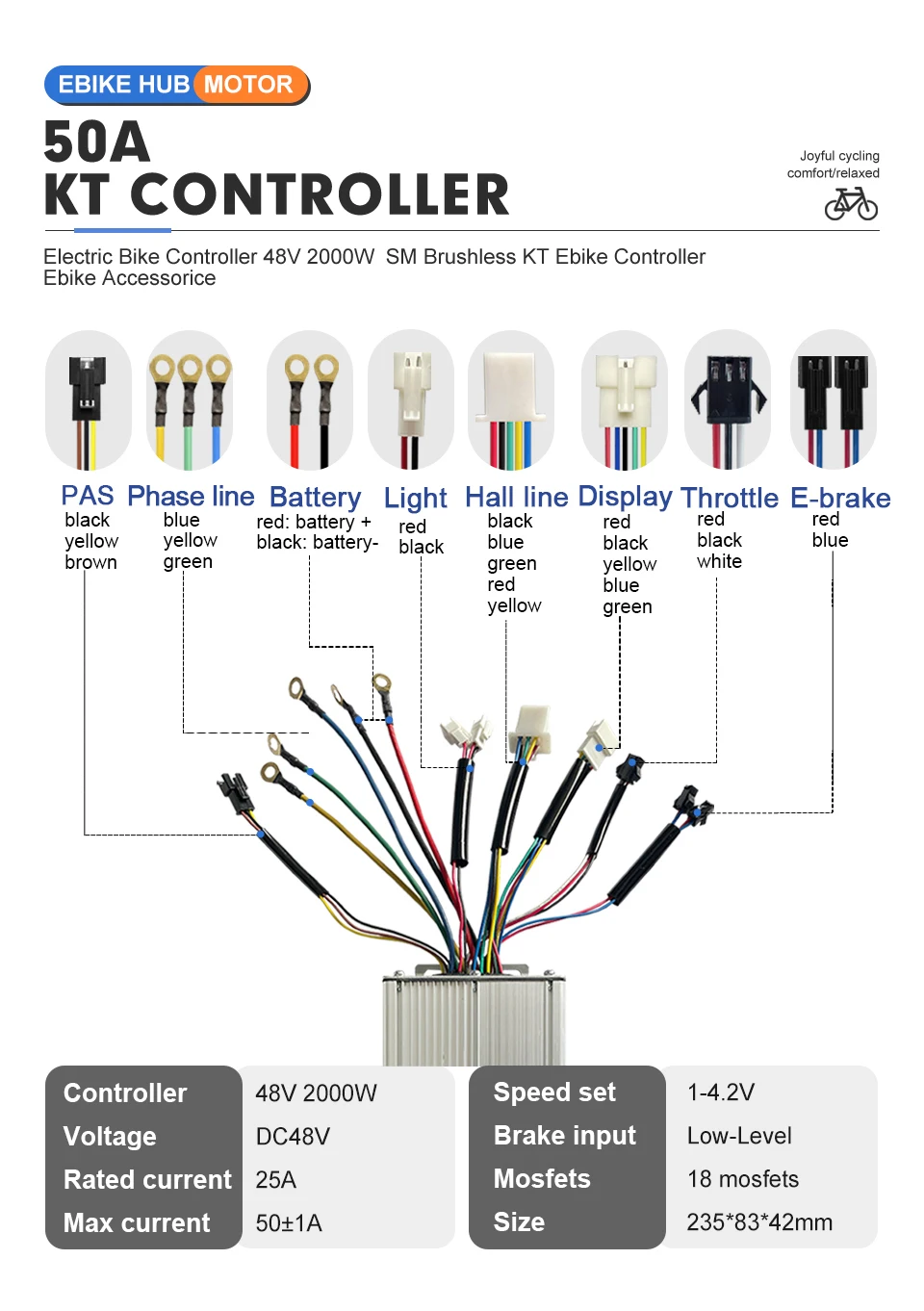

48V 50A Controller details:

Dimension :235 * 83 * 42 mm

Mosfet :18 Mosfets

Maximum current :50±2A

Rated current :25A

Rated voltage :DC48V

Speed set :1-4.2V

Brake input :Low-Level

Low voltage protection :DC40±0.5V

Cable length :all about 10-16cm

Weight :about 856g

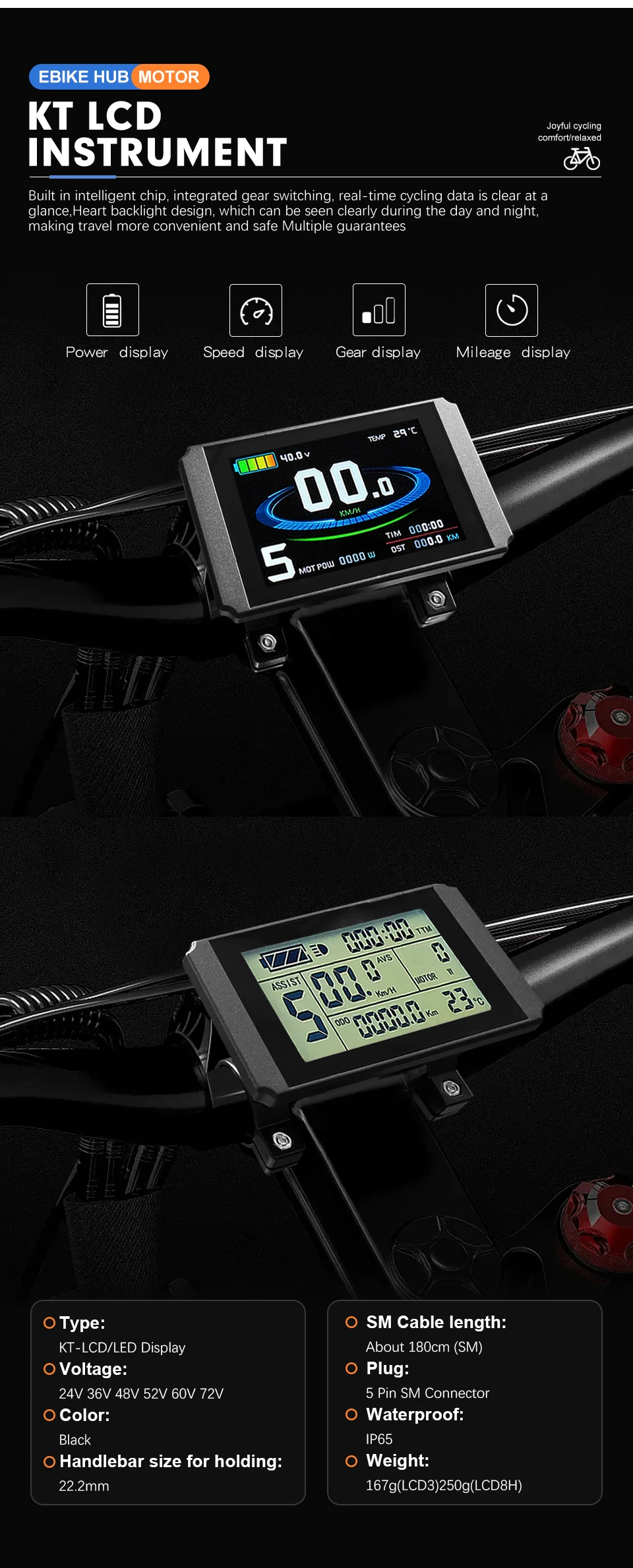

Display（Opition):

●Type :KT LCD/LED/Colourful Display

●Color :Black

●Voltage :36V 48V universal

●Cable length :About 180cm(SM)

●Plug :5 Pin SM plug

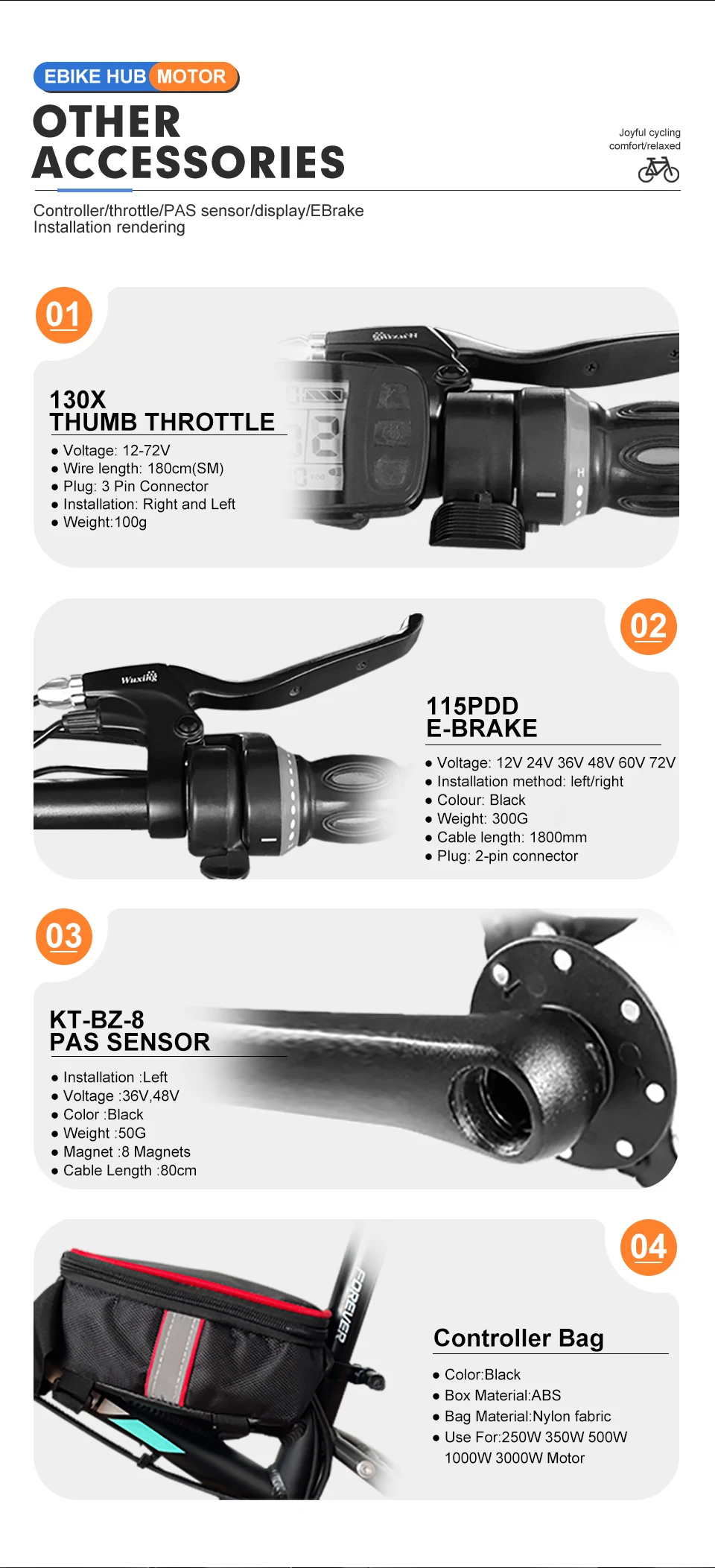

130X Throttle (Default):

●Type:130X Thumb Throttle

●Voltage:12V 24V 36V 48V 52V 60V 72V

●Wire length:180cm(SM)

●Weight :100g

●Waterproof :IP76

●Plug Type:3 Pin SM plug

●Color :Black

●Installation:Right

●Apply to:E-bike, E-Scooter, Ebike Conversion Kit

●Function:●Function:E-bike accelerator Finger Thumb Throttle

115PDD E-Brake (Default):

●Type:●Type:115PDD E-brake Cut Off Power

●Voltage:12V 24V 36V 48V 60V 72V

●Cable Length:180cm (SM)

●Weight :300g

●Waterproof :●Waterproof :IP76

●Material:Aluminum Alloy

●Installation:Left/Right

●Size:L156mm W105mm H34mm

●Plug :2 pin SM plug

PAS KT-BZ-8(Default):

●Type:KT-BZ-4 (8) Pulse assist sensor

●Voltage:36V/48V

●Cable Length:180cm including the connector

●Magnet :8 Magnets

●Weight :100 g

●Plug Type:3 Pin SM plug

●Color :As pictures shown

● Material:Plastic

●Installation:Left

●Adaptation:Ebike Electric Bike Bicycle

【Packing List】

①2000W front wheel x1 (without tire)

②50A controller x1

③Display and manual x1

④Throttle x1

⑤Power Cut-off Brake Levers x1

⑥PAS sensor x1

⑦Zip ties and Protection line x1

⑧Controller bag x1
