V08 Version is with DDM Function

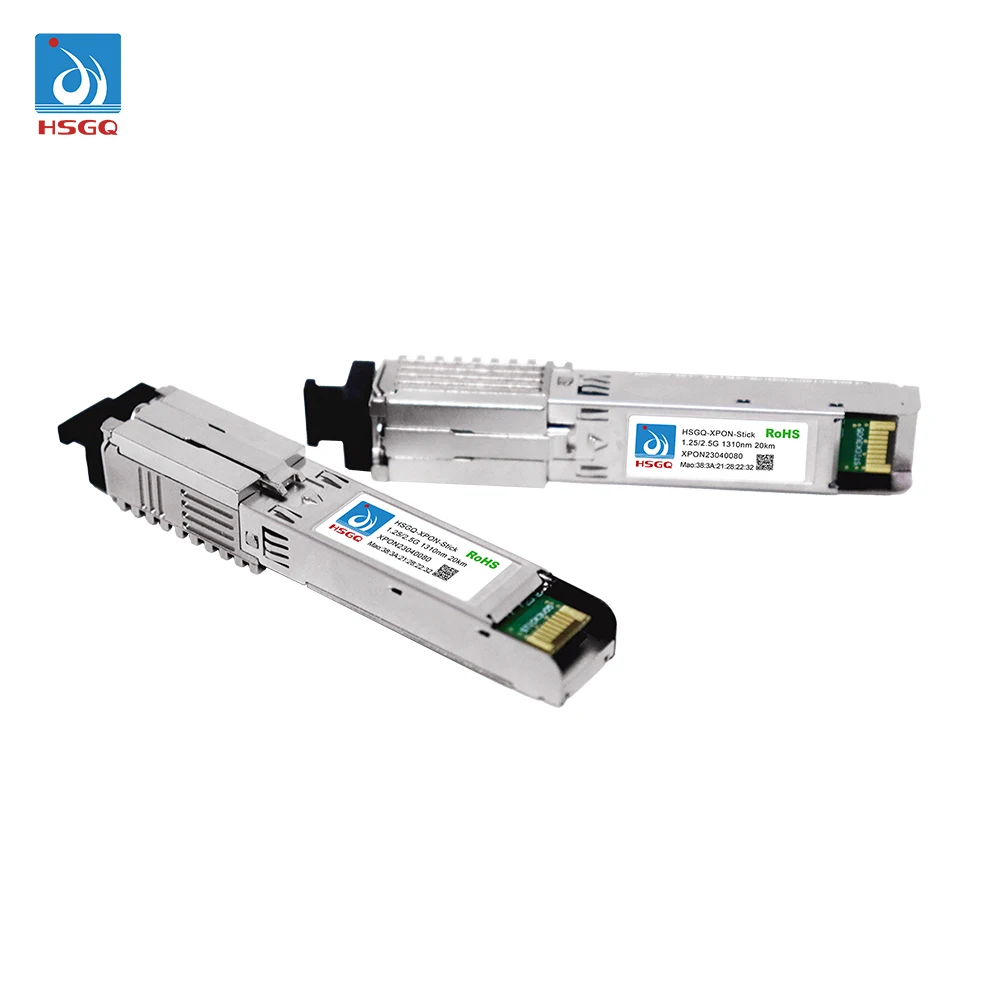

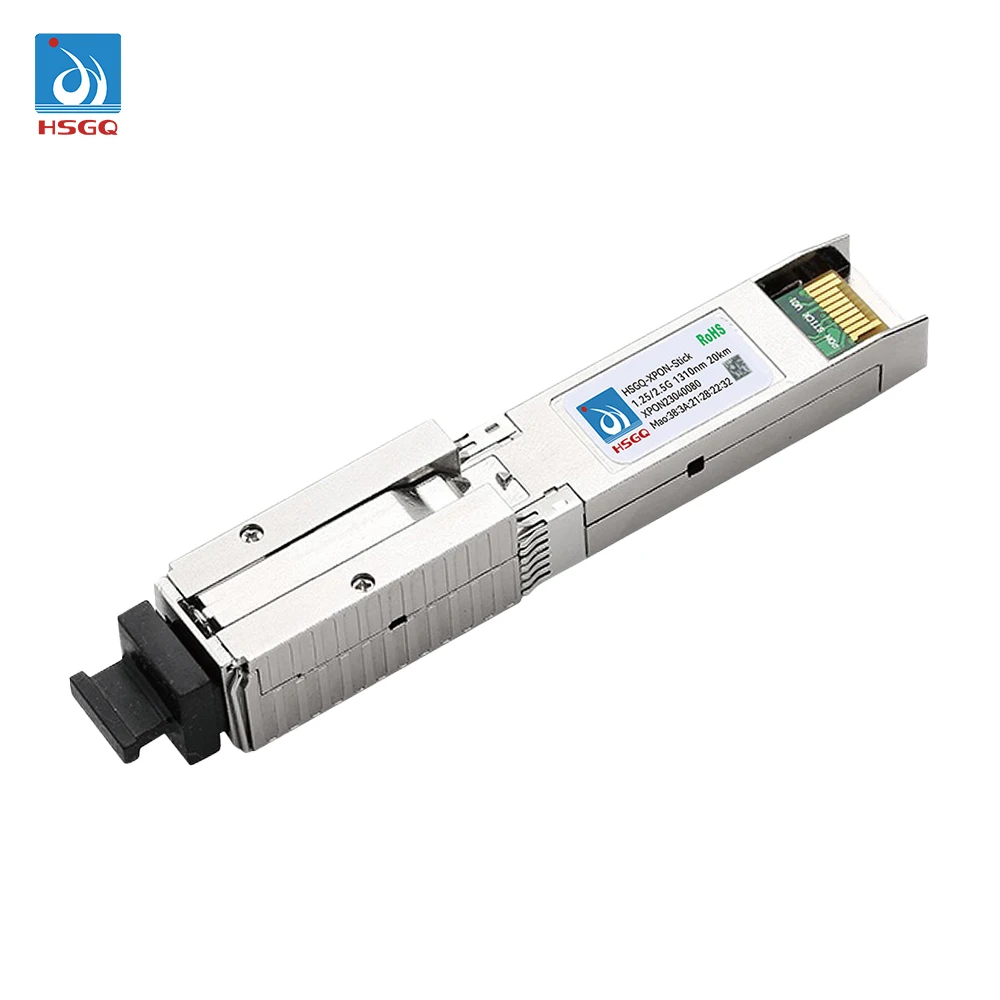

XPON 1.25G/2.5G SFP ONU Stick With MAC SC Connector DDM pon module
XPON=XPON 1.25G/2.5G ,It can use for Epon and Gpon at the same time
Connector:SC/APC / SC/UPC Optional

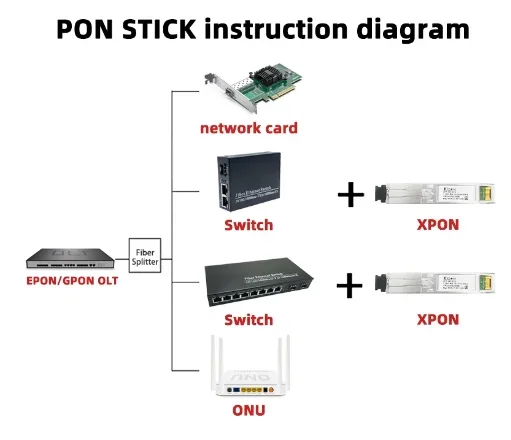

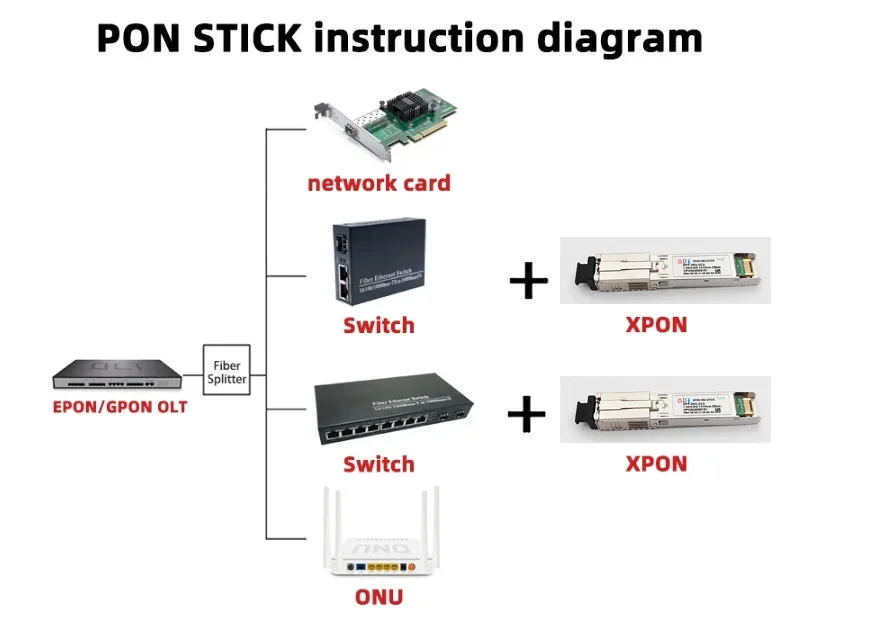

Alternatives to Optical modem devices:

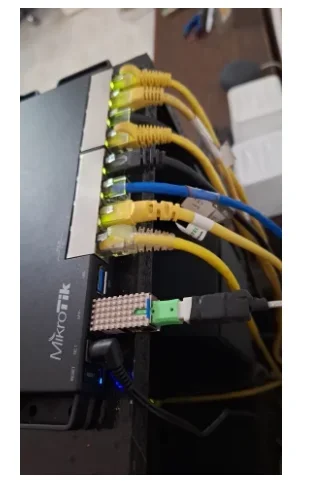

With our modules, any switch and soft router can be turned intothe Optical modemyou want, whether it is GPON or EPON. Theoptical port of the soft router is plugged with our module,and the Optical modem configured by the operator can becompletely removed.

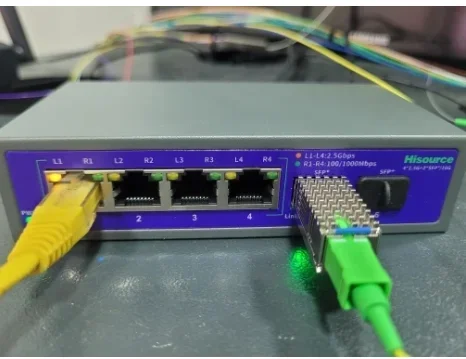

Please note:This product needs to be plugged into a soft routerand cannot be directly connected to the network card.
V06 Version is without DDM function
V08 Version is with DDM function
XPON 1.25G/2.5G SFP ONU Stick With MAC SC Connector DDM pon module
XPON=XPON 1.25G/2.5G ,It can use for Epon and Gpon at the same time
Connector:SC/APC

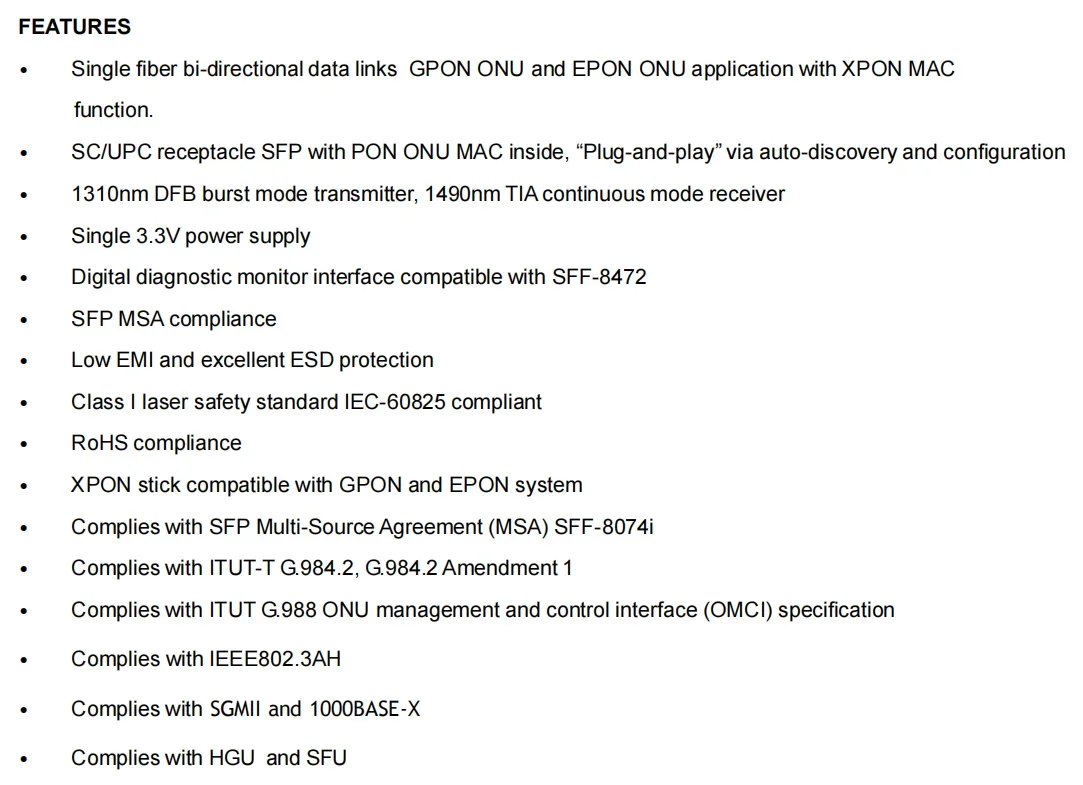

Key Features
1. 1490 nm wavelength downstream,1310 nm wavelength upstream
2. GPON： 2.5Gb/s line rate downstream, 1.25 Gb/s line rate upstream
EPON： 1.25Gb/s line rate downstream, 1.25 Gb/s line rate upstream
3.Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
4. Digital Diagnostic Monitor（DDM） interface compatible with SFF-8472
5. Complies with ITU-T G.984.2, G.984.2 Amendment 1
6. Complies with ITU-T G.988 ONU management and control interface (OMCI)
7.Class I laser safety standard IEC-60825 compliant
8.RoHS compliance
Advantage
Small Form-Factor Pluggable (SFP)
Easy to install
Low power consumption
Technical Parameter
|
Item |
HSGQ-XPON-STICK |
|
Interface |
1*PON |
|
PON |
Physical Interface: PON Port |
|
type: SC/UPC ( if you need SC/APC ,Please leave message ) |
|
|
Size |
8.2mm x 6.8mm x 75mm |
|
weight |
＜19g |
|

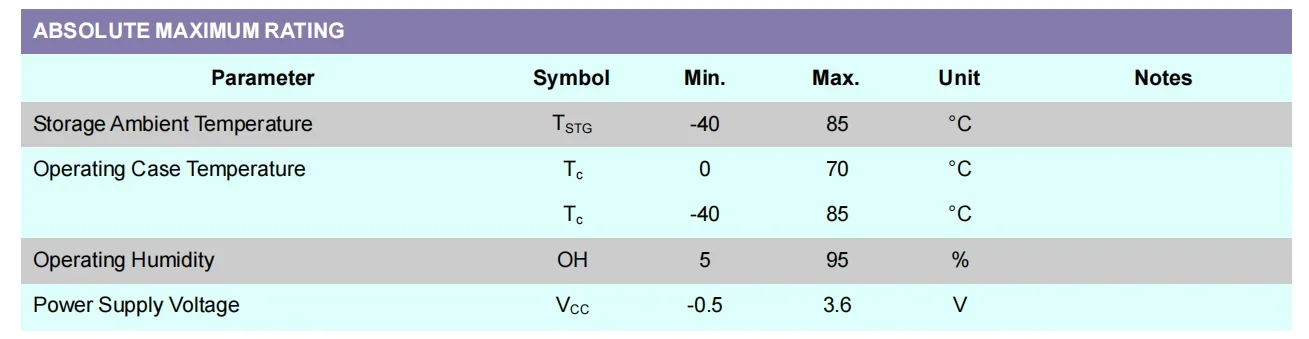

Environment |
Operating temperature:-40°C~85°C （I Temp） |
|
Operating temperature:0°C~70°C （C Temp） |
|
|
Storage humidity:5%~95% (non-condensing) |
|
|
Power Supply |
3.3V |
|
Power Consumption |
＜2.5W |
|
PON Function |
GPON/EPON adaptive |
|
Mode |
SFU |
|
Optionally support some functions of HGU(DCHP/PPPoE/NAT) |
|
|
Configure MAC address |
Support |
|
Configure SN |
Support |
|
Configure Vendor ID |
Support |
|
Configure PVID |
Support |
|
DDMI |
Support |
|
Management |

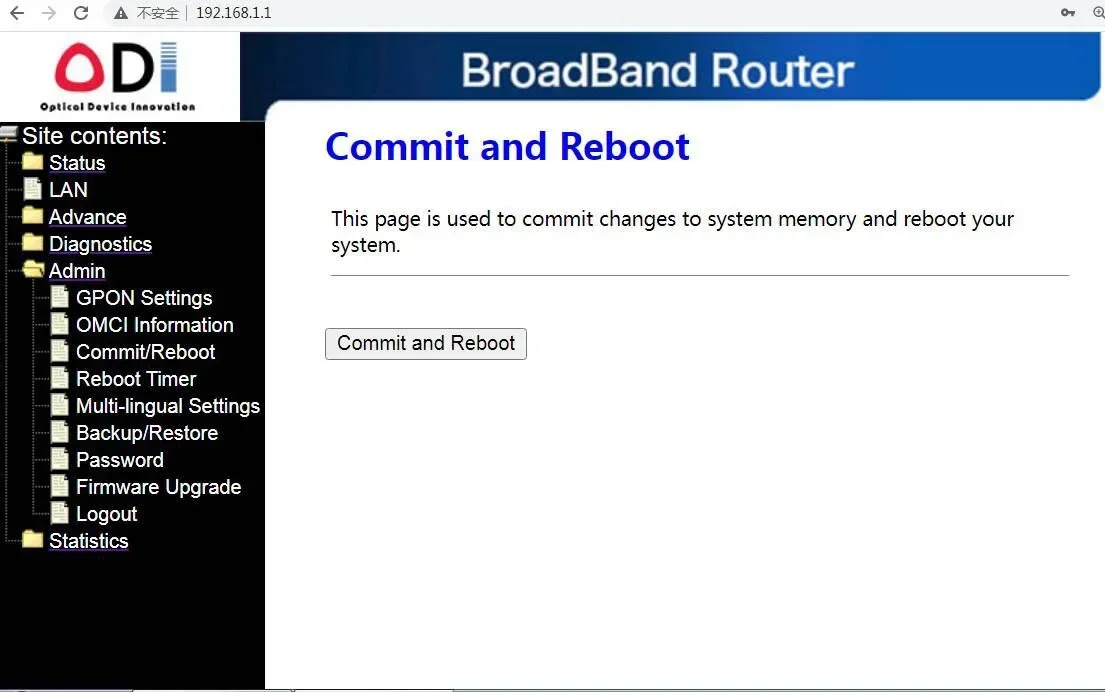

Http/telent/SSH/TR069 |
|
SFP MSA Standard |
Support |
|
VLAN |
VLAN transport transmission |
|
VLAN swtich function |

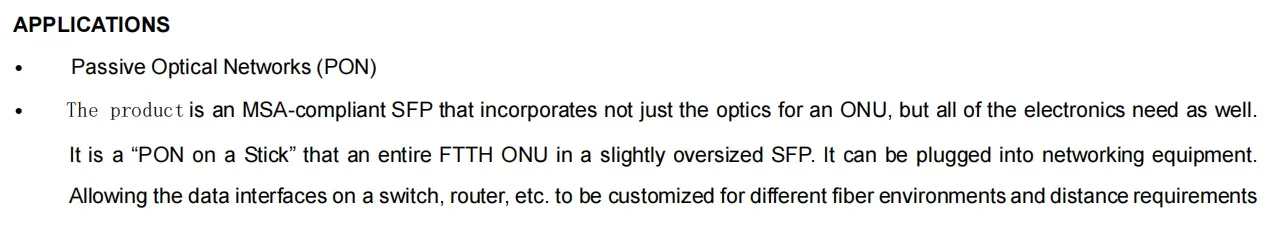

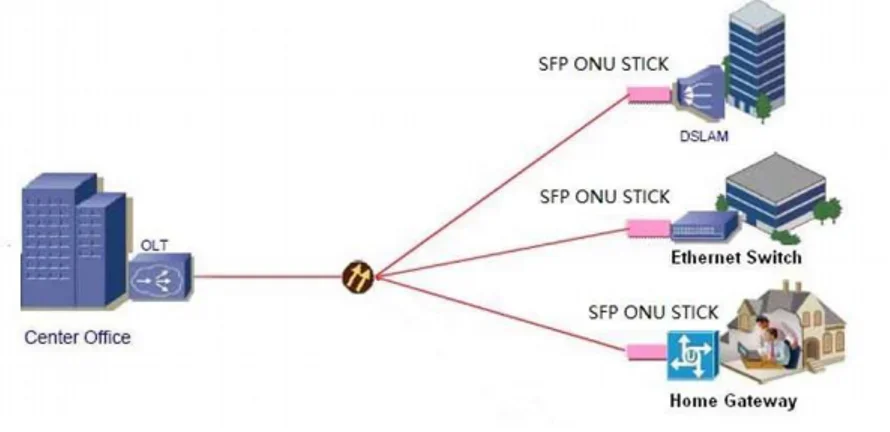

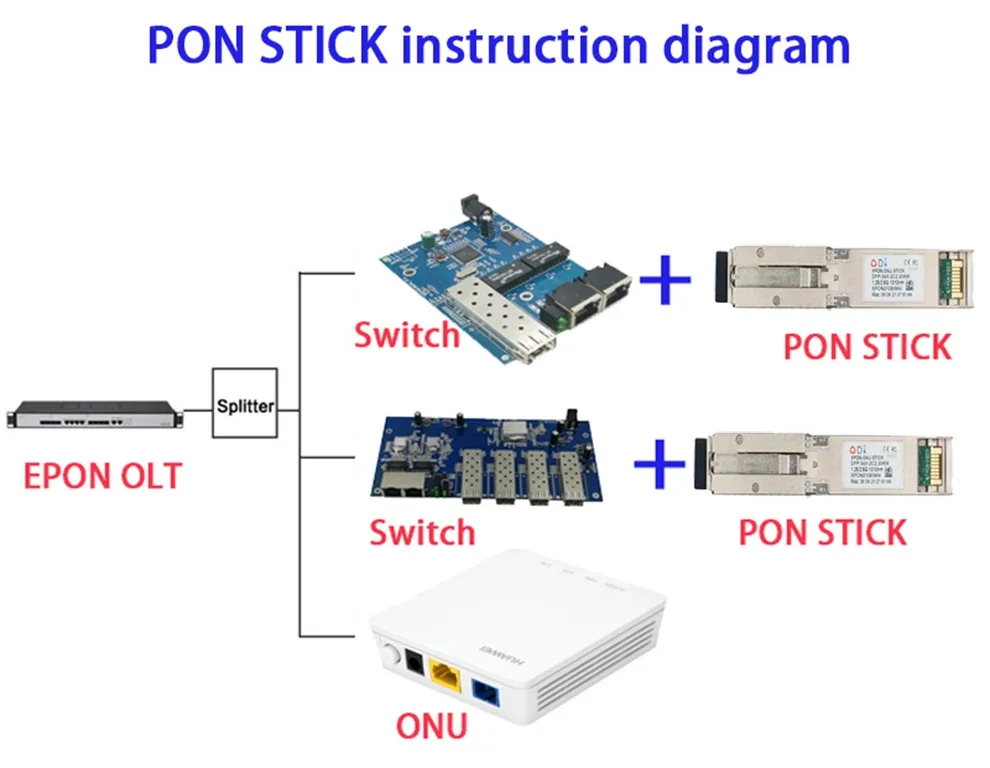

It is a 'PON on a Stick*' that an entire FTTH ONU in a slightly oversized SFP.lt can be plugged into networking equipment.

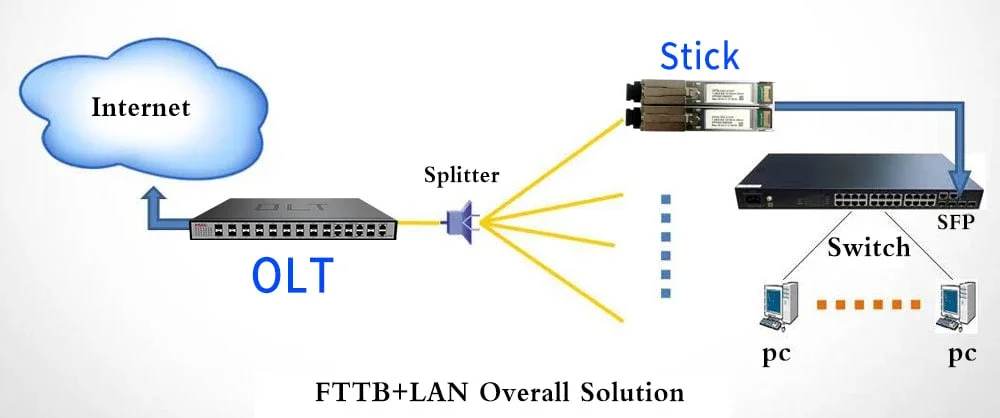

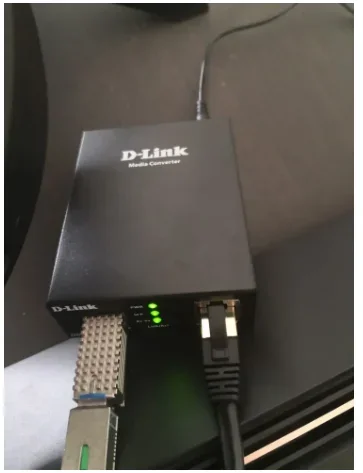

Allowing the data interfaces on a switch, router, etc. to be customized for different fiber environ-ments and distance requirements.
1GE ONT software version is SFU default,You dont need to do any configuration via ont web.Support port mode of VLAN configuration and u could configure port vlan of ont via olt.After reset ont,there is no wan conne
