Product Description

Warning:
This balancer supports 3-4S batteries

Feature：
This balancer supports 3~4s batteries
This is an equalizer, it could balance the voltage difference between battery strings to make the batteries more durable, and the battery life would be longer,
It is not BMS, so it has no over-voltage, over-current and over-discharge protection, but it can work with BMS together,
It is suitable for Li-ion and LiFePo4 batteries, can be used with any capacity of batteries,

Due to the balance current is fixed, so the balance time for large capacity battery is slow, and for small capacity battery it is fast.

Specification：
Suitable battery types: Lithium Ion/LiFePO4/LTO
Single cell voltage range: Li-ion/LiFePO4 version: 2.7-4.2V
LTO version: 1.8-4.2V
Voltage balance accuracy: 5mV (typical value)
Equalization method: patented balance architecture adjusts the capacitor mode, the entire battery group at the same time to participate in the active balance of power transfer
Balance current: the voltage difference is 0.08V, the balance current is 1A, the voltage difference is directly proportional to the balance current, the maximum allowable working current is 6.0A.
Shutdown voltage for low voltage protection: Li ion/LiFePO4: below2.7V
LTO:below1.8V
Working temperature: -10°~60°
If an external power supply is required: No external power supply is needed, and the entire group is balanced by internal battery power transfer

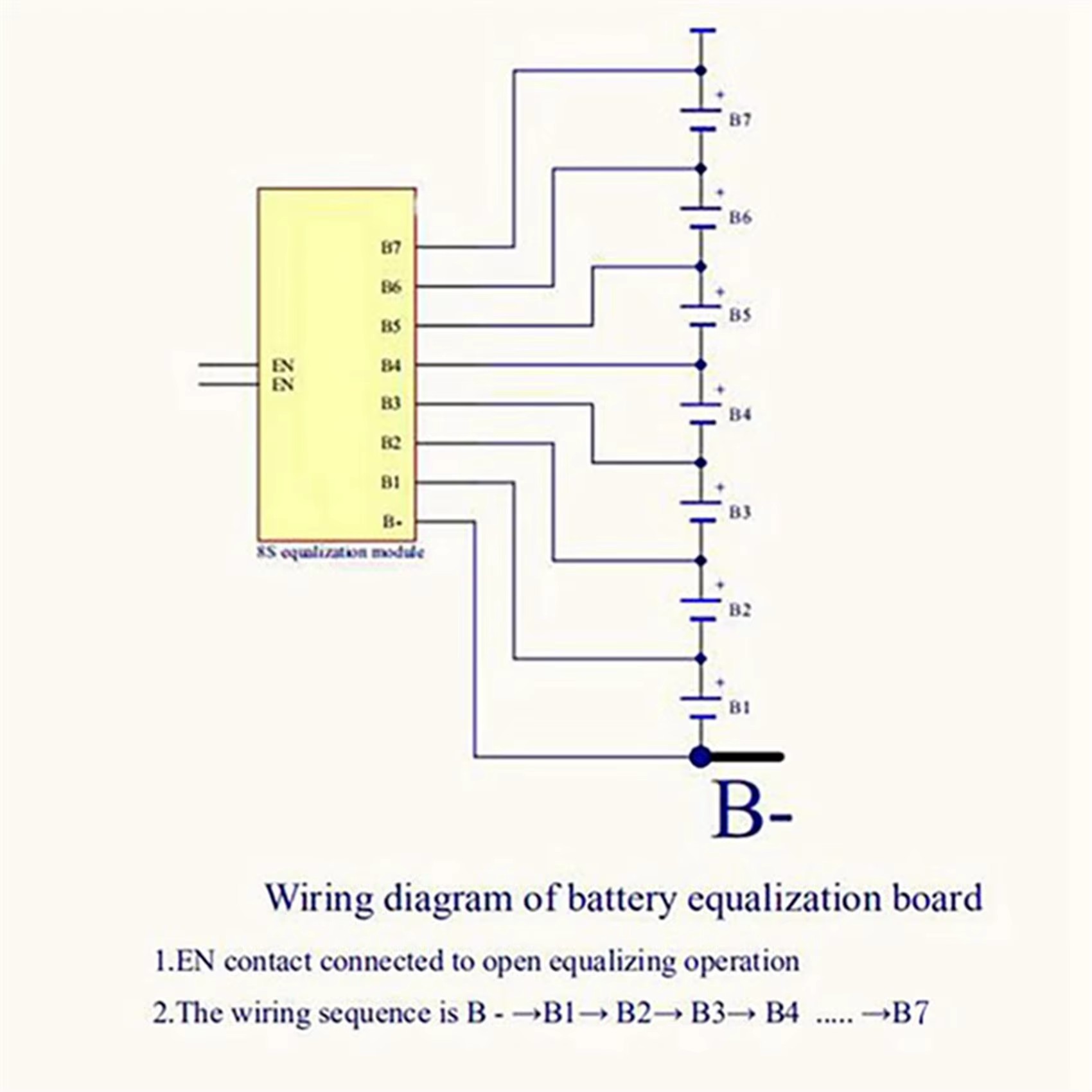

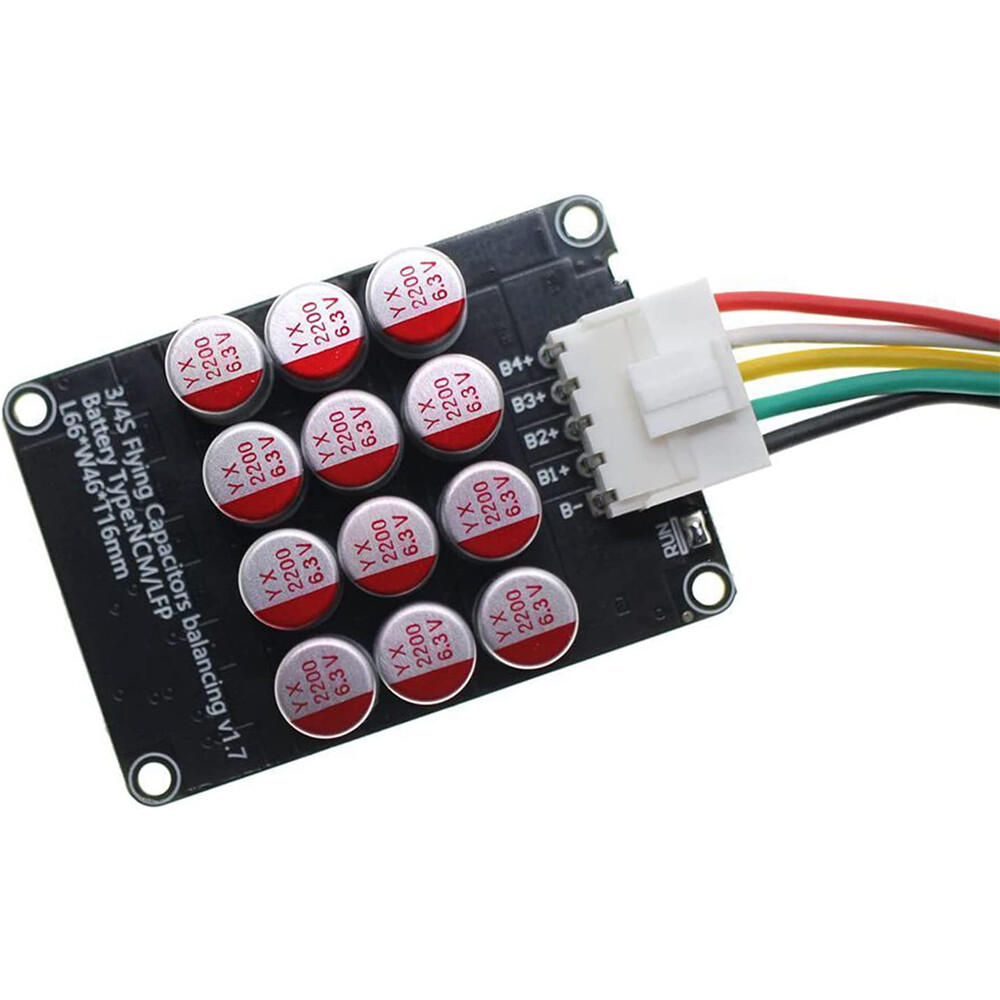

Connection definition:
BC-Connect the first string of the positive pole of the battery pack
BC2 connects the second string of the positive pole of the battery pack
BC3 connects the third string of the positive pole of
The battery pack.
BC4 connects the fourth string of the positive pole of
The battery pack.
The total positive pole of the battery pack

Package includes：

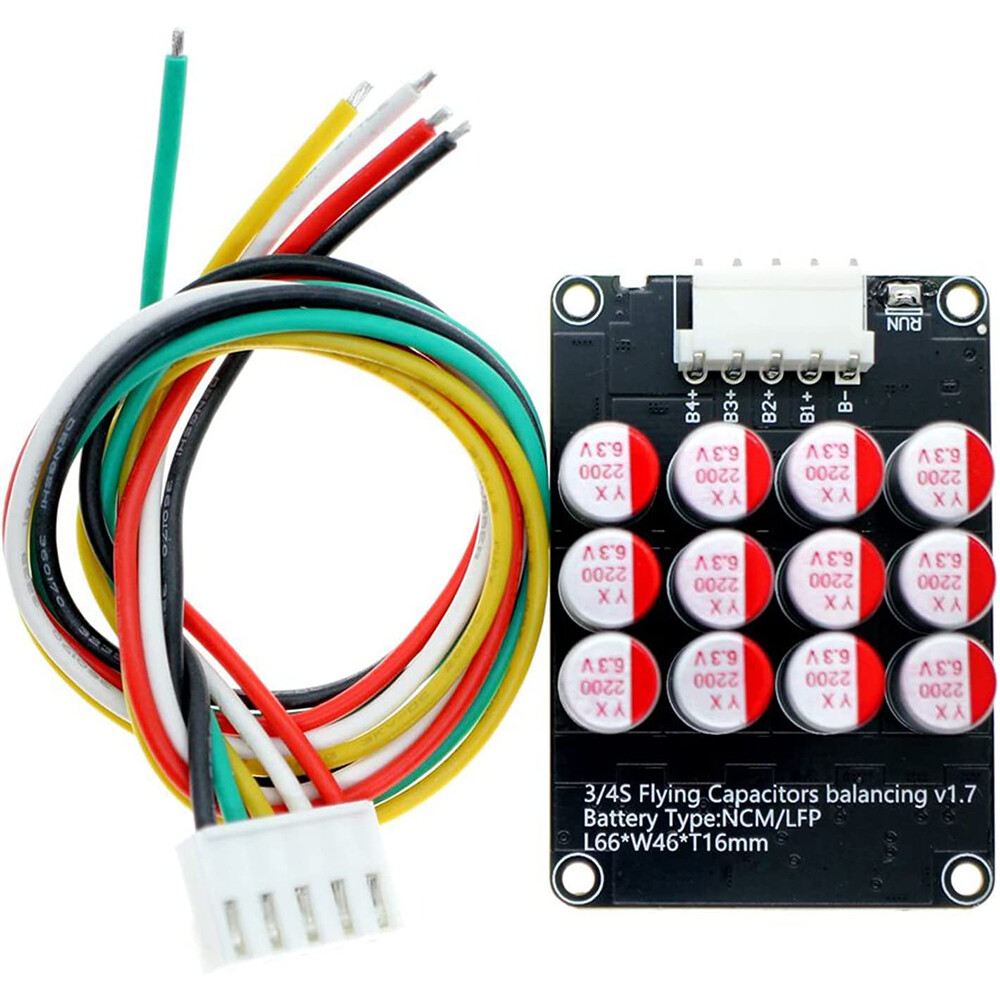

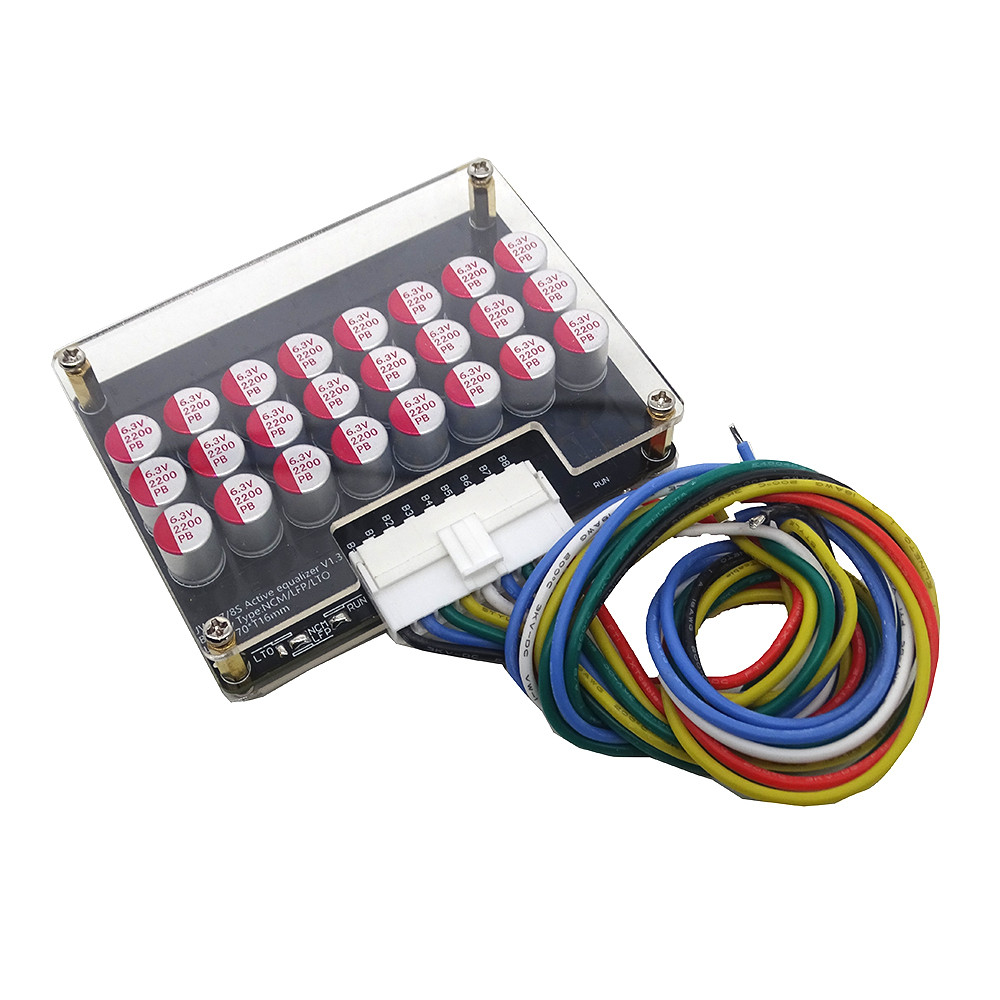

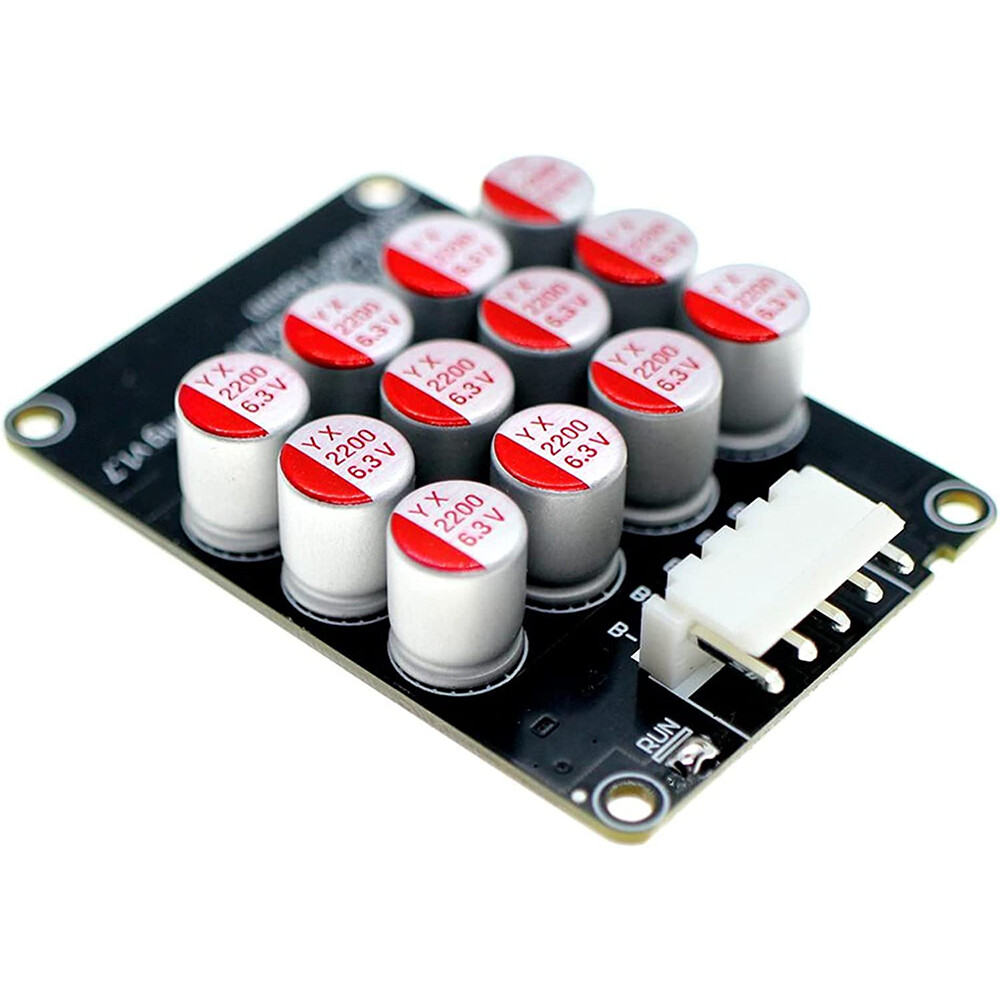

1*Lithium Battery Active Equalizer Balancer
