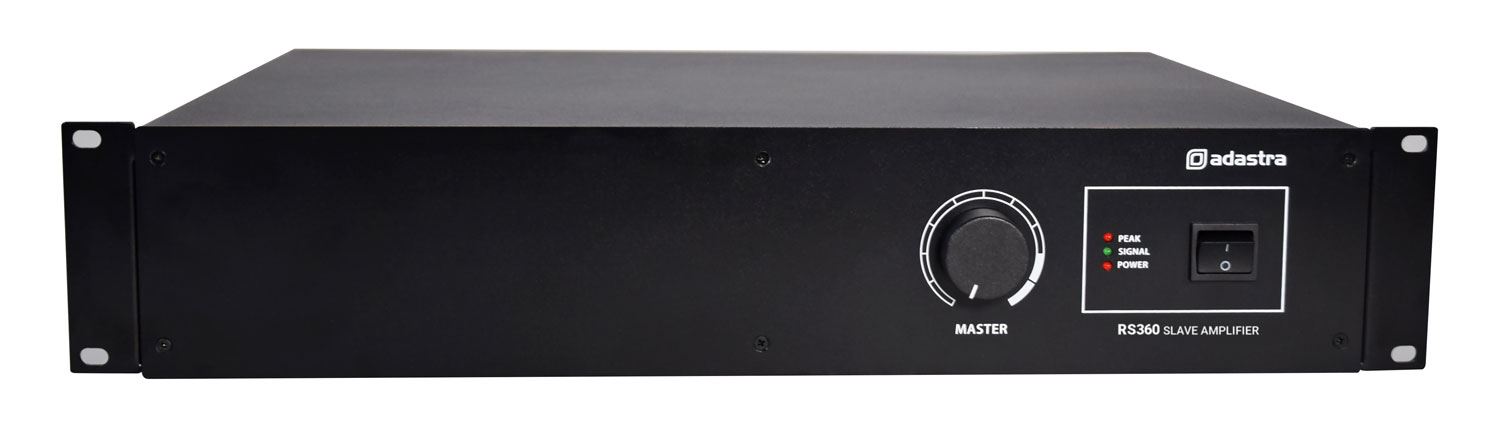

Adastra RS Series 100V Line Slave Amplifier 360W

Product Description

The RS Series 360W 100V Line Slave Amplifier is a high-power Class-D amplifier designed to expand professional public address and background music systems. Built into a 2U 19” rack-mountable chassis, this efficient and reliable amplifier accepts standard line-level audio via RCA or Euroblock terminals and can cascade audio to additional RS slave units. A dedicated 100V signal input allows direct connection to existing 100V speaker lines, making it ideal for extending long-distance installations. Equipped with a 24V mute trigger input, it integrates seamlessly with alarm systems for priority muting. Engineered for performance and flexibility, the RS 360W model delivers stable output to 100V line systems, perfect for medium to large commercial installations.

Features
360W RMS output in a compact 2U 19" rack-mountable chassis
Class-D amplification for lightweight, energy-efficient operation
Line-level input via RCA or Euroblock terminals
Cascadable slave output for expanding system capacity
100V signal input for extending long-range speaker runs
24V mute contact for alarm system integration
High stability and reliability for commercial installations
Ideal for retail, hospitality, educational, and public sector environments

Specifications
Amplifier type: Class-D
Output power (RMS): 360W
Rack size: 2U, 19"
Input connections: RCA, Euroblock line input, 100V signal input
Output connections: 100V line
Control: 24V alarm mute trigger
Fuse rating: T5A
Dimensions: 433 x 355 x 89 mm
Weight: 9.9 kg
