TES1350A Sound Level Meter 35-130 dB 0.1dB Digital decibel meter Noise meter
Features:
- 0.1dB resolution
- Maximum hold function
- AUX output jacks
Specifications:
| Standard applied | IEC 651 Type2 |
| Range | A LO (Low) - Weighting: 35- 100dB A HI (High) - Weighting: 65-130dB C LO (Low) - Weighting: 35- 100dB C HI (High) - Weighting: 65-130dB |
| Resolution | 0.1dB |
| Frequency Range | 31.5Hz to 8KHz |
| Accuracy | ± 1.5dB (ref 94dB @1KHz) |
| Dynamic Range | 65dB |
| Frequency Weighting | A,C |
| Time Weighting | Slow & Fast |
| Maximum Hold | Decay < 1dB/3min |

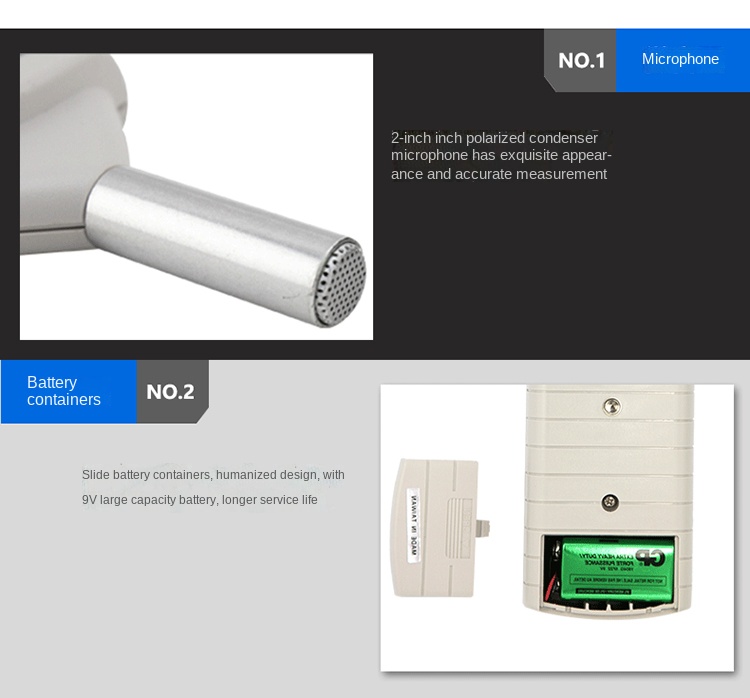

| Microphone | Electret condenser microphone |
| Calibration | Electrical calibration by using the internal oscillator (1KHz sine Wave at 94dB) |
| Auxilitary Output | AC conditioned, 0.55Vrms corresponding to each range step, impedance: 600 W DC conditioned, 10mV/dB (nominally) impedance: 100 W |
| Operating Condition | 0 ºC to 40 ºC < 80% R. H. |
| Storage Condition | -10 ºC to 60 ºC < 70% R.H. |
| Display | 4 digitals |
| Power Supply | one 9V battery |
| Size | 240mm(L)x68mm(W)x25mm(H) |
| Weight | 210g |
| Accessories | Instruction Manual, 9V Battery, Carrying Case, Screwdriver, Windscreen. |
Package Includes:
- 1 x TES-1350A Sound Level Meter
- 1 x Original Package
