Features:
1. 2-in-1 function: the product built-in oscilloscope and signal generator function, the product is compact and cost-effective.
2. HD LCD screen: 2.8-inch high-definition display, resolution 320 × 240.
3. Long-lasting battery life: built-in 1000mAH rechargeable lithium battery, equipped with an automatic shutdown function, both to achieve long life, but also to extend battery life.
4. One-key automatic mode: waveforms can be displayed immediately without complex adjustments.
5. Wide range of applications: ideal for advanced maintenance, development and DIY learning.

Product basic parameters:
Display: 2.8 inches / PPI: 320 * 240
USB charging: Type-C interface 5V/1A
Li-ion battery capacity: 1000mAh

Oscilloscope parameters:
Real-time sampling rate: 48MS/s
Bandwidth: 10MHz
Vertical sensitivity: 10mV/Div-10V/Div
Time base range: 50ns-20S
Voltage range: X1:±40V (Vpp:80V), X10:±400V (Vpp :800V)
Trigger mode: automatic/regular/single
Trigger edge: Rising edge/Falling edge
Coupling method: AC/DC
Calibration Square Wave: Frequency:1K;Duty Cycle:50%;Amplitude:3.3V

Signal generator parameters:
Frequency: 0-50KHz
Duty cycle: 0-100% (rectangular and sawtooth wave)
Amplitude: 0.1-3.0V
Waveforms: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, reverse step wave, exponential rise, exponential fall, DC signal multi-audio, Sink pulse, Lorentz wave

Package Includes:
Oscilloscope*1
Instruction manual*1
Lanyard*1
Alligator clip probe*1
Type-C charging cable*1

Features:
1. The oscilloscope has a real-time sampling rate of 5MS/s, a bandwidth of 1MHz, and a full range of triggering functions (single, normal, automatic)
2. It is also equipped with a multi-function signal generator (10KHz). Equipped with a 2.8-inch 320 * 240 resolution high-definition LCD screen, built-in 1000mAh high-quality lithium battery, fully charged can be used for about 4 hours
3. Exquisite and compact, convenient storage
4. Gear toggle buttons: switching adjustment at will
5. Wide range of applications: suitable for use in a variety of occasions, lightweight and space-saving, can be carried out of the work, maintenance and DIY tool!

Oscilloscope parameters:
Sampling rate: 5MS/s
Bandwidth: 1M
Vertical sensitivity: 10mV/Div~10V/Div
Time base range: 500ns~20S
Waveform pause: √
Trigger mode: complete trigger function (single, normal, automatic), both for the cycle of analog signals and non-periodic digital signals can be used freely
Voltage range: Up to ±400V voltage signal measurement.
Calibration square wave: comes with 1KHz calibration square wave, the probe calibration is easy and convenient

Signal generator parameters:
Frequency: 0~10KHz
Duty cycle: 0~100% (rectangular and sawtooth wave)
Amplitude: 0.1~3.3V
Waveforms: sine wave, rectangular wave, sawtooth wave half wave, full wave, positive step wave anti-step wave, noise wave, exponential rise, exponential fall, DC signal multi-audio, Sink pulse, Lorentz wave
Auto shutdown: √
Switch the subject: √

Product basic parameters:
Display: 2.8 inches 320*240
USB charging: 5V/1A
Li-ion battery capacity: 1000mAh

Package Includes:
Host *1
Instruction manual*1
Type-C charging cable*1
Lanyard*1
Alligator clip probe *1
P6100 High Pressure Probe *1
Adapter *1

Features:
1.The oscilloscope has a real-time sampling rate of 2.5MS/s and a bandwidth of 200kHz
2.It has complete triggering function (single, normal, automatic), regardless of the cycle
3.Both analog and aperiodic digital signals can be used freely
4.The highest measurable voltage signal is ± 400V
5.Equipped with efficient one click AUTO, it can display the measured waveform without complicated adjustments
6.Equipped with a 1KHz calibration square wave, the probe calibration is easy and convenient
7.Lightweight body, eliminating the problem of heavy equipment straps
8.Suitable for various occasions, carry it with you when going out to work

Parameters:
Model: DSO152
Sampling rate: 2.5MS/s
Bandwidth: 200K
Vertical sensitivity: 10mV/Div-20V/Div (in steps of 1-2-5)
Time base range: 10 μ S/Div-50s/Div (progressive in a 1-2-5 manner)
Voltage range: X1: ± 40V (Vpp: 80V), X10: ± 400V (Vpp: 800V)
Trigger method: automatic/regular/single time
Coupling method: AC/DC
Display: 2.8 inches/PPI: 320 * 240
USB charging: 5V/1A
Interface: Type-C
Lithium battery capacity: 1000mAh
Calibration square wave: frequency: 1K; Duty cycle: 50%

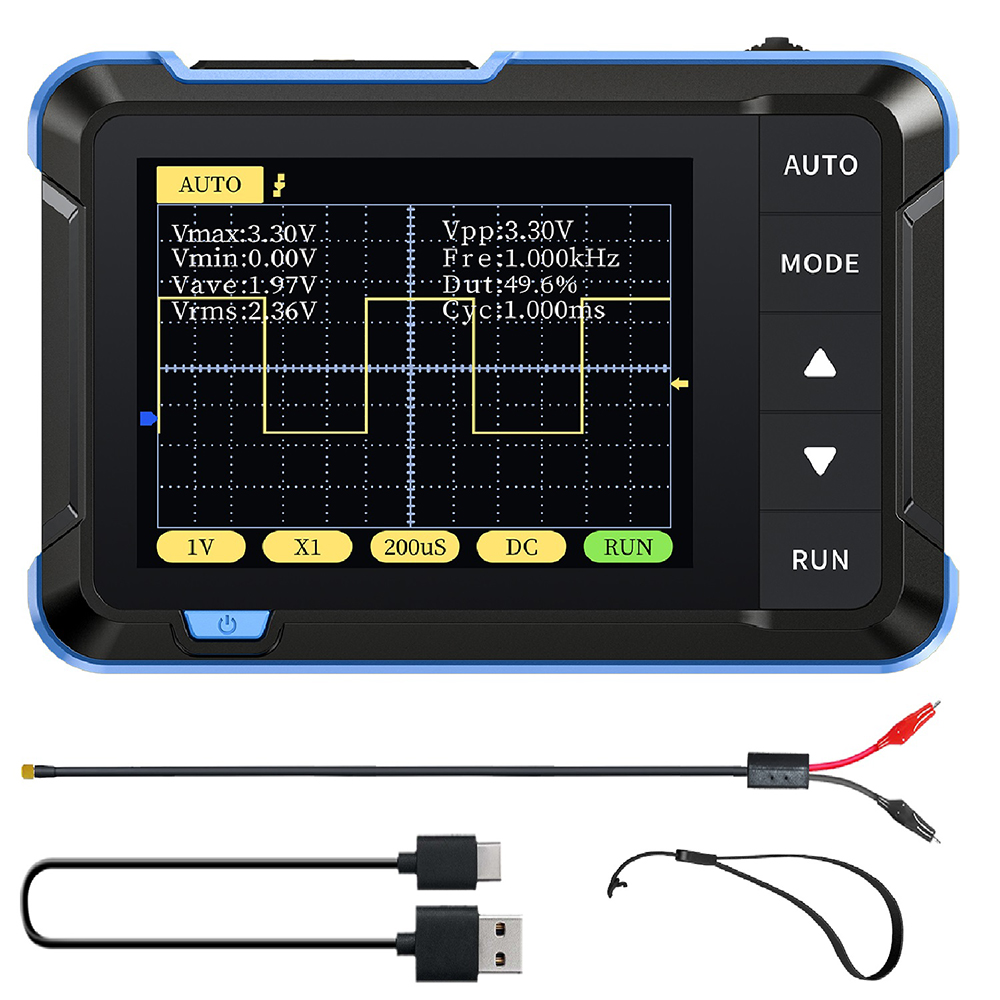

Package include:
Standard version: 152 host * 1+manual * 1+ordinary probe * 1+Type-C data cable+hanging rope * 1
