Overview:
features LED adjustable flash speed, a piece of 2-pin Electronic LED 12V Flasher Relay Fix for Turn Signal and Blinker Light. This will solve LED related turn signal problems such as rapid flashing, not flashing, or bulb burnt out warning
on dashboard. Better all, dial to the desired flash speed whenever you need to. These are designed for most 2-pin configurations. Simple Plug N' Play.
Features:
Solution for fast turn signal blinking after installing LED bulbs
Completely waterproof design
Adjustable steering lights flicker frequency
Directly replace the OEM two-pin flasher
Eliminate the need for tapping wires to install the load resistors
Allow LED bulbs to blink at the normal or desired rate
Work for most Motorcycles such as For Honda, For Kawasaki,For Suzuki, For Yamaha and many other brands as well
Specifications:
Operating Voltage: 12V (11V-15V)
Max Power: 42W
Flashing Frequency: 50 times/min to 200 times/min
Switch Power: 0.02A to 12A
Operating Temperature: -40°C to +80°C
Work to replace most 2-pin flasher
Dimensions: 1.38" (L) x 1.38" (W) x 1.06" (D)Important Information about the LED Flasher:
The LED flasher does not replace all flasher relay. Before ordering, please make sure the 2-pin configuration is the same as your vehicle's. You can usually find your flasher pin out printed right on your flasher. Failure to check this and installation
in an incompatible vehicle can blow your fuse, destroy the flasher and void the flasher warranty.
Fit for all 12V 2 PIN battery
Connection and adjustment Instructions:
Flash speed adjustment:
Clockwise: slower
Counter Clockwise: Faster

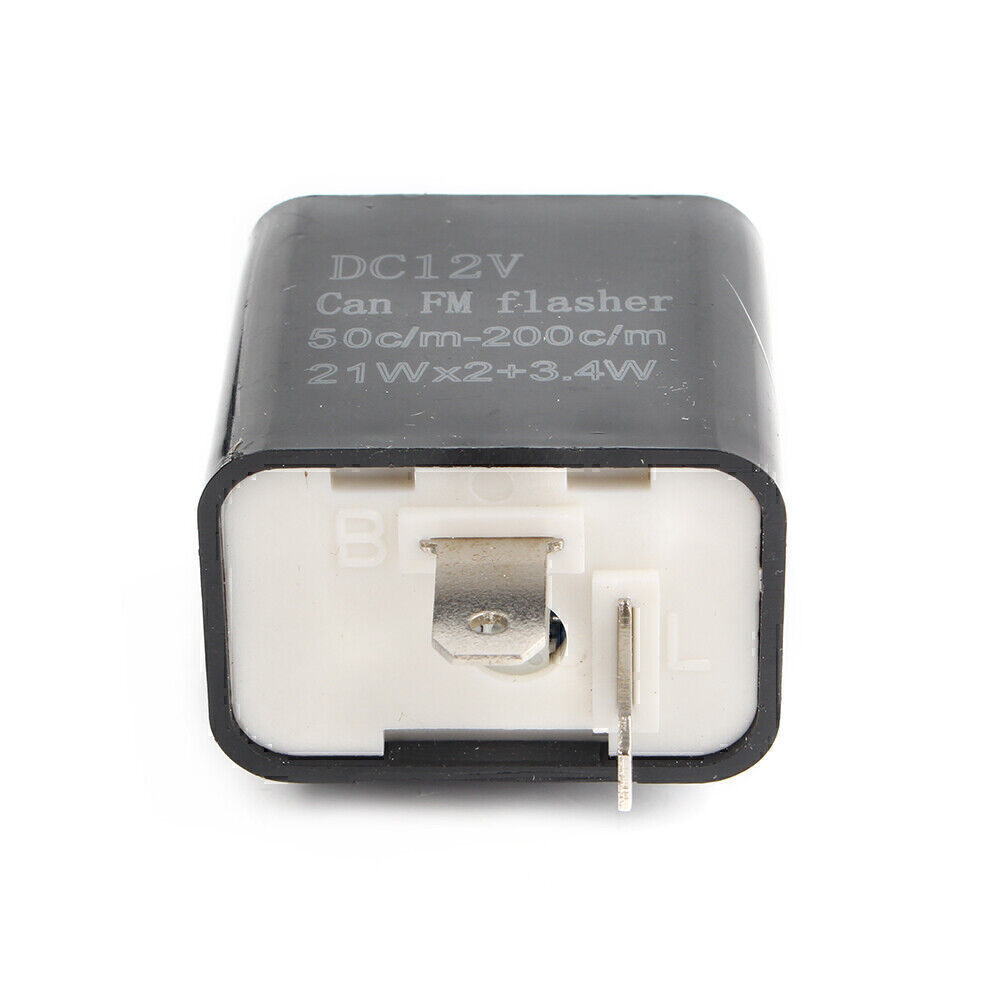

Replace the stock relay in the fuse box. Please check your owner manual to locate the flasher. Pin B is power in, and Pin L is the adjustable power out.
Package included:
1pcs 2-Pin Adjustable LED Flasher
