Features:
1.The product is made of high quality PCB+ABS shell material, quality is guaranteed.
2.Multi-specification optional 48W/80W/100W/120W/160W/200W/240W/288W
3.Wide range of applications, used in: LED lights, panel lights, downlights, ceiling lights, track lights, floodlights, etc.
4. It is an intelligent infrared remote control power supply, which can be used for dimming and colour adjustment.
5. Stable product performance, plus the shell design increases the service life of the product.

Product Overview:
Drive power supply selection mainly depends on the DC output current and voltage, data matching can be used. (Changing the driver is not the greater the better the power)
LED driver accessories are generally applicable to all types of LED ceiling lamps, spotlights, downlights, track lights, ceiling lights, floodlights and other external LED driver power supply, all driver power supply with IC constant current output, the output of constant current not constant voltage.

[18-40*2 80W] Parameters:
Name: (18-40W)*2 infrared induction
Input voltage: AC165-265V
Output voltage: 85-135V
Output current: 240MA

[12-24*2 48W] Parameters:
Name: (12-24W)*2 infrared induction
Input voltage: AC165-265V
Output Voltage: 36-85V
Output current: 280MA

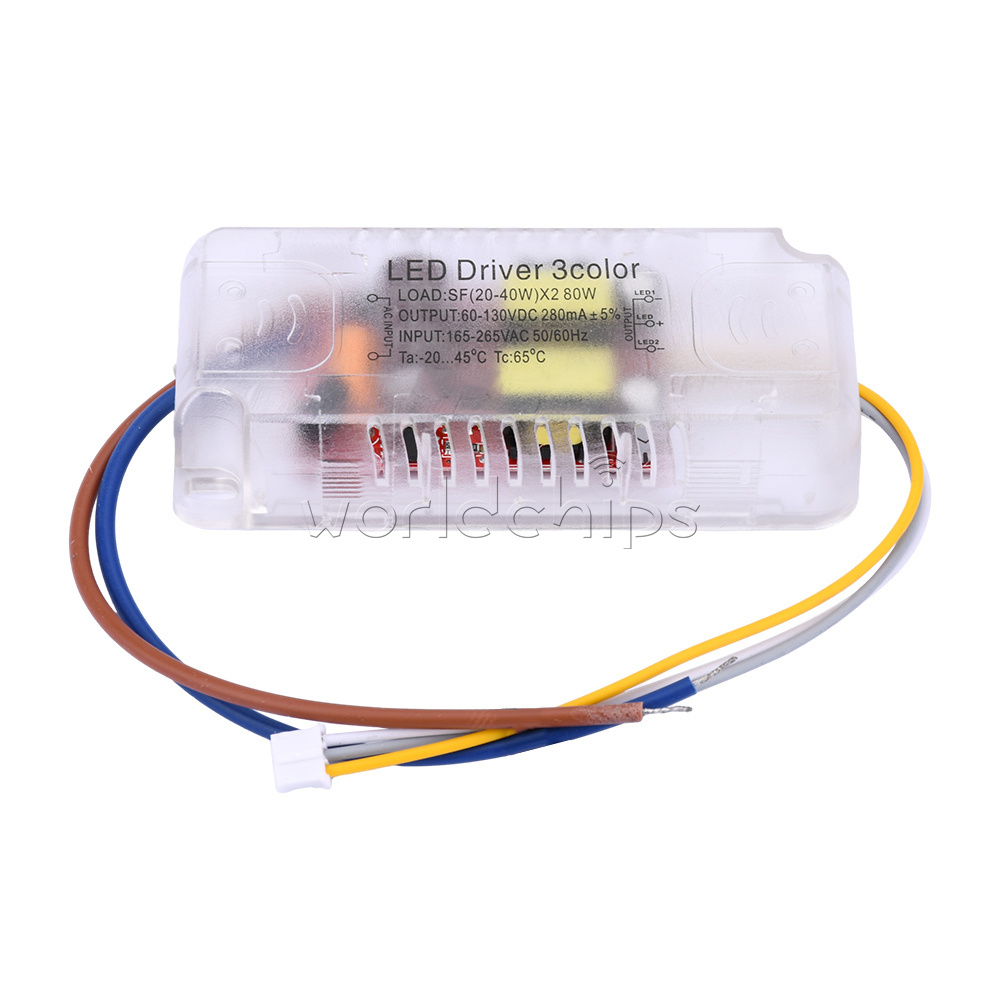

[20-40*2 80W] Parameters:
Name: (20-40W)*2 infrared induction
Input voltage: AC165-265V
Output voltage: 60-130V
Output current: 280MA

[30-50*2 100W] Parameters:
Name: (30-50W)*2 infrared induction
Input voltage: AC165-265V
Output Voltage: 90-165V
Output current: 280MA

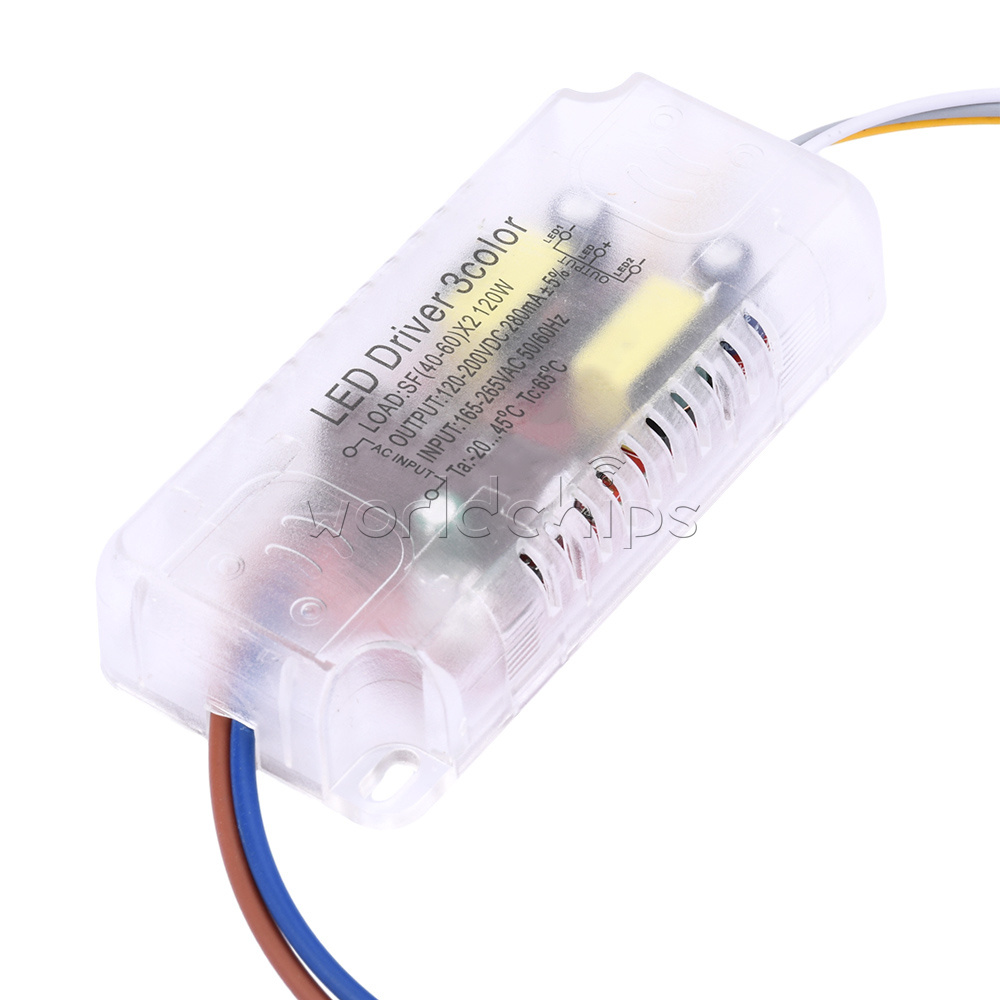

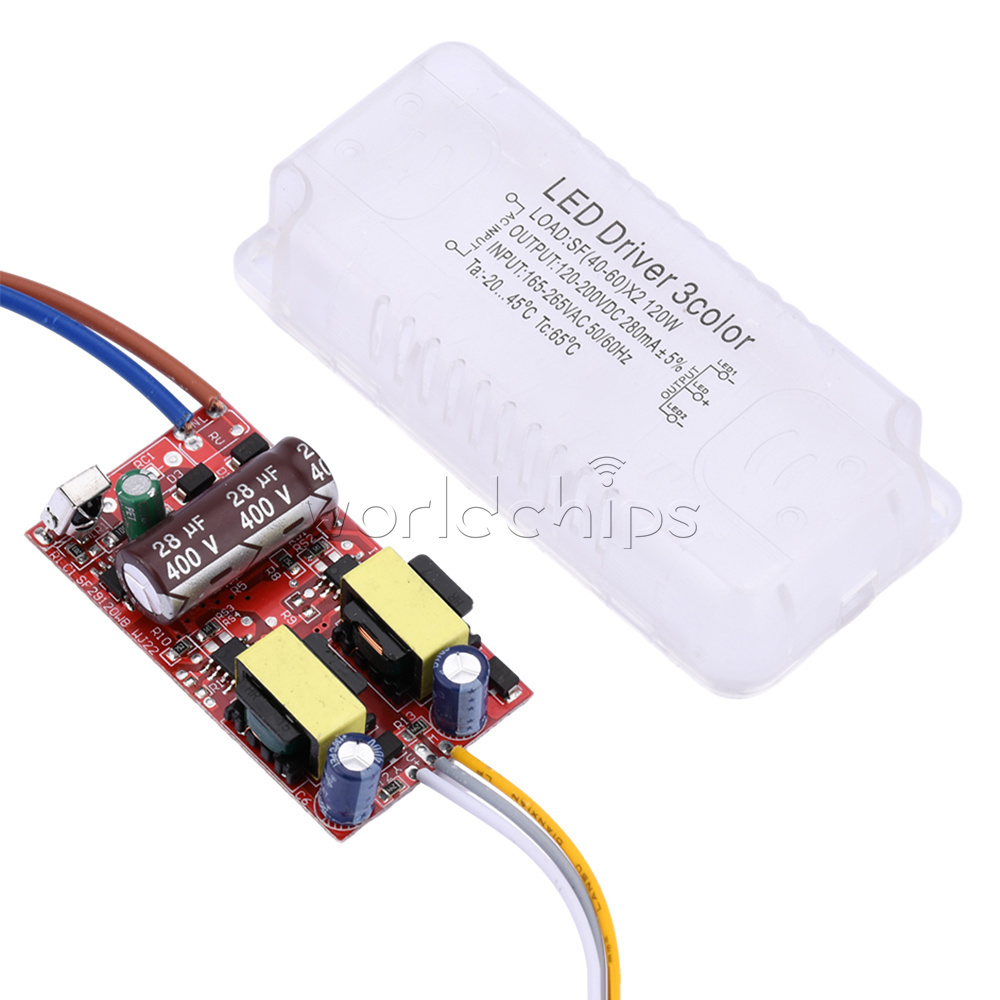

[40-60*2 120W] Parameters:
Name: (40-60W)*2 infrared induction
Input voltage: AC165-265V
Output Voltage: 120-200V
Output current: 280MA

[20-40*4 160W] Parameters:
Name：(20-40W)*4 Infrared induction
Input voltage: AC165-265V
Output voltage: 60-130V
Output current: 250MA

[30-50*4 200W] Parameters:
Name：(30-50W)*4 Infrared induction
Input voltage: AC165-265V
Output Voltage: 90-165V
Output current: 250MA

[40-60*4 240W] Parameters:
Name：(40-60W)*4 Infrared induction
Input voltage: AC165-265V
Output Voltage: 120-200V
Output current: 250MA

[40-72*4 288W] Parameters:
Name: (40-72W)*4 infrared induction
Input voltage: AC165-265V
Output voltage: 120-230V
Output current: 220MA

Remote control:
Colour: White
Specification: Chinese/English
Shipped without battery
Function: Dimming, colour adjustment

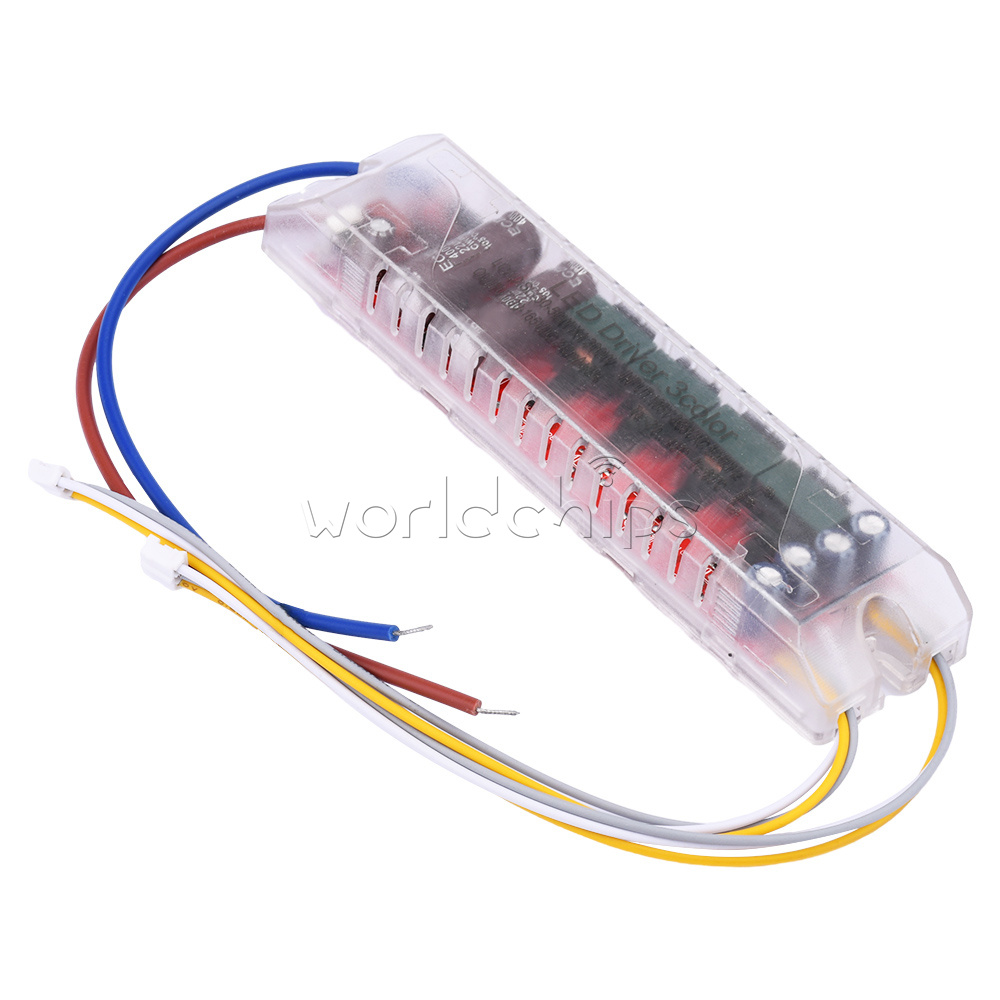

Description:
Grey line is positive light
White line is negative for white light
The yellow line is the negative pole of the warm white light

Note: The product size is measured manually, there will be positive and negative differences.

Package include:
Driver X1
