Product Description

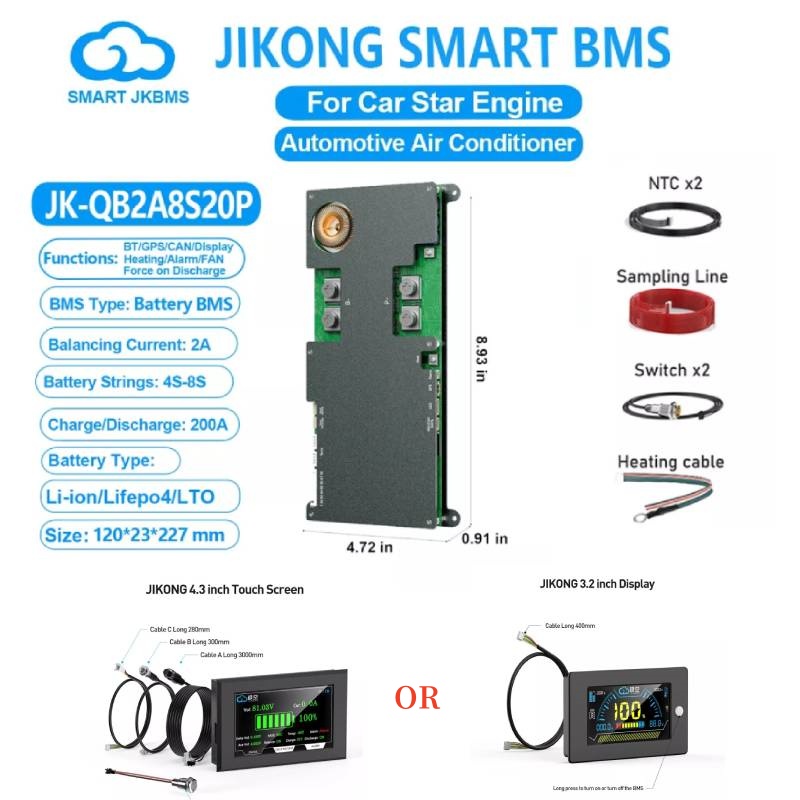

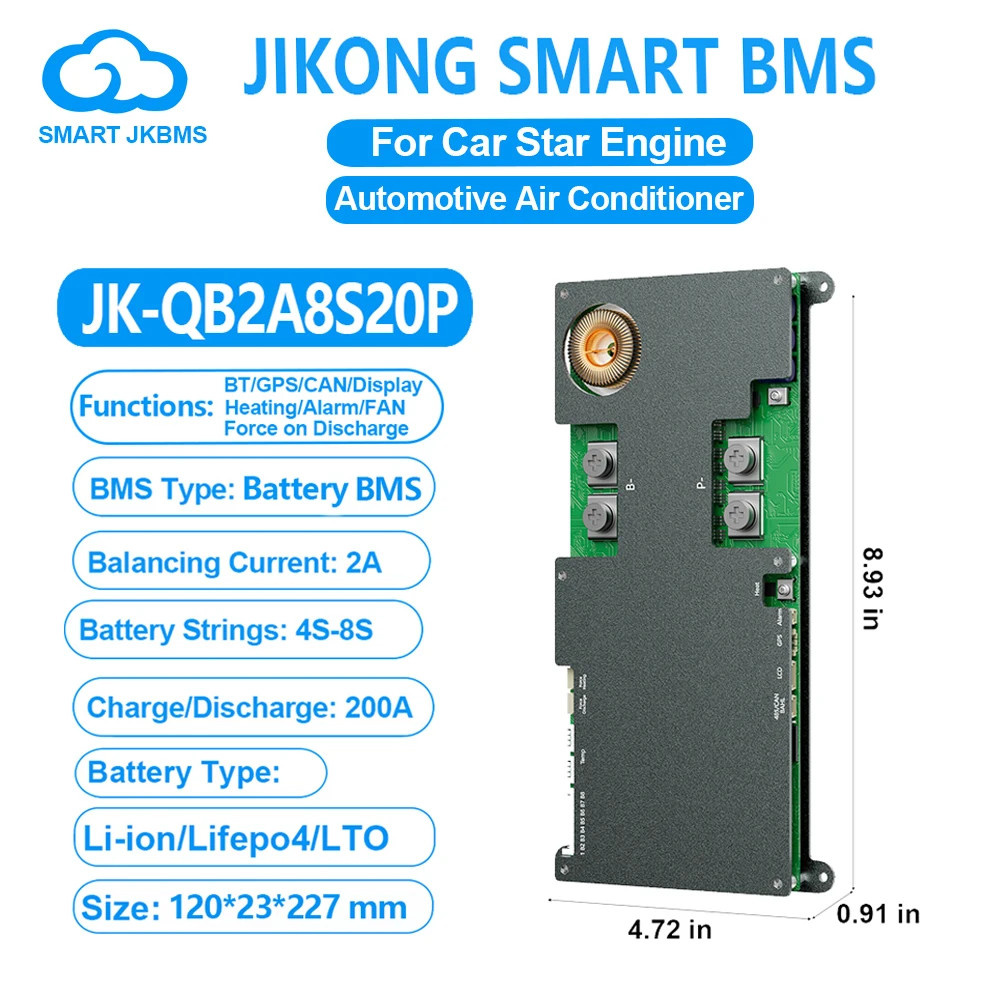

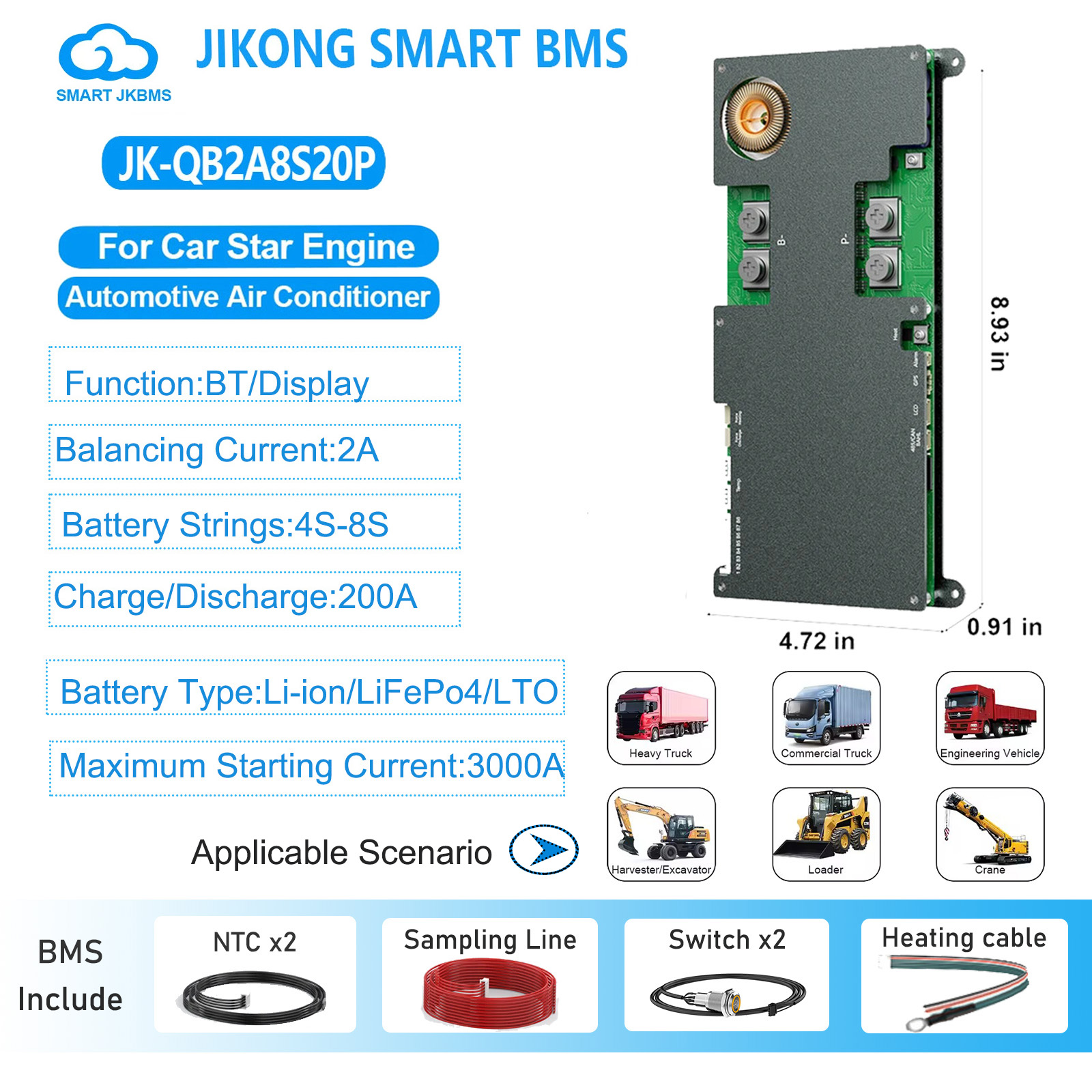

JK 4S-8S 12V 24V 200A Li-ion LiFePo4 Car Truck Start BMS w/2A Active Balance lot

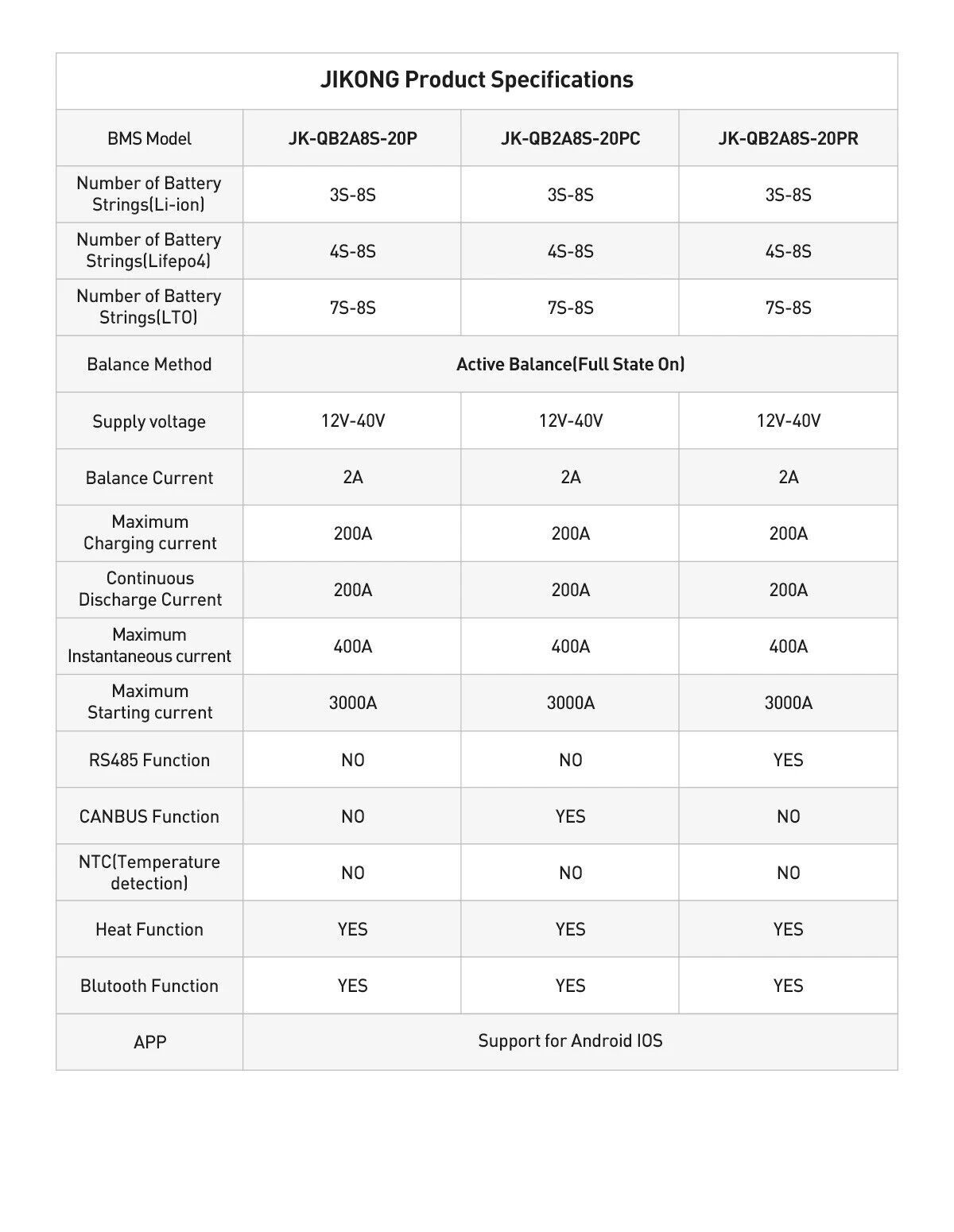

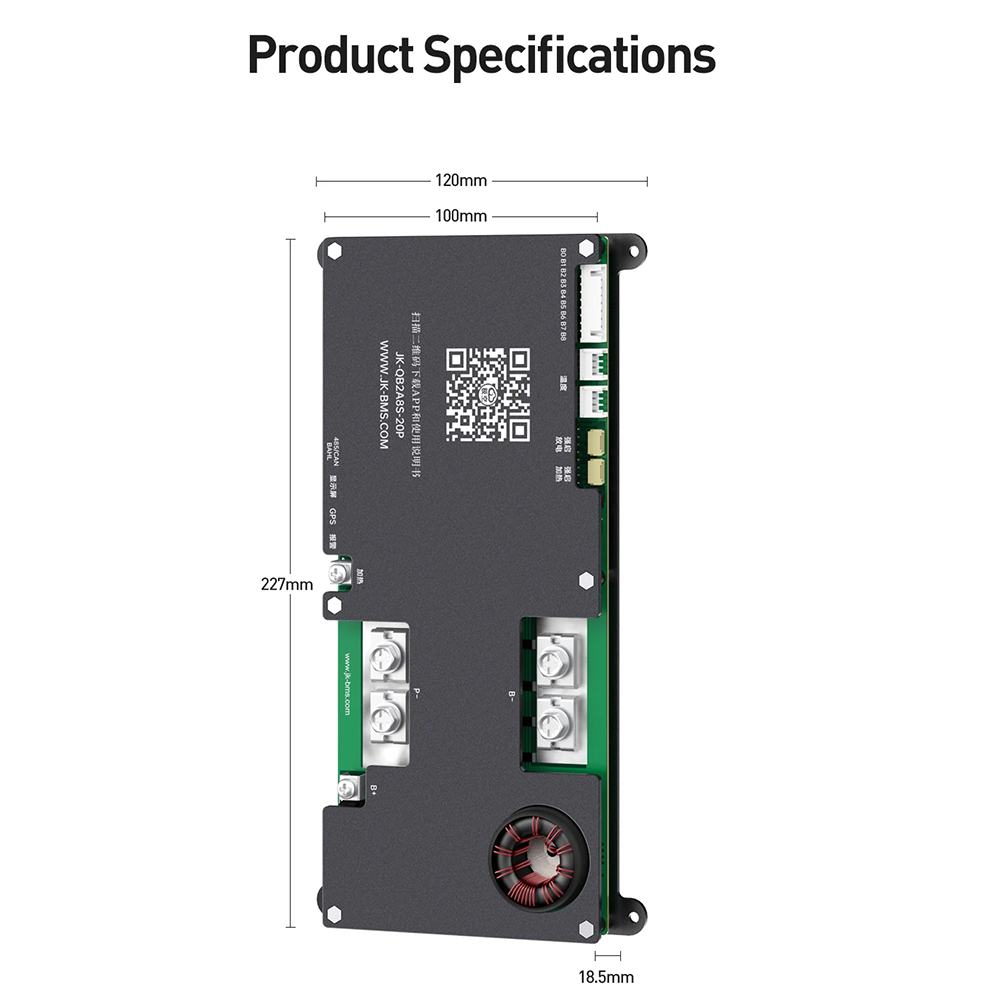

Specification：

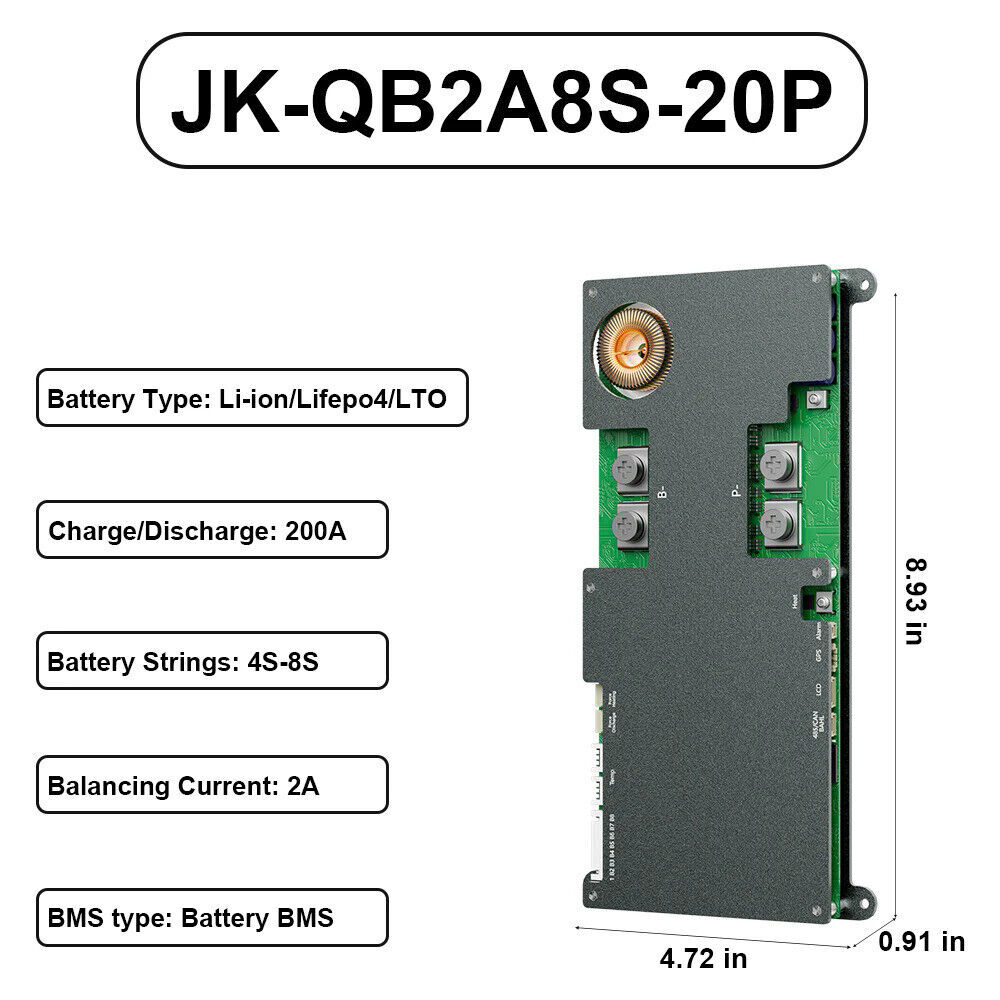

Model:JK-QB2A8S20P

Lifepo4 range:4~8S

Li-ion range: 3~8S

LTO range: 7~8S

Balanced way: Active equalization

Active equalization current:2A

internal resistance：0.8m

Rated discharge current：200A

Maximum discharge current：200A

Overcurrent protection（Adjustable）:10-200A

Wiring method:common port

Supply voltage：12-40V

Maximum lnstantaneous current：400A

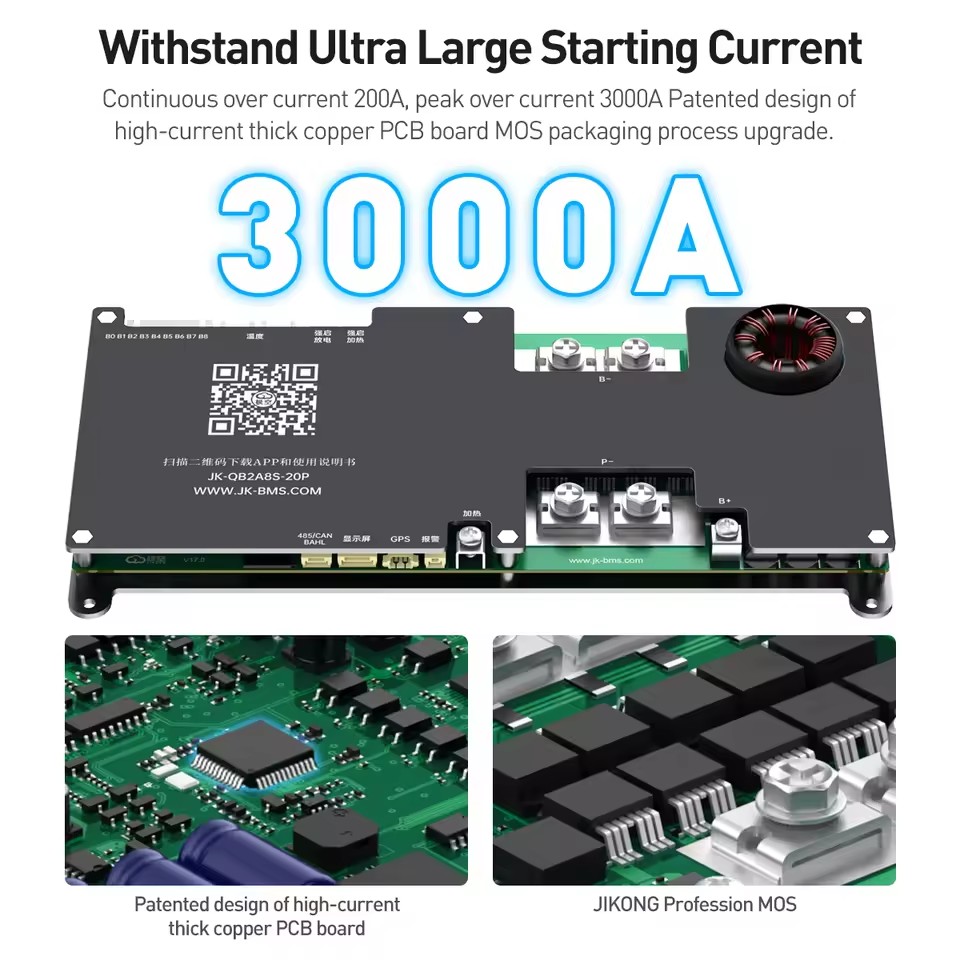

Maximum stantaneous current：3000A

Quantity of temperature detection: 2PCS

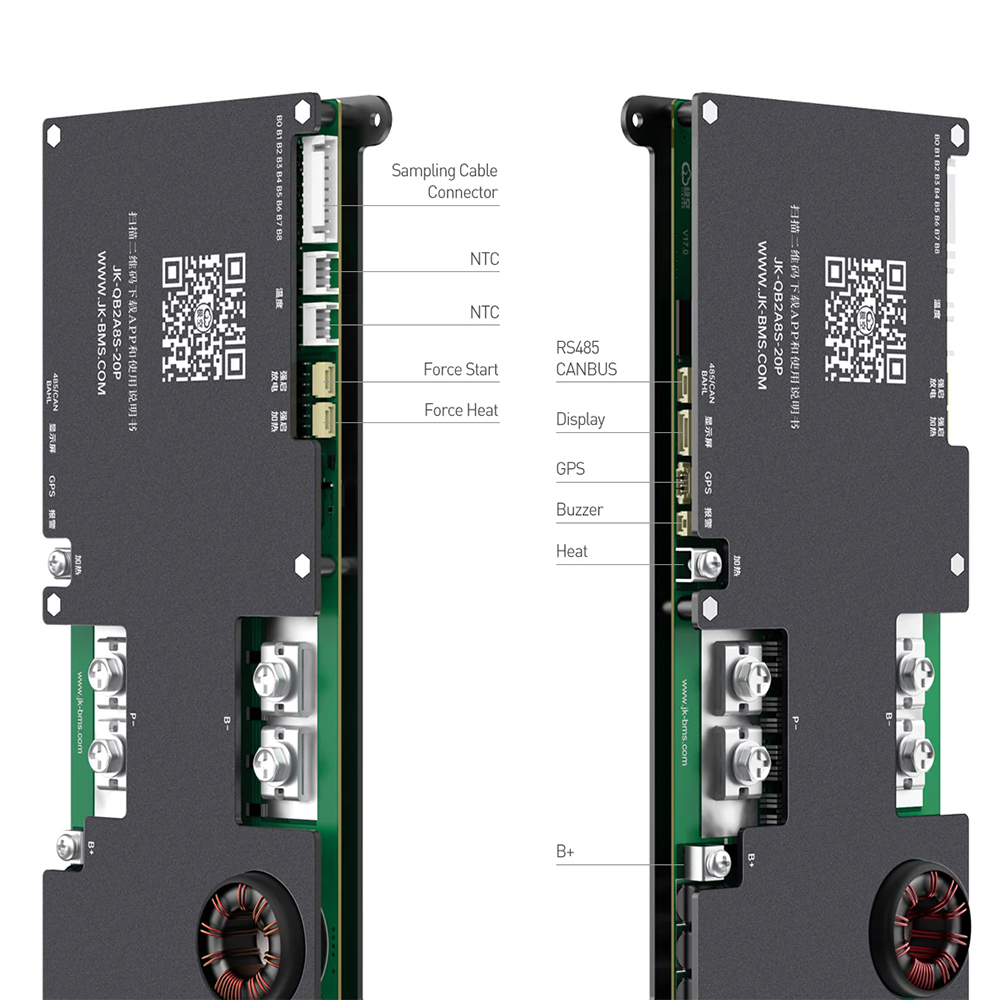

Interface Function Description:

1. Temperature sensor interface: All models of JKBMS are equipped with

2. RS485 interface: All models of JK BMS are configured with

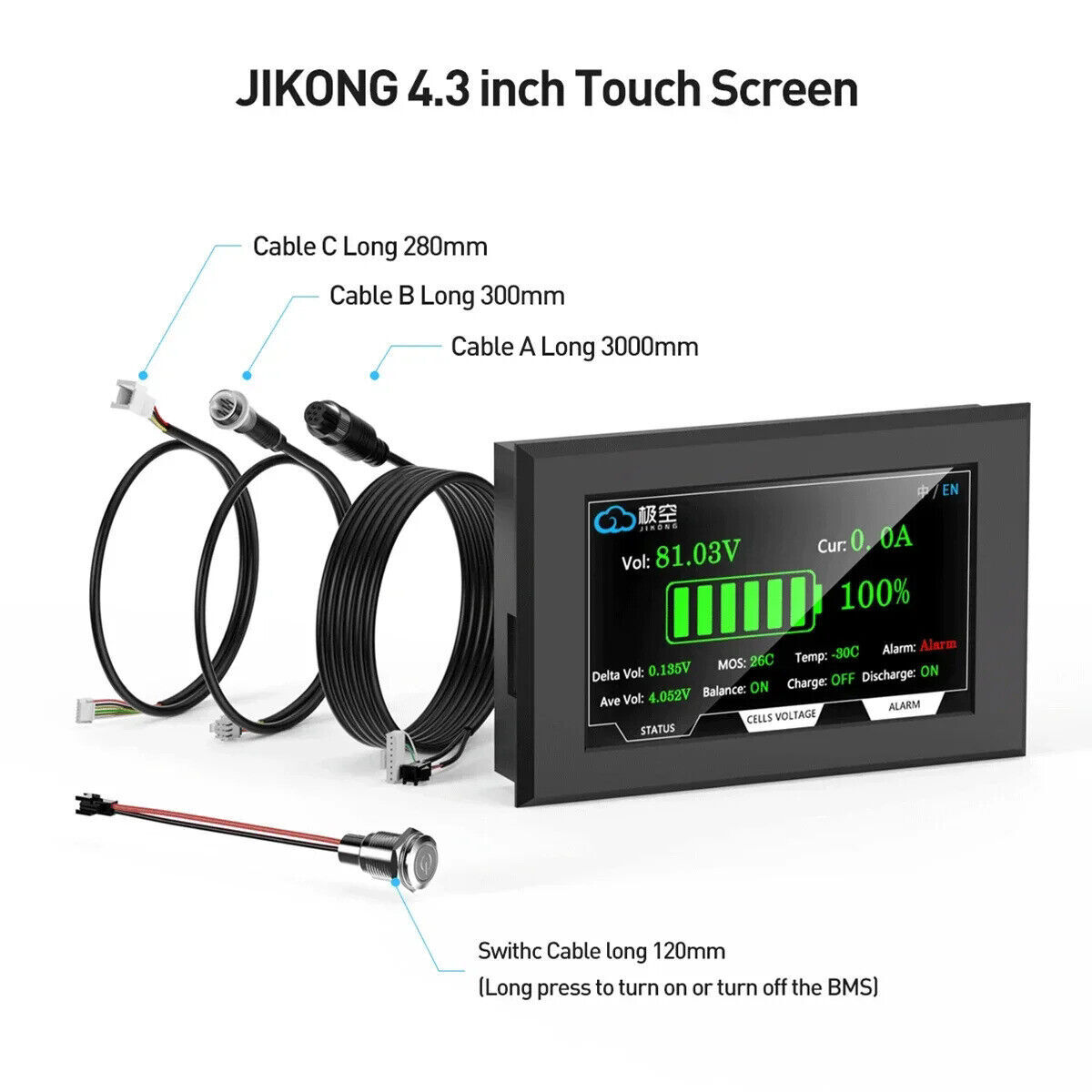

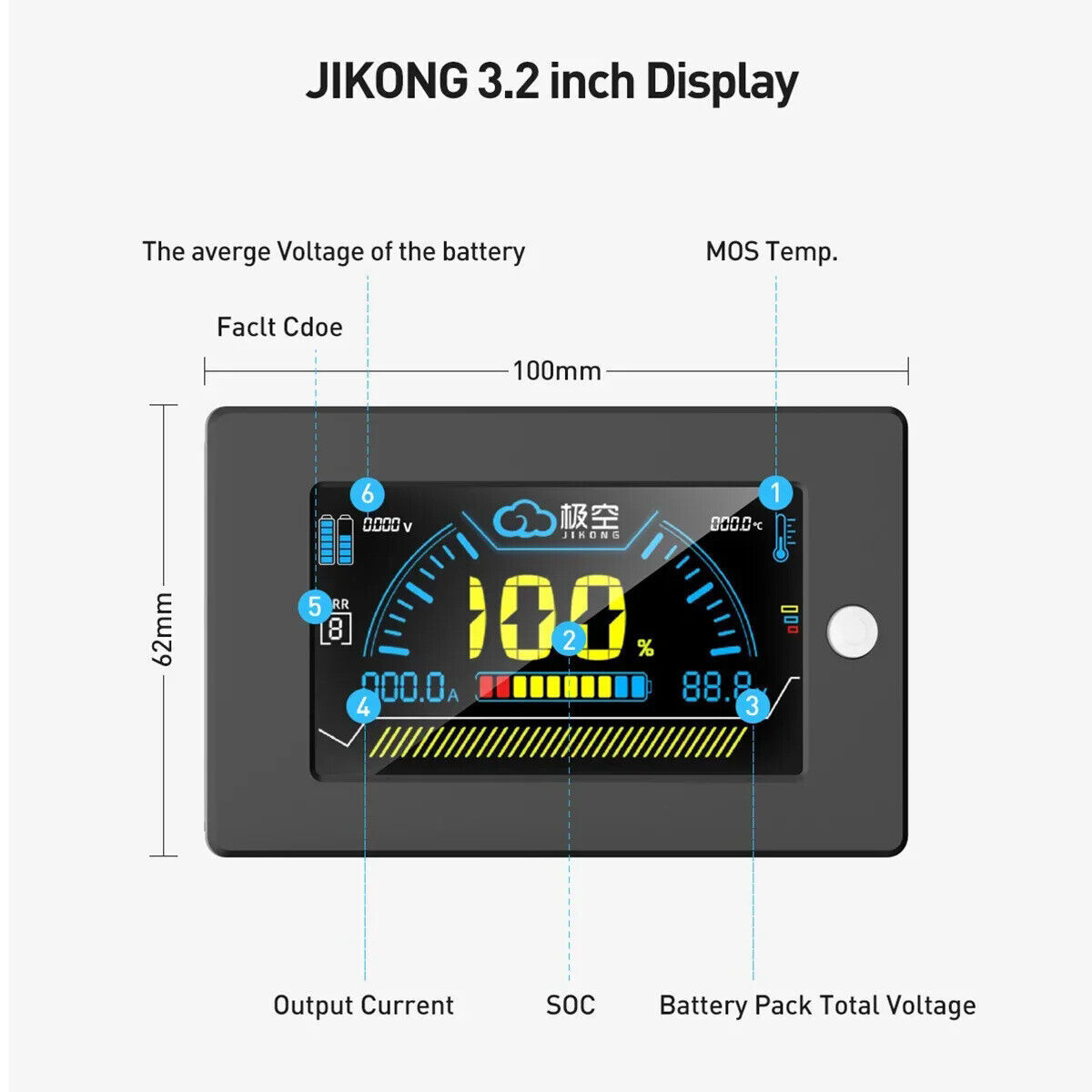

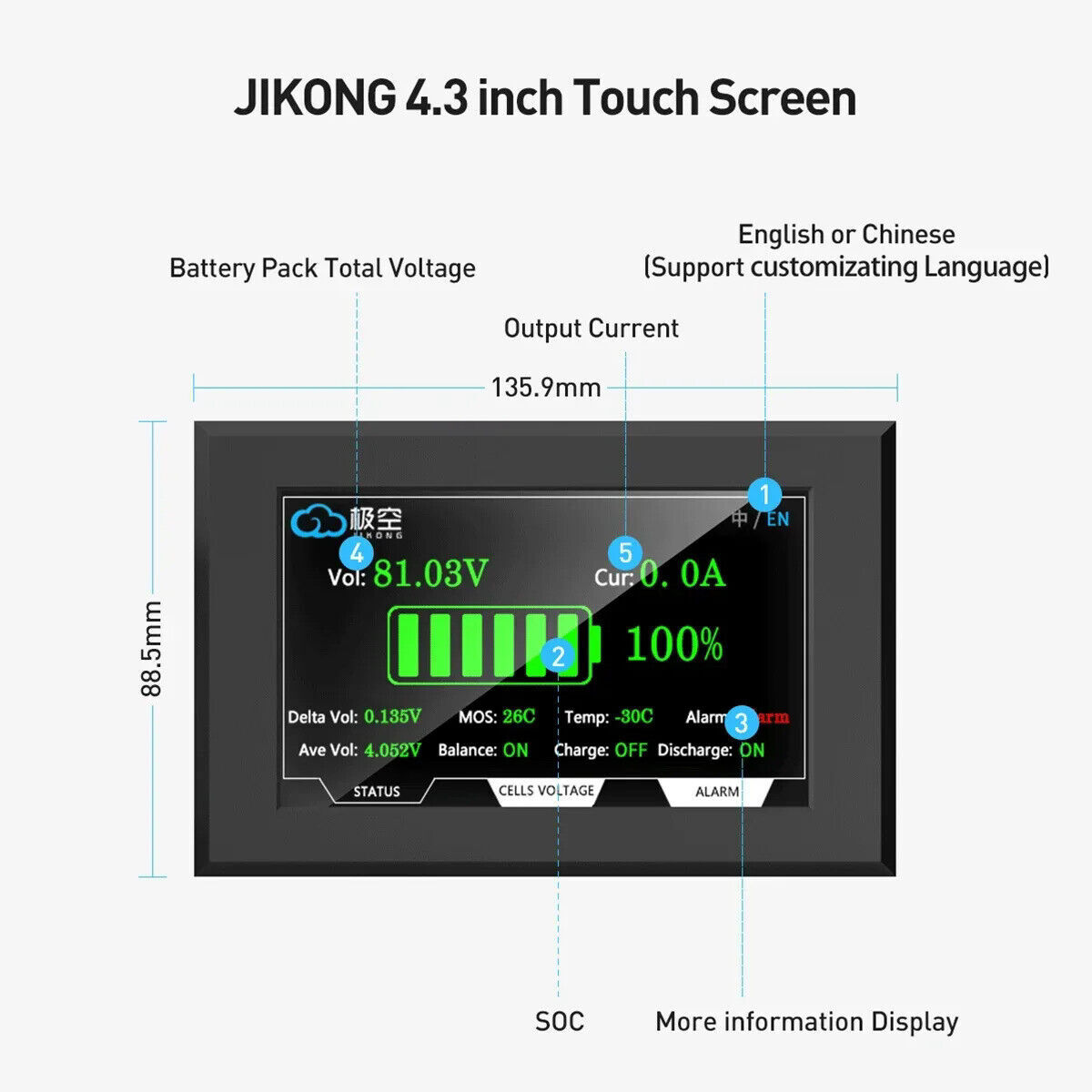

3. LCD interface: All models of JK BMS are equipped with

4. CAN interface: Only configurations with"CAN"in the model

5. Heating interface: Only configured with"Heat" in the model



BMS Use Manual:

1. Download app and manual

2. Hardware connection

3. Startup

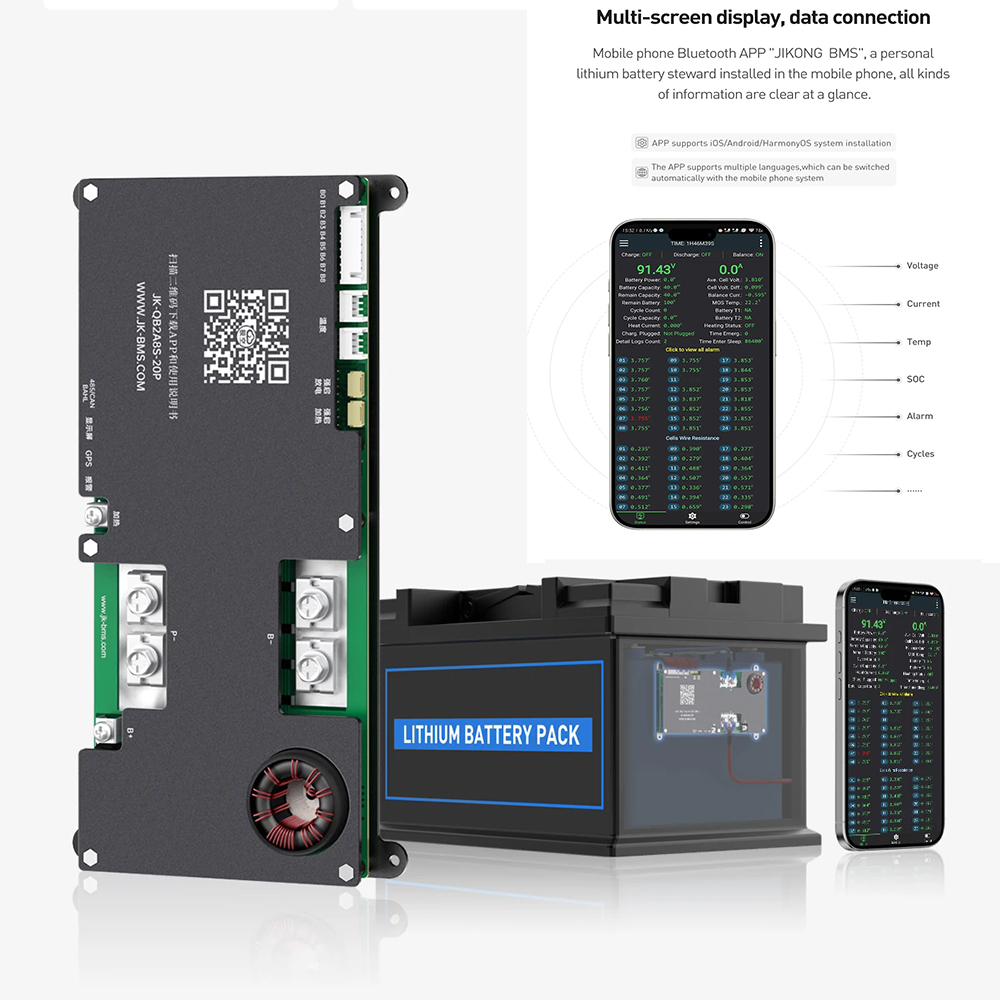

4. Open the app and connect the device

5. Set the number of strings and battery type

6. Check the battery status

Download IOS: Search (JIKONG BMS) in the APP STORE

Download Andriod : Search (JK BMS) in the Google

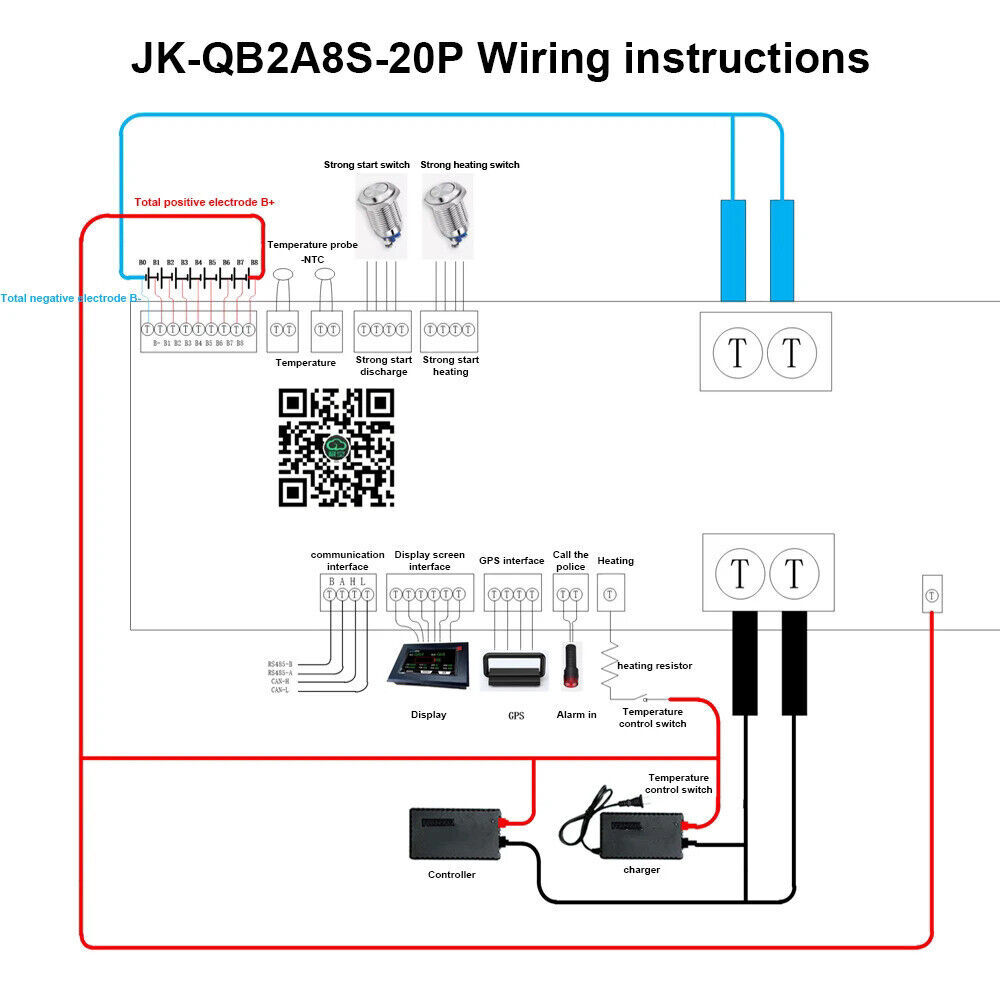

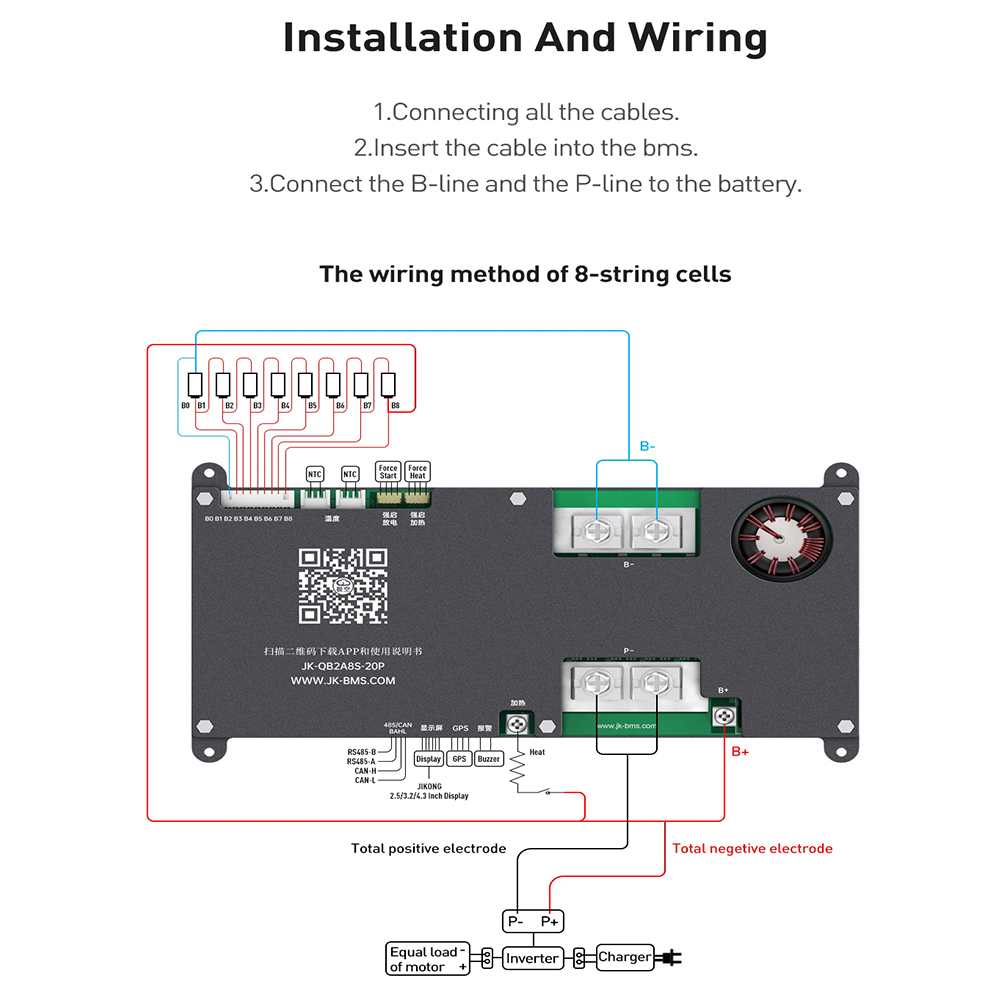

(1) Connect the protection board and battery pack according to the

following wiring diagram,Make sure that the last power cord is also

Connected to the main positive pole,The total voltage of the battery

pack must be greater than 20V(Default BMS)/10V(4S BMS) before tarting up.

(2) Use the display activation button or additional switch to activate the BMS.

(3) Turn on GPS and Bluetooth on your mobile phone.

(4) Make sure your mobile Bluetooth is turned on, then turn on APP

click on the top left corner of APP to search for devices, and click on

the device name to connect to the default password: 1234.

(5) Parameters need to be set for the first start-up Setting requires a

password, The default parameter is set to password 123456,Simply

set the number of units and battery type.

(6) Once the parameters are set, go back to the real-time status page,

check the battery status, no error message is prompted and normal

operation,blue is the highest voltage, red is the lowest voltage.

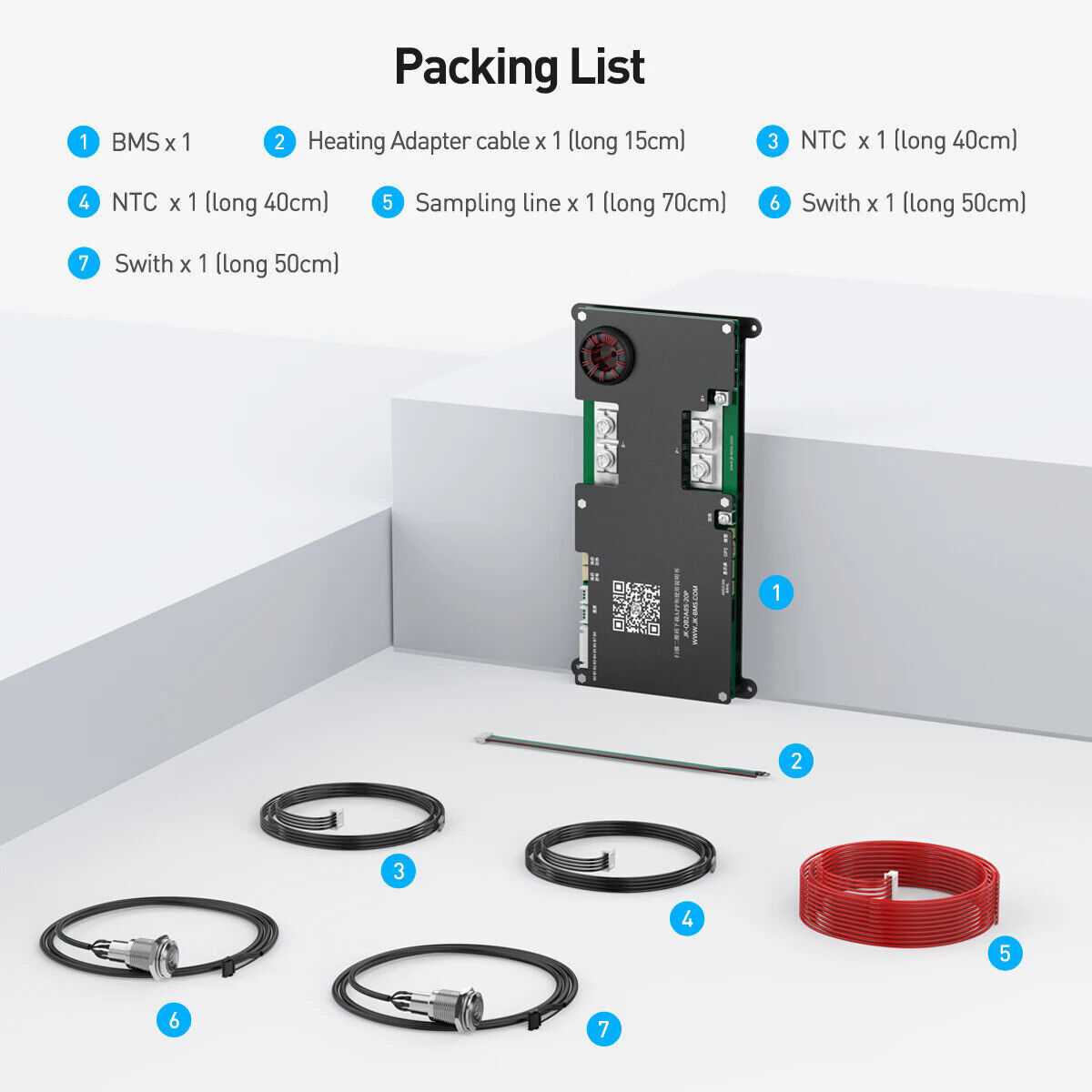

 Package includes：

1*1set JK-QB2A8S20P BMS
