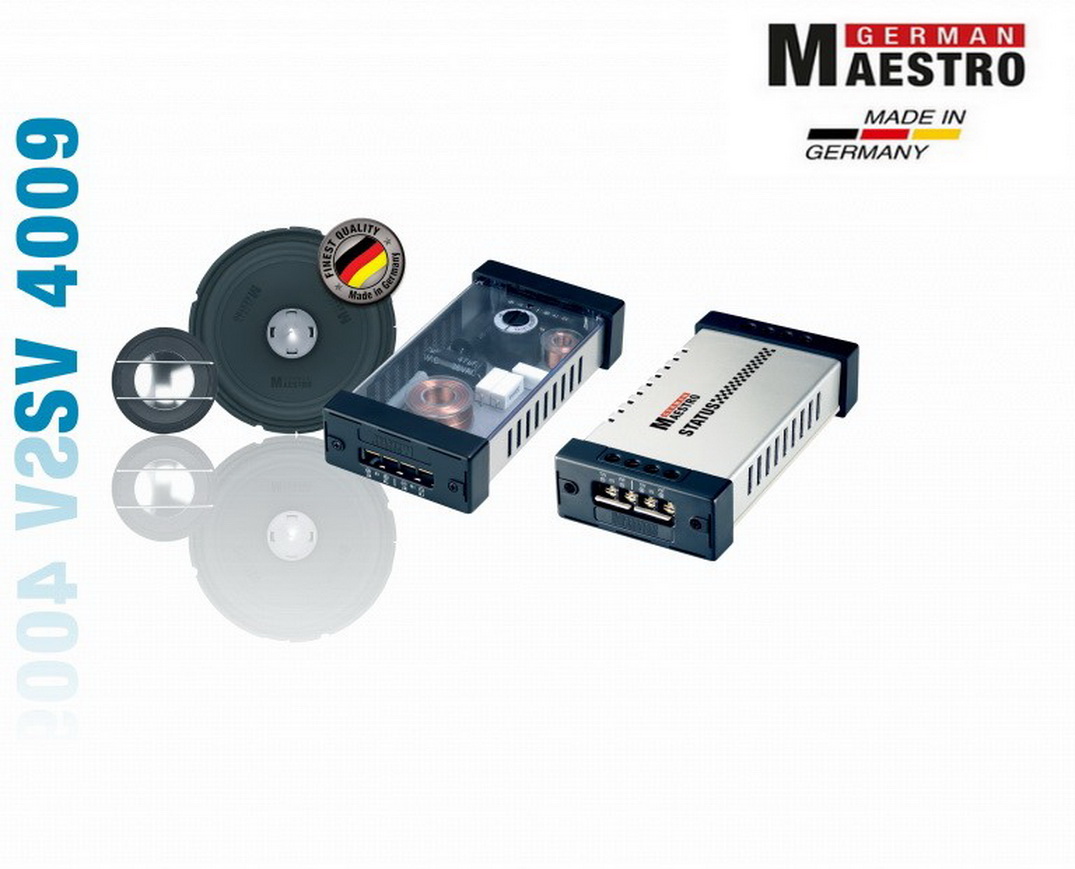

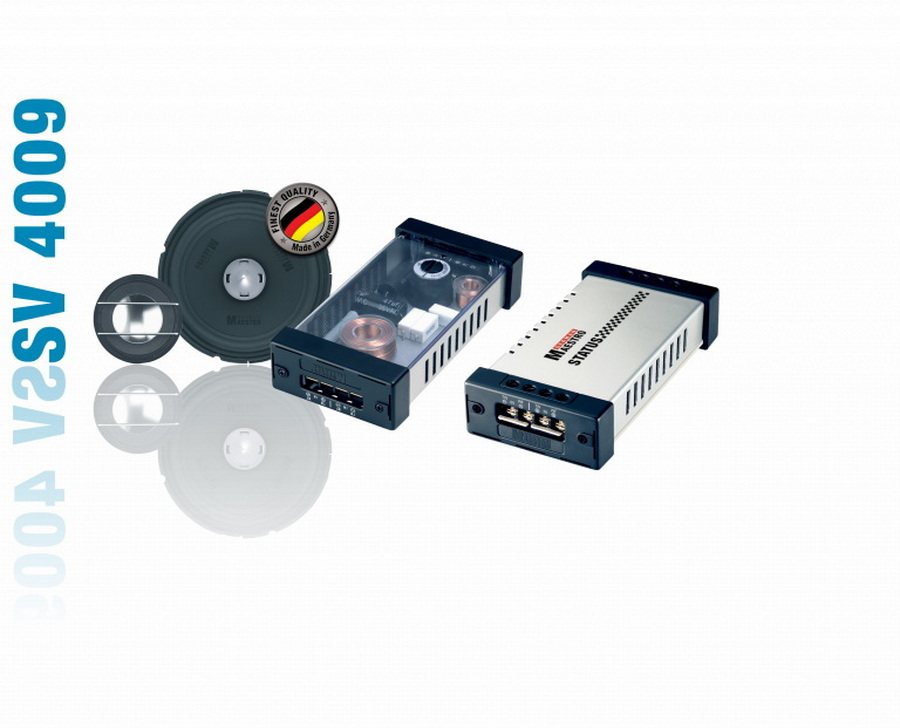

High-end 10.0cm / 4" 2-way component speaker: German Maestro SV4009
Important note for customers outside the EU!
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Important note for customers outside the EU!
Any applicable import duties, taxes and charges are not included in the item price or shipping costs. The buyer is responsible for these fees.
Item description
1 pair of SV4009
High-end speakers for sound enthusiasts - honest, neutral voice reproduction without sugar-coating.
Paired with the UltraSphere™ technology tweeter with an inverted, two-part titanium dome in a metal housing, the result is an extremely spacious and deep sound.
In addition, the bass/midrange driver delights with lots of kick bass (lower limit frequency of 60Hz!!) and high efficiency of 85dB!
A loudspeaker for true-to-life, honest and extremely spacious music reproduction with depth gradation of the music. In addition, extreme kick bass capability for a 10.0cm speaker!

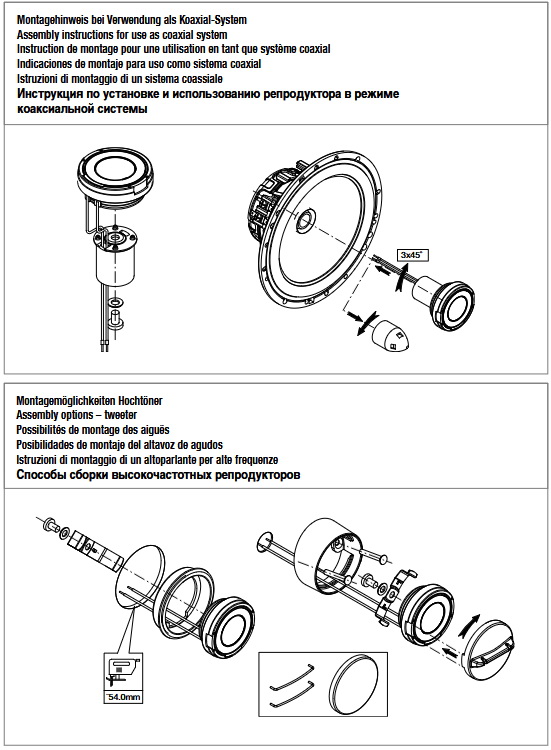

Can be used as component or coaxial speakers.

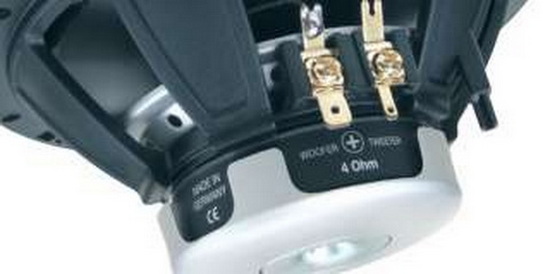

For this purpose, the phase plug in the middle of the bass/midrange driver can be removed and replaced with a tweeter (included in delivery). The tweeter can be snapped onto this mount. The additional tweeter connections are located on the basket of the bass/midrange driver.
Handmade in Germany!
Product features:
- ST40WS tweeter based on exclusive UltraSphere™ technology with inverted, two-piece titanium tweeter domes and extremely powerful neodymium magnet systems.
- Woofer with two-part carbon fiber reinforced, high-strength plastic chassis, polypropylene membrane and magnet system additionally cooled by a highly heat-conducting metal cover. Edge-wound 25 mm voice coil.

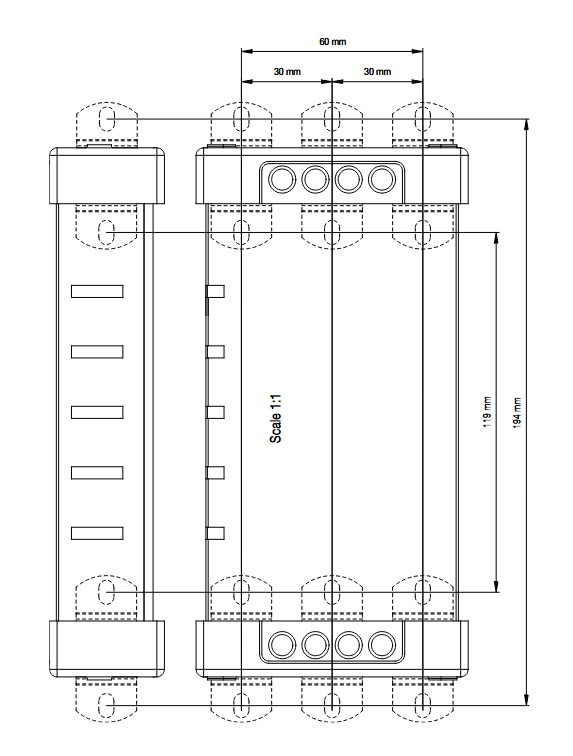

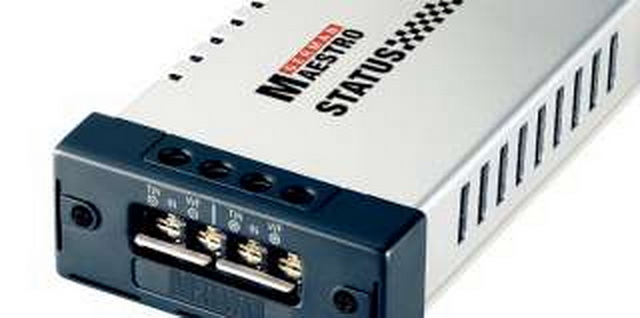

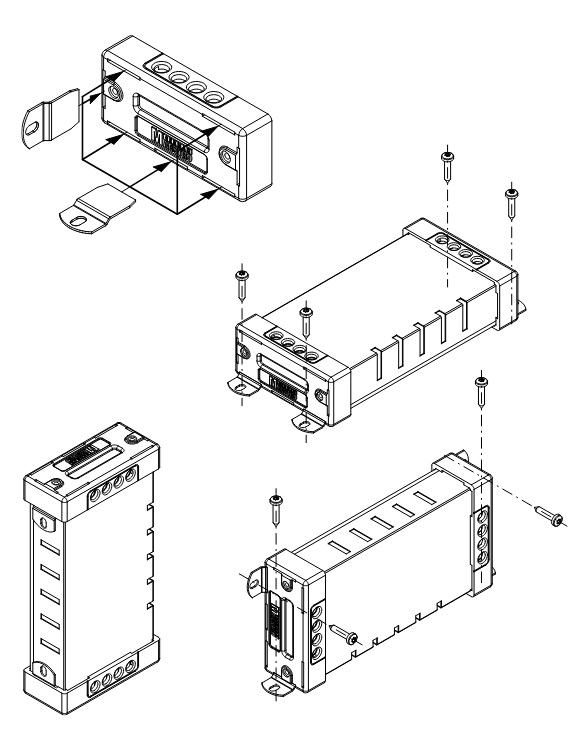

- Status performance crossovers with unique Multi-MOUNT mounting system (MMS) for highly flexible mounting.
- Gold-plated connections for maximum long-term best contact.
- Treble level can be variably adjusted in four levels.

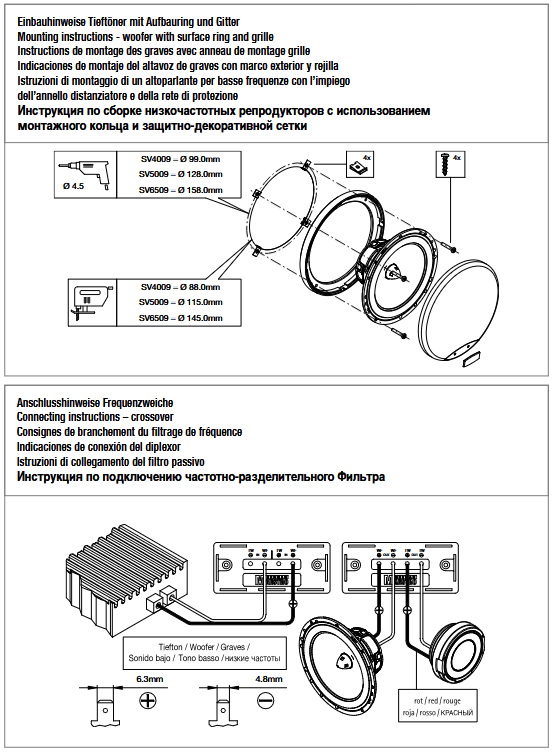

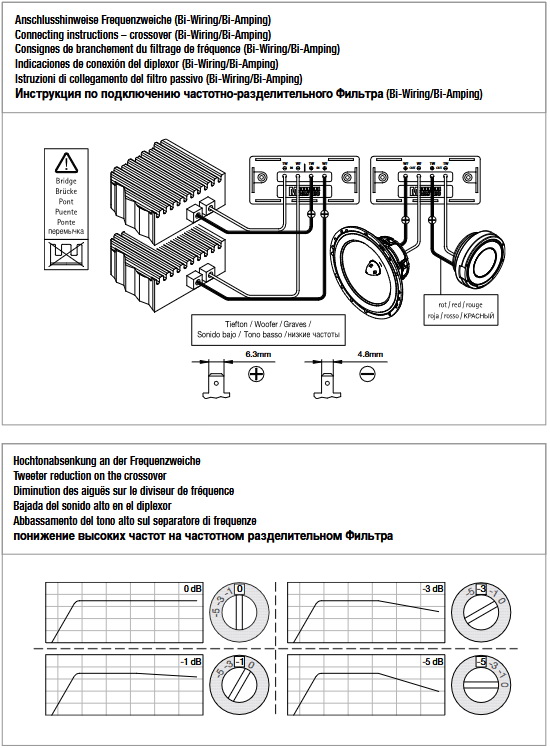

- Bi-wiring / bi-amping crossover. This allows separate control/connection of the tweeter and bass/midrange driver.
- For tweeter mounting and installation rings; For basses, cover grille and other mounting accessories included in delivery.
- Separate and coaxial installation of the tweeter
Technical data:
- 100 mm (4") bass/midrange driver
- 40mm (0.8") titanium tweeter
- Load capacity: 40 watts RMS / 130 watts max.
- Transmission range: 60 - 32,000 Hz
- Resistance: 4Ω
- Crossover frequency: 3,500 Hz (6dB/12dB/octave)
- Efficiency: 87.0 dB

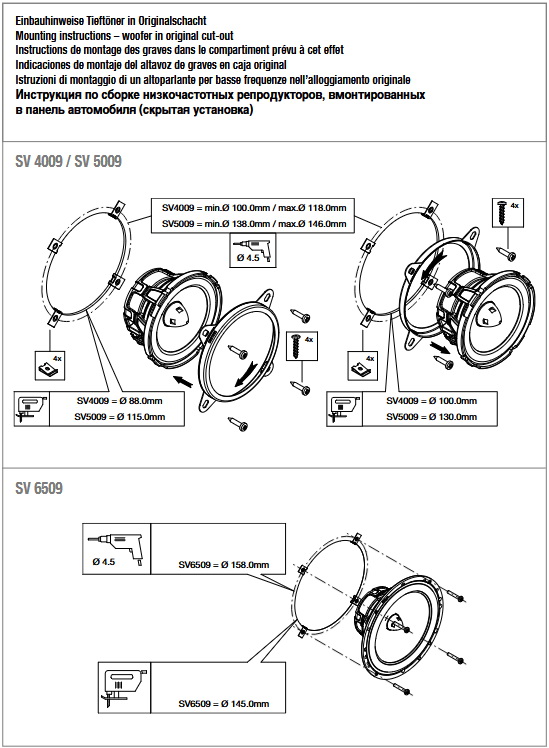

- Installation depth bass/midrange: 45.5mm
- Installation diameter bass/midrange driver: 86.0mm
- Outer diameter bass/midrange driver: 100.5mm
- Installation depth tweeter: 10.0mm
- Installation diameter tweeter: 45.0mm
- Outer diameter tweeter: 49mm
Scope of delivery:
- 2x bass/midrange speakers
- 2x tweeters
- 2x high-end bi-amping / bi-wiring crossover

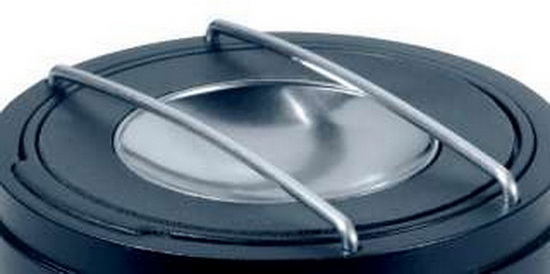

- Cover grille for bass/midrange speakers
- Mounting and installation rings for the tweeters
- Fastening and assembly material
- Invoice in your name with VAT shown.
- 3 year manufacturer’s warranty*
statutory warranty and does not limit it.
