Brand: NUTT

Model: A5-D Power off hydraulic disc brakes

Number of pistons: 2 pistons

Material: Aluminium alloy

Link type: Split type

Mounting method: A-(Positive mounting);B-(reverse mounted)

Length of disconnecting wire: 30cm

Length of oil pipe: 1.35m for front brake, 2.2m for rear brake

Brake pad: resin brake pads

Place of origin: Taiwan

Front brake disc size: 160mm/180mm

Rear brake disc size: 160mm/180mm

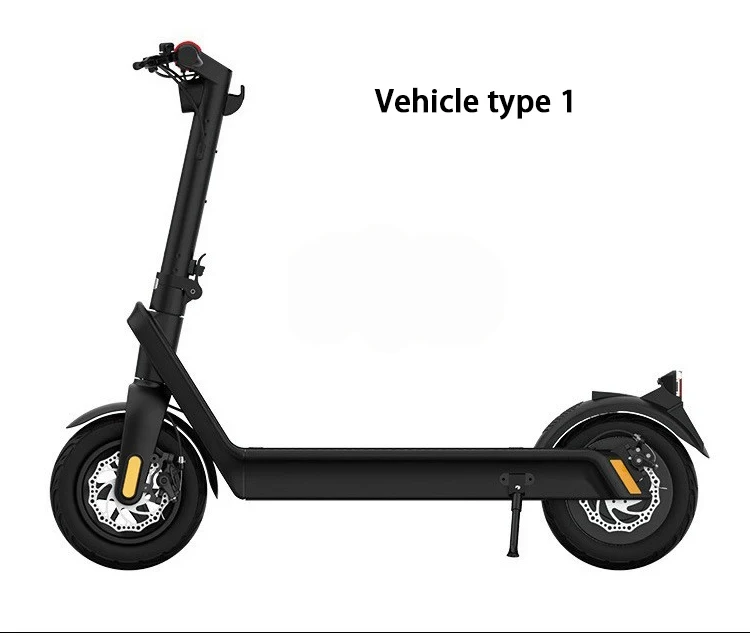

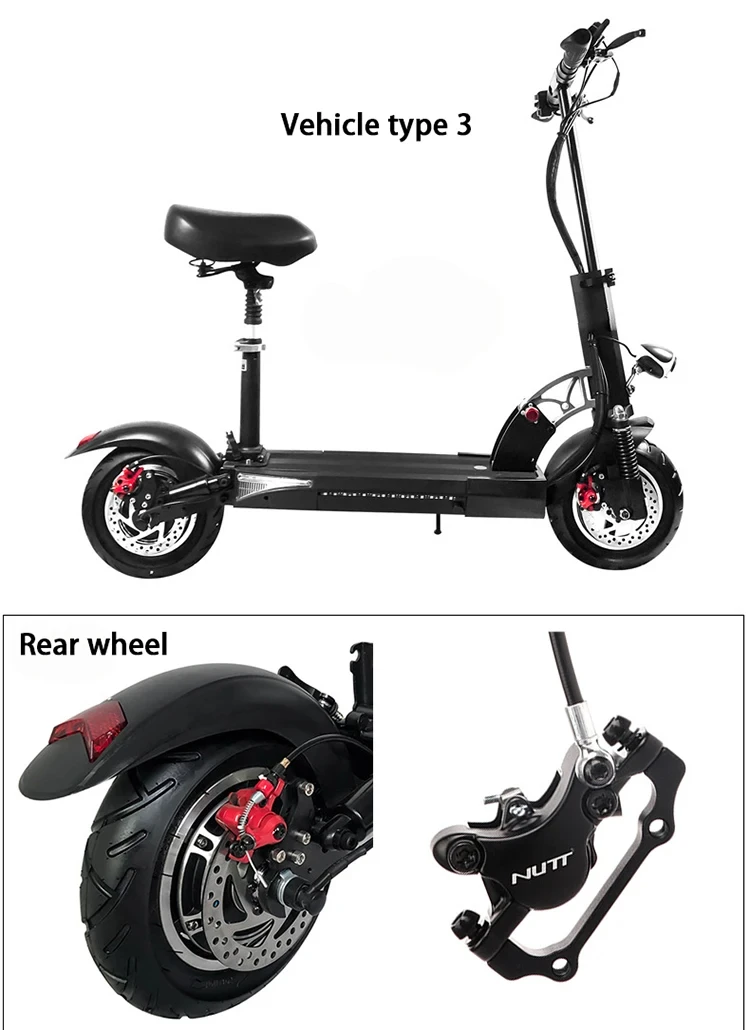

Support model: Scooter/Lithium-ion bike

Weight: Single front 330g / Single rear 330g

The A5-D comes with a hidden magnetic induction cut-off device on the

back.

When you need to brake, squeeze the brake handle and the lithium-ion

bike automatically cuts off the power to achieve fast braking,

to meet the speed and ensure the safety of the bike!

A5-D bicycle hydraulic disc brake aluminium alloy stamping handle

High precision die-cast body angular precision grinding and polishing

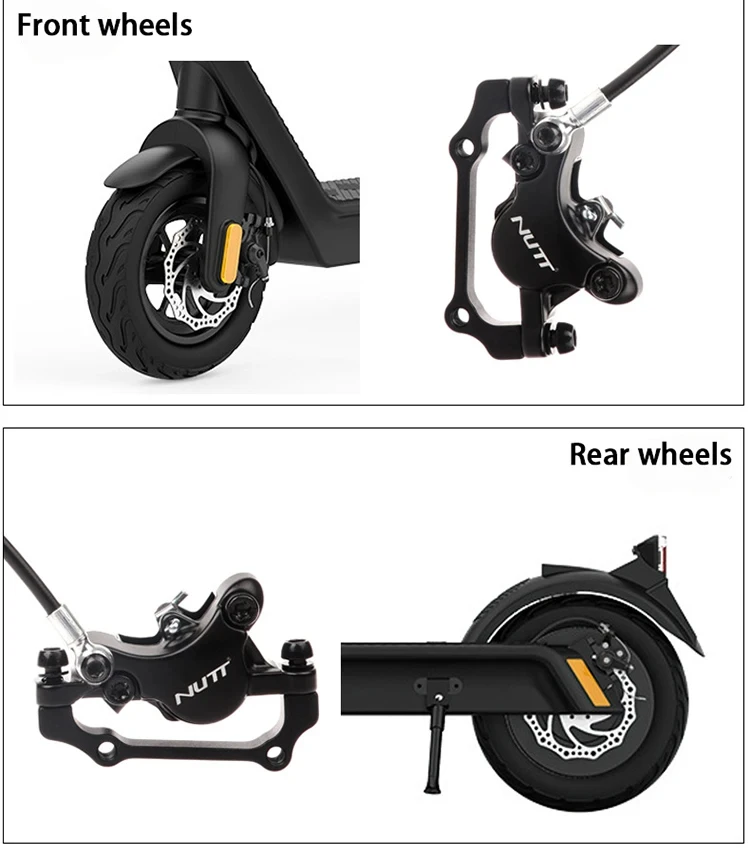

Specifications for front/rear clamps

Interchangeable adapters to fit 140/160/180/203mm discs

Fuel hose angle can be rotated 270 degrees

Caliper size compatible with Li-ion scooters, broken wire replaceable,

socket style and plug-instyle

Dual-action piston brake forged calipers drive the friction pads on both

sides simultaneously

Discs remain centrally positioned without deflection

Automatic brake pad return function, mineral brake oil, good driveability

even in high temperature conditions

High performance resin brake pads

Resin pellet composite, 65% more durable than ordinary laminates for

abrasion and noise reduction

Waterproof connection port

(wire length 30cm)

The broken wires are replaceable, available in socket and plug-in styles.

Rotatable oil seal cap Do not remove unless necessary to prevent oil leakage

Linking sequence of oil hose and brake handle

Tools preparation: empty can, fresh mineral oil, T10 star spanner, alcohol

and rag filling tool set, 8mm open-end spanner, pipe cutter, oil pipe fitting.

How to tell the difference between a formal and a reverse suit？

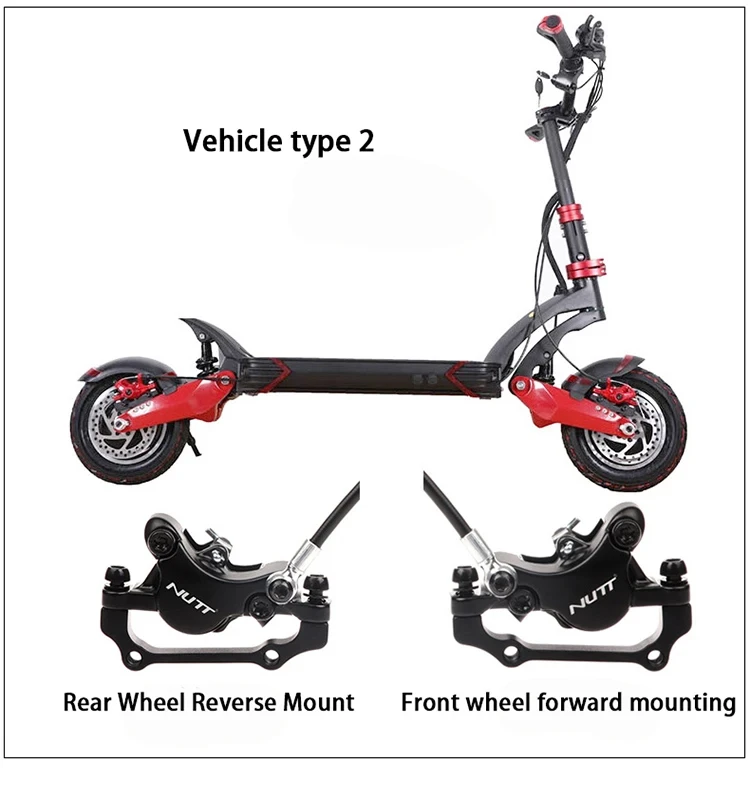

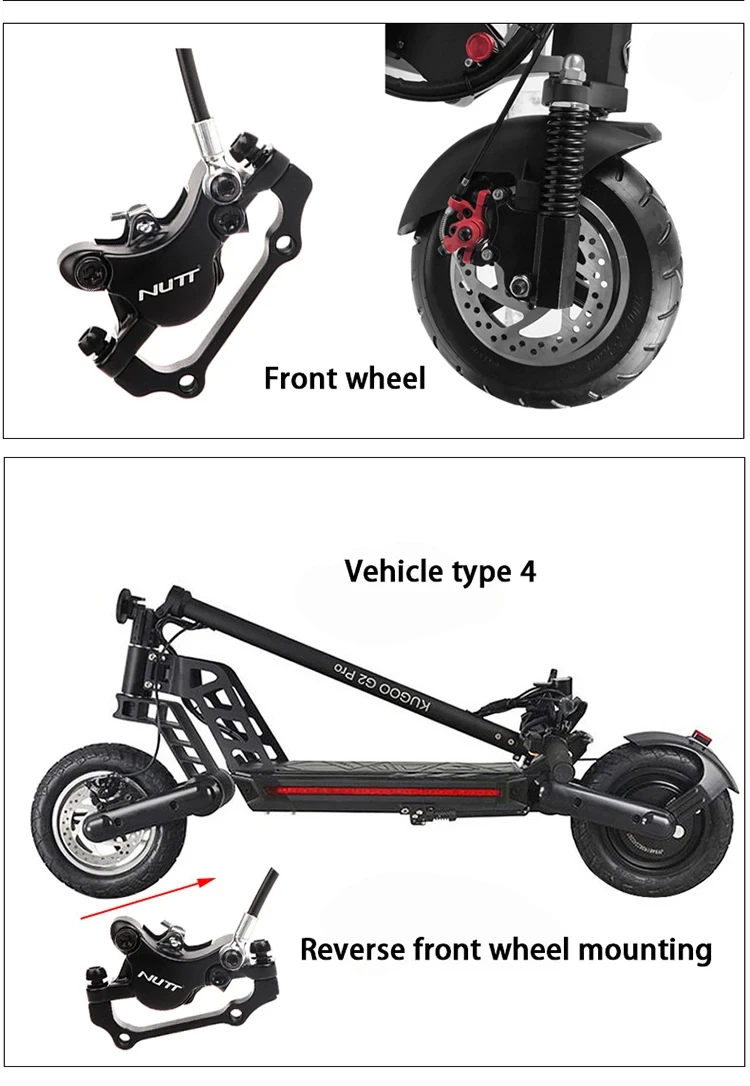

2 types of installation front/reverse

Brand logo frontal view, with the fuel line on the left side is front

mounted. Front view of the brand logo with the fuel line on the

right side is a reverse installation.

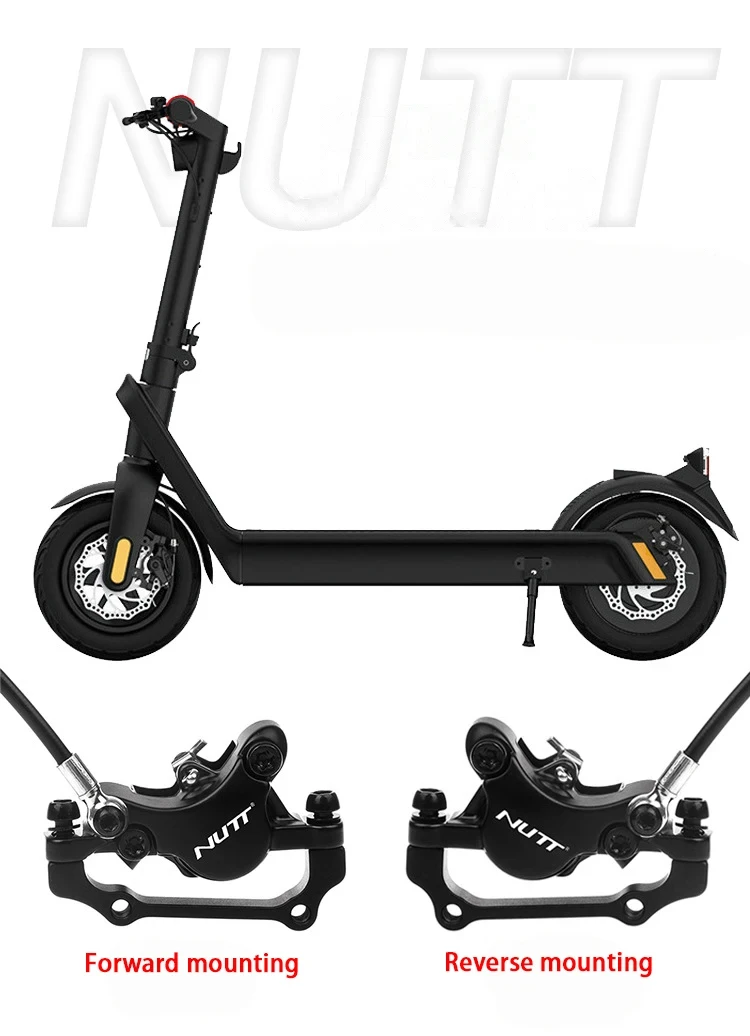

         Positive mounting

                          Reverse installation
