HITBOX 250Amp Aluminum MIG Welder - 5 In 1 Gas MIG/Gasless Flux MIG/LIFT TIG/MMA Stick Multiprocess MIG Welding Machine 220V IGBT Inverter With Colorful LCD Dispaly, Single Pulse
Why you select HITBOX MIG250DP?
The reason is:
【Aluminum Welding】MIG250DP is easy to control with the help of synergy function, automatically matching the recommended voltage and wire feed speed by adjusting the current to ensure the best welding. Not only can metal fittings such as stainless steel, iron and carbon steel be welded, but aluminum can also be optimally welded. (Note: You need to purchase 0.8MM-1.2MM aluminum wire for aluminum welding.)
【5-in-1 MIG Welding Machine】Supports Stick/Gas MIG/GASLESS MIG/Lift TIG, achieve multiple welding modes on one machine.Reduced breakage or deformation of thin welded parts thanks to built-in monopulse technology (up to 0.7 mm sheet metal). The MIG250DP welds efficiently, with an output current of up to 250 amps during welding tests. This welding unit is equipped with overheating and overcurrent protection. Insulation grade: F grade; Protection grade: IP21.
【2T&4T Function】Support 2T/4T function to support long-term welding. 2T (manual)/4T (semi-automatic) switching is available, at 4T you can release your fingers for long welding operations. 2T is suitable for repositioning welding, transient welding or thin plate welding. 4T is suitable for welding medium and thick plates.
【Unique Color Display】The unique color LED display design provides accurate data display, allowing you to read easier and clearer. Turn on the AC-36V gas heating function to further protect the beauty of the welding surface after welding. Ideal for outdoor repairs, farms, roadside equipment and home DIY. (Note: AC-36V connecting cable needs to be purchased by yourself.)
【Various Accessories】Machine comes with accessories: 1*MB15 Mig welding gun, 1*graphite wire feed tube, 1*ground clamp, 1*welding clamp, 1*welding brush/hammer combination, 1*hose clamp, 1*Gas Tube and American plug. 2* wire feed rollers (0.8MM and 1.0MM-1.2MM) are suitable for 1kg-5kg welding wire of various sizes. NOTE: Welding rod not included. The machine is suitable for φ2.5/3.2/4.0 acid welding rods (such as 6018/7013 welding rods).
【Warm Service】What you get: 1XMIG250DP, 1Xground clamp, 1Xelectrode holder, 1XFlux Wires, 1XGas Tube, 1Xgraphite tube. HITBOX direct offers 2 years warranty, we're committed to after-sales service. When you contact us, you speak with real technical specialists and representatives.
【5-in-1 MIG Welding Machine】Supports Stick/Gas MIG/GASLESS MIG/Lift TIG, achieve multiple welding modes on one machine.Reduced breakage or deformation of thin welded parts thanks to built-in monopulse technology (up to 0.7 mm sheet metal). The MIG250DP welds efficiently, with an output current of up to 250 amps during welding tests. This welding unit is equipped with overheating and overcurrent protection. Insulation grade: F grade; Protection grade: IP21.
【2T&4T Function】Support 2T/4T function to support long-term welding. 2T (manual)/4T (semi-automatic) switching is available, at 4T you can release your fingers for long welding operations. 2T is suitable for repositioning welding, transient welding or thin plate welding. 4T is suitable for welding medium and thick plates.
【Unique Color Display】The unique color LED display design provides accurate data display, allowing you to read easier and clearer. Turn on the AC-36V gas heating function to further protect the beauty of the welding surface after welding. Ideal for outdoor repairs, farms, roadside equipment and home DIY. (Note: AC-36V connecting cable needs to be purchased by yourself.)
【Various Accessories】Machine comes with accessories: 1*MB15 Mig welding gun, 1*graphite wire feed tube, 1*ground clamp, 1*welding clamp, 1*welding brush/hammer combination, 1*hose clamp, 1*Gas Tube and American plug. 2* wire feed rollers (0.8MM and 1.0MM-1.2MM) are suitable for 1kg-5kg welding wire of various sizes. NOTE: Welding rod not included. The machine is suitable for φ2.5/3.2/4.0 acid welding rods (such as 6018/7013 welding rods).
【Warm Service】What you get: 1XMIG250DP, 1Xground clamp, 1Xelectrode holder, 1XFlux Wires, 1XGas Tube, 1Xgraphite tube. HITBOX direct offers 2 years warranty, we're committed to after-sales service. When you contact us, you speak with real technical specialists and representatives.
Product Features:
*Advanced IGBT - Maximize durability to overloads, improve work efficiency, longer service time and improve stability.
* Adopt copper amorphous transformer - High frequency transformer with strong conductivity can save energy, resist to high temperature, provide long working hours and lower loss.
* Smart chip - Insert smart chip, cooler welder rapidly. When there is something stuck in the machine, it will power off automatically to protect welding machine being damage from overheating.
* Upgraded large capacitor with premium quality - Its strong anti-electricity fluctuation ability and high energy storage ability can stabilize output current.
* Aluminum MIG Welder: The 250amp gas-powered mig welding machine can weld aluminum sheets, with its own single-pulse technology, and will not weld through the sheet. (The graphite guide tube needs to be replaced when welding aluminum metal)
Multi-functions:
1.MIG/MAG/FLUX Welding,Can take up to 035"(0.8/1.0 mm) MIG solid wire(Gas MIG), .035"(0.8/1.0 mm) MIG FLux wire(Gasless MIG), 035”/.045”(0.6/0.8/1.0 mm) aluminum wire.
2.Stick Welding,smooth weld and burning fast. This unit can weld with 7018/6011 electrodes up to 5/32.
3.Lift TIG
2.Stick Welding,smooth weld and burning fast. This unit can weld with 7018/6011 electrodes up to 5/32.
3.Lift TIG
Synergic Controlled:
1.One button selection"design, easy to choose different welding mode to meet different welding requirements, Gas/Gasless MIG, Stick or Lift TIG.
2.Synergic Control MIG Function allows the automatic change of the voltage & wire feeding speed by adjusting the amperage or choosing different thicknesses. It will match the welding chart set in the data.
2.Synergic Control MIG Function allows the automatic change of the voltage & wire feeding speed by adjusting the amperage or choosing different thicknesses. It will match the welding chart set in the data.
Suitable for all kinds of welding requirements
1.023”/.030”/.035” solid/SS wire,
2.023”/.030”/.035” flux core wire for MIG manual setting; only .035” available in MIG synergistic setting
3.035”/.045” aluminum wire.
2.023”/.030”/.035” flux core wire for MIG manual setting; only .035” available in MIG synergistic setting
3.035”/.045” aluminum wire.
HITBOX MIG250DP Parameter:
Input voltage (V)：DC 220±15% 50-60HZ
Rated power (KVA)：7.1
Recommended fuse capacity (A) ：50
MMA welding current(A)：20-250
MIG welding current range (A)：20-250
MIG welding voltage range（V）：11-26
Feed speed setting range (m/min)：1.5-16
Efficiency (%)：85
Protection class ：IP21S
Insulation class：F
Rated power (KVA)：7.1
Recommended fuse capacity (A) ：50
MMA welding current(A)：20-250
MIG welding current range (A)：20-250
MIG welding voltage range（V）：11-26
Feed speed setting range (m/min)：1.5-16
Efficiency (%)：85
Protection class ：IP21S
Insulation class：F
Package Included:
1X MIG250DP Mig Welder
1X MB24 Mig Torch
1X 1KG Flux Core Wire
1X Electrode Holder
1X Earth Clamp
1X 0.8mm/1.0mm V shape drive roller
1X 1.0mm/1.2mm U shape drive roller
1X Teflon wire feed tube(when welding aluminum, please do use it with the mig gun.)
1X Air Hose
1X Slag Hammer
1X User's manual
1X MB24 Mig Torch
1X 1KG Flux Core Wire
1X Electrode Holder
1X Earth Clamp
1X 0.8mm/1.0mm V shape drive roller
1X 1.0mm/1.2mm U shape drive roller
1X Teflon wire feed tube(when welding aluminum, please do use it with the mig gun.)
1X Air Hose
1X Slag Hammer
1X User's manual

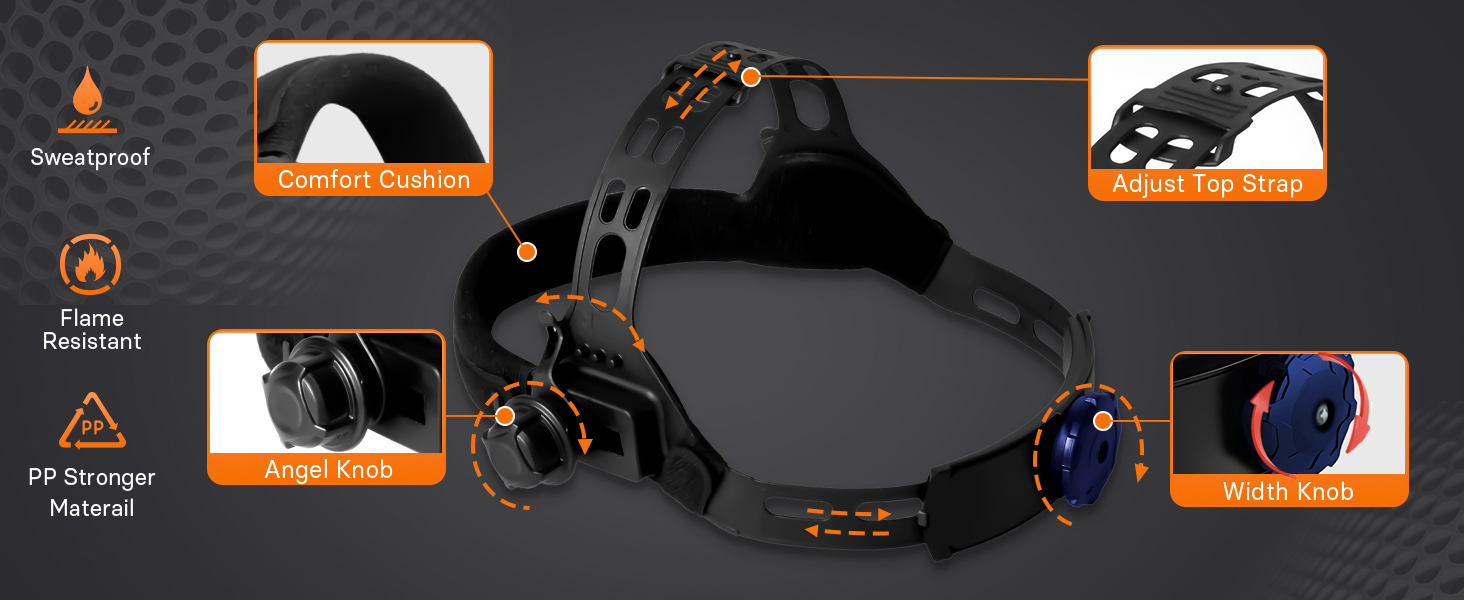

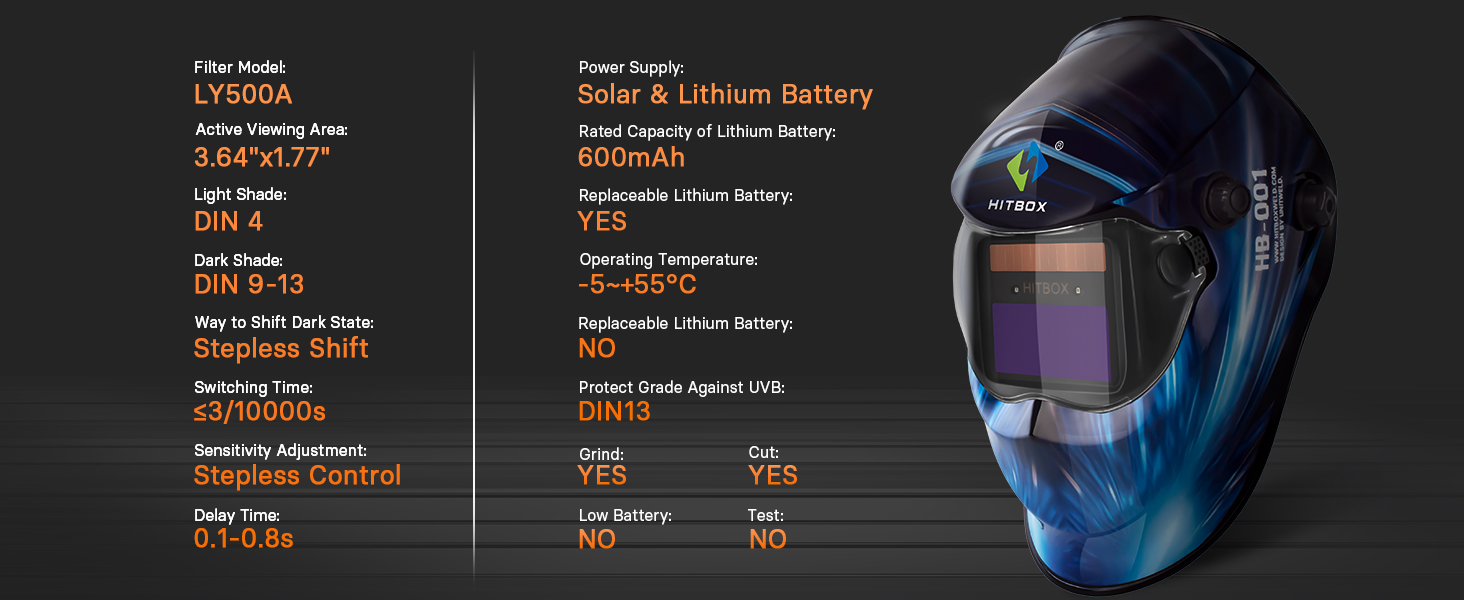

1X Welding helmet
1X Lift tig torch
Tips:
Package will ship within 1 working day.
Prefessional technical support.
Warranty: 2 Years.
Prefessional technical support.
Warranty: 2 Years.
Plug: 3 pin standard 13Amp uk plug
SUPPORTS MULTIPLE WELDING OPERATIONS
WHY CHOOSE THE HITBOX MIG250DP
