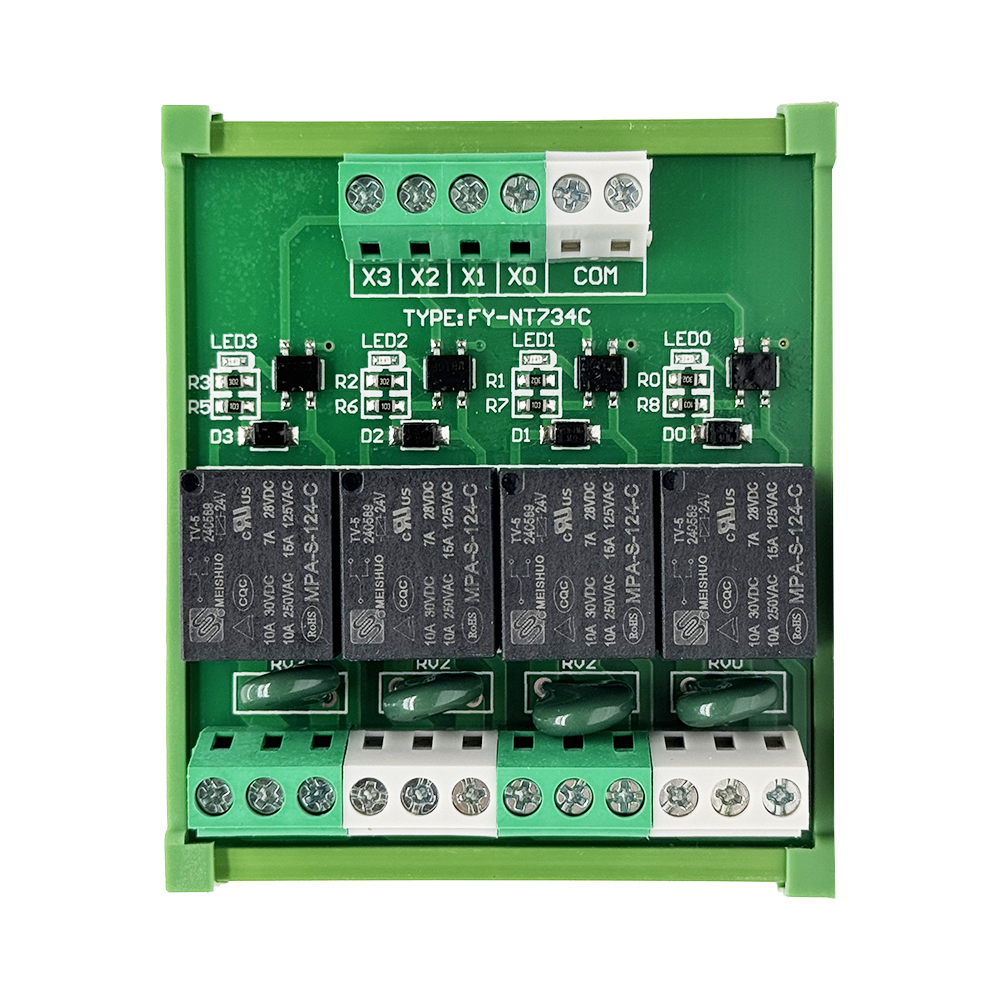

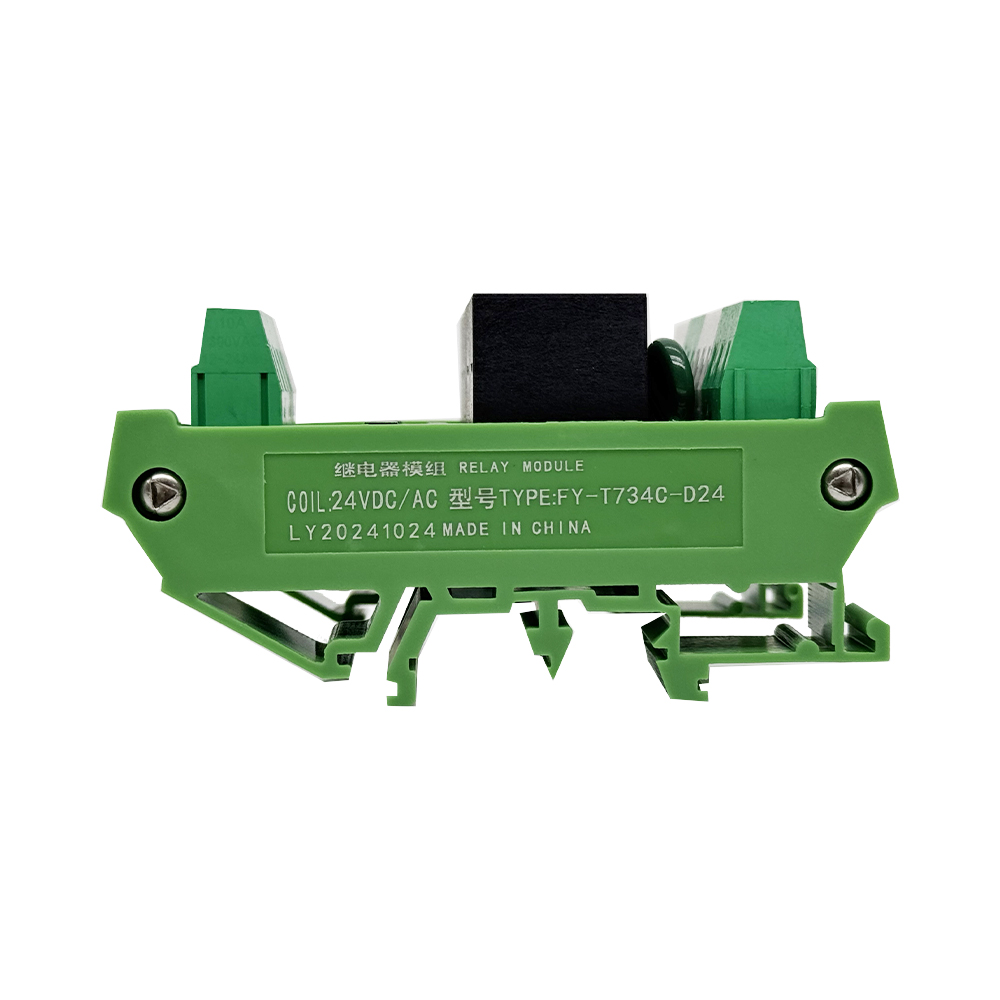

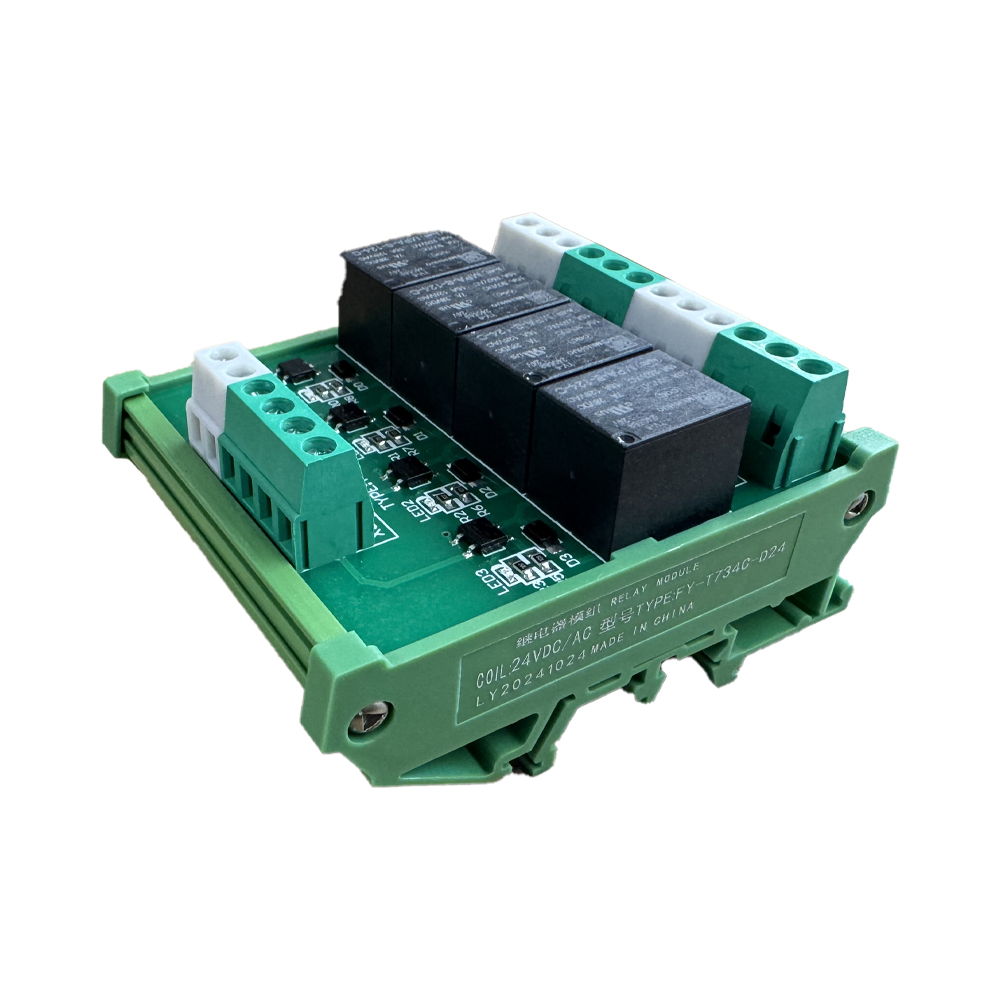

4 Channel Relay Module 1 SPDT DIN Rail Mount 24V DCAC Interface Relay Module

Product Description

Application

It is used for PLC output load current amplification and isolation protection, and installed in the digital output terminal of PLC, MCU industrial control board, time relay, buttons and other controllers.

It amplified the output current of the output terminal for high-power equipment and weak current control, to protect the control systems not being damaged



Features

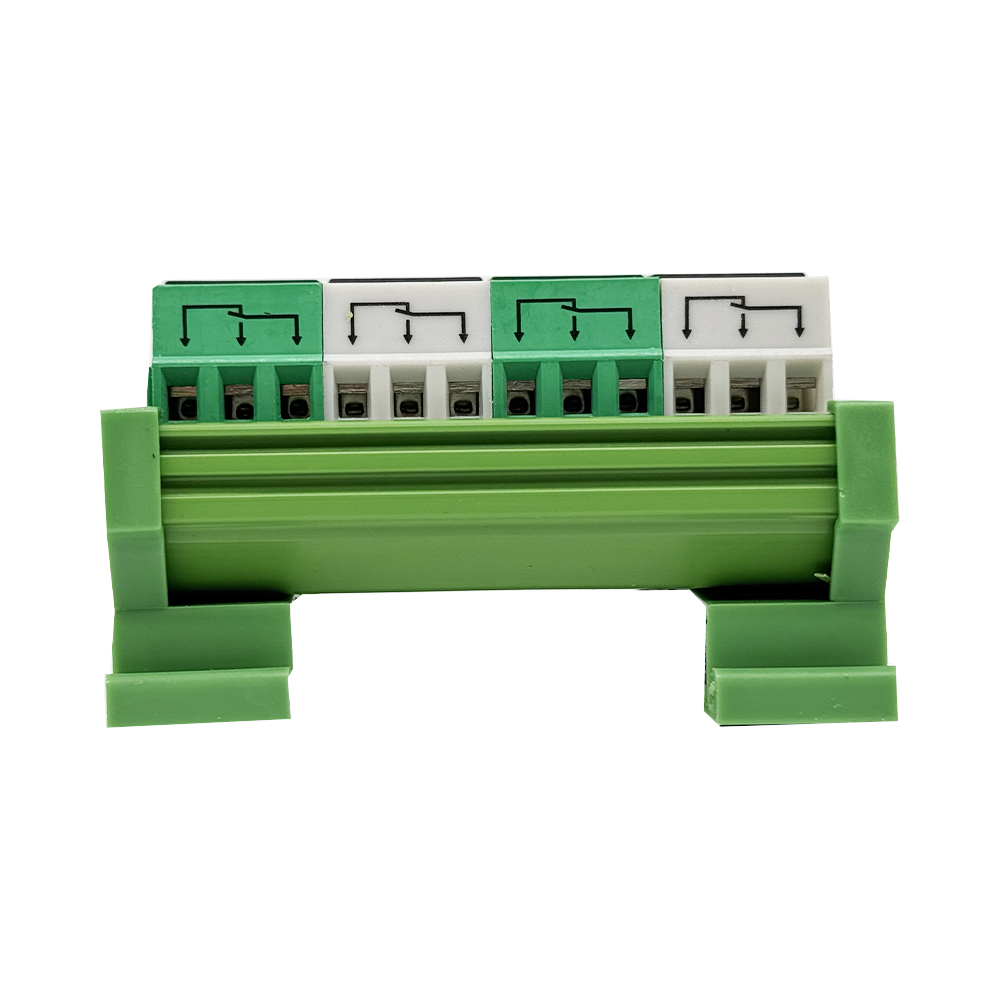

1. 1NO&NC independent relay module

2. Built-in OMRON relay G2R-1 certified with CCC, TUV,UL ;

3. Switching current up to 10A at 250VAC or 30VDC;

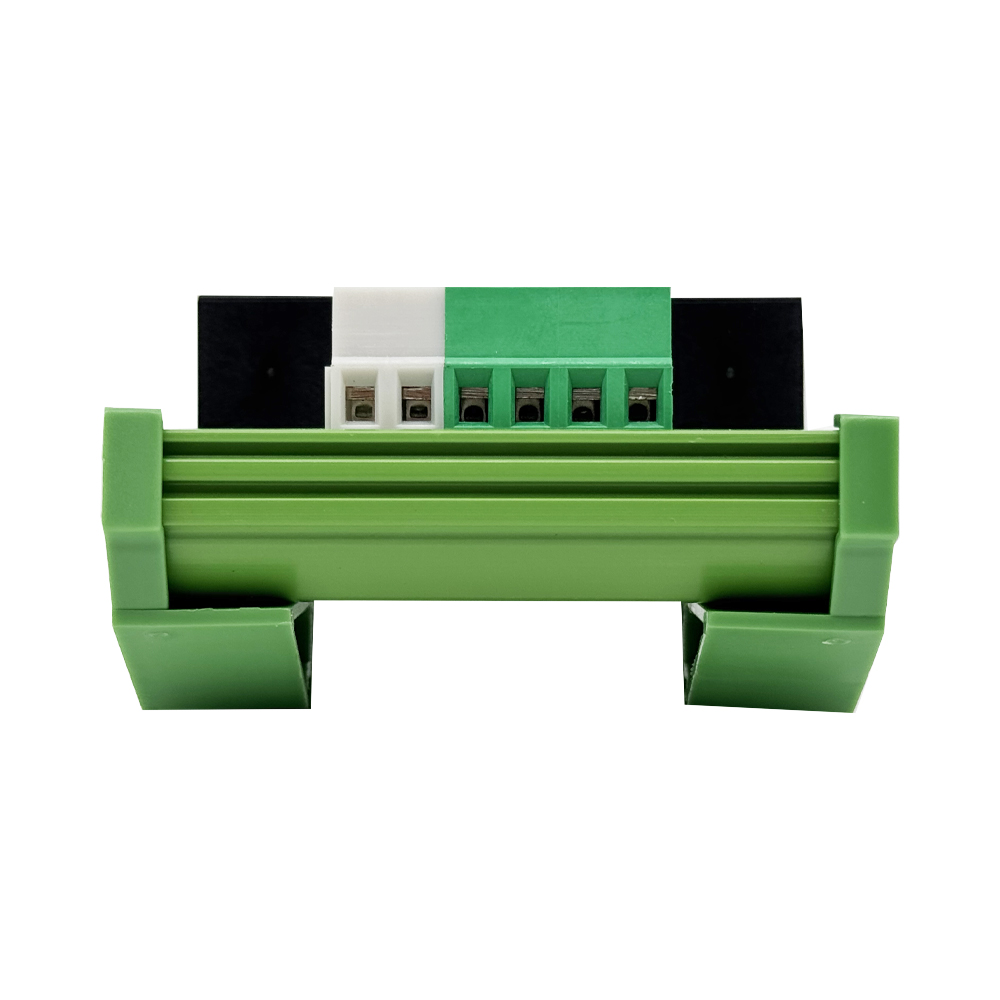

4. Input connections by screw terminal block.NPN&PNP can be interchangeable, AC&DC can be in compatible;

5. Relay status indicator LED,surge suppression protection and over-voltage protection are provided for each relay channel;

6. Relay socket pins are gold plated,makes contact more reliable and stable;

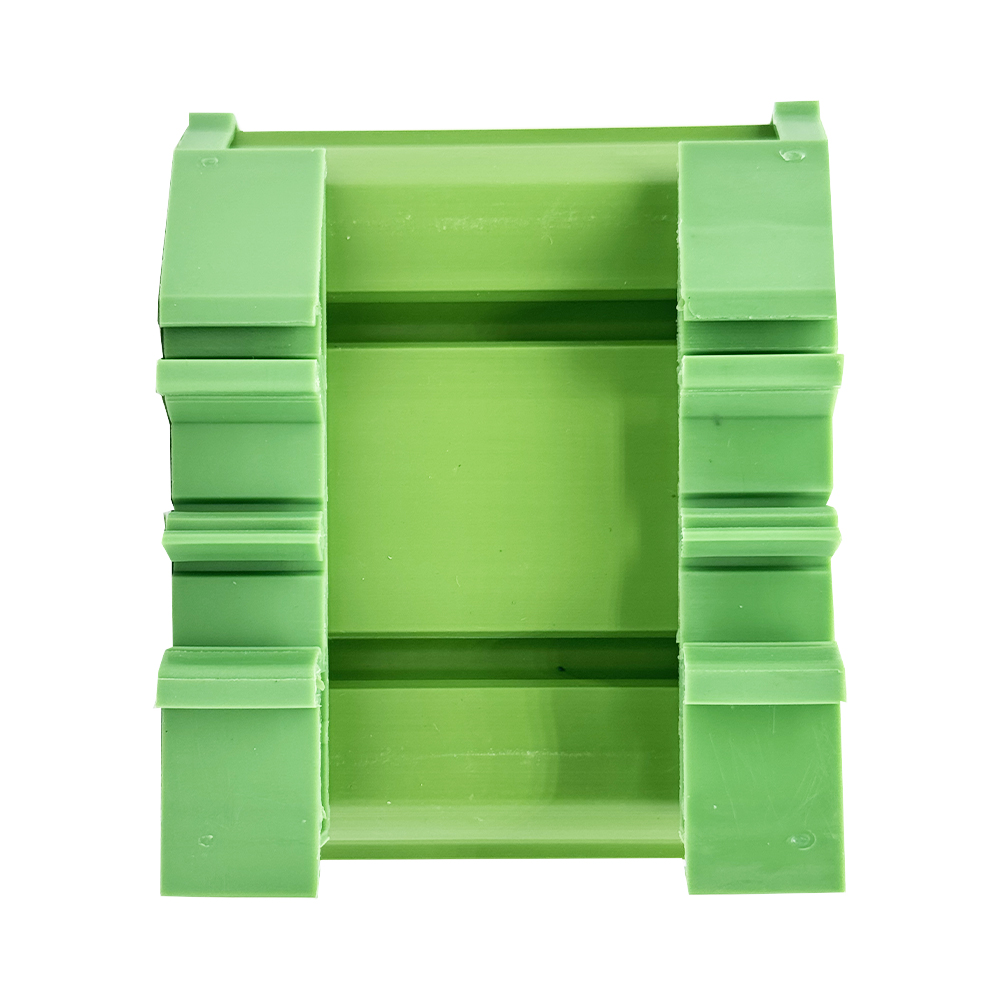

7. DIN Rail mountable for width TS15/28/35


Relay Module Dimension

Relay Channel Dimension(mm)
1 18*85*43.5
2 70*85*43.5
4 70*85*43.5
8 130*85*43.5
16 250*85*43.5

Technical data

Input Operation  Voltage Rated DC&AC±10%
Relay Mounting Blade Model
Rated Load Current 10A 250VAC/30VDC
Max Inrush Current 10A
Input Current per Channel 6.5mA
Operate Time(at normal volt.) ≤15ms
Release Time(at normal volt.) ≤10ms
Input/Output Connections Screw terminal block
Wire Range 0.2~2.5mm2
Stripping Length 6-7mm
DIN Rail Mountable 15/28/35mm
Dielectric strength 2.5KV, 50hZ, 1MIN
Ambient Temperature  -20℃~50℃
