Dimensions approximately 355 x 210 x 120.
The chuck can hold 3-33 (can be upgraded to a larger chuck for 3-50; specific data can be requested with photos) (spindle bore diameter 11 mm).
The maximum Z-axis travel length is 100 mm, with a swivel diameter of approximately 50 mm. The motor is rated at 80 watts (specific data can be provided upon request). The total weight of the machine is approximately 5.8 kg, with a speed range of 0-3000 RPM. The tailstock can accommodate drill bits ranging from 0.3 to 4 mm.
Machining soft metals (aluminum, copper, plastic) is no problem, and stainless steel can also be machined in small quantities.
Chuck model: K01-50 (thread M14x1), through hole 10mm

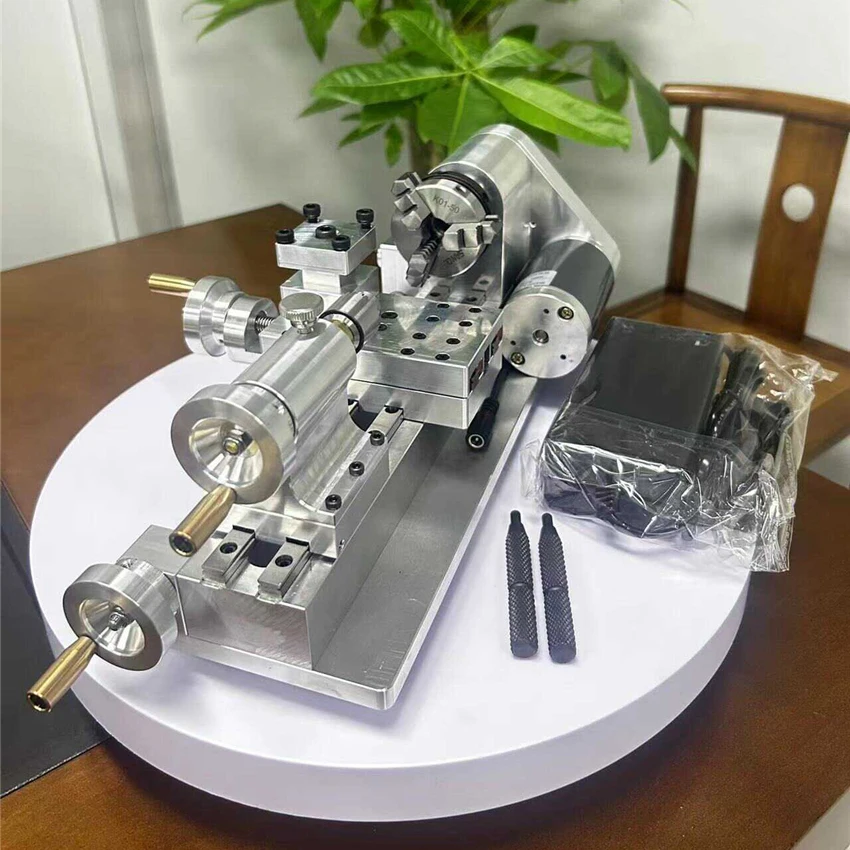

Supplied with a 24V 5A power supply, the machine features stepless speed adjustment.
This product is not intended for industrial use; please do not compare it with industrial machines. It is primarily intended for aesthetic appreciation but also possesses light cutting capabilities.

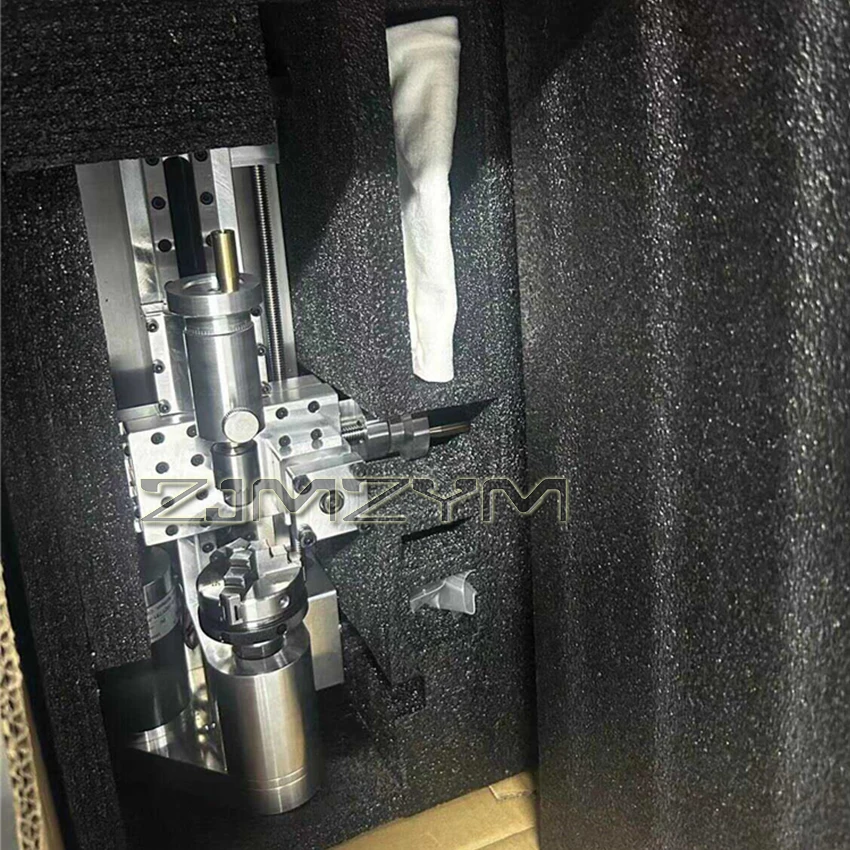

Packaging dimensions: Length 430 x Width 250 x Height 200
weights:7KG
