KIT-401 is a high-performance auto-switcher/scaler kit for 4K HDMI™ and VGA over long-reach HDBaseT. The kit includes the KIT-401T wall-plate transmitter/switcher and the KIT-400R receiver/scaler. The KIT-401T transmitter converts the user-selected input signal into the transmitted HDBaseT signal. The KIT-400R receiver receives the HDBaseT signal, converts it to HDMI and up- or down-scales the picture to match the resolution of the HDMI monitor. KIT-401 extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K at 60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. Features: - Simple and Powerful Maestro Room Automation - Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including scheduling, input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.
- HDMI Support - HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).
- PoC (Power over Cable) Enabled - Power only one of the units. The other unit of the receiver/transmitter pair is powered via the HDBaseT extension.
- 2 Local and 1 Remote Source - With auto-switching of the live source to the HDMI display on the output at the receiver. The transmitter has an HDMI and a VGA input, with a dedicated audio jack, and there is an additional HDMI input on the receiver side.
- Audio De-embedding - Output the HDMI audio to a balanced stereo output on the receiver side, and an unbalanced stereo output on the transmitter side.
- Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation.
- Easy Remote Device Control - Control devices connected to KIT-401 from the user-friendly Kramer Aware interface on the KIT-401 embedded webpages. You can also access the interface using the Kramer Aware app on a compatible Kramer touch panel.
- Convenient Unit Control and Configuration Options - Local control via front panel source and output switching buttons, DIP-switches for configuring connection priority, and OSD menu. Distance control via user-friendly embedded web pages via Ethernet, Protocol 3000 API, RS-232 serial commands transmitted by a PC, touch screen system or other serial controller and relay switches.
- Easy, Cost-effective Maintenance - Local firmware upgrade via USB connector.
- Easy and Elegant Installation - Installation is fast and cost-effective via a single CAT cable, providing both video signal and power (PoC) connections.

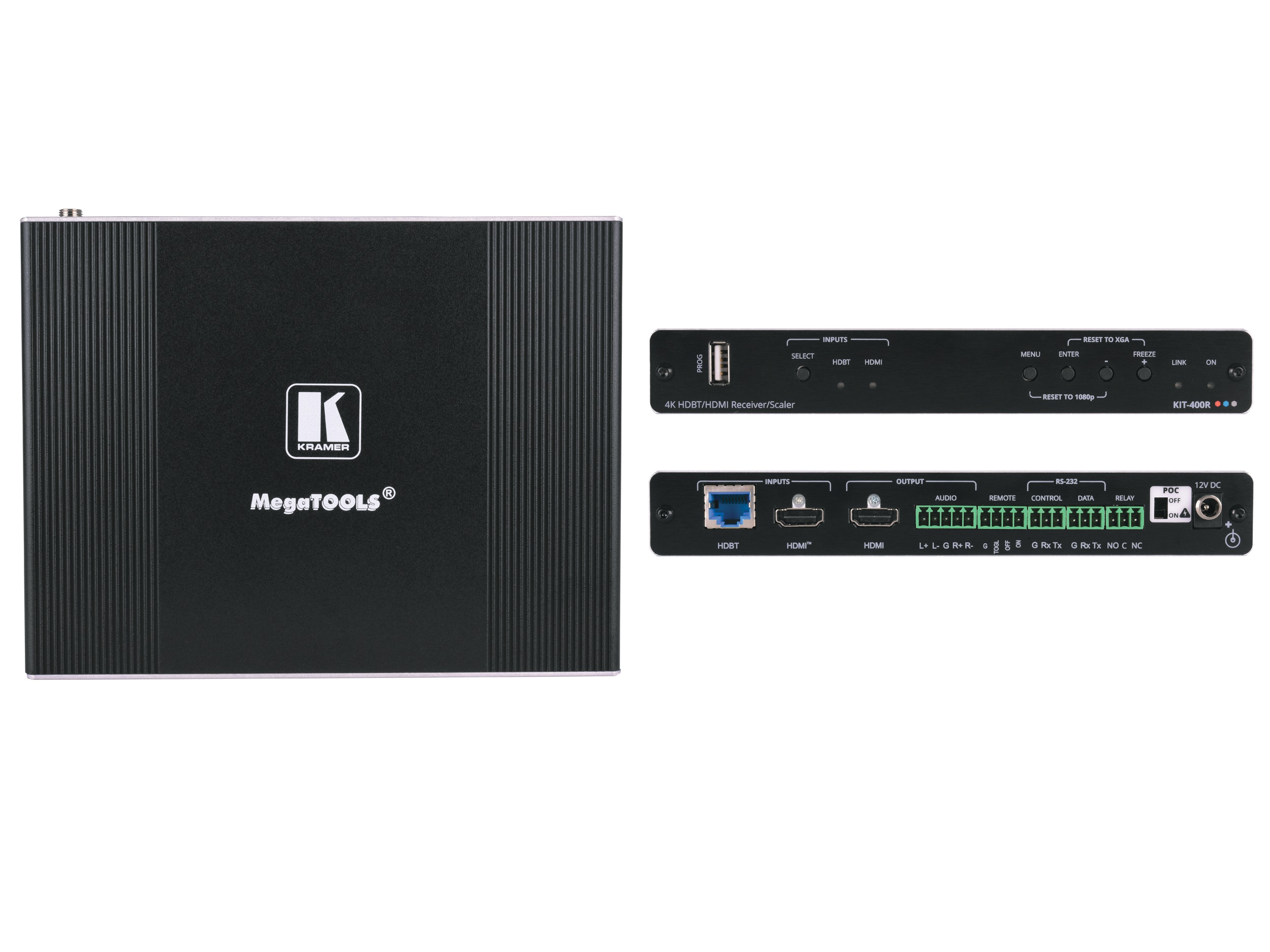

The transmitter compactly fits into standard US, EU and UK 2-gang in-wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. The compact MegaTOOLS™ fan-less receiver enclosure for dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter. Specifications: TRANSMITTER INPUTS/OUTPUTS - INPUTS
- 1 HDMI: On A female HDMI connector
- 1 VGA: On a 15-pin HD connector
- 1 Unbalanced Audio: On a 3.5mm mini jack
- OUTPUTS
- 1 HDBaseT: On an RJ-45 connector
- 1 Unbalanced Audio: On a 3-pin terminal block connector
- PORTS
- 1 Ethernet: On an RJ-45 connector
- 1 Control RS-232: On a 3-pin terminal block connector
- 1 Data RS-232: On a 3-pin terminal block connector
- 1 Remote Contact-Closure: On a 5 pin terminal block connector
RECEIVER INPUTS/OUTPUTS - INPUTS
- 1 HDBaseT: On an RJ-45 connector
- 1 HDMI: On female HDMI connectors
- OUTPUTS
- 1 HDMI: On female HDMI connectors
- 1 Balanced Audio: On a 5-pin terminal block connector
- PORTS
- 1 Control RS-232: On a 3-pin terminal block connector
- 1 Data RS-232: On a 3-pin terminal block connector
- 1 Remote Contact-Closure: On a 4 pin terminal block connector
- 1 Relay: On a 3-pin terminal block connector
- 1 Program USB: On a USB-A connector for firmware upgrade
VIDEO - Max Data Rate (on the HDMI ports): KIT-400R: 18Gbps, KIT-400T: 10.2Gbps
- Max Resolution (on HDMI ports): KIT-400R: 4K at 60Hz (4:4:4), KIT-400T: 4K at 60Hz (4:2:0)
- HDMI Support: 4K60, CEC, xvYCC color
- Content Protection: HDCP 1.4 and 2.2 (KIT-400R)
- KIT-400R Output Resolutions: 640x480 at 60Hz, 800x600 at 60Hz, 1024x768 at 60Hz, 1280x768 at 60Hz, 1280x800 at 60Hz, 1280x1024 at 60Hz, 1360x768 at 60Hz, 1400x1050 at 60Hz, 1440x900 at 60Hz, 1600x1200 at 60Hz, 1680x1050 at 60Hz, 1920x1200 at 60Hz RB, 2560x1600 at 60Hz RB, 1920x1080 at 60Hz, 1280x720 at 60Hz, 2048x1080 at 50/60Hz, 2560x1440 at 60Hz RB, 720x480p at 60Hz, 720x576p at 50Hz, 1280x720p at 50/60Hz, 1920x1080p at 24/25/30/50/60Hz, 2560x1080p at 50/60Hz, 2K at 24/25/30/50/60Hz, 4K at 24/25/30/50/60Hz
EXTENSION LINE - Up to 40m (130ft): At 4K at 60Hz (4:2:0)
- Up to 70m (230ft): At full HD (1080p at 60Hz)
EXTENDED RS-232 POWER - Source: 12V DC
- Combined Consumption of Both Units: 2A (1 unit connected to 12V DC + 1 unit powered by PoC)
USER INTERFACE - Control: Input selection buttons, DIP-switches, remote contact-closure switches, relay switches. Kramer API via RS-232 serial commands transmitted by a PC, touch screen system or other serial controller, embedded web pages via LAN for configuration and control
- Indicators: Power, link, input selection LEDs
ENVIRONMENTAL CONDITIONS - Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: -40° to +70°C (-40° to 158°F)
- Humidity: 10% to 90%, RHL non-condensing
ENCLOSURE - Size: Transmitter - 2-Gang wall-plate
- Size: Receiver - MegaTOOLS®
- Type: Aluminum
- Cooling: Convection ventilation
STANDARDS COMPLIANCE - Safety: CE
- Environmental: FCC, UL
ACCESSORIES - Included: 1 Power adapter, 4 rubber feet, 1 bracket sets, 1 white US-D size frame or 1 white EU + 1 UK size frame
