A-NeuVideo ANI-HDFLIP-PRO 4x4 4K60 UHD 18Gbps HDMI Quad Multiviewer Seamless Switcher Video Wall w/ Rotation
Manufacturer:A-NeuVideo
SKU:ANI-HDFLIP-PRO
Condition:New
Warranty:3 Years
The ANI-HDFLIP-PRO 44K60 4:4:4 HDMI matrix is a multi-purpose high-speed video processing system. It can be configured for 2 different output modes. It can perform as a 4x4 seamless matrix switcher, as a 2x2, 4x1 or 1x4 etc., video wall solution. It also features a web browser interface module for control and configuration of the matrix when used stand-alone or with a third party control system. Control options include front-panel push buttons, IR remote control, RS-232 interface and TCP/IP. This product has a 3 year warranty.

Features

  • Compliant HDMI 2.0b
  • Compliant HDCP 2.2 and HDCP 1.4
  • Features (2) operational modes:
    • 4x4 Matrix (seamless switch)
    • Video wall (2x2, 4x1 or 1x4 etc. configuration)
  • Seamless video switching
  • Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920x1200 at 60Hz) and 480i-4K (3840x2160 at 60Hz 4:4:4, 4096x2160 at 60Hz 4:4:4)
  • HDMI outputs support upscale or downscale to any resolution, up to 4096x2160 at 60Hz4:4:4
  • Support LPCM, DD, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
  • Advanced EDID management

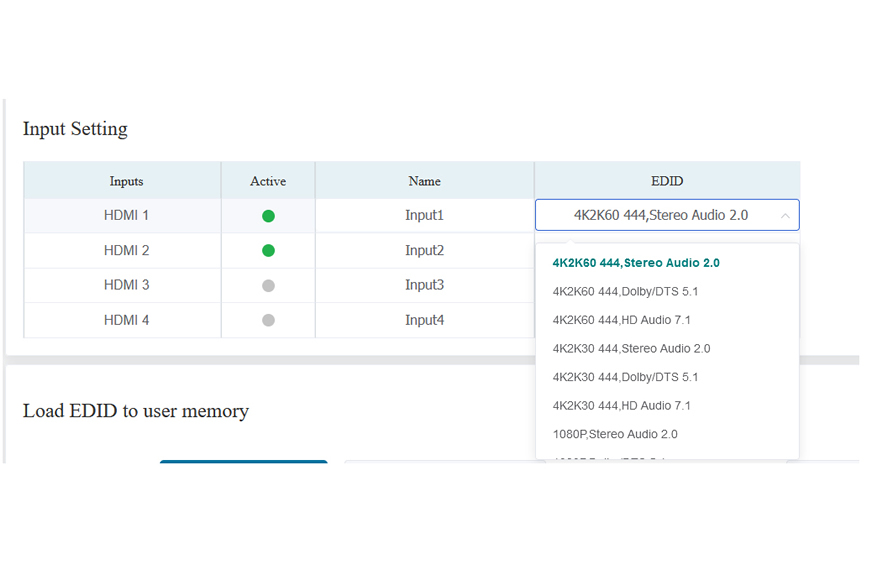

  • Web interface module for control and configuration of Matrix
  • Control via front panel, IR, RS-232 and TCP/IP
  • 3rd Party drivers available for all major home control brands

Specifications:

  • Inputs: (4) HDMI Type A [19-pin female]
  • Outputs: (4) HDMI Type A [19-pin female]
  • Control:
    • RS-232 [3pin-3.81mm phoenix connector]
    • TCP/IP [RJ45]
    • IR EXT [3.5mm Stereo Mini-jack]
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2/1.4
  • Video Bandwidth: 594MHz/18Gbps
  • Video Resolution:
    • Input: VGA-WUXGA (up to 1920�1200 at 60Hz), 480i-4K (3840x2160 at 60Hz 4:4:4, 4096x2160 at 60Hz 4:4:4)
    • Output: 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, 1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50, 1920x1200p60rb, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60, auto
  • Color Space: RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0
  • Color Depth: 8/10/12-bit
  • IR Level: 12Vp-p
  • IR Frequency: 38KHz
  • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: 10.6 x 6.5 x 1.2 in (270x166x30mm)(270x166x30mm)
  • Weight: 2.6 lbs / 1165g
  • Power Supply: Input: AC 100 - 240V 50/60Hz / Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)
  • Power Consumption: 19.56W (Max)
  • Operating Temperature: 0�C ~ 40�C / 32�F ~ 104�F
  • Storage Temperature: -20�C ~ 60�C / -4�F ~ 140�F
  • Relative Humidity: 20~90% RH (non-condensing)

Package Includes:

  • ANI-HDFLIP-PRO 4K60 18Gbps 4x4 Seamless Matrix
  • Matrix IR Remote
  • 3pin-3.81mm Phoenix Connector (male)
  • 20-60KHz IR Wideband Receiver Cable (1.5M)
  • (2) Mounting Ears
  • (4) Machine Screws (KM3*4)
  • 12V/2.5A Locking Power Adapter
