Features:
- 2 Channel RCA Audio over Fiber Extend to 20 Km SMF / 2 Km MMF, Supports 24 & 16-Bit Digitally Encoded Analog Audio
- Line Level Unbalanced Audio Operation.
- No EMI, RFI, Cross Talk or Video Distortion and no ground loops; No Loss in Signal Quality
- Support Point-to-Point or Daisy-Chain (Cascaded Audio) connection
- LED Indicators for Instant System Monitoring
- Plug and Play (no software driver), Standalone or Rack Mount in FVC14 Chassis
Description
BY-RCA-323 support 2 channels Audio (RCA) over one multi-mode / single-mode optical fiber. the set includes optical transmitter and receiver.
Applications: Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV etc
Audio:
Channels: 2 Ch
Input/output Impedance: 600ohm(unbalanced)
Max input/output voltage: 3.0Vp-p
Frequency Response: 10 Hz～29kHz @±3dB
SNR: > 70dB
Connector: RCA
Electrical & Mechanical:
Input Power Requirements: DC 5V@2A
Power Adapter: AC 900V~240V
Power Consumption: < 3W
Stand-Alone Dimensions: 104 mm × 104 mm × 28 mm
Shipping Weight: (include Transmitter & Receiver ) 0.8kg
Environmental:
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours
Optical:
Wavelength: 1310nm
Supported Optical Fiber: Universal Single-mode Fiber / Multi-mode Fiber
Optical Connector: 1 x ST， 1 x SC, 1 x FC, 1 x LC optional
Distance: 20 Km (SMF), 2 Km (MMF)
Package:
1. 1 x transmitter
2. 1 x receiver.
3. 2 x Power Supply Adapter DC 5~12V with US/EU/UK/AU plug.
4. 1 x Manual.

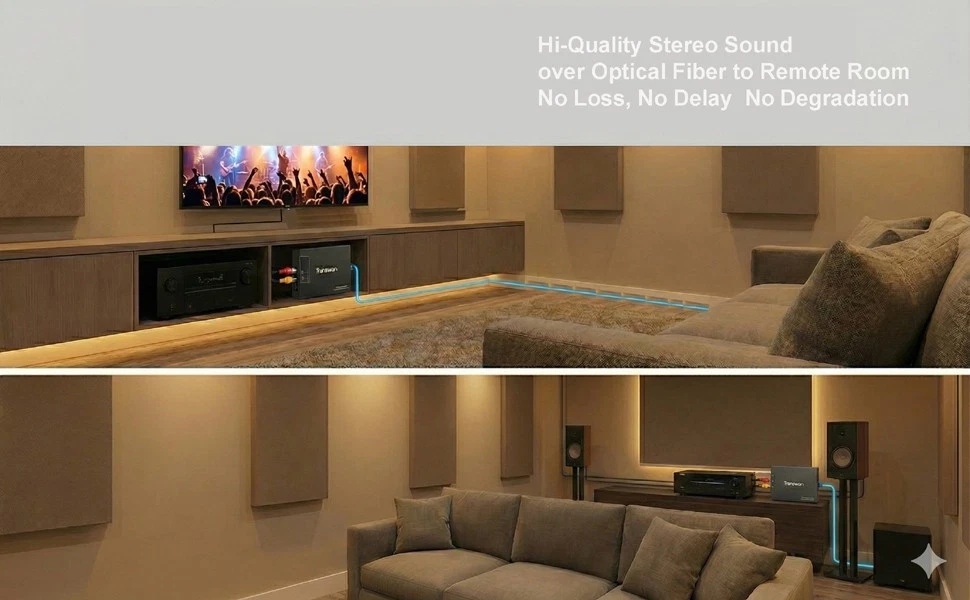

RCA Audio over Fiber in Home Theater
Applicaton of Home Theater: setup a home theater to have an amp behind the TV and output clean audio directly into the amp. Running a single fiber cable was easy up into my attic and back to the receiver device, connect this directly to the speaker amp behind my couch and have rear channel audio without any degradation of quality.
Ordering infomration:
Part Number | Specs | Ebay Item Number: |
BY-RCA-322-LC/ST/FC/SC | 1 Ch 2 Way (Bi-directional) RCA Audio Over Fiber Extender to 20 Km over SM Fiber/2 Km MMF, Support 16 & 24 bit | |
BY-RCA-323-LC/ST/FC/SC | 2 Ch 1 Way RCA Audio Over Fiber Extender to 20 Km over SM Fiber/2 Km MMF, Support 16 & 24 bit | |
BY-RCA-324-LC/ST/FC/SC | 4 Ch 1 Way RCA Audio Over Fiber Extender to 20 Km over SM Fiber/2 Km MMF, Support 16 & 24 bit | |
BY-RCA-325-LC/ST/FC/SC | 2 Ch 2 Way (Bi-directional) RCA Audio Over Fiber Extender to 20 Km over SM Fiber/2 Km MMF, Support 16 & 24 bit |
