Power Up Your Vehicle With CarBole ® Coils
CarBole is one of the most experienced manufacturers in performance fuel and ignition systems around the world, proving itself on the racetracks and drag strips of the world – and on the street. With an ever-expanding line of coils and all the spark plug wires, tune-up kits, and fuel injectors hot rodders have trusted and relied on for years, CarBole is constantly developing innovative new products designed to push power, speed, and performance to match advancements in automotive technology. As always, CarBole offers a comprehensive selection of performance products, including coils, digital fuel injection systems, fuel injectors, distributors, caps, rotors, ignition wires, spark plugs.
GM trucks and SUVs use two different types of coils: the MELCO style coils with the square body and the DELPHI style coils with the round body. The coils shown in the pictures are the DELPHI style with heat sinks, which look like metal fins or small radiators.
To avoid getting wrong coils, please check the numbers on the coils of your own vehicle. They should have the number "19005218" on them. If no number is found, please compare their features with our products' features to find the correct match.
Features:
-
100% Factory tested.
•Brand new ignition coil pack,never used or installed.
•Built to strict quality control standards.
•Ready to use, Direct Replacement.
•Superior quality part with durable copper wire inside, High Durability.
•Surface with import oxygen ring resin,good insulation.
Heavy Duty performance coils! Ignition coils with Copper windings. Comes with the manufacturer's one year warranty!
All of our ignition coils use copper windings inside, which allows for better connectivity.
Aluminum has inferior connectivity, but is cheaper and sometimes used in ignition coils as well. Beware of listings where the seller does not specify the material used in the ignition coil windings!
Specifications:
Coil Wire Attachment: Female/Socket
Coil Style: Coil pack
Primary Resistance: 0.660 ohms
Coil Internal Construction: Epoxy
Coil Color: /
Maximum Voltage: 26,000 V
Turns Ratio: 61:1
Secondary Resistance: 6.1K ohms
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold as a set of 8.
Secondary Resistance 3.7K ohms
Inductance 4.2 mH
Spark duration (mS) 1100 uS
Peak Current 140 mA
Maximum Voltage 42,000 Volt
Replaces part number:
12556893, 12558693, 12570553, 3859078, 38590782, 392889925, D581,UF271
52-1618, E226, 26347, H6T55171ZC, B314, GN10298, 50253, IC400, C561, 9201052, IC328
Fitting for the following vehicles:
Fits models with square Mitsubishi style coils
Does not fit models with round Delphi style coil
Fits the GM, Hummer & Isuzu 8 cylinder engines as listed: V8 4.8L, 5.3L, 6.0L, 8.1L
Fit for:
This part is compatible with:
CADILLAC ESCALADE (2002 - 2006)
CHEVROLET AVALANCHE 1500 (2002 - 2006)
CHEVROLET AVALANCHE 2500 (2003 - 2006)
CHEVROLET EXPRESS 1500 (2003 - 2006)
CHEVROLET EXPRESS 2500 (2003 - 2005)
CHEVROLET EXPRESS 3500 (2003 - 2004)
CHEVROLET MONTE CARLO 2006
CHEVROLET SILVERADO 1500 (1999 - 2006)
CHEVROLET SILVERADO 2500 (1999 - 2007)
CHEVROLET SILVERADO 3500 (2001 - 2007)
CHEVROLET SONORA (2003 - 2004)
CHEVROLET SSR (2003 - 2004)
CHEVROLET SUBURBAN 1500 (2000 - 2006)
CHEVROLET SUBURBAN 2500 (2000 - 2006)
CHEVROLET TAHOE (2000 - 2006)
CHEVROLET TRAILBLAZER (2003 - 2004)
GMC ENVOY (2003 - 2004)
GMC SAVANA 1500 (2003 - 2005)
GMC SAVANA 2500 (2003 - 2005)
GMC SAVANA 3500 (2003 - 2005)
GMC SIERRA 1500 (1999 - 2007)
GMC SIERRA 2500 (1999 - 2007)
GMC SIERRA 3500 (2001 - 2007)
GMC YUKON (2000 - 2006)
GMC YUKON XL 1500 (2000 - 2006)
GMC YUKON XL 2500 (2000 - 2006)
HUMMER H2 (2003 - 2007)
MERCRUISER All Models (2001 - 2007)
WORKHORSE FASTRACK FT1061 (2004 - 2005)
WORKHORSE FASTRACK FT1261 2005
WORKHORSE FASTRACK FT1461 (2004 - 2005)
WORKHORSE FASTRACK FT1601 (2004 - 2005)
WORKHORSE FASTRACK FT1801 (2004 - 2005)

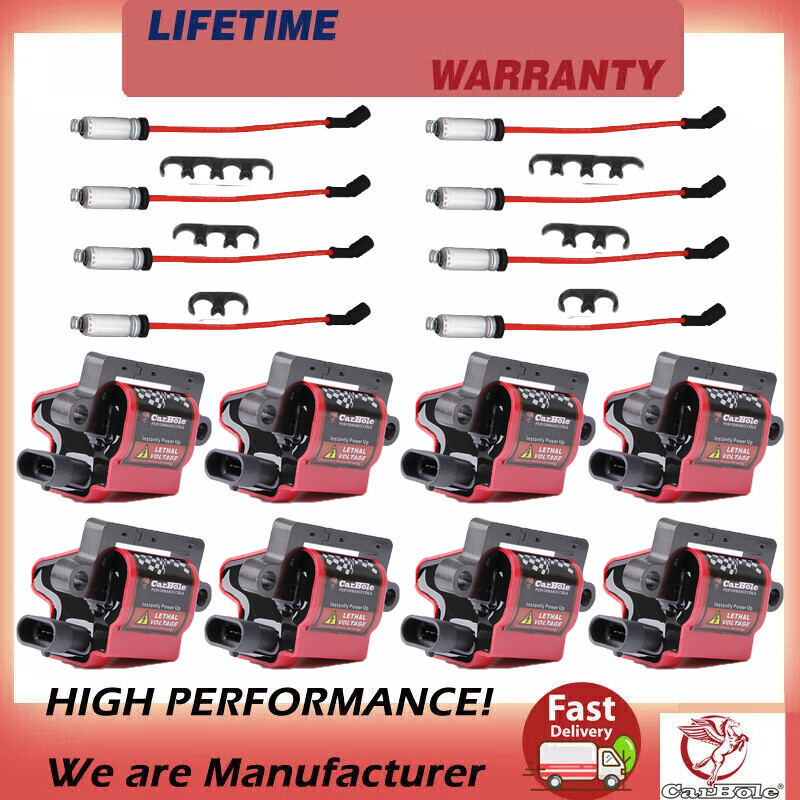

Package Included:
8x Ignition Coils
8x Spark Plug Wire Set with Heat Shields
6pcs Spark Plug Wire Separators
Suggestions on Safety & Environment Protection:
A.Prior to the replacement of the ignition coil, make sure that all the high voltage outputs have been switched off, in order not to cause bodily injury.
B.In order to protect the environment, please hand the replaced old parts to professional service station for recycling, or a professional reject disposal agency. Thanks for your cooperation!
Advantage：
BEST IGNITION COIL PACK AVAILABLE - Our ignition coil are tested and meet or exceed performance requirements,buy Precision Auto Labs ignition coil can save over $50-$100 in US auto parts store
HIGH QUALITY MATERIAL SELECTION - Our ignition coils are designed with proven materials, such as high quality wires and wire coating that resists the cracks, pin holes and imperfections that most often lead to failure issues
FEATURES - Each coil is design for specific application, low-emissions, and high energy output, and they will eliminate misfires and provide maximum voltage
COMPATIBLE VEHICLES - Please check the description or use the year/make/model drop down bar and interchangeable part numbers to confirm the compatibility before purchase
Certificates of our product：
Our Factory
| Item Specifics | |
|---|---|
| Superseded Part Number | UF271 C1208, IC328, 3859078 |
| Features 2 | high-performance polymer housing to resist moistur |
| MPN | D581, IC400, C561, 9201052, IC328，392889925，6737 |
| Primary Resistance | 0.820 ohms |
| OE/OEM Part Number | D581, IC400, C561, 9201052, IC328, UF-271, 521618, |
| Universal Fitment | Direct Replacement |
| Brand | CarBole |
| Manufacturer Warranty | Lifetime |
| Maximum Voltage | 26,000 V |
| Type | Ignition Coil |
| Spark Plug Wire Reference Part Number | 12192192 7873 12192133 88894393, 7874, 748EE, 09017, 748UU, 748BB |
| Coils style | MELCO style with the square body |
| Placement on Vehicle | Front |
| Spark Plug Wire Part Number | 12192195, 9748GG, 748GG, 12622553, 88862397, 12656210, XS10388 |
| International Part Number | E226, 26347, H6T55171ZC, B314, GN10298, 50253 |
| Other Part Number | 392889925, D581,UF271, C1208, 5C1083, 52-1618 |
| Manufacturer Part Number | D581, UF271, 12556893, 12558693, 12570553, 38590 |
| Color | Red |
| Items Included | Ignition Coil & Spark Plug Wire |
| Features | Built to strict quality control standards |
| Other Part Number 2 | 38590782, E226, 12558693, D581, 5C1083, 521618, |
| Other Part Number 3 | UF-271, H6T55171ZC, B314, C1208 12558693, GN1029 |
| Other Part Number 5 | UF271, CARQUEST, 52-1618, AIRTEX 5C1083, WELLS C |
| Interchange Part Number 2 | 12556893, 12558693, 12570553, 3859078, 38590782, |
| For Part Number | D581,UF271 |
| Application 1 | for GMC YUKON (2000 - 2006) |
| Application 2 | for WORKHORSE FASTRACK FT1261 2005 |
| Application 3 | for CHEVROLET EXPRESS 1500 (2003 - 2006) |
| Application 4 | for CHEVROLET MONTE CARLO 2006 |
| Application 5 | for HUMMER H2 (2003 - 2007) |
| Application 6 | for MERCRUISER All Models (2001 - 2007) |
| Application 7 | for GMC YUKON (2000 - 2006) |
| Material | Isolating epoxy & Copper & Fiberglass |
| Replaces part number | 12556893, 12558693, 12570553, 3859078, 38590782， |
| Coil Internal Construction | Epoxy |
| Coil Wire Attachment | Female/Socket |
| Features 3 | Surface with import oxygen ring resin,good insul |
| Fitment For 1 | CADILLAC ESCALADE (2002 - 2006) |
| Fitment For 2 | CHEVROLET EXPRESS 1500 (2003 - 2006) |
| Fitment For 3 | CHEVROLET SUBURBAN 1500 (2000 - 2006) |
| Fitment For 4 | GMC SAVANA 1500 (2003 - 2005) |
| Fitment For 5 | HUMMER H2 (2003 - 2007) |
| Fitment For 6 | WORKHORSE FASTRACK FT1461 (2004 - 2005) |
