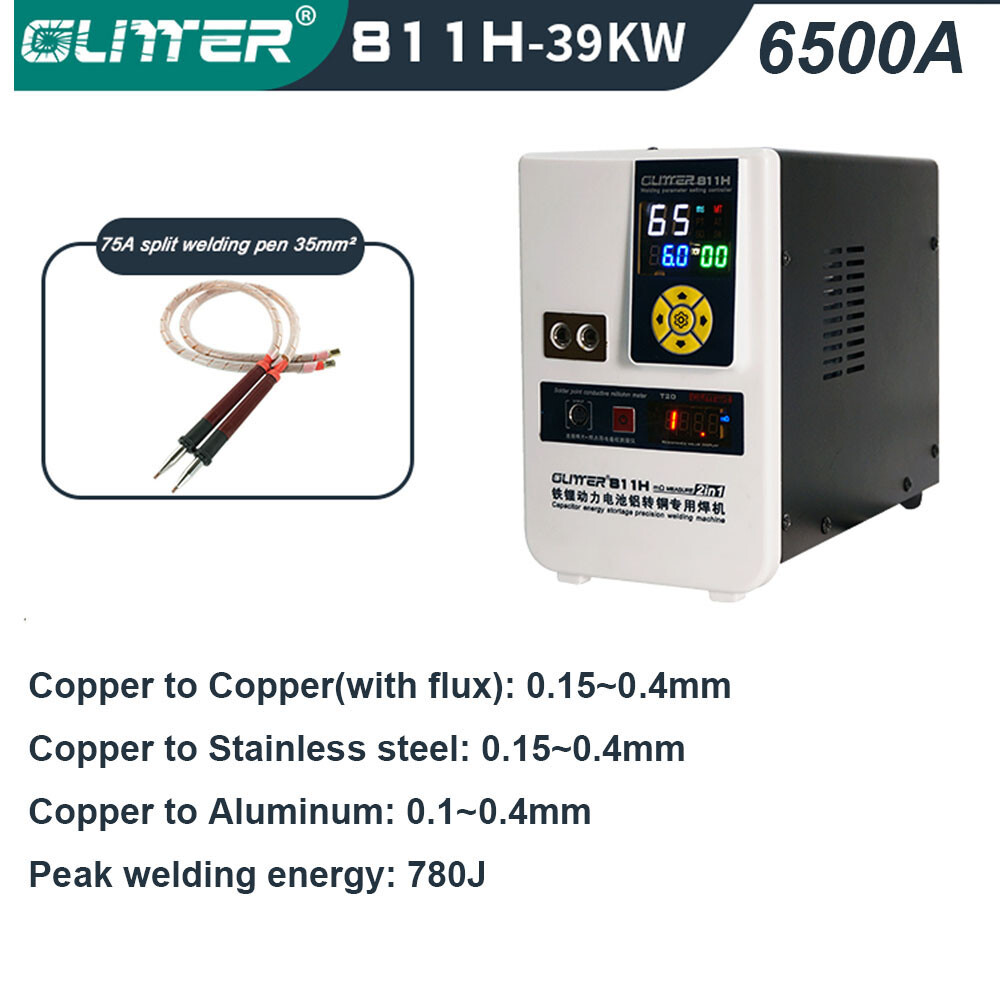

GLITTER 811H Battery Spot Welding Machine Aluminum to
Copper/ Nickel 39KW/42KW 110V/220V
Description:
GLITTER 811H Industrial intelligent spot welder, specially designed for welding copper, aluminum and nickel conversion.
39KW/42KW power optional, peak welding current up to 6500A/7000A.
Features:
1. High-frequency inverter super energy storage capacitor discharge technologyeliminates interference to AC power supply, and avoid switch tripping situation.
2. Energy storage control and low-loss metal bus technologymaximizes the burst energy output.
3. The energy-concentrated pulse formation technology controlled by themicrocomputer chip operation ensures the formation of reliable solder joints in milliseconds.
4. lntelligent program combined with multi-function parameter display screen, themanagement of welding is clear at a glance, with high proficiency.
5. Up to 7000A pulse welding current: Support welding pure copper sheet, purenickel, nickel-aluminum conversion sheet, stainless steel.
6. Super energy-gathered pulse welding, solder joint concentrated and slender.deep penetration of melt pool, the soldered dot no blackening, no generate heat no damage to the battery.
7. Dual-mode spot welding to achieve precise, fast and efficient welding, which isconvenient for welding different weldments.
8. The unique real-time display of welding pulse current can monitor each weldingcurrent and avoid false welding of solder joints.
9. Supports optional removable professional welding pens with different functionsand performances to realize welding work from ultra-thin to ultra-thick weldments
10. Ultra-low loss, high-efficiency performance design, professional industrial-grademanufacturing process, to ensure the machine for a long time use without getting hot.
Specification:
|
Type |
Battery Spot Welder |
|
|
Model |
GLITTER 811H |
|
|
Current |
6500A |
7000A |
|
Power |
39KW |
42KW |
|
Spot welding pen type |
35mm² welding pen |
50mm² welding pen |
|
Copper to Copper(with flux) |
0.15~0.4mm |
0.15~0.45mm |
|
Copper to Stainless steel |
0.15~0.4mm |
0.15~0.45mm |
|
Copper to Aluminum |
0.1~0.4mm |
0.1~0.45mm |
|
Peak welding energy |
780J |
840J |
|
Milliohm resistance measurement |
YES |
|
|
Charge current display |
YES |
|
|
Power supply |
110V/220V |
|
|
Output Voltage |
5.6~6.0V DC |
|
|
Charging current |
10~20A |
|
|
Charging time |
≤18 minutes |
|
|
Energy grade |
0-99T(0.2ms/T) |
|
|
Welding mode |
AT: automatic induction ; MT: foot-operated |
|
|
Welding tool |
Mobile pen spot welding/Push down spot welding(Optional) |
|
|
Pulse time |
20ms |
|
|
AT Preloading delay time |
300ms |
|
|
Dimension |
24x14x21cm |
|
|
Packing size |
37x22x36cm |
|
|
Weight |
9kg |
|
What's in the package:
- 1 x 811H sport welder
- 2 x S-75A split welding pens (35mm² or 50mm² )
- 2 x Milliohm resistance measuring pens
- 2 x S-75A spot welding electrodes
- 1 x Pedal switch
- 1 x Power cord
- 1 x User manual
NOTE: Batteries are not included
