Product Details

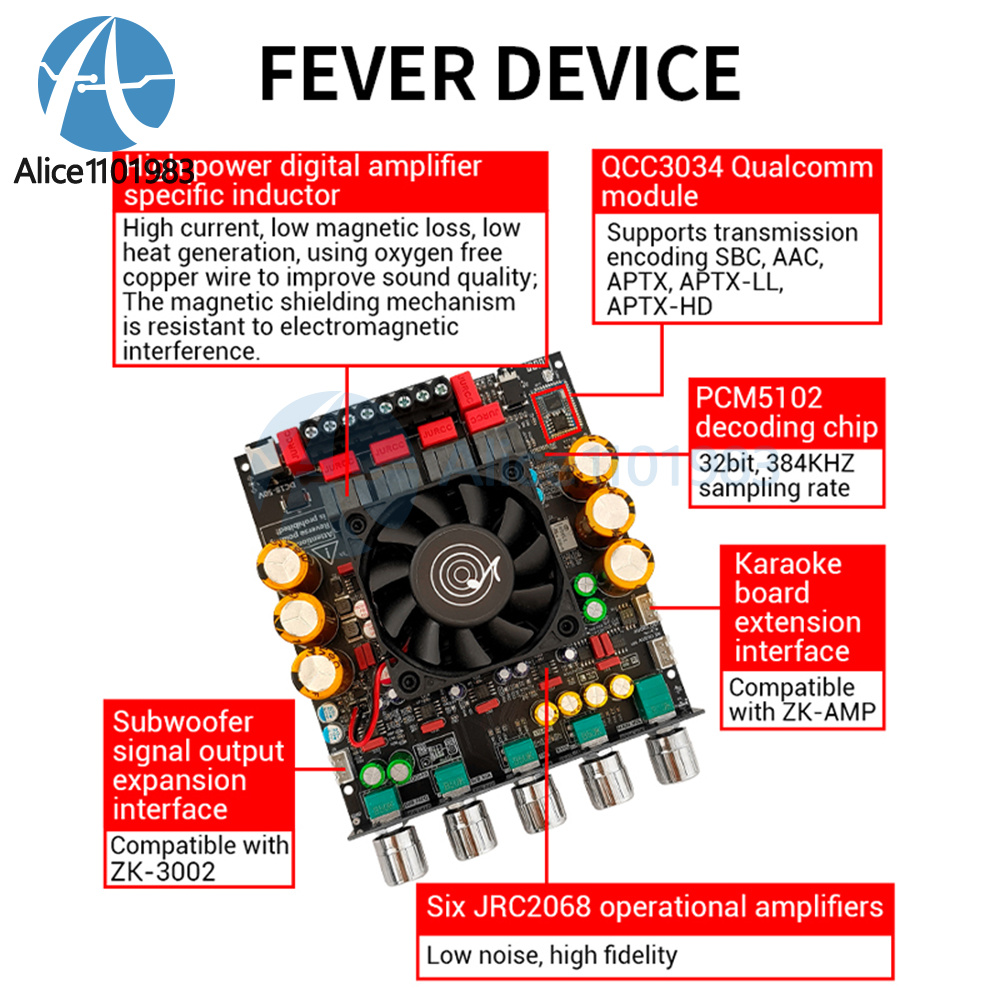

2.High-power digital amplifier special inductor, high current, low magnetic loss, small heat, the use of oxygen-free copper wire to improve sound quality, magnetic shielding mechanism to resist electromagnetic interference.
3. Select QCC3034 high-pass module, support for the transmission of coding SBC, AAC, APTX, APTX-LL, APTX-HD.
4. Adopting enlarged and thickened heat sink, purple copper strip heat conduction, silent fan air-cooled heat dissipation, to ensure sufficient power.
5. With protection mechanism, with input undervoltage, overheating, overcurrent, short circuit protection.

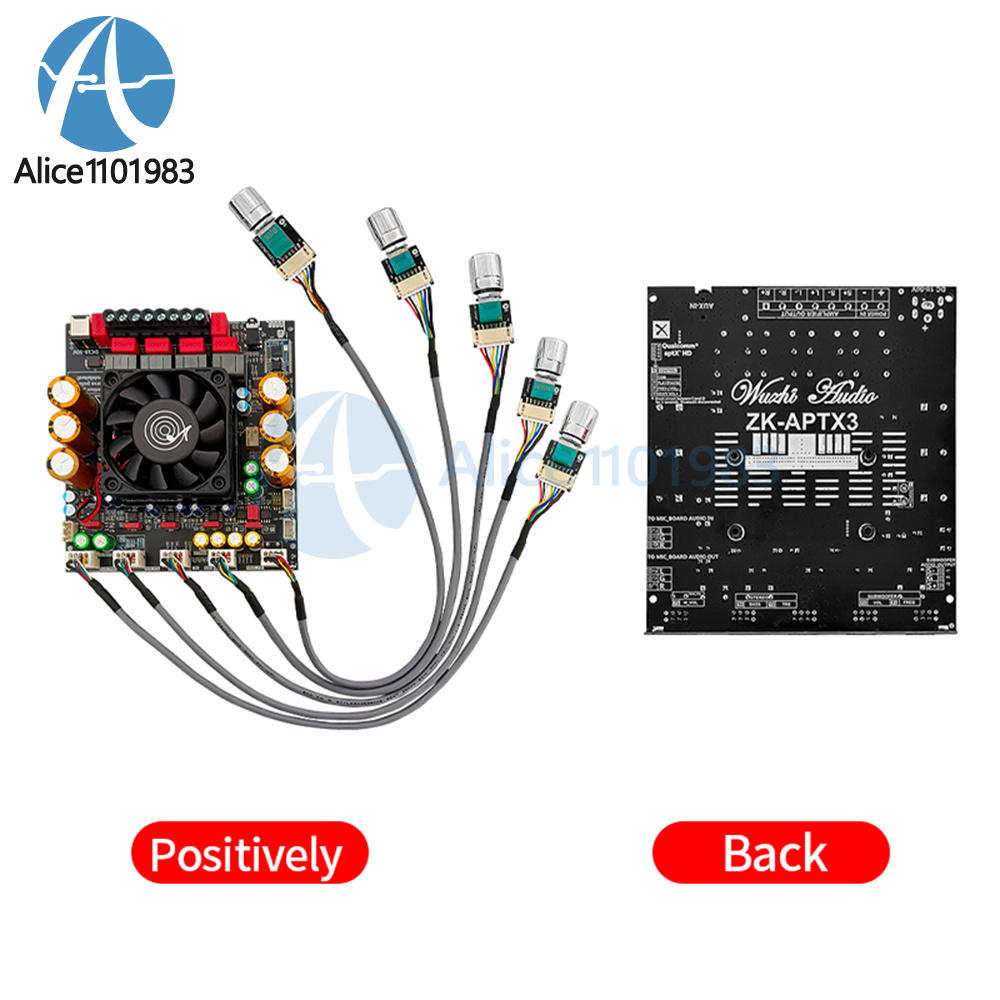

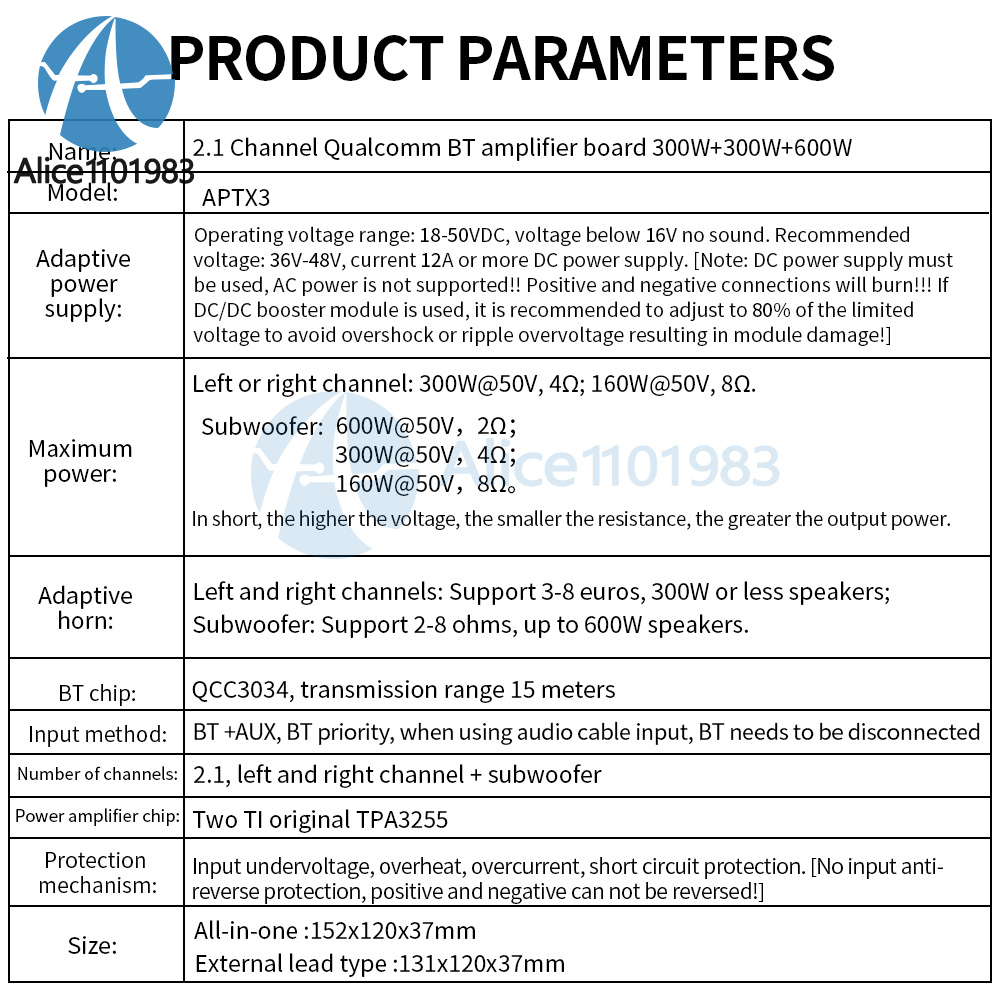

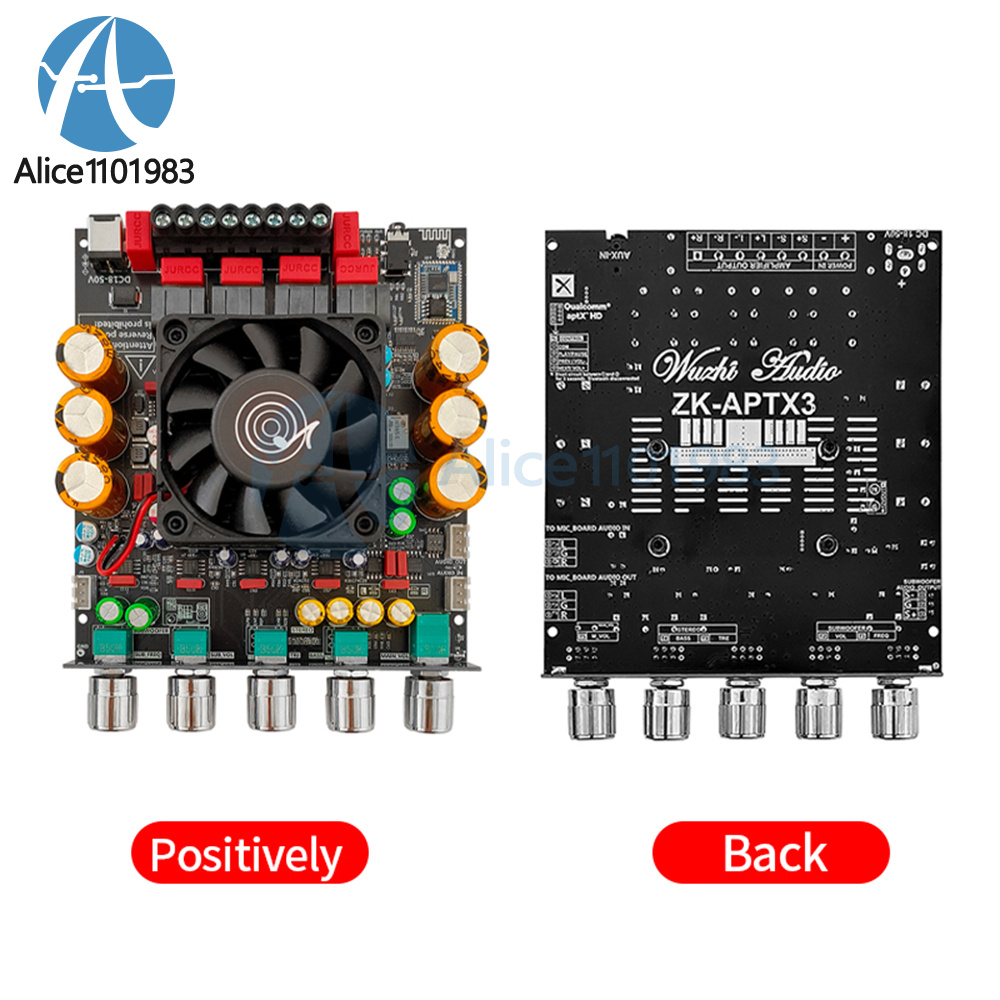

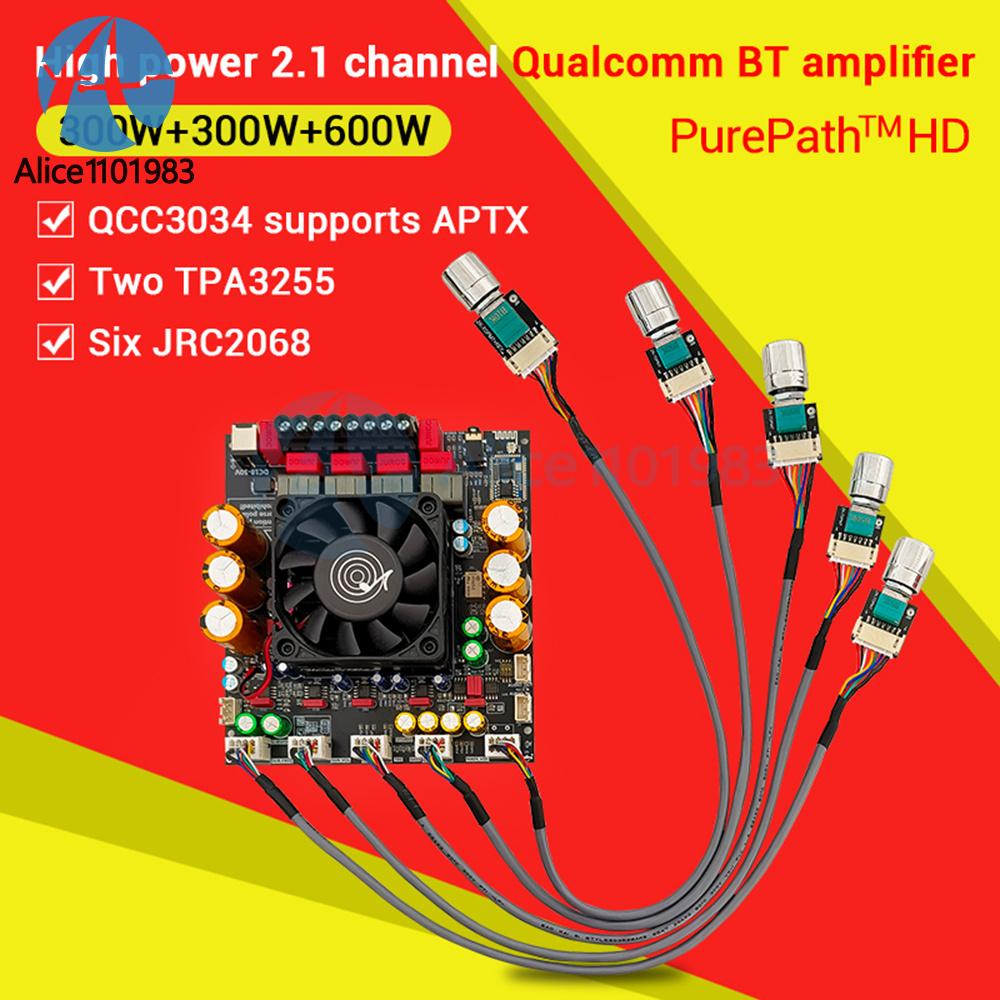

Product Name: 2.1 channel high pass Bluetooth amplifier board 300W+300W+600W
Product Model: APTX3
Adaptable power supply:
Operating voltage range: 18-50VDC, voltage below 16V no sound. Recommended voltage: 36V-48V, current 12A or more than 12A DC power supply. [Note: DC power supply must be used, AC power is not supported!!!! Reverse positive and negative poles will burn!!!! If you use DC/DC boost module, it is recommended to adjust to 80% of the limiting voltage to avoid overshoot or ripple overvoltage resulting in module damage!!!!
Maximum power.
Left or right channel:
300W@50V, 4Ω;
160W@50V, 8Ω.
Subwoofer:
600W@50V, 2Ω;
300W@50V, 4Ω;
160W@50V, 8Ω.
In short, the higher the voltage, the lower the resistance, the higher the output power can be.

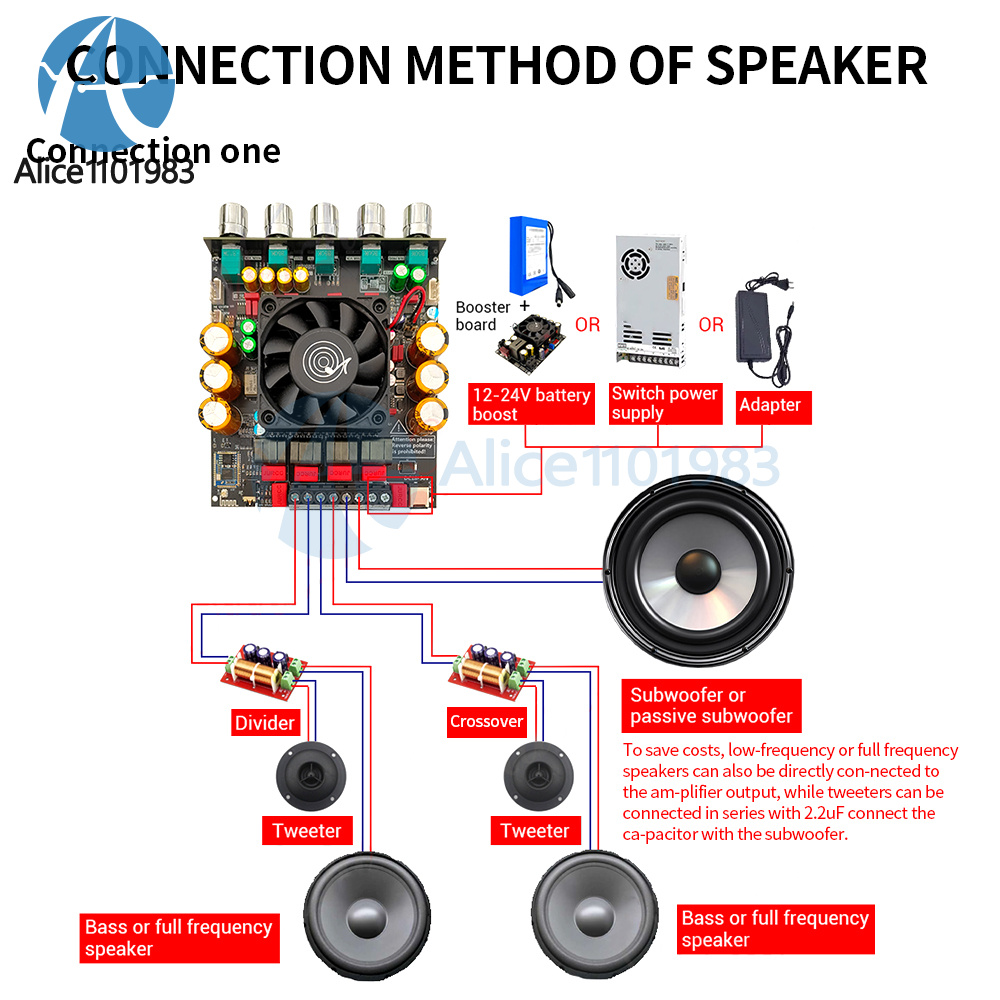

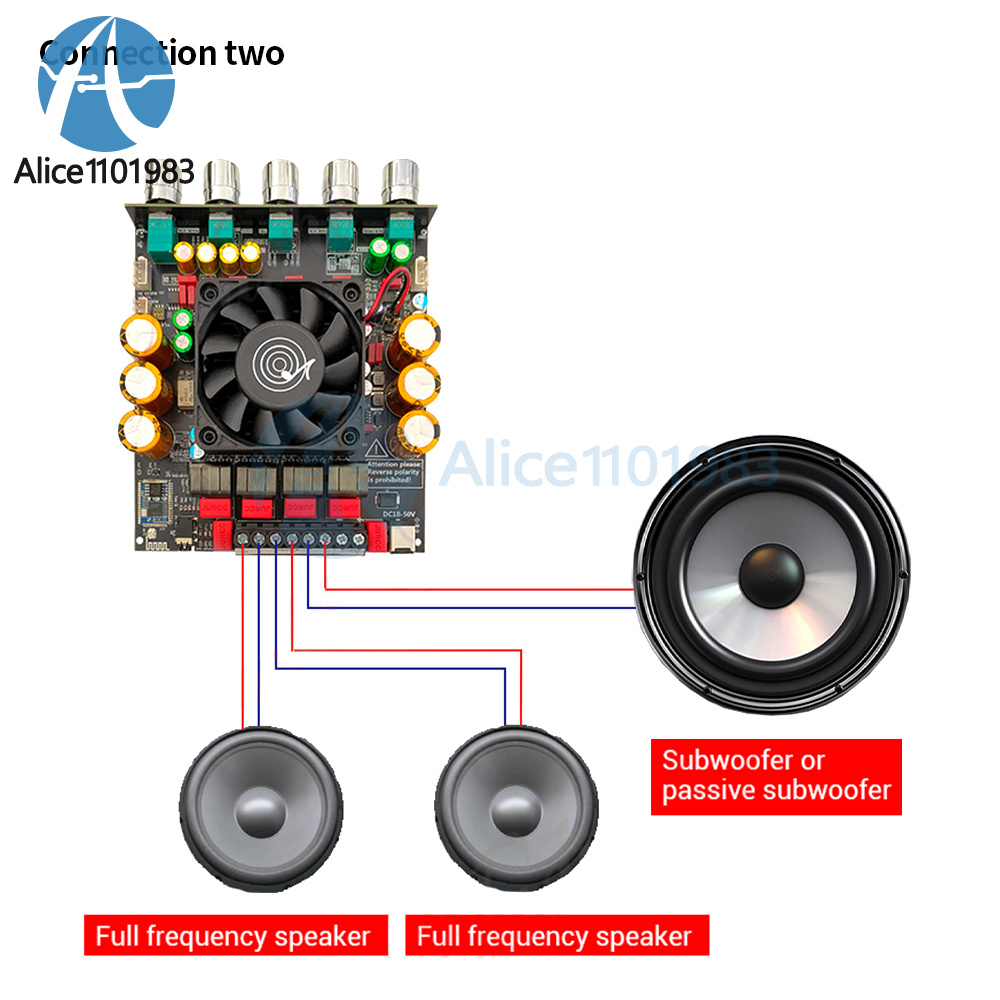

Suitable for speakers:
Left and right channel: support 3-8 ohm, within 300W speakers;
Subwoofer: support 2-8 ohm, within 600W speakers.
Bluetooth chip: QCC3034, transmission distance 15 meters

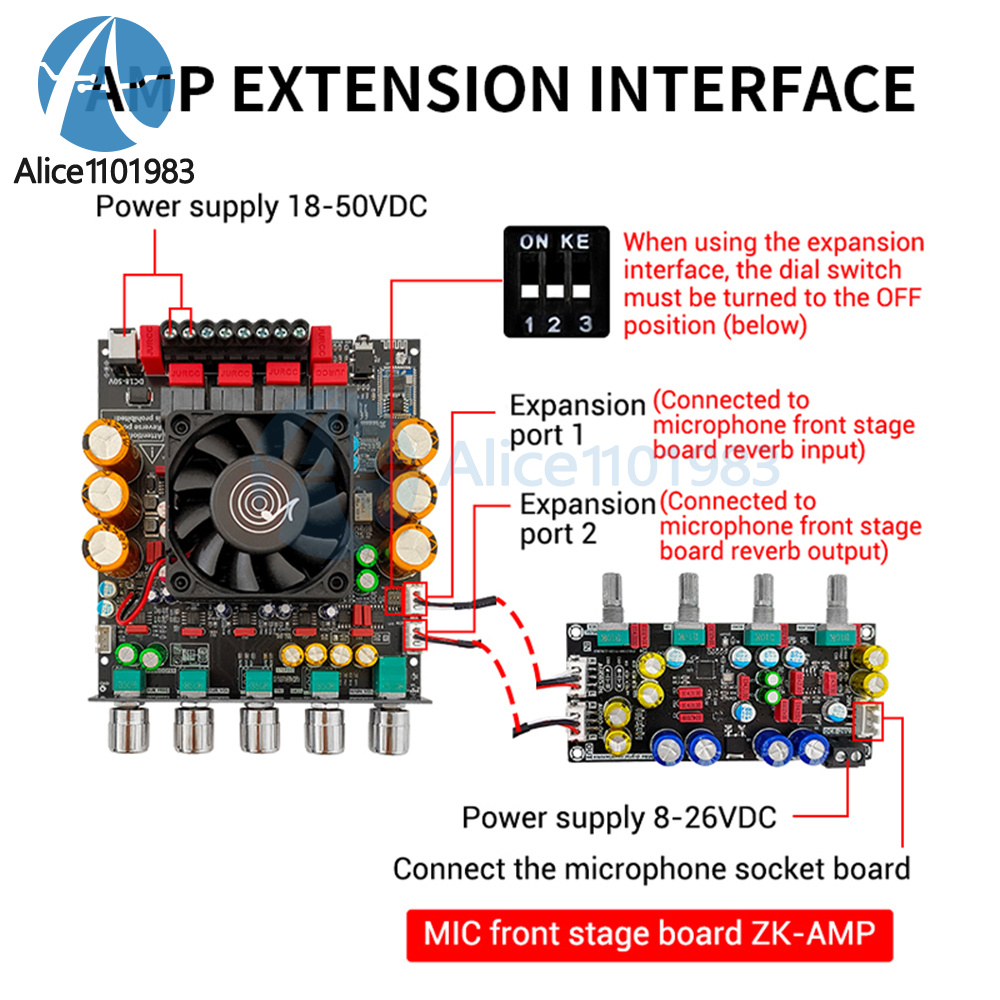

Input mode: Bluetooth + AUX, Bluetooth priority, Bluetooth needs to be disconnected when using audio cable input
Number of channels: 2.1, left and right channels + subwoofer

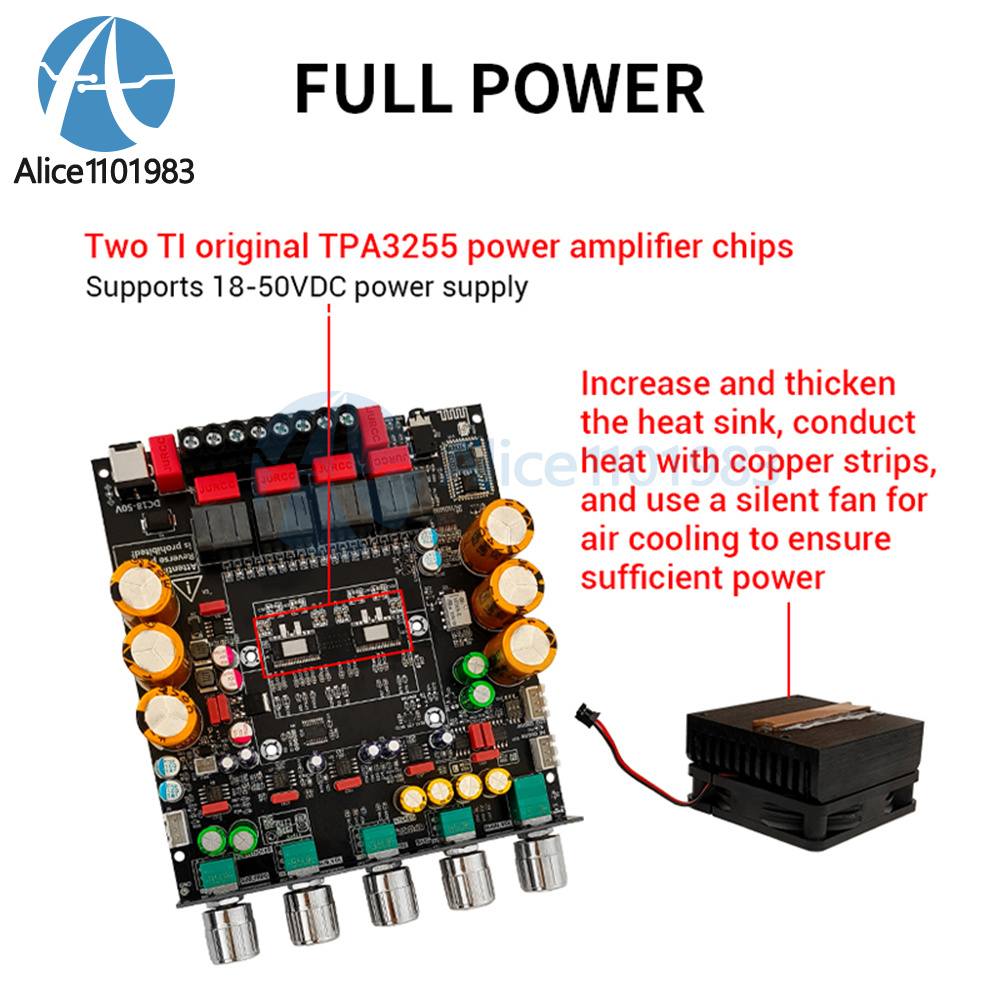

Amplifier chip: two TI original TPA3255
Protection mechanism: input undervoltage, overheating, overcurrent, short circuit protection. No input anti-reverse protection, positive and negative can not be reversed!
Product size:
One-piece type:152x120x37mm
External lead type:131x120x37mm
1 x Amplifier board
1 x Accessory Kit
