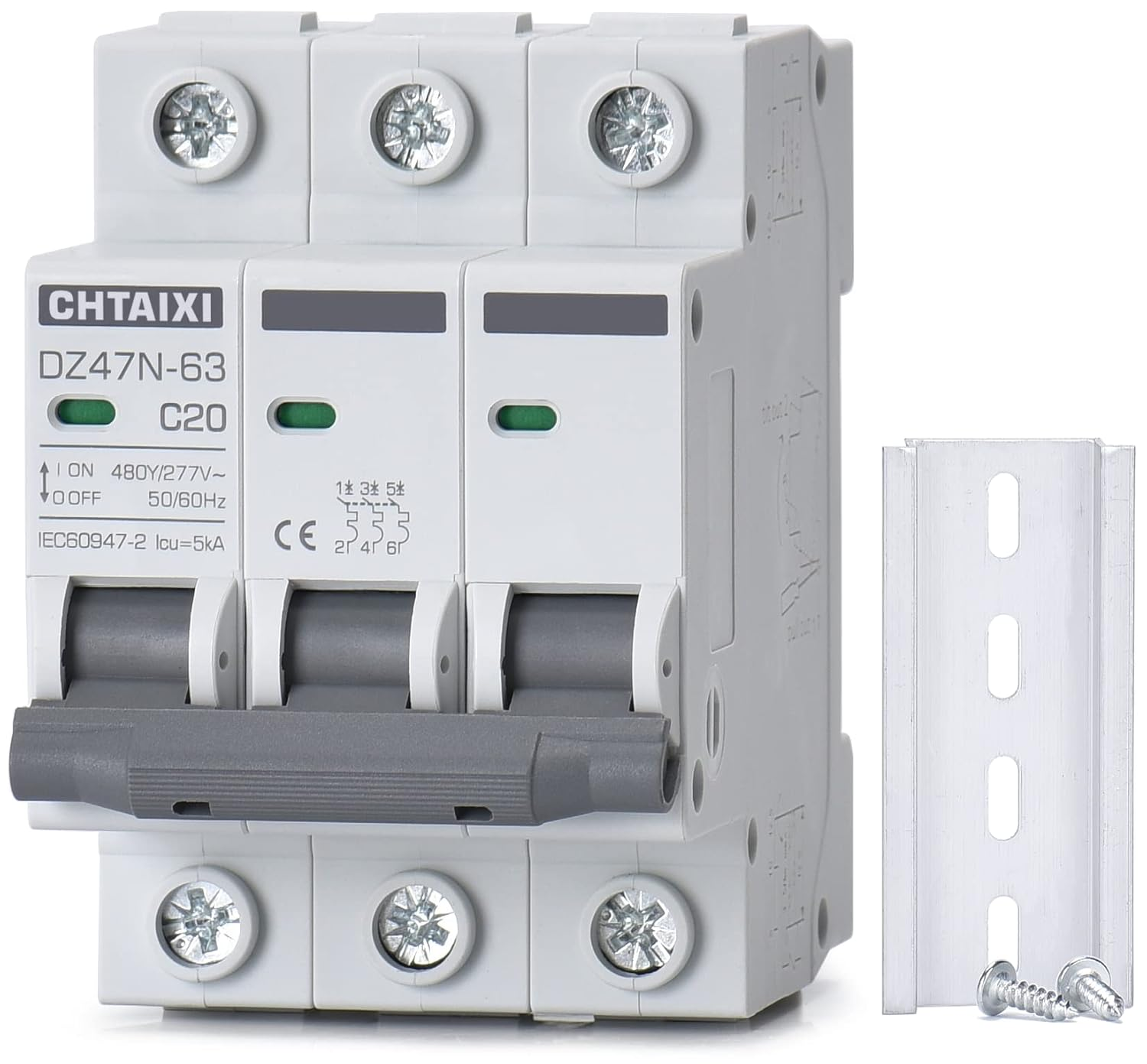

3 Pole DIN Rail Mount Circuit Breaker, 20 Amp 480V AC Miniature Circuit Breaker, Thermal Magnetic Trip AC Disconnect Switch MCB C20

3 Pole DIN Rail Mount Circuit Breaker, 20 Amp 480V AC Miniature Circuit Breaker, Thermal Magnetic Trip AC Disconnect Switch MCB C20

  • FUNCTIONS: Used to protect 480Y/277V AC circuit from overload and short circuit damage, and can also be used for control and isolation.
  • CURVE C: Magnetic trip range 5-10 times rated current.
  • QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.
  • APPLICATION: Can be used in home circuits, high power circuit, or other 50/60Hz AC systems.
  • INSTALLATION: 35mm DIN rail mount, Screw clamp wires (Soft silicone wire needs to crimp fixed the wire end with copper crimp first).

Product Description

Specifications

Product type: AC Miniature Circuit Breaker

Rated operational voltage: 240V / 480V AC (optional)

Rated current [In]: 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional)

Poles: 3P

Trip unit technology: Thermal-magnetic

Curve code: C

Breaking capacity: 6 kA (240V) / 5 kA (480V) Ics=Icu

Uimp: 4 kV

Mechanical durability: 10000 cycles

Electrical durability: 4000 cycles

Operating temperature: -13°F(-25℃) ~ 140°F(60℃)

Mounting support: 35 mm DIN rail

Tightening torque: 2.5 N.m

Standard: IEC60947-2

Package includes

1 x AC miniature circuit breaker

1 x DIN rail

2 x Screws

Quality Products to Protect Your Electricity Safety

Quality Plastic Shell

  • Flame retardant material, sturdy and durable.

Indicator Window

  • Green Indicator: OFF
  • Red Indicator: ON

Silver Alloy Contacts

  • Reduce the heat generated by arcing during disconnection.
  • Reduce the wear of the contacts.
  • Improve electrical durability.

Installation

DIN Rail

  • Install the 35mm DIN rail horizontally in a stable environment.

Installation

  • Hang the circuit breaker slot on the DIN rail.
  • Push the lower end of the circuit breaker into the DIN rail.

Dismounting

  • Push the circuit breaker upward.
  • Turn the upper end of the circuit breaker out of the DIN rail.

  • Item model number 480V
    Part Number 47N63-3PC
    Style 20 Amp
    Current Rating 20 Amps
    Mounting Type DIN Rail Mount
    Circuit Breaker Type Standard
    Country of Origin China
    Voltage 277 Volts
    Model 480V
    Package Dimensions 3.78 x 3.54 x 2.28 inches; 10.23 ounces
