Description
1【App Connection】 Connection password is 1234.

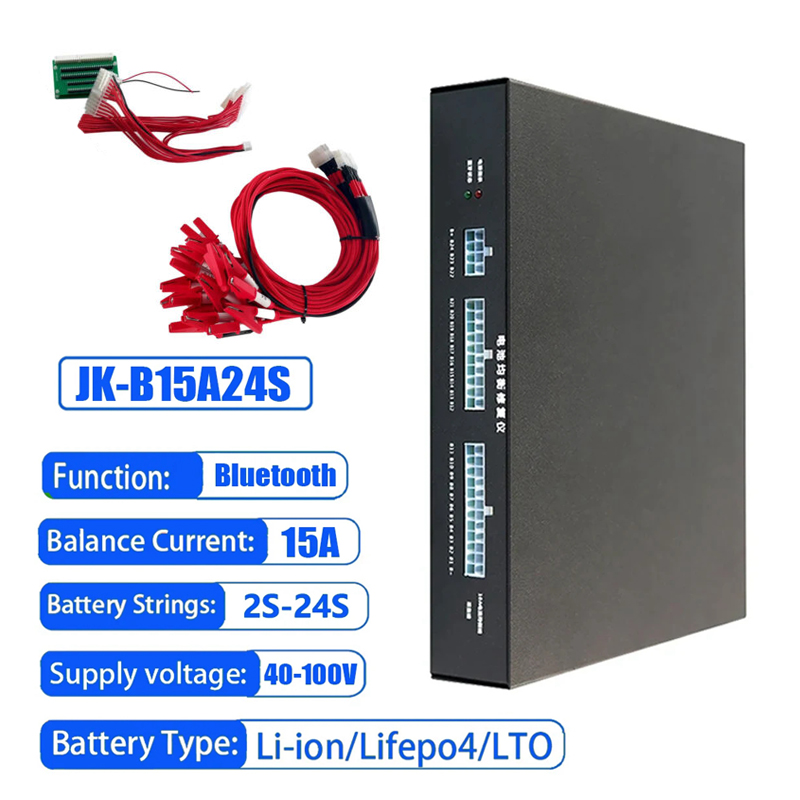

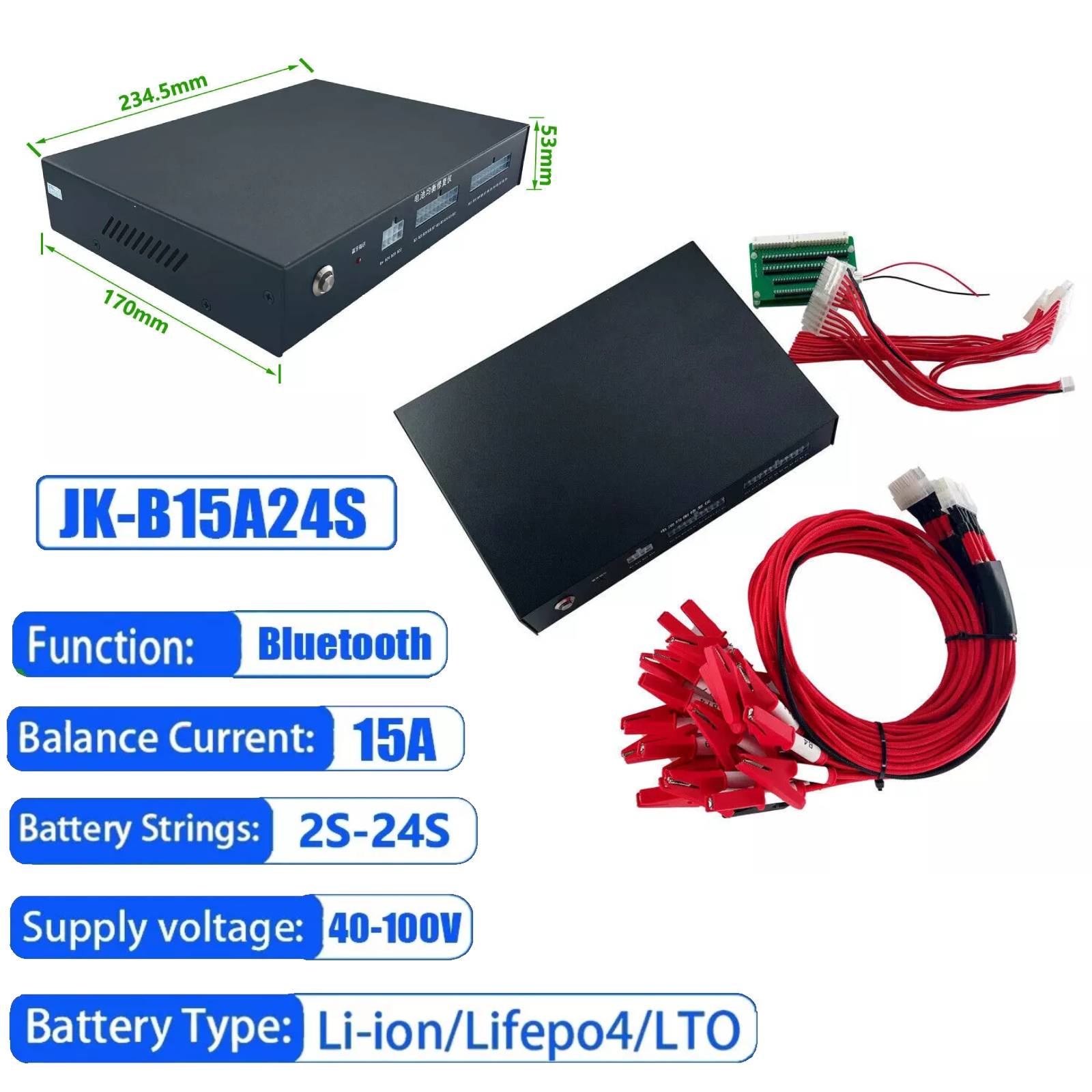

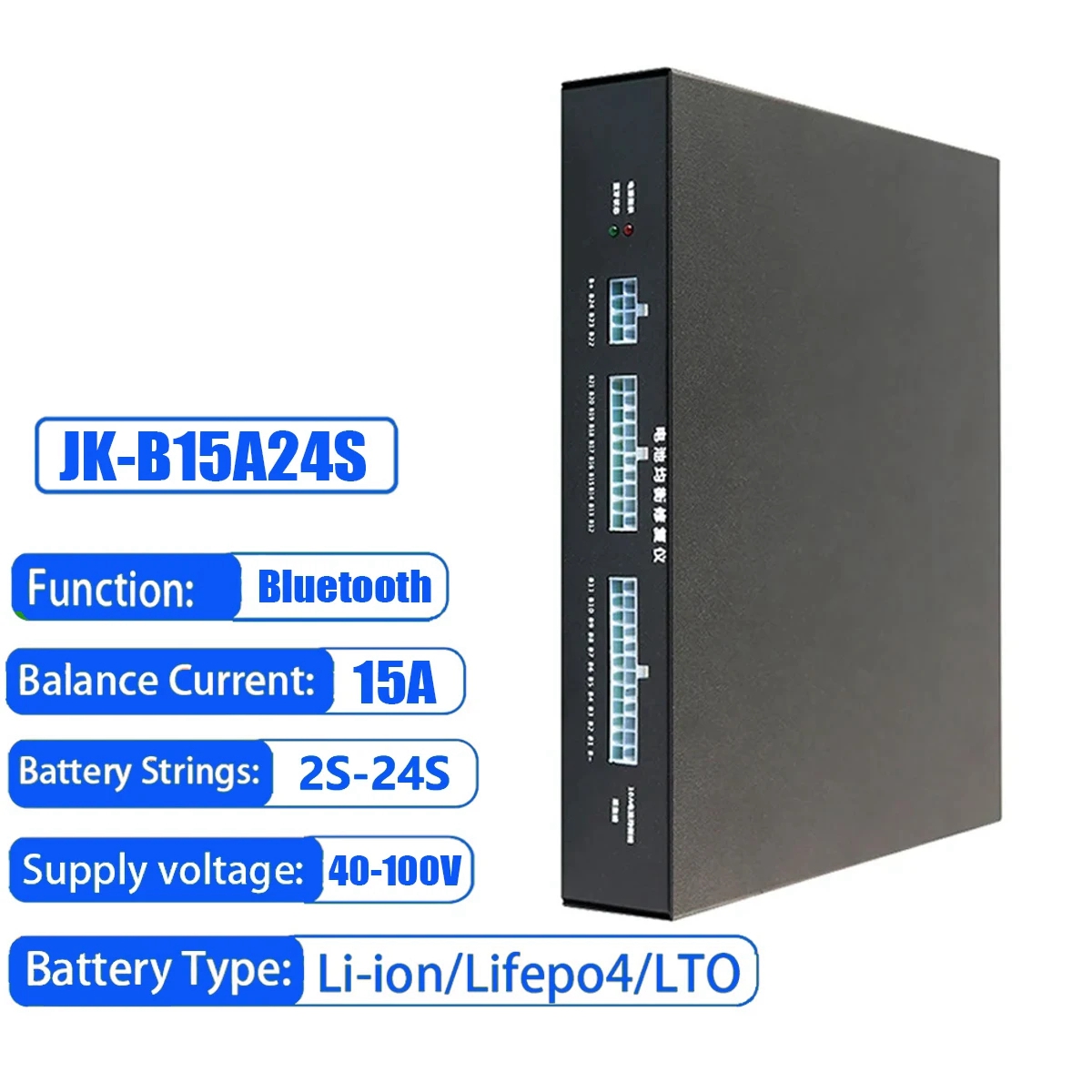

2.15A 2S/4S/8S/14S/16S/24S Battery Active Balancer
Real-time, active, energy transfer equalization, after the balance, the inter-cell pressure difference ≤ 3mV
3.Support 2S to 24S battery packs.
4.Single cell voltage collection range: 1V ~ 5V, accuracy: ± 3mV.
5.Support all pool types such as : Li-ion, Lipo, Lifepo4, LTO, super capacitors and other batteries.
6.The balance current is set independently in the range of 0.1~1A/2A/5A/10A, independent of the cell voltage difference.

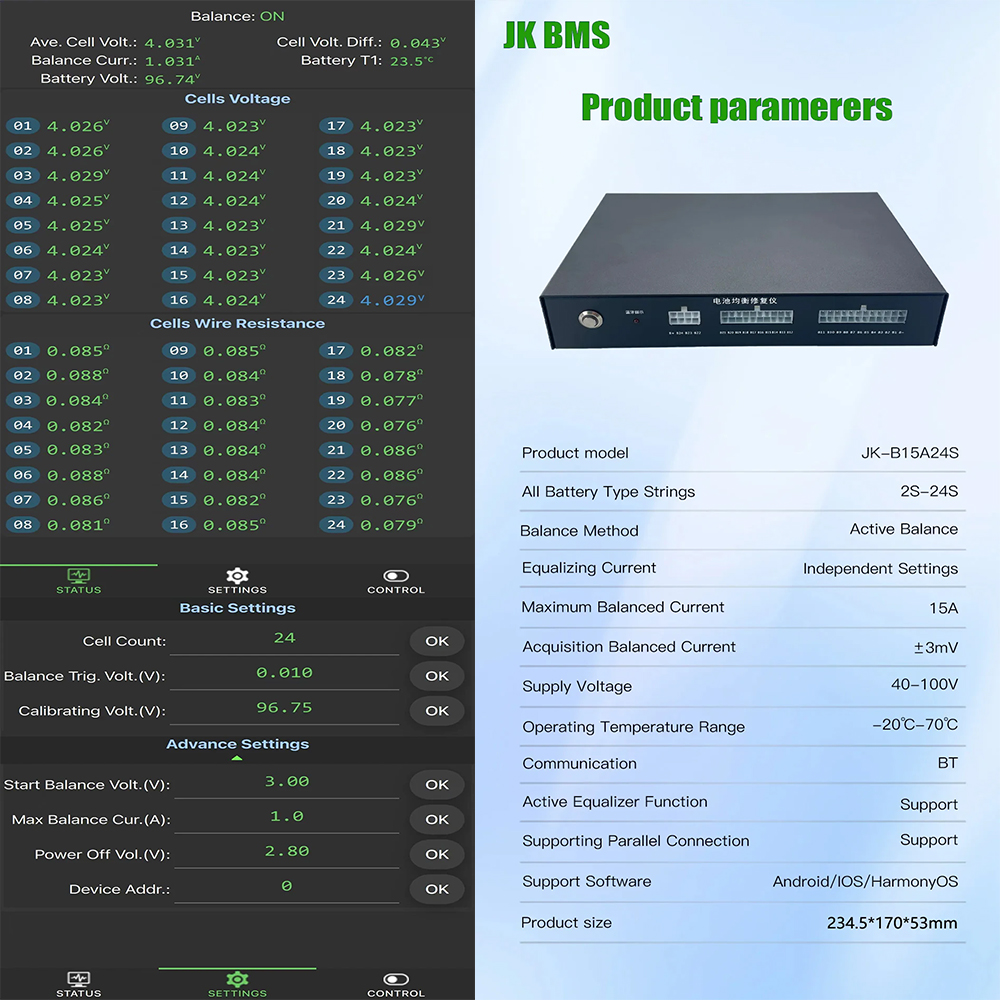

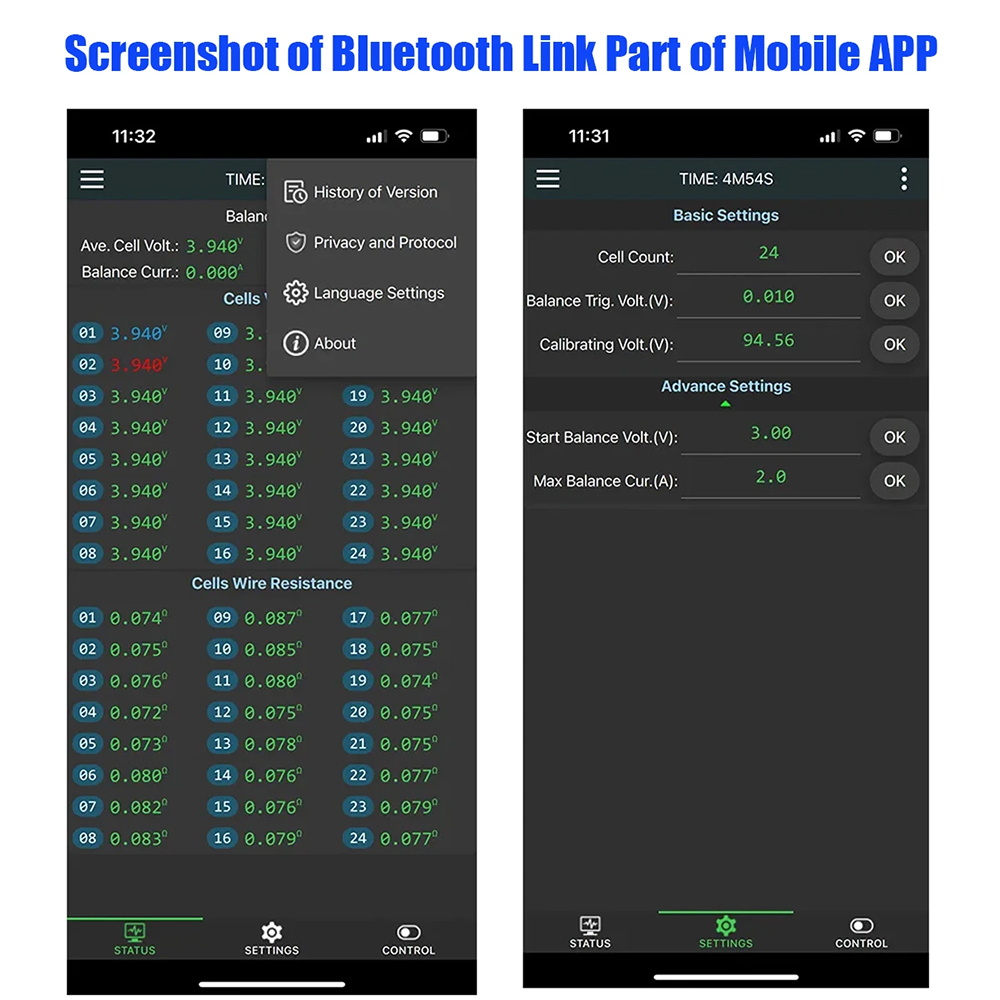

7.Support Bluetooth communication, equipped with mobile APP, real-time view of battery status.
8.Equilibrium line resistance detection, abnormal contact failure is found in advance.

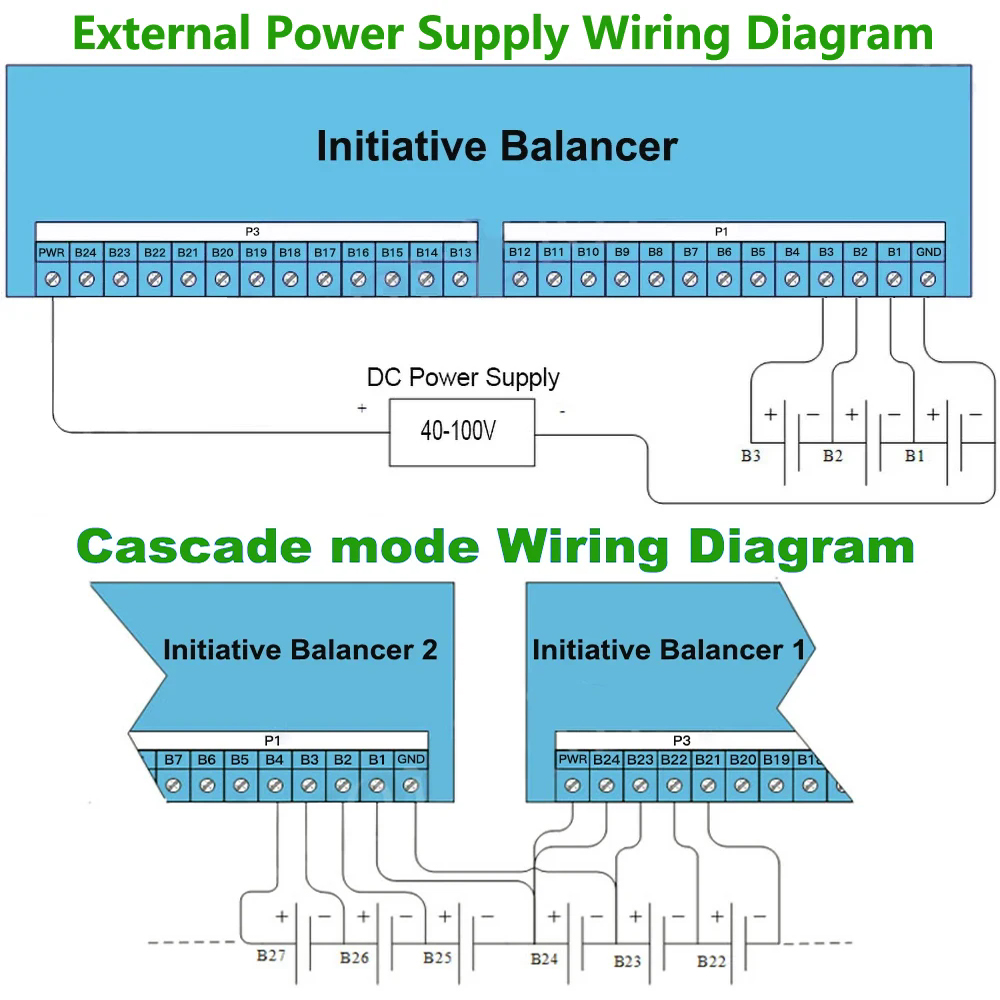

9.Power supply range: 40V~ 100V.
10.Low voltage shutdown function to prevent battery damage.
11.Package Size :43*37*12cm
12.Super self-protection function, any equalization of the equalization line will not burn the equalizer
13.Super self protection function, it will not burn down the balancer even if equalizer wire arbitrarily connected
14.Scan the QR code on the product packaging box to see all the documentation, or directly visit this website:
https://active.clewm.net/BApbC0?qrurl=http://c3.clewm.net/BApbC0>ype=1&key=2b3d4162439e9136f87858ef91f1c7ae0d92b1e929
Password For App:1234.
Package includes：

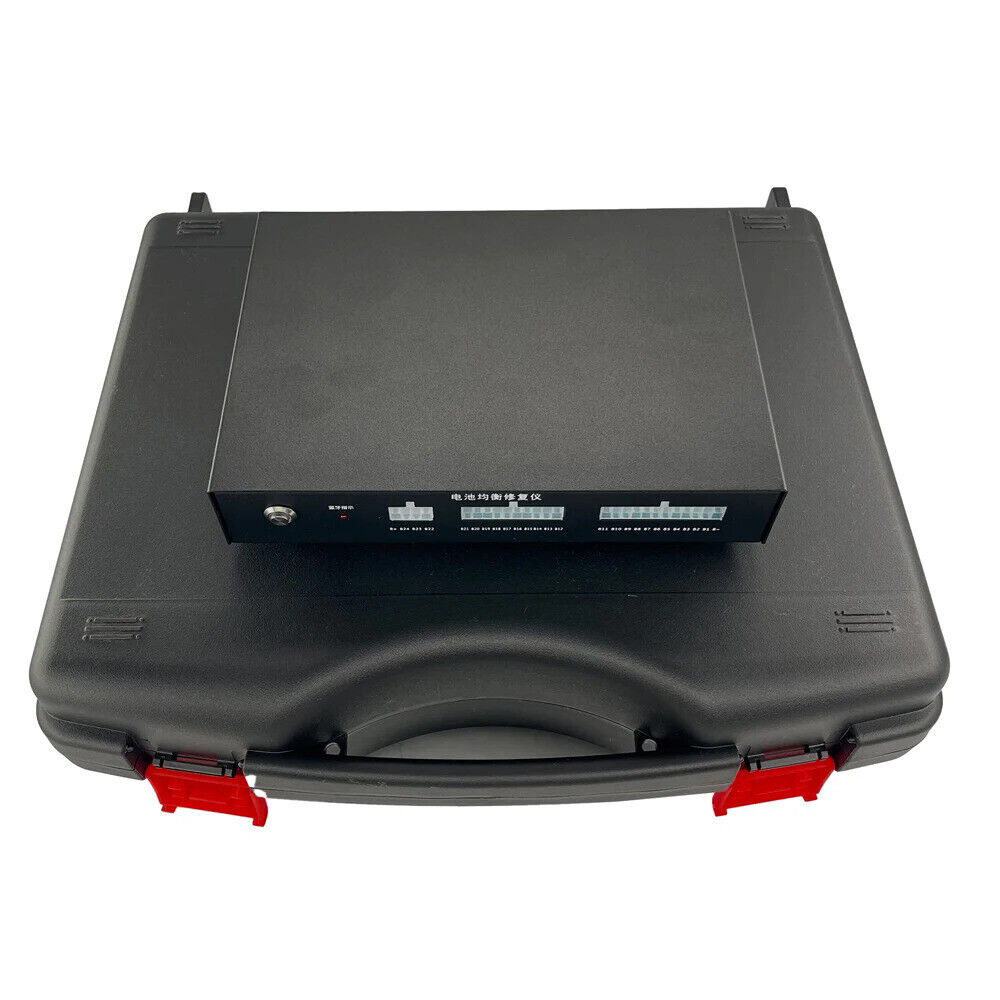

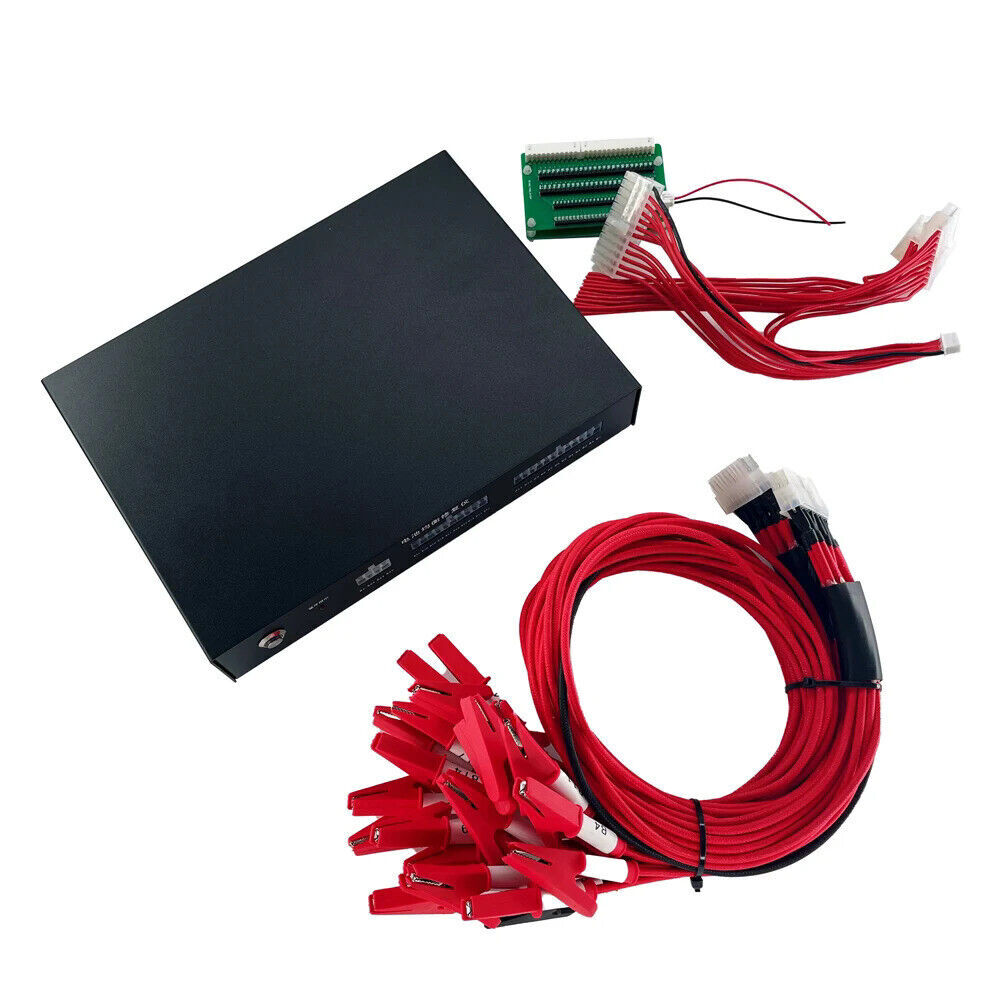

1*15A Battery Active Balancer
