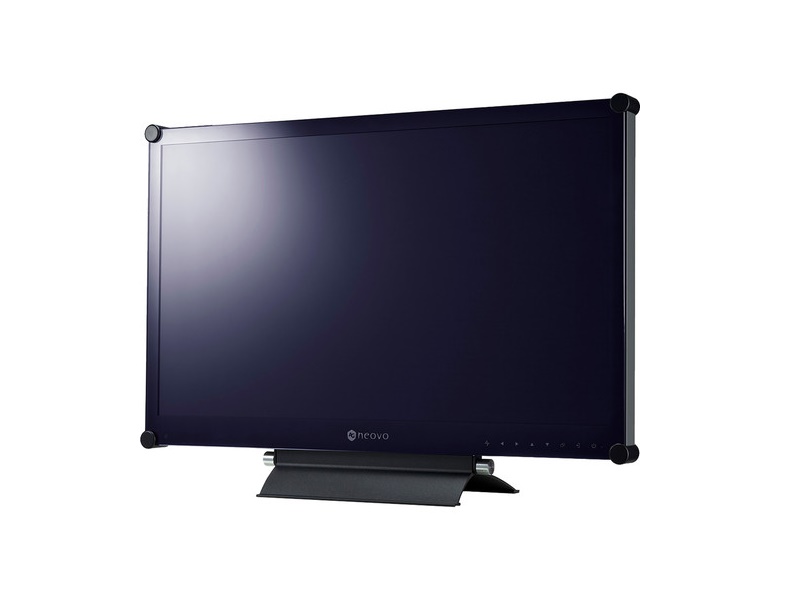

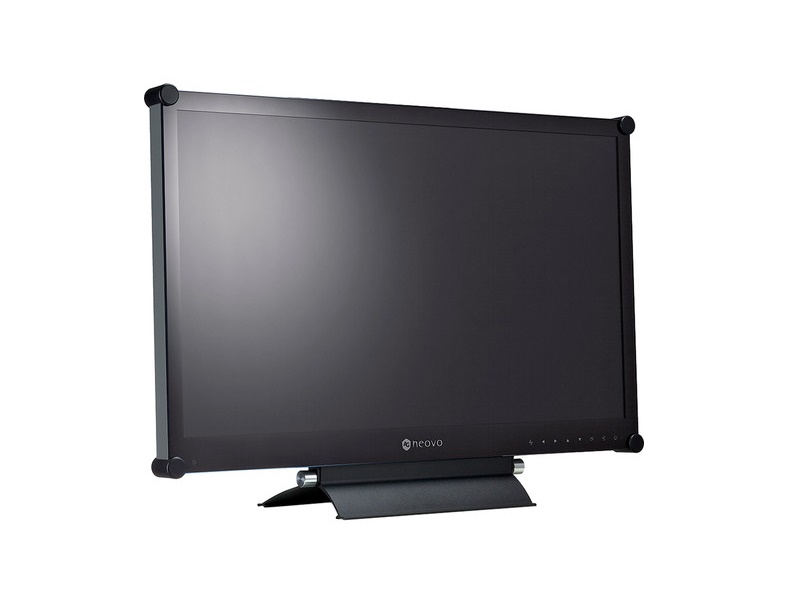

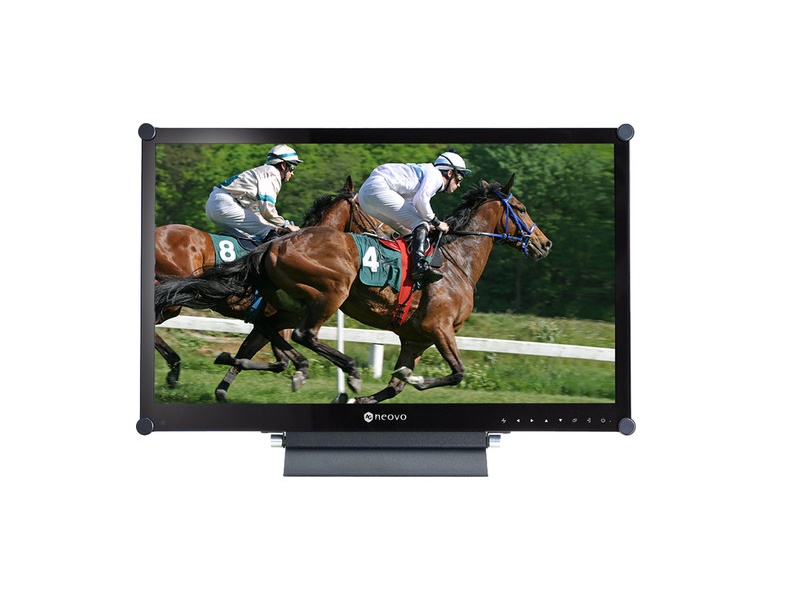

HX-24G is a 24-inch HD-SDI monitor with SDI inputs and outputs specifically designed to provide a high-definition and uncompressed video footage that supports an easy SDI loop to multiple monitors for HD video surveillance solutions. The SDI monitor displays crystal clear images at Full HD 1080p resolution at a brightness of 300 cd/m2, allowing receiving HD-SDI and 3G-SDI camera signals and transmitting the uncompressed and ultra-low latency videos directly to multiple SDI monitors up to 300m long-distance transmission without extra converters and adapters. Featuring greater connectivity offers multiple video inputs, including HD-SDI/SG-SDI, DVI, VGA, DisplayPort, and HDMI. The HX-Series fulfills the critical need of ensuring high-quality image details and high-risk surveillance when applying in the official authorities, law enforcement, banks, casinos, jewelry and luxury stores, police patrol cars, and private properties, etc.

Support 1080p High-definition Video

The HX-24G monitor with BNC connectivity supports both HD-SDI and 3G-SDI standards at 1080p Full HD image quality. Users no need to sacrifice the video quality and image details when zooming in the cameras during live video and playback mode to focus on their specific area of interest.

Uncompressed and Ultra-low Latency Transmission via Long Distance

HD-SDI technology can transmit ultra-low latency and uncompressed HDTV signals in live video viewing based on existing coaxial cables with BNC connectors. Combined with BNC connectors and SDI loop output features, CCTV installers and operators can quickly upgrade their CCTV surveillance system to display HD videos simultaneously at different monitoring points at up to 150M transmission distance.

The maximum distances for SD-SDI, HD-SDI and 3G-SDI signal transmission via RG6 cables:

• 3G-SDI : 100M / RG6 Coaxial Cables
• HD-SDI : 150M / RG6 Coaxial Cables
• SD-SDI : 300M / RG6 Coaxial Cables

Note: Please ensure your installation requirements first.

Easy Connection with SDI Loop Out for Multiple Monitor Setup

When it comes to multiple SDI monitor connections, HX-24G can deliver high-quality video footage on the SDI loop outputs to extend professional SDI live monitoring without the need for a converter. And its multiple video inputs allow users to make different system configurations at more convenience.

Anti-Burn-in™ for LCD Ghost Image Prevention

Since the surveillance monitors are running for 24/7 operation, the monitors keep displaying the same and still images, where an uninterrupted image displayed for a long period of time results in permanent discoloration of the display panel, causing permanent “Ghost Images” (also known as image sticking and burn-in effect). To ounter the effects of LCD burn-in or “ghosting”, AG Neovo’s security & surveillance monitor utilises propriety Anti-Burn-in™ technology. This technology has been tested and proven to prevent image burn-in and assure an extended life-span for the display.

Industry-leading Reliability with Robust Design

The HX-24G HD-SDI monitor is specially designed to transcend the challenge of enduring 24/7 operations. Considering the long-term use in critical operation, the AG Neovo HD-SDI monitor is built with durable components for non-stop operation. On the outside, the HX-Series HD-SDI monitor uses NeoV™ Optical Hard Glass housed in a tough and robust metal casing. It provides resistance to countless types of damage, from scratching, high-velocity impact damage, frequent alcohol, acid, and alkali cleaning to environmental (water/dust) damage in harsh environments.

Super Resolution

A professional HD-SDI monitor is ideal for HD surveillance. HX-24G not only remains the best image quality from HD security cameras, but upscales and enhances its image quality to present more image details in layered texture horizontally and vertically with built-in cutting edge super-resolution technology.

CCTV Mode

The CCTV Mode can maximize image clarity in the scenario of low light surveillance footage. With this pre-configured CCTV mode, users can quickly fine tune their security solutions on the proven values adjustment of Backlight, Black level, Sharpness, Saturation, GAMMA, Noise Reduction and Super Resolution, etc., which saves them more time on testing and readjusting while proceeding on-site installation.

Night Mode

While applying to critical surveillance, such as sailing in the dark seas, users have higher requirements for their monitors’ image clarity in low-light environments. The Night Mode features dimming the Backlight Level in dark environments and remaining the clear viewing with high visibility for reliable navigation.

PID Command & Ctrl for RS232 System Integration

PID Command & Ctrl software helps integrators easily control and integrate AG Neovo surveillance & security displays via LAN or RS232 connections. Users can quickly find command codes for programming into external control systems for remote management, OSD-related settings, and easy control on deployed displays on its simple and intuitive interface.

*This function is currently only supported on PC version.
