Description

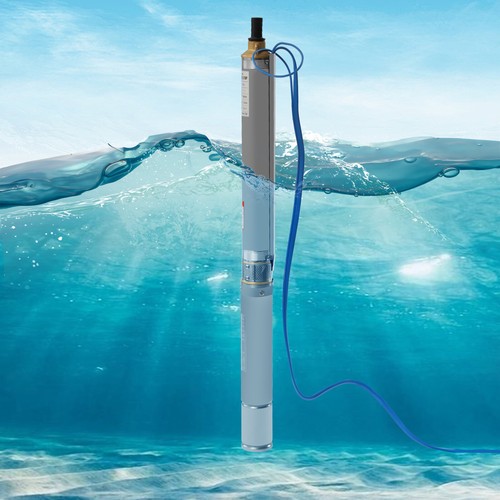

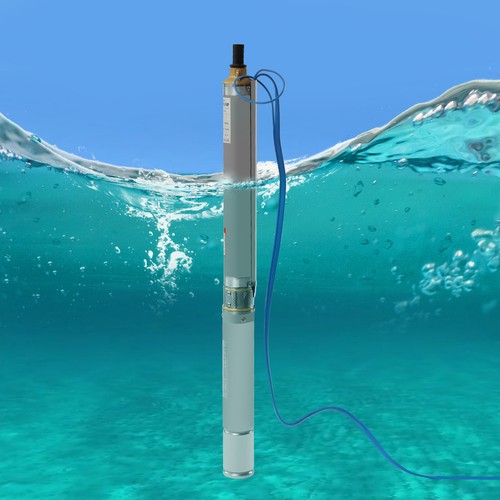

Instead of reflecting on the way you pump, switch to a high-quality easy-to-operate submersible well pump. This submersible well pump is made of selected stainless steel with a fine texture that is not easily deformed. Once installed, just simply insert it into the water and it will pump water quickly. It uses superb horsepower (1hp) allowing you to enjoy the high flow and high efficiency. With it, you will find that pumping water becomes so fun and easy!

Specification

Model: 3SDM1.8/18

Material: Stainless Steel

Color: Silver

Style: Submersible

Power Source: Electric Powered

Noise: ＜65db

Applicable Well Diameter:＞8.9cm/3.5 inches

Voltage: 110V/60Hz

Power: 0.75KW,1HP

Max. Lift: 116m/380ft

Max. Flow Rate: 3.6m³/h, 16GPM

Max. Speed: 3420r/min

Outlet: 2.54cm/1 inch

Flat Blue Cable: 30m (98ft)

Number of Impeller: 18

Plug Type: US Plug

Package Size: 74*23*21cm/29*9*8.27inch

Product Height: 1.065m/3.5ft

OD Pipe: 7.8cm/3 inch

Gross Weight: 17.45kg/38.47lbs

Net Weight: 16.5kg/26.28lbs

Package Included

1*Submersible Well Pump

1*Control Box

1*Outlet

1*English Manual

Details

Built-in Check Valve: This submersible well pump has a built-in check valve that can be installed vertically, preventing water from going back into the pump and causing a backspin of the impellers.

Heavy-duty Thermoplastic Impeller: The heavy-duty thermoplastic impeller is designed to provide high flow and high lift.

Advanced Filter: The submersible pump comes with a stainless steel filter to filter impurities. For newly drilled wells with excessive granular sediment, you can add a layer of gauze before the filter inlet.

Double Lifting Eye Hole: It adopts the design of double lifting eye hole position, which is convenient to use with steel wire rope or nylon rope when going down the well.

Pagoda-shape Water Outlet: The water outlet adopts pagoda design, which is convenient for connecting pipes, saving time and labor.

Snap Ring Spring: Stainless steel base adopts high precision steel snap ring spring, which is effective against compression, impact and deformation.

High Toughness Oil Seal: It adopts high toughness oil seal to protect the stable operation of the motor in the high water pressure environment.

Application

It is applicable to wells with a diameter of more than 3.5in. It is suitable for extracting groundwater from deep wells, and can also be used for water-lifting projects in rivers, reservoirs, canals, etc. It is mainly used for irrigation of farmland and water for people and animals in mountainous areas, and can also be used for drainage of cities, factories, railroads and mines.

Notes

1. Please confirm whether the voltage and frequency meet the local standard before ordering. And note that it is forbidden to use in the absence of water.

2. Please note that the pumping speed is related to the depth of water intake. The deeper the water intake, the lower the speed will be.

3. Please note that the pump has a built-in check valve, however, this check valve is only used to prevent water from flowing back into the pump and causing the impeller to rotate in the opposite direction, but if the pump is to be used in the pressure system, at least one external check valve needs to be used in the pipeline.

4. Please note that it is forbidden to touch the electric pump when it is working. Please do not wash, swim or enter the water of livestock nearby to avoid electric shock. To prevent electric shock, it is strictly prohibited to lift and pull the cable. Please cut off the power supply when maintaining, moving or cleaning the electric pump.

5. Please read the user manual carefully before use and pay special attention to the safety precautions included.

6. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you place the order.
