Introduction:
HP series digital torque tester is an intelligent measuring instrument designed and developed to detect various torques.
Application:
-
It is mainly used for torque setting of various electric and pneumatic screwdrivers, monitoring and correction of torque screwdrivers, torque wrenches, torque screwdrivers, etc., and torsional destructive testing of parts.
-
Widely used in electrical manufacturing, machinery manufacturing, automotive light industry and professional scientific research and testing industries.
Specification:
| Model |
HP-10 |
HP-20 |
HP-50 |
HP-100 |
HP-250 |
HP-500 |
|
| Measuring range |
1bf.in |
0.04-9.00 |
0.4-18.0 |
0.4-45.0 |
0.4-90.0 |
4-180.0 |
5-450 |
| kgf.cm |
0.05-10.00 |
0.5-20.0 |
0.5-50.0 |
0.5-100.0 |
5-250 |
5-500 |
|
| N.m |
0.004-1.000 |
0.04-2.00 |
0.04-5.00 |
0.04-10.00 |
0.4-25.0 |
0.4-50.0 |
|
| Measuring mode |
Follow-up TRACK, Keeping PEAK |
||||||
| Accuracy |
±0.5%Fs |
±1.0%FS |
|||||
| power supply |
|
|
|||||
| Battery life |
More than 1000 times |
||||||
| Size |
230 * 50 * 110mm |
||||||
| Weight |
Appr. 2kg |
||||||
| AC Adapter charger |
In the 100-240V AC (50 or 60Hz) to work |
||||
Feature:

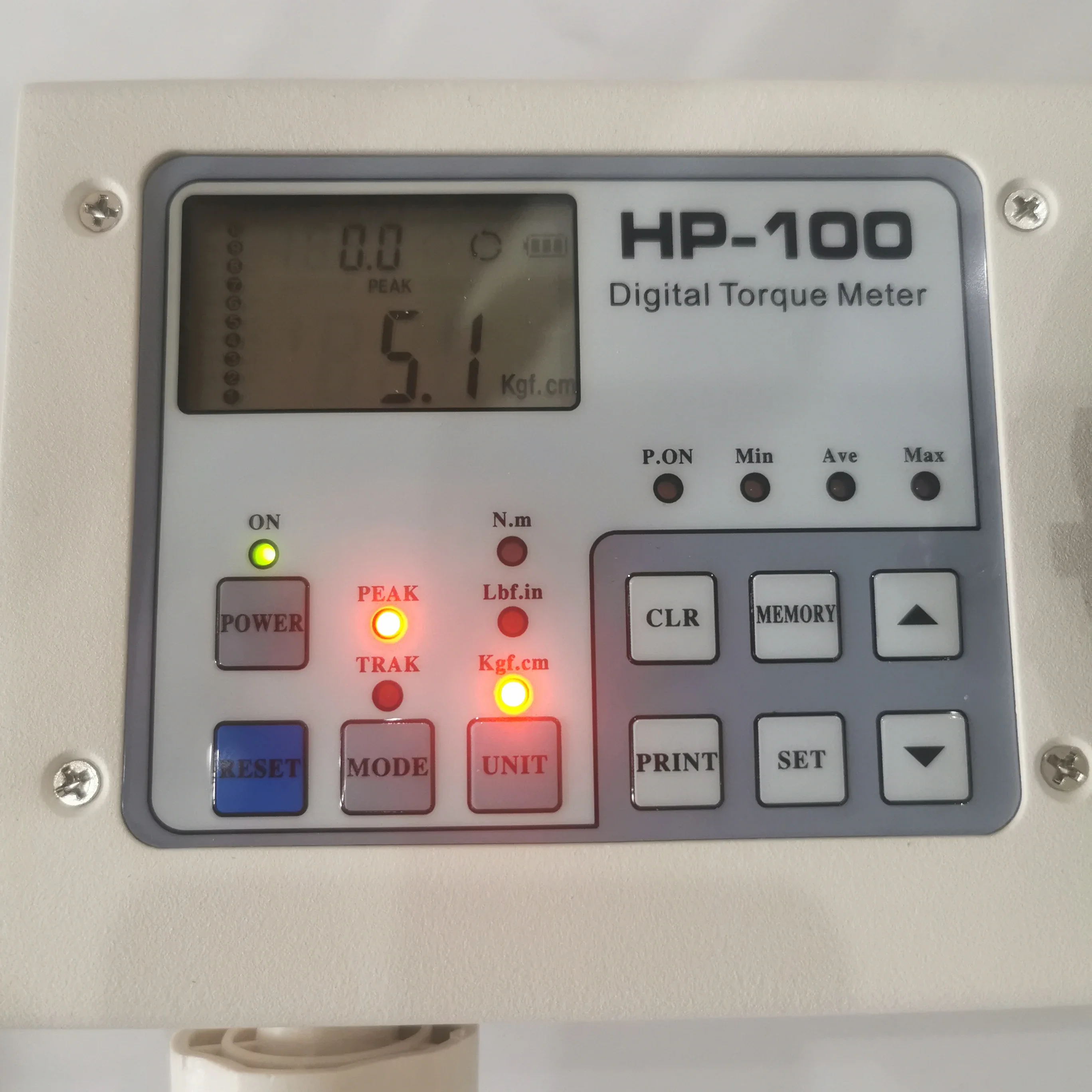

1. Adopt LCD digital large screen display, high resolution
2. Maximum and minimum value setting, overload alarm protection prompt
3. Using high-precision torque sensor, instant counter-clockwise direction, torque can be tested
4. Can store 10 sets of test data, automatically calculate the average value of the stored data
5. Three common torque units can be freely switched to kgf.cm, N.m or Lbf.in
6. It has two display functions of peak hold and tracking
7. High-capacity environmentally friendly lithium battery, automatic charging protection device, safer and more stable
8. Can be connected to a computer to display test values and graphs in real time (need choose "with software" version)
