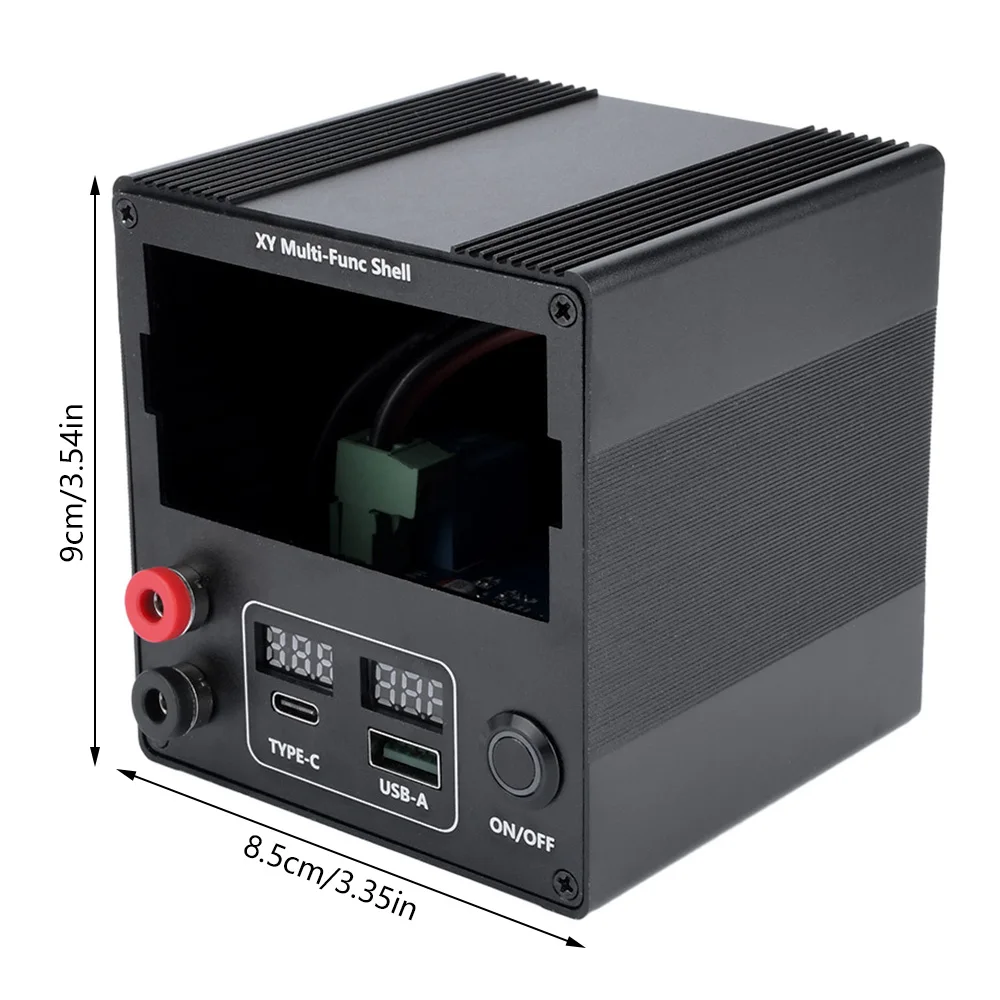

Digital controlled power supply shell DIY kit full protocol PD fast charging module DC CNC DC power supply aluminum alloy shell XY-3606

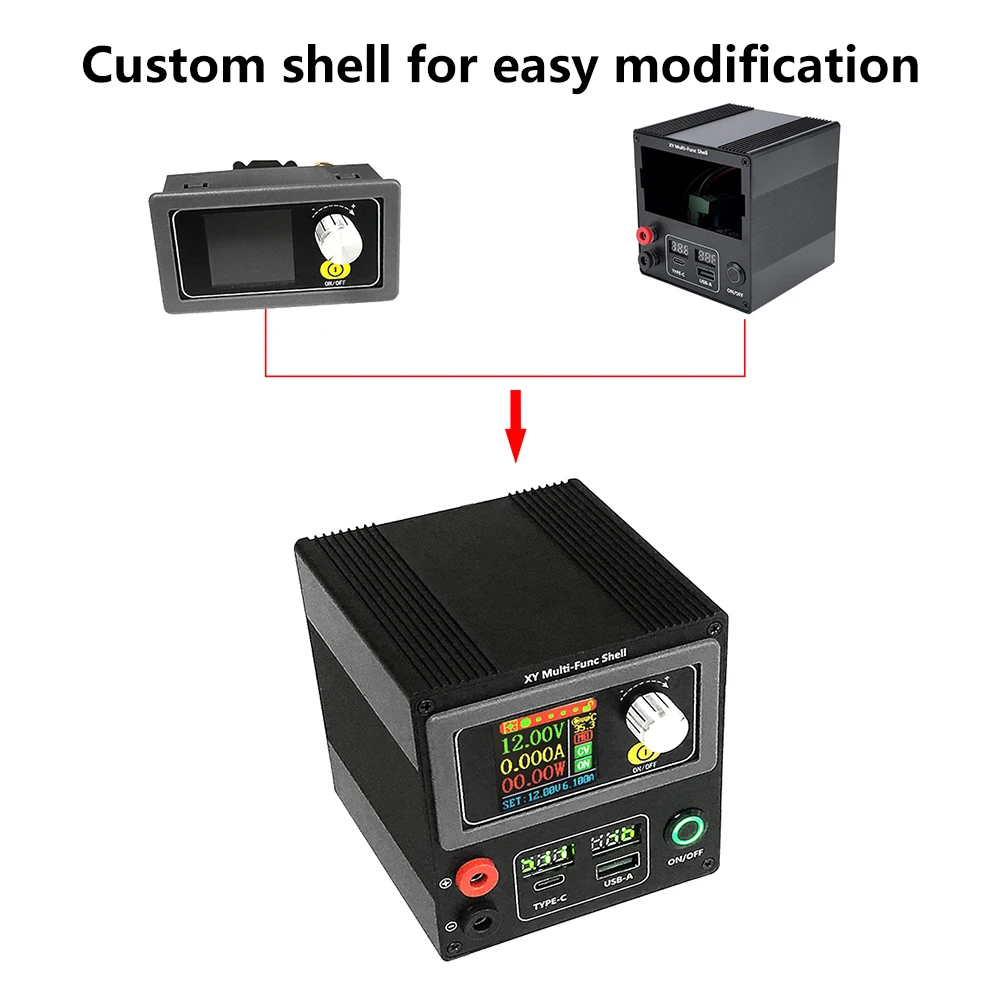

Features:

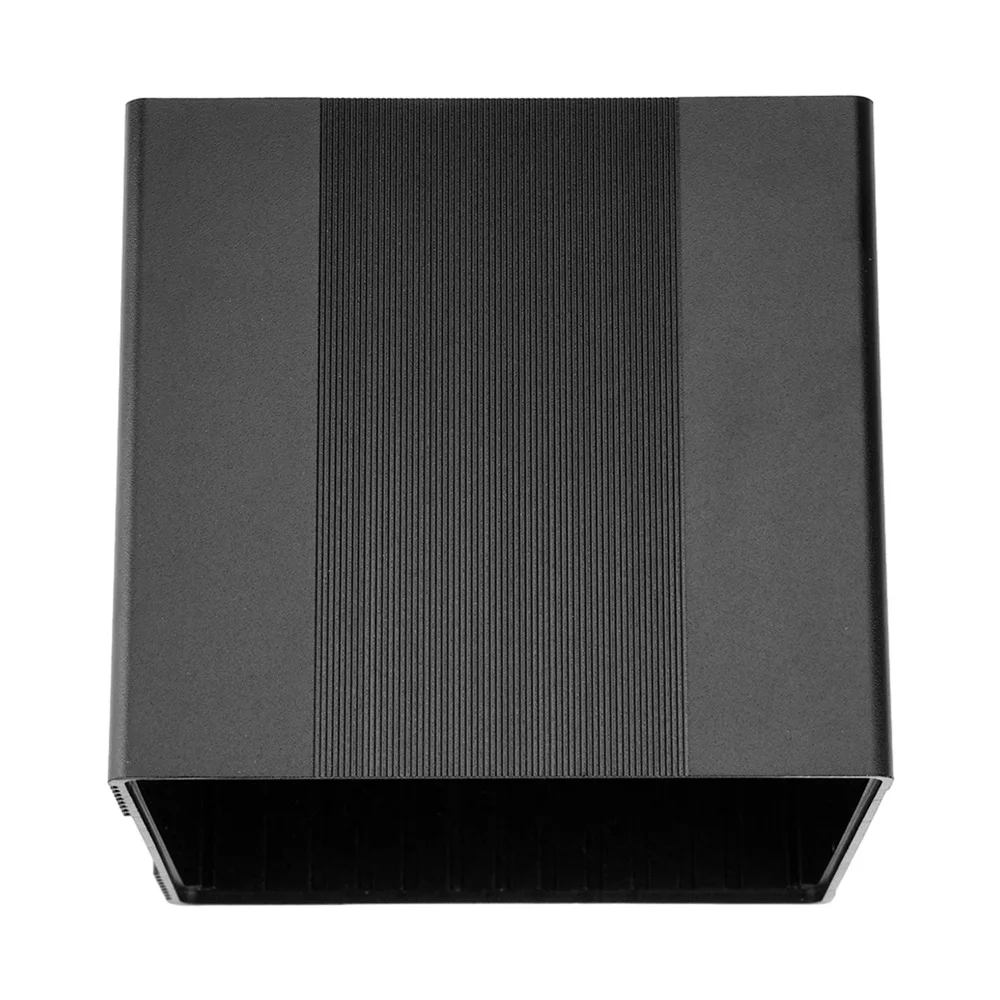

1. High quality aluminum alloy material, durable.

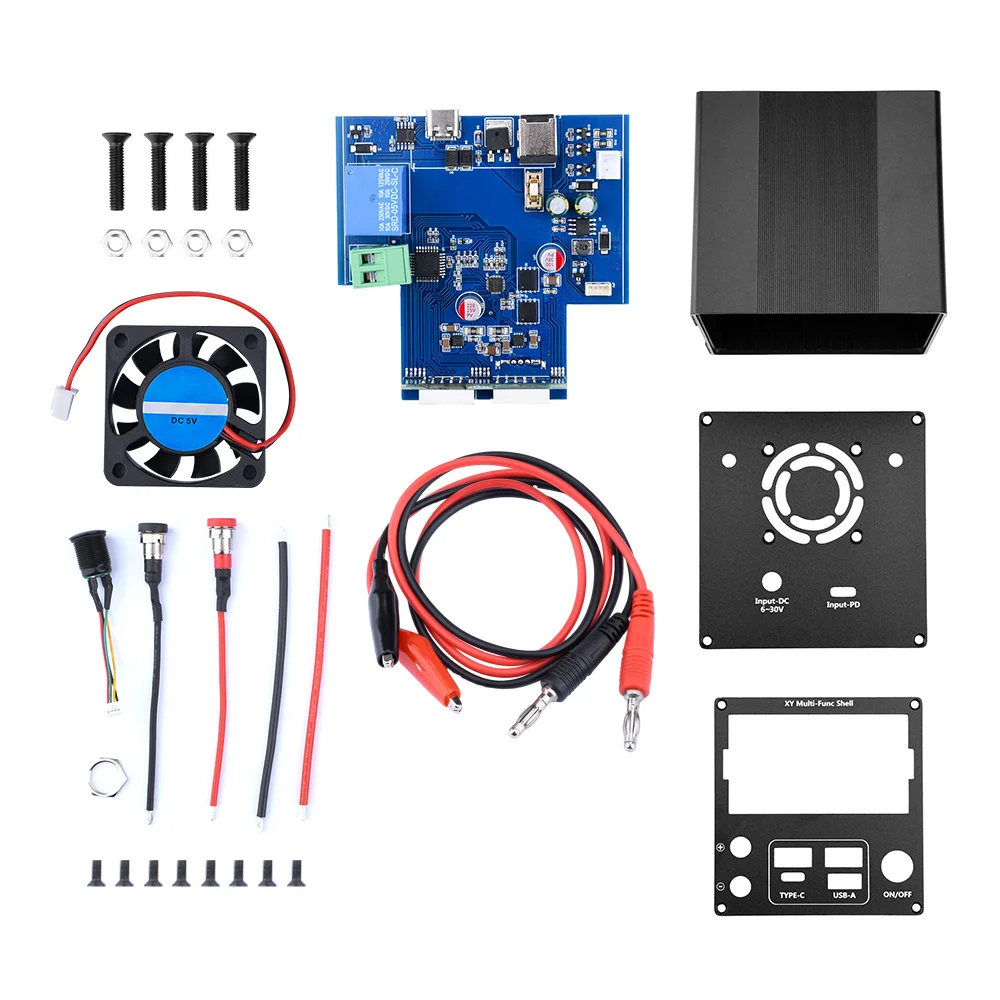

2. The shell kit needs to be used with the product module. It can be used with the H3606, S3580, S3606 and other models.

3. The shell is equipped with fast charging board, with full agreement mobile phone fast charging, convenient for various DIY modifications.

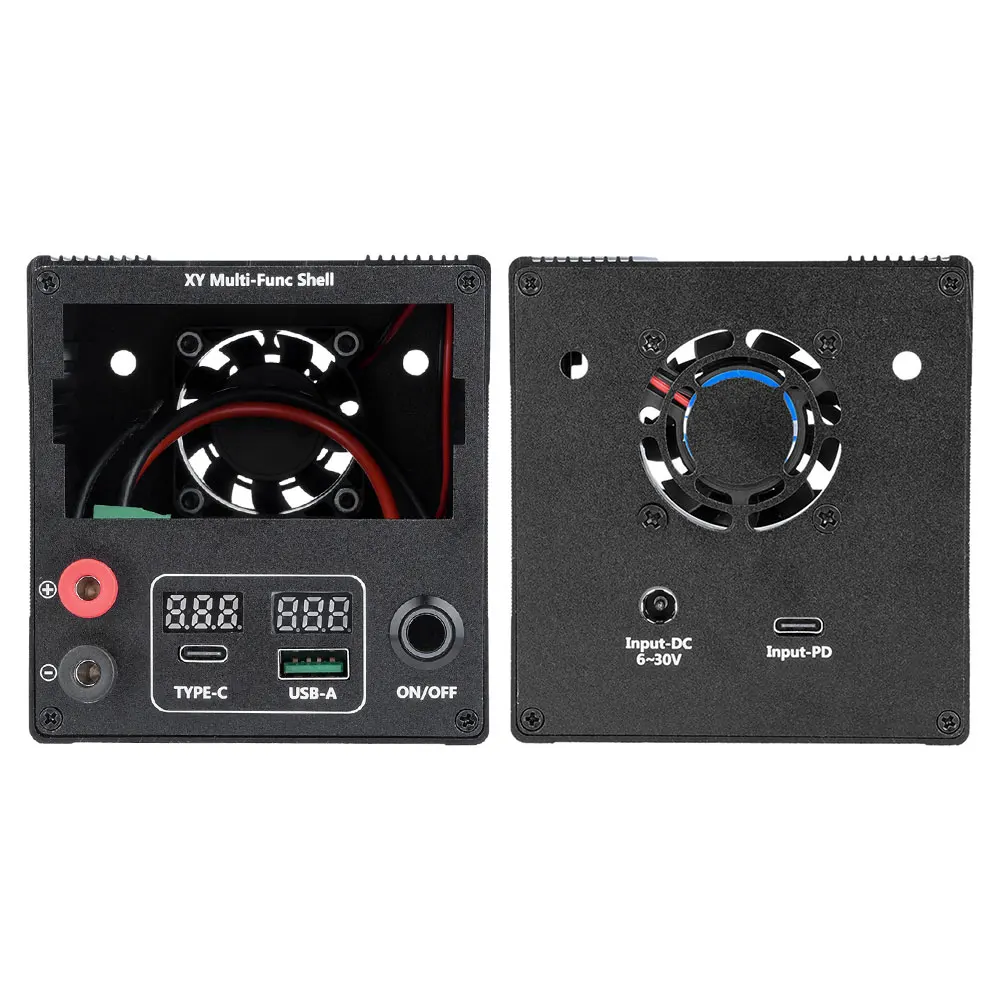

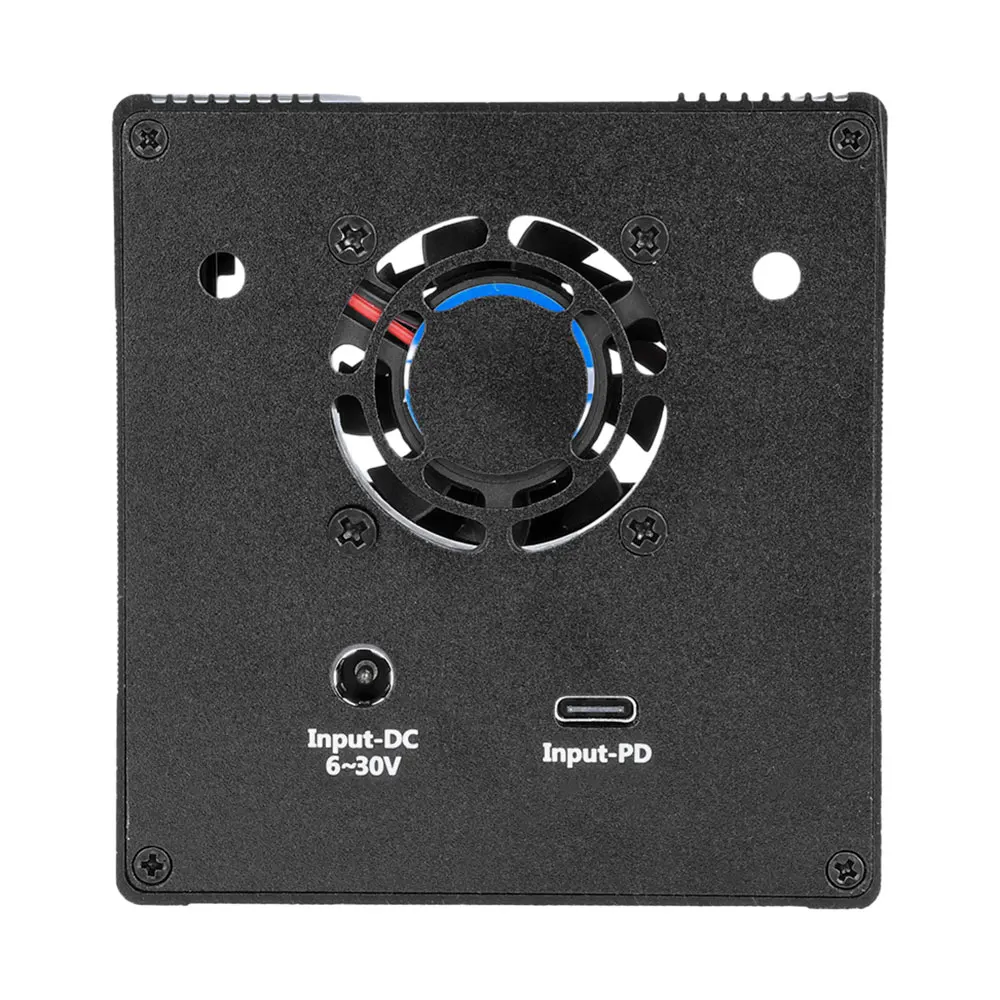

4. Adopt a variety of input modes, support Type-C port with PD protocol fast charger input, pure copper DC plug DC5.5*2.1 Input DC6.0~30V input mode.

5. Small size, can be widely used in a variety of occasions, widely used in diagnosis and treatment of electronic instruments, communication and broadcasting equipment, industrial electronic equipment, DC motor, charging equipment and so on.

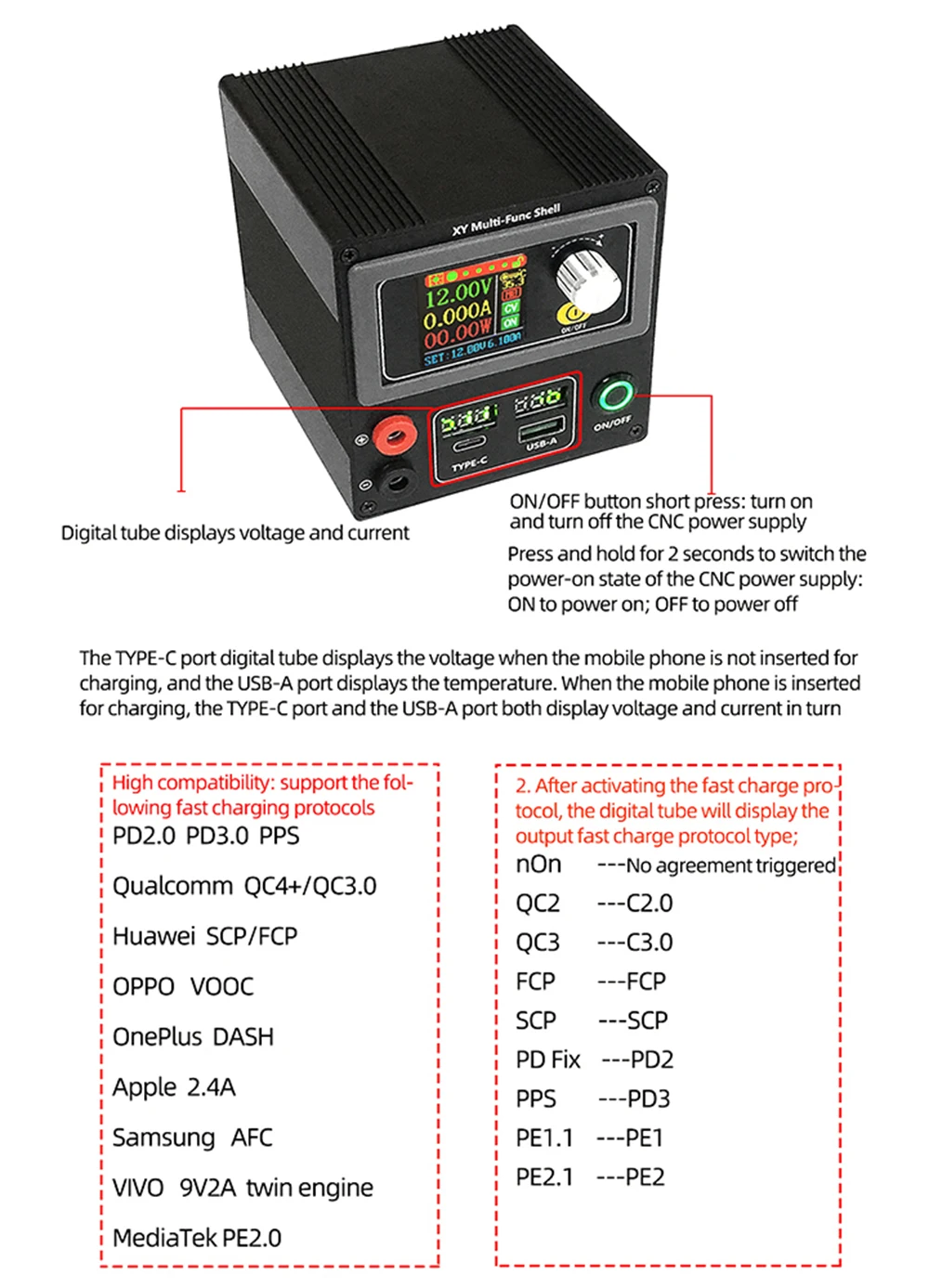

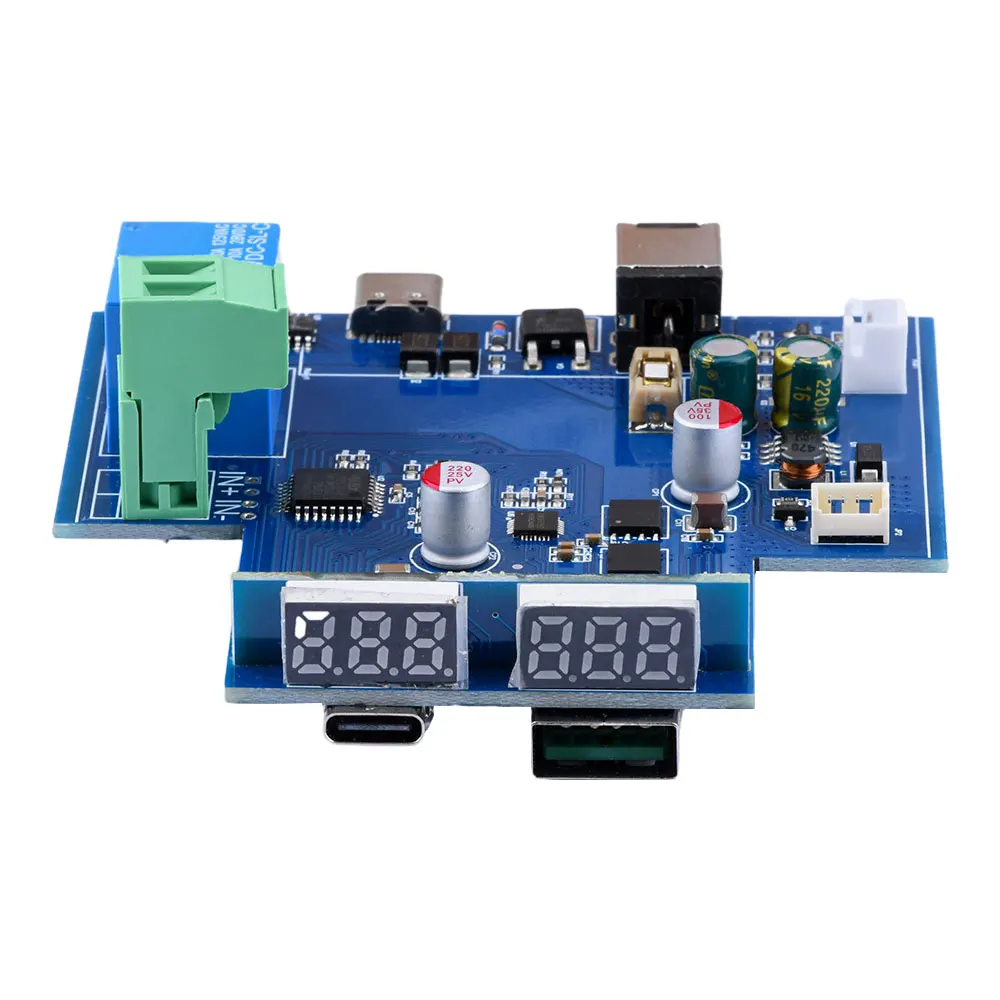

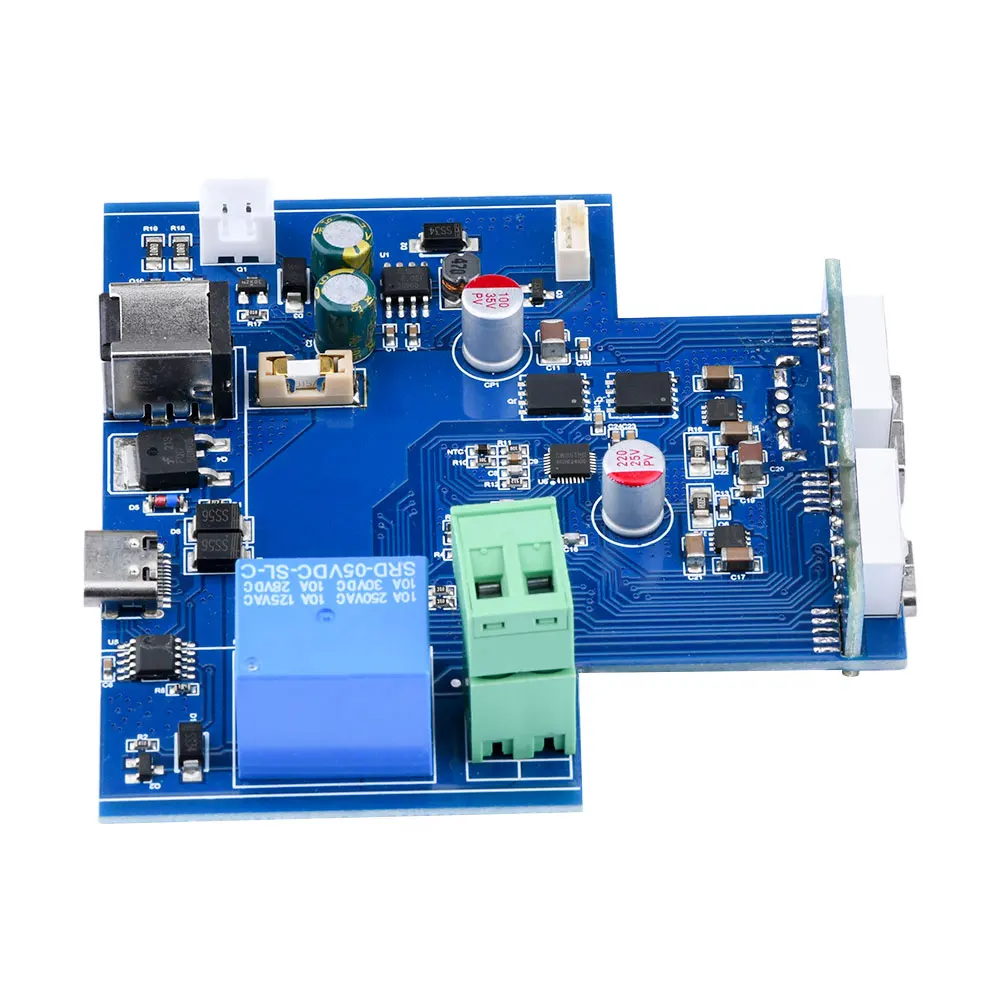

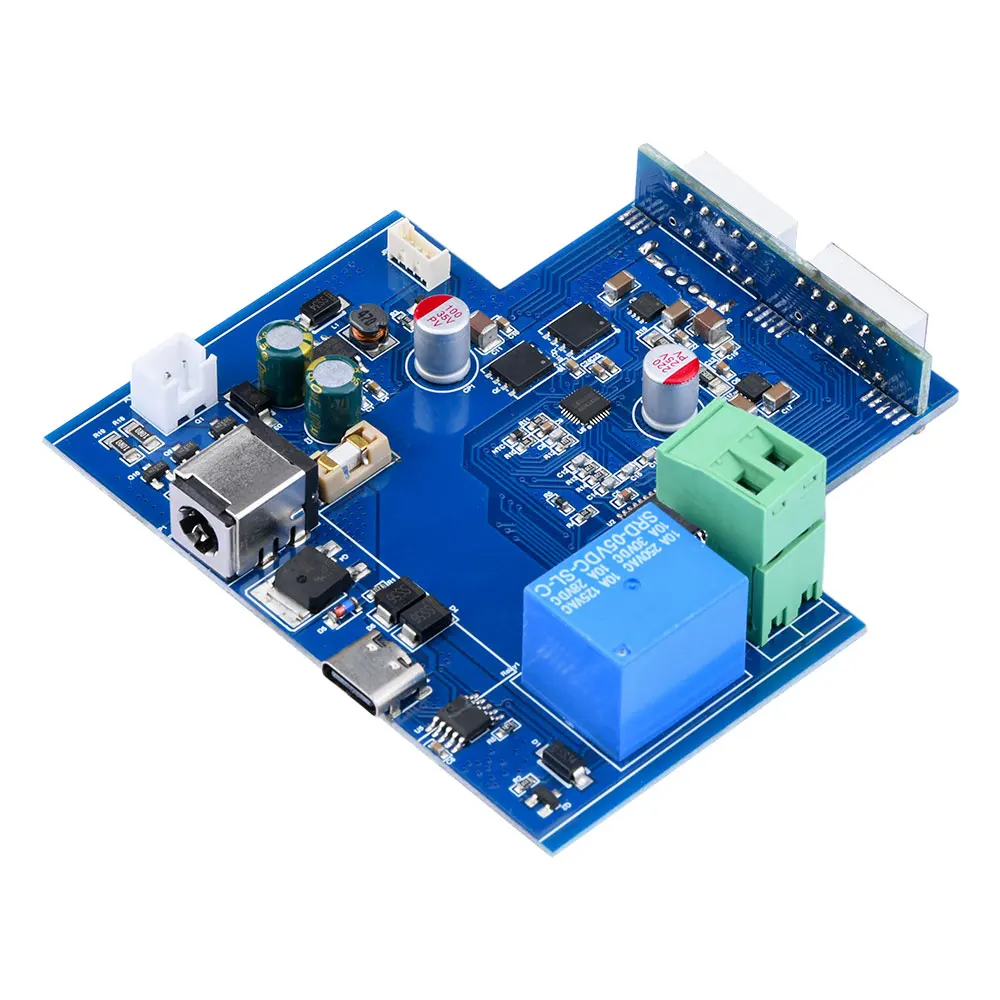

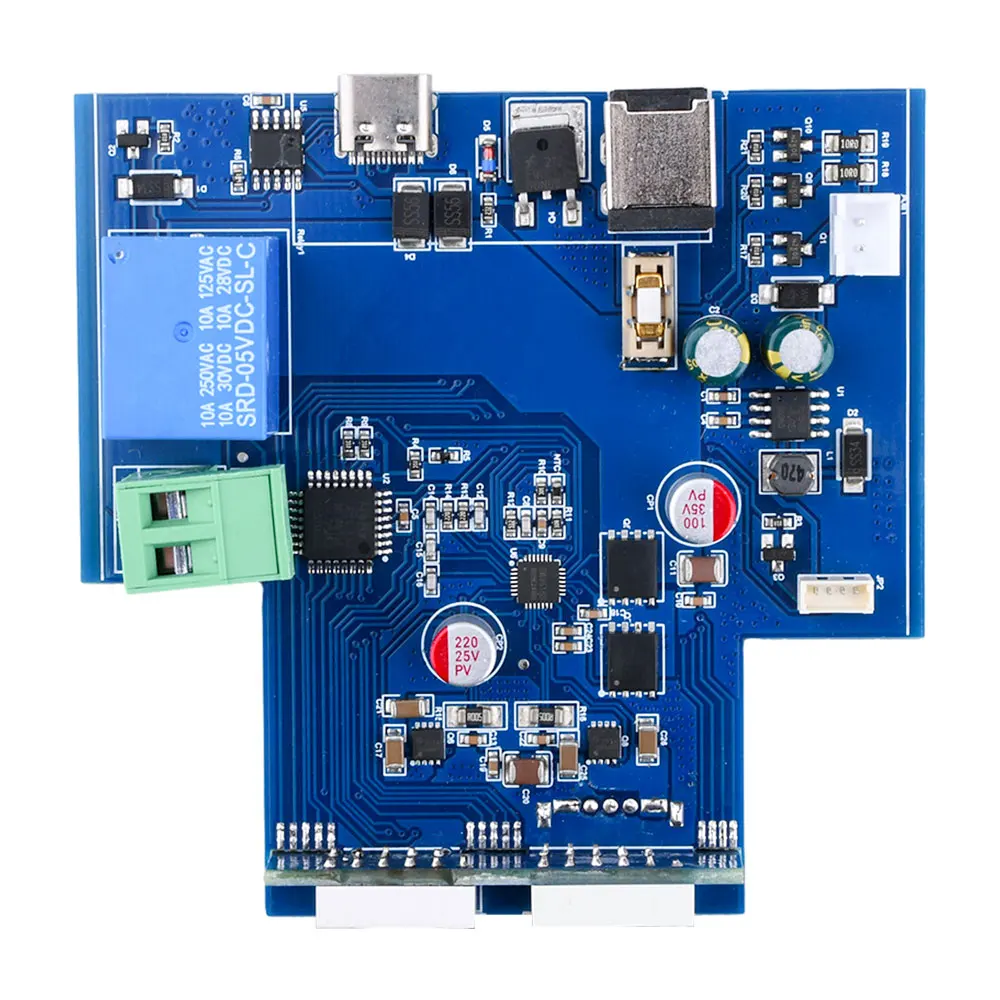

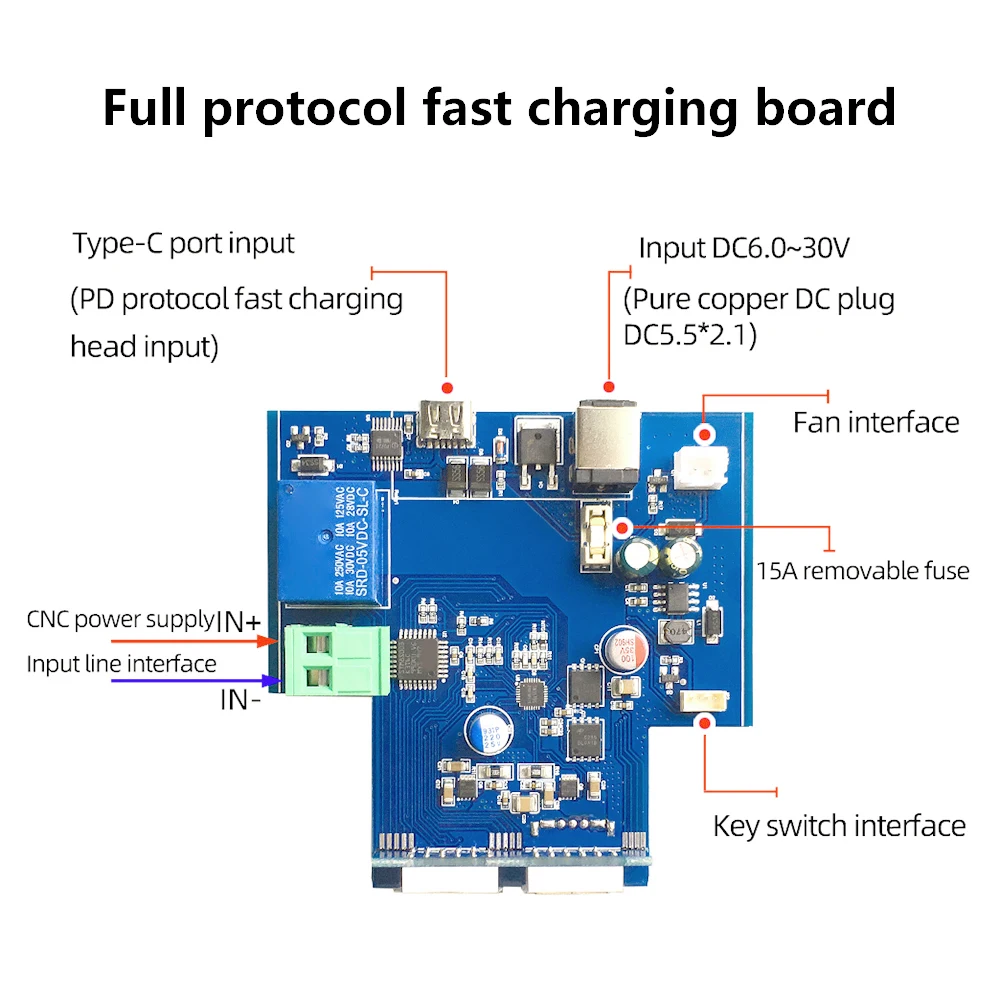

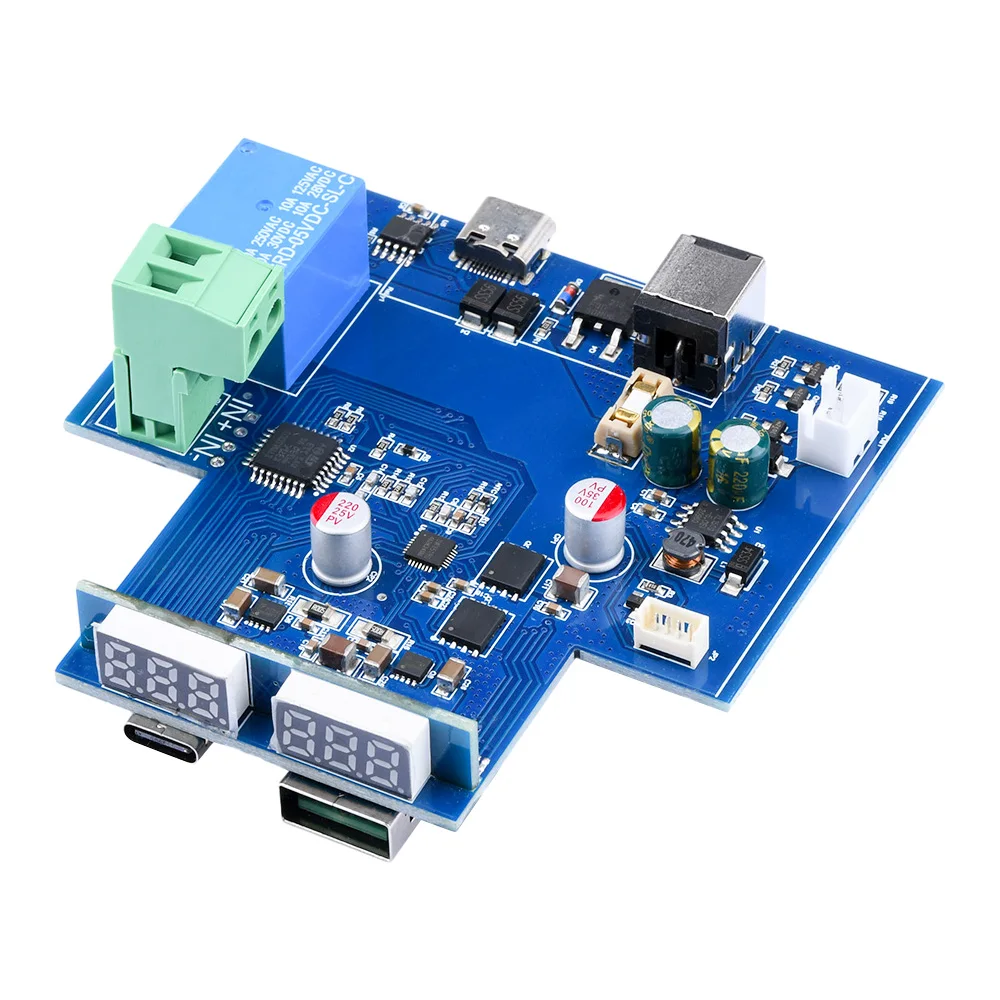

Full protocol fast charging board:

Interface: Type-C

DC plug: DC5.5*2.1

DC input voltage: DC6.0~30V

Current: 15A (Max.)

Note:

The highest input voltage of the fast charging board is DC30V, so try to choose a matching power supply with the highest input 30V. It is recommended to use a matching power supply model such as H3606, S3580, S3606, etc. If you choose a power supply with a voltage comparison of buck type, you can only ensure that the input voltage is less

than 30V, otherwise it will cause overvoltage damage to the fast charging board.
