| Title： |
AD9851 Module DDS Function Signal Generator Sending Program Compatible with
AD9850 Module Simplified Version Digital Synthesis Frequency Source
|
||
| Specifications: |
Module type: Digital Synthesis Frequency Source
Module power supply: DC 5V
Module current: 70mA (MAX) Normal driving current: 65mA (TYP)
Module communication protocol: STM32F103RCT6
Routine platform: STM32F103X-M3
Module system main frequency: 180MHz (MAX)
DAC rate bits: 10
Number of bits for phase accumulator: 28
Module output interface: SMA

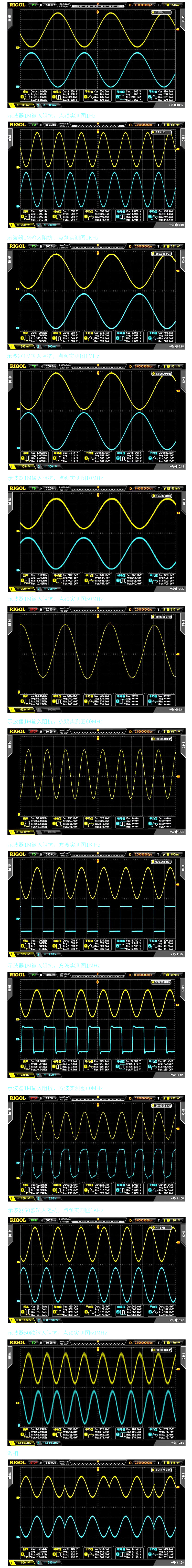

Module output signals: sine wave, square wave
Module output channel: 2-channel differential
Maximum main frequency output sine wave signal range: 1Hz-65MHz
Maximum main frequency output square wave signal range: 1Hz-30MHz
Output amplitude: Sine wave 1000mVpp (MAX) Square wave 5Vpp
Output impedance: 75 ohms
Module size: 70x50x12mm
|
||
| Package: |

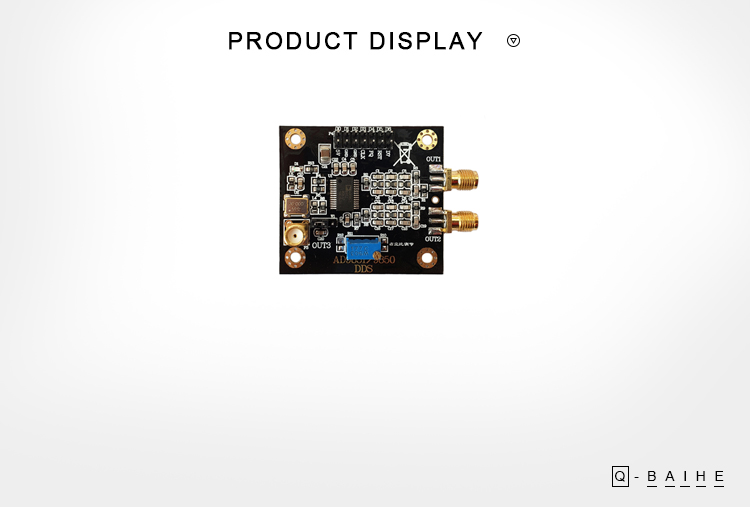

1x AD9851 Digital Signal Synthesis Frequency Source Module |
||
