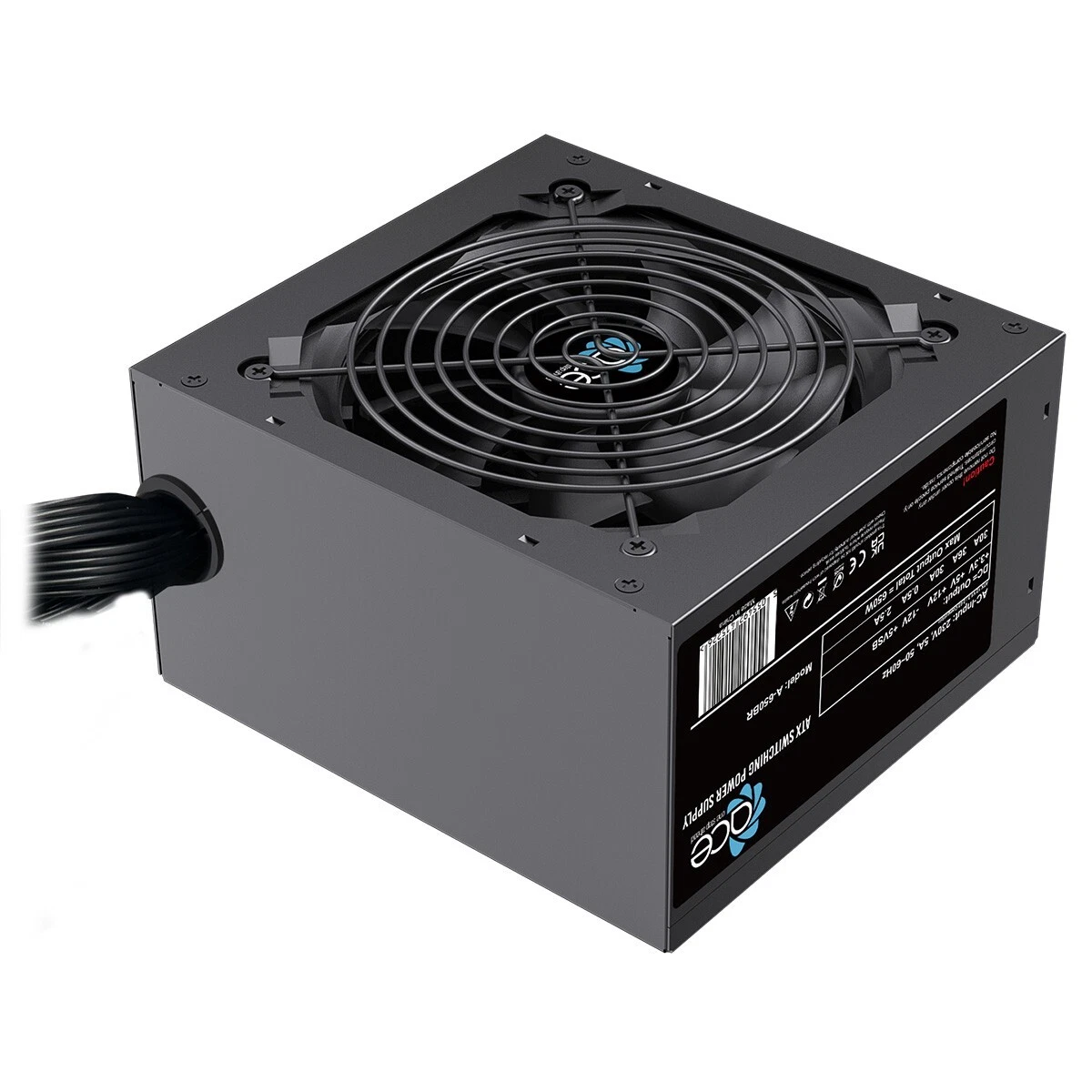

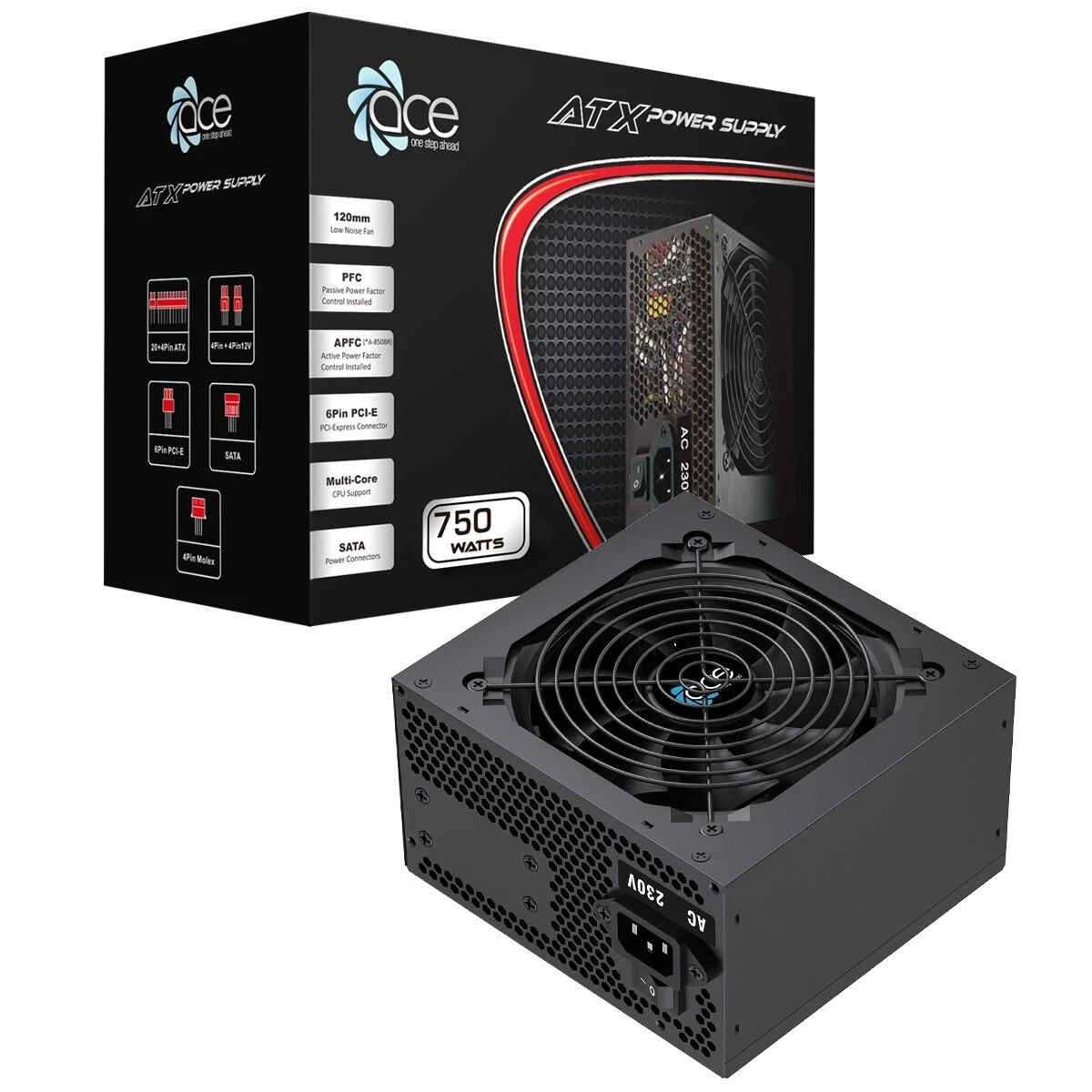

ACE BLACK 750W PSU ATX Desktop PC Power Supply Unit Quiet 120mm Fan PCI-E SATA
DESCRIPTION
Ace PSUs are certified RoHS compliant and with power factor control-giving you a safe and stable foundation to build your system from. Ace PSUs come with a superb 12cm fan that offers a quiet operation but with excellent cooling meaning you are working in a more peaceful environment and the right cooling ensures maximum lifespan of your products. Supplied with all the appropriate cables Ace provides maximum compatibility with popular CPUs and mainboards.
Key Features
- Power Factor Control (PFC)
- Cooling: 12cm Black Fan
- Black flat cables
- New Version ATX1.3/2.03
- Silent with better ventilation
- ATX 12V compliant for most CPUs and mainboards
- Input Range: 230Vac, 5A, 50-60Hz
- 1 x 6+2 Pin PCI-e Connector
- 6 x SATA Connectors
- 1 x Molex Connectors
Connectors
20+4 Pin Main Connectors: 1
4+4 Pin 12V Connectors: 1
SATA Connectors: 6
4-Pin Molex Connectors: 1
6+2 Pin PCI-e Connectors: 1
Detailed Specifications
Dimensions:150mm x 140mm x 85mm (W x H x D)
Input Voltage:230 VAC
Input Current:5A
Input Frequency Range:50-60Hz
PFC:Yes - Passive Power Factor Control
Power Good Signal:150-450ms
Hold Up Time:1ms-40ms
Efficiency:75%
MTBF:100,000 Hours
Protection:OVP / UVP/ OPP
Power:750W
Operation Temperature:45°C
Safety:CE / UKCA / RoHS / WEEE
Cooling:120mm Black Fan
Noise:<17 dBA
20+4 Pin Main Connectors: 1
4+4 Pin 12V Connectors: 1
SATA Connectors: 6
4-Pin Molex Connectors: 1
6+2 Pin PCI-e Connectors: 1
Detailed Specifications
Dimensions:150mm x 140mm x 85mm (W x H x D)
Input Voltage:230 VAC
Input Current:5A
Input Frequency Range:50-60Hz
PFC:Yes - Passive Power Factor Control
Power Good Signal:150-450ms
Hold Up Time:1ms-40ms
Efficiency:75%
MTBF:100,000 Hours
Protection:OVP / UVP/ OPP
Power:750W
Operation Temperature:45°C
Safety:CE / UKCA / RoHS / WEEE
Cooling:120mm Black Fan
Noise:<17 dBA
