Premium Quality & Uncompressed transmission


Long working distance up to 20Km by a singlemode fiber.


Overview:

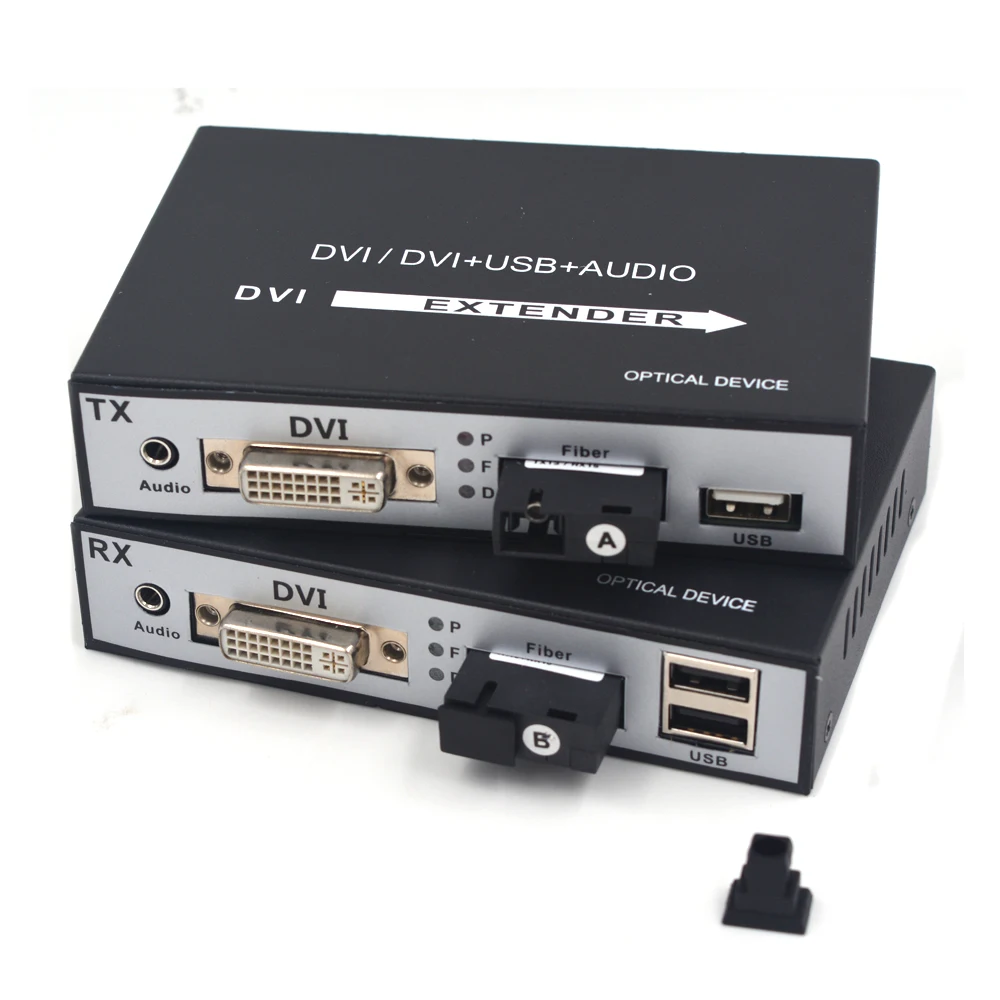

The DVI Fiber optic extender provides extension of DVI signal long distances over a simplex fiber optic cable, it supports high resolution up to 1920×1080@60Hz,keyboard and mouse KVM function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

  1. Simple to install, plug and play
  2. Uncompressed, no delay transmits DVI video signals over up to 20km single mode fiber optic cable and up to 500m over multimode fiber optic cable,
  3. Support video resolution up to 1920*1080P@60Hz
  4. Support keyboard and mouse signal transmissio
  5. High compatibility, can auto-match source and display device;
  6. Built-in automatic adjustment system, make the image smooth, clear and stable;
  7. Built-in ESD protection system.


02030607










Specification:

Parameter                                       Description

Resolution range                             Up to 1920X1080@60Hz
Connector                                        Female DVI type
Optical fiber Interface                      Simplex SC connector (FC optional)
Fiber type                                         Single-mode
Wavelength                                      Single-mode 1310nm/1550nm
Transmission distance                     Single mode fiber: 0-20KM, Multimode fiber 0~500meters
Power supply                                   AC 100~240V, DC 5V/2A

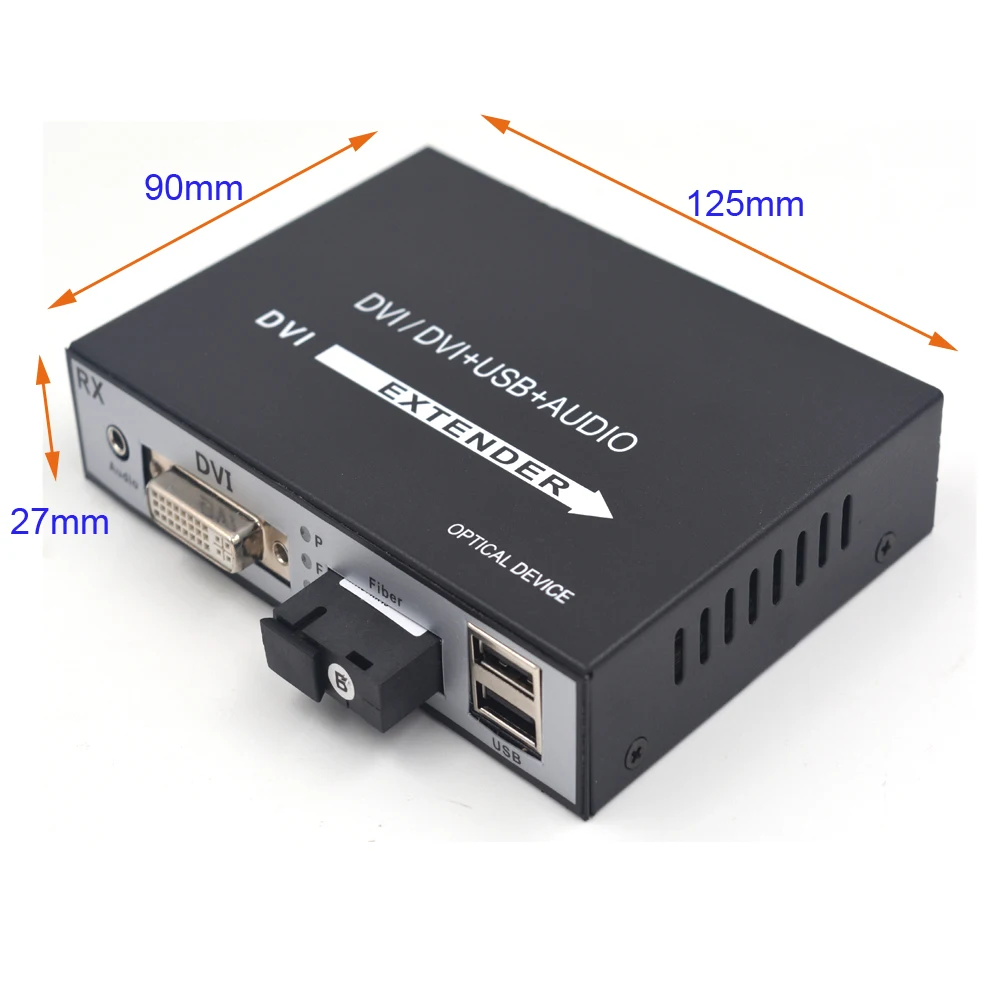

Dimension                                       125x90x27mm (LxWxH)

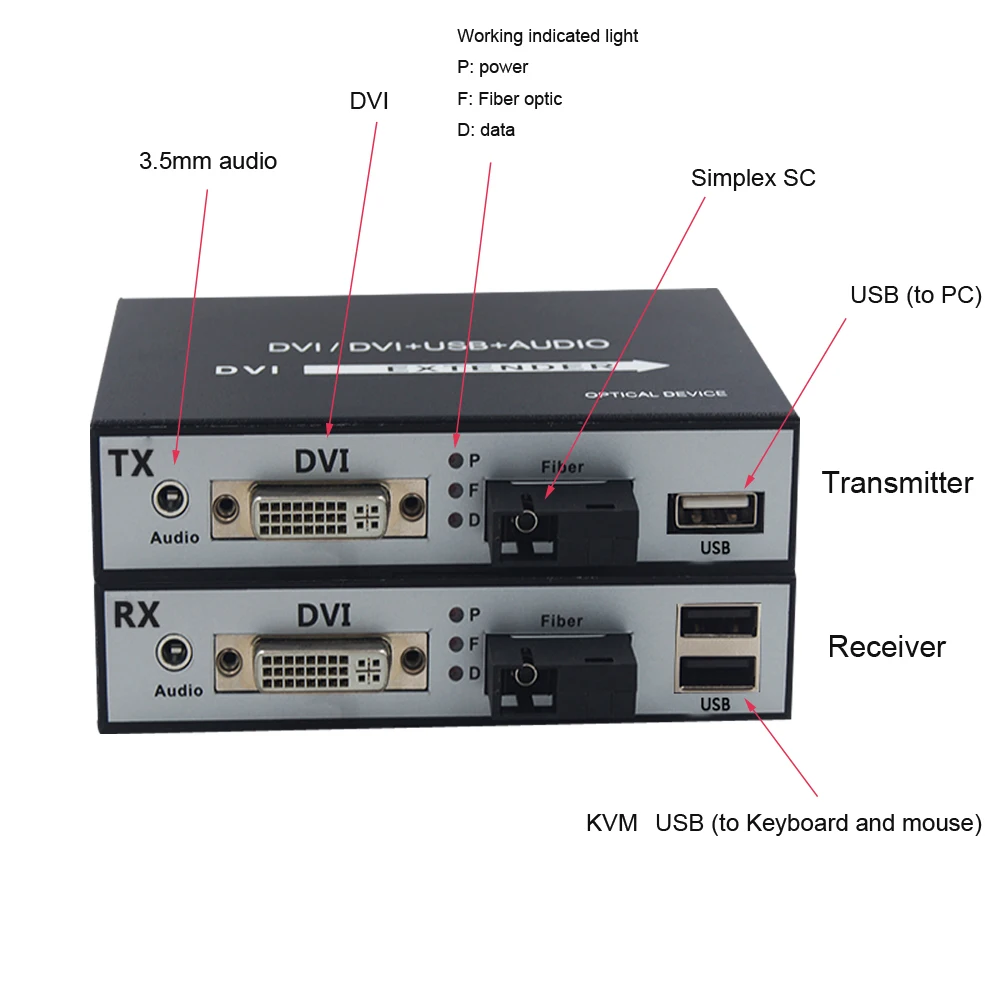

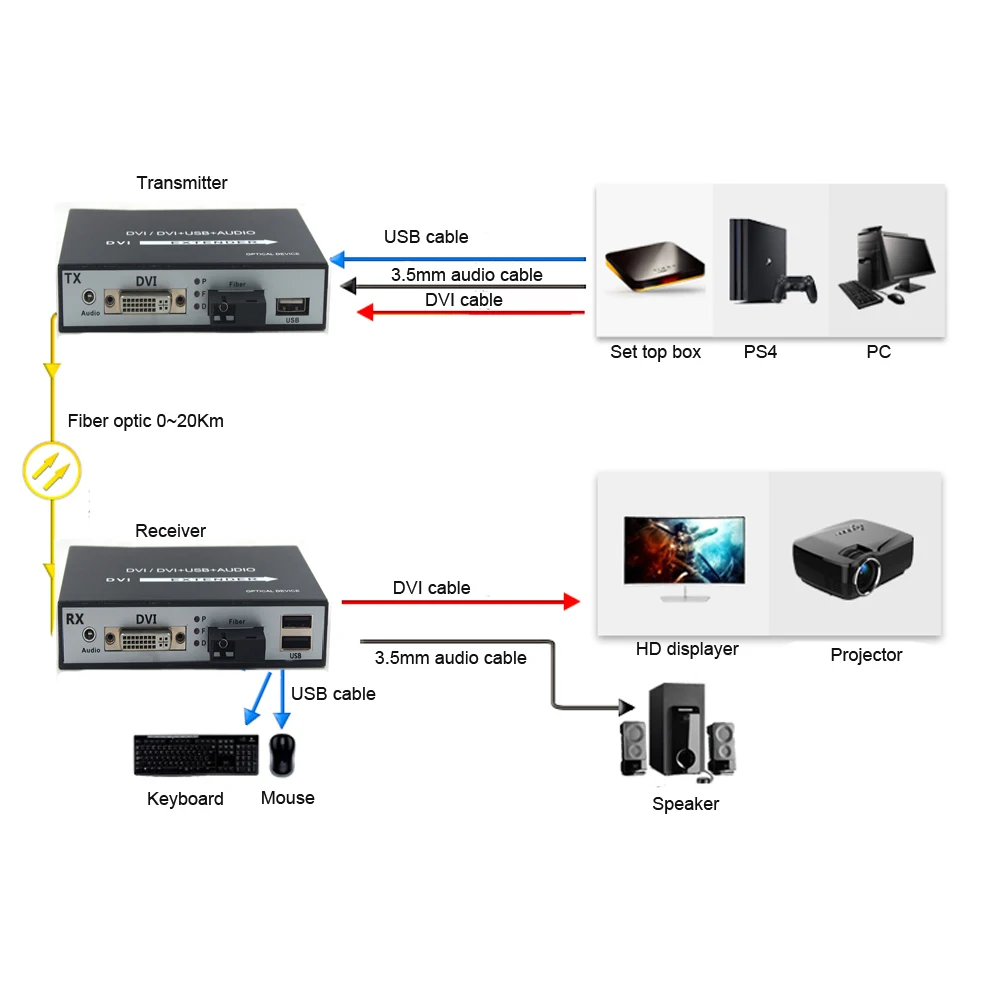

Installation:

1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
2. Connect an DVI cable between the DVI input port of transmitter and the DVI output port of the video source,
3. Connect the DVI output port of receiver to the display device with DVI cable,
4. Connect the transmitter optical port to the receiver optical port using one fiber optic cable.



Package contents:



  • 1x DVI transmitter
  • 1x DVI receiver
  • 1x SC/SC 3 meters singlemode fiber patch cord
  • 2 x power supply 5V2A (default ship US, EU/UK/AU is available)
  • 1 x User manual
