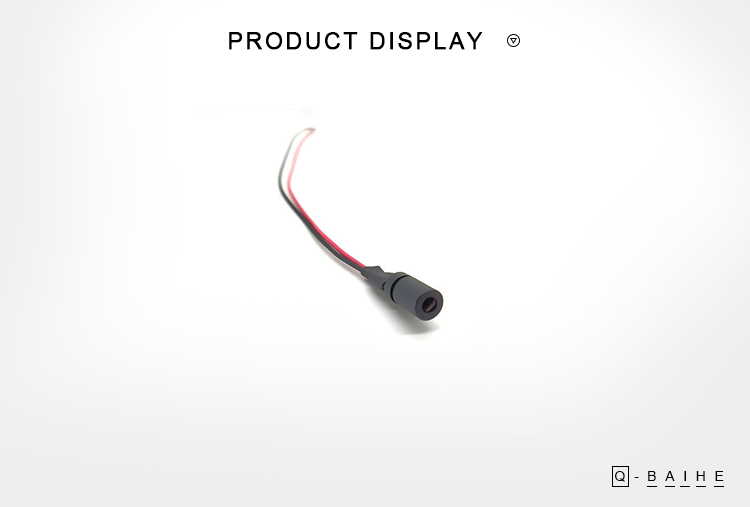

| Title： | 650nm 5mW Diameter 6mm Red Laser Module Laser Positioning Light Laser Light DIY | ||
| Wavelength: |
650nm |
Output Power: | <5mW |
| Operating Voltage: |
2.8-3.5V |
Operating Current: |
<25mA
|
| Operating Temperature: | -10°~+70° | Storage Temperature: | -40°~+85° |
| Mean time to failure: | >10000H | Laser Safety: | Class ⅢA |
| Divergence Angle: |
<0.7mard |
Spot Size:
|
less than 6x8mm at 10 meters |
| Lens: |
Glass collimator |
Size: | 6x18mm (including PCB) |
| Driver circuit: | APC |
Housing Material:
|
Environmentally Friendly Aluminum Parts
|
| Package: |
1* Laser Module |
||
