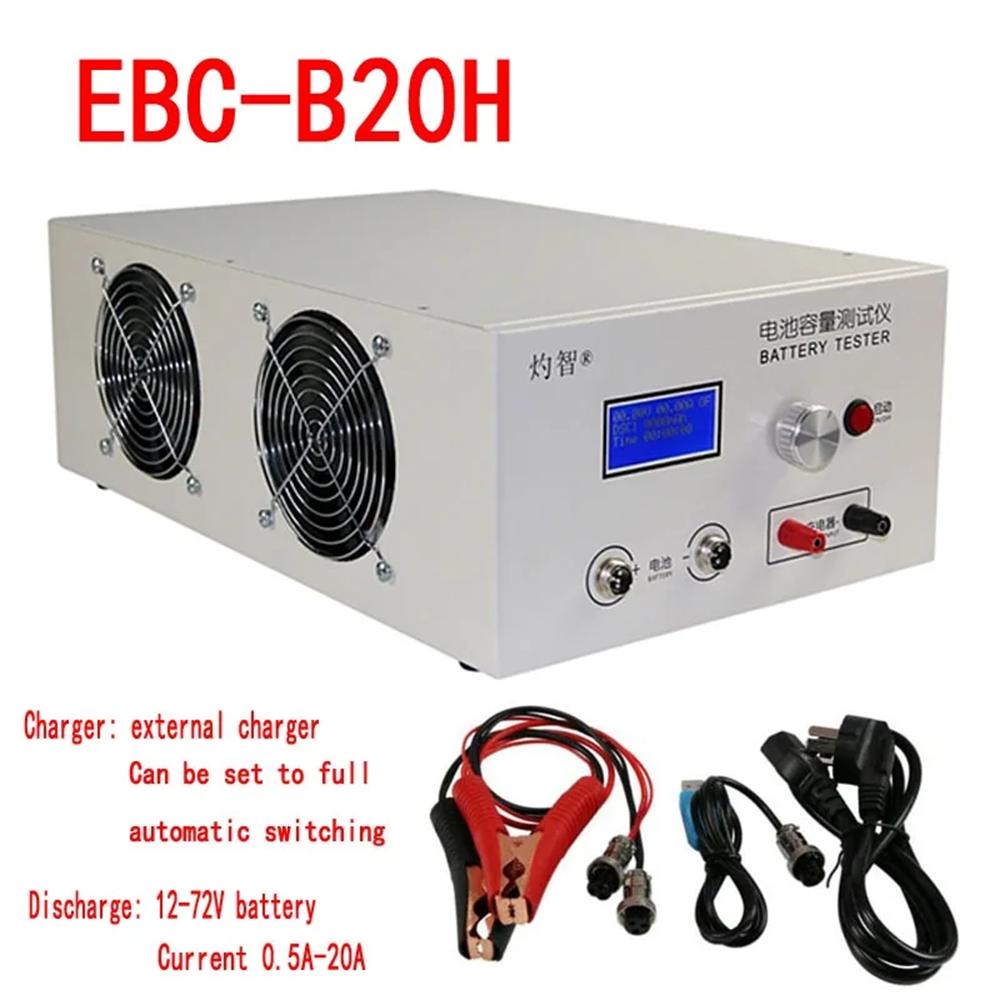

1.Name: EBC-B20H battery capacity tester

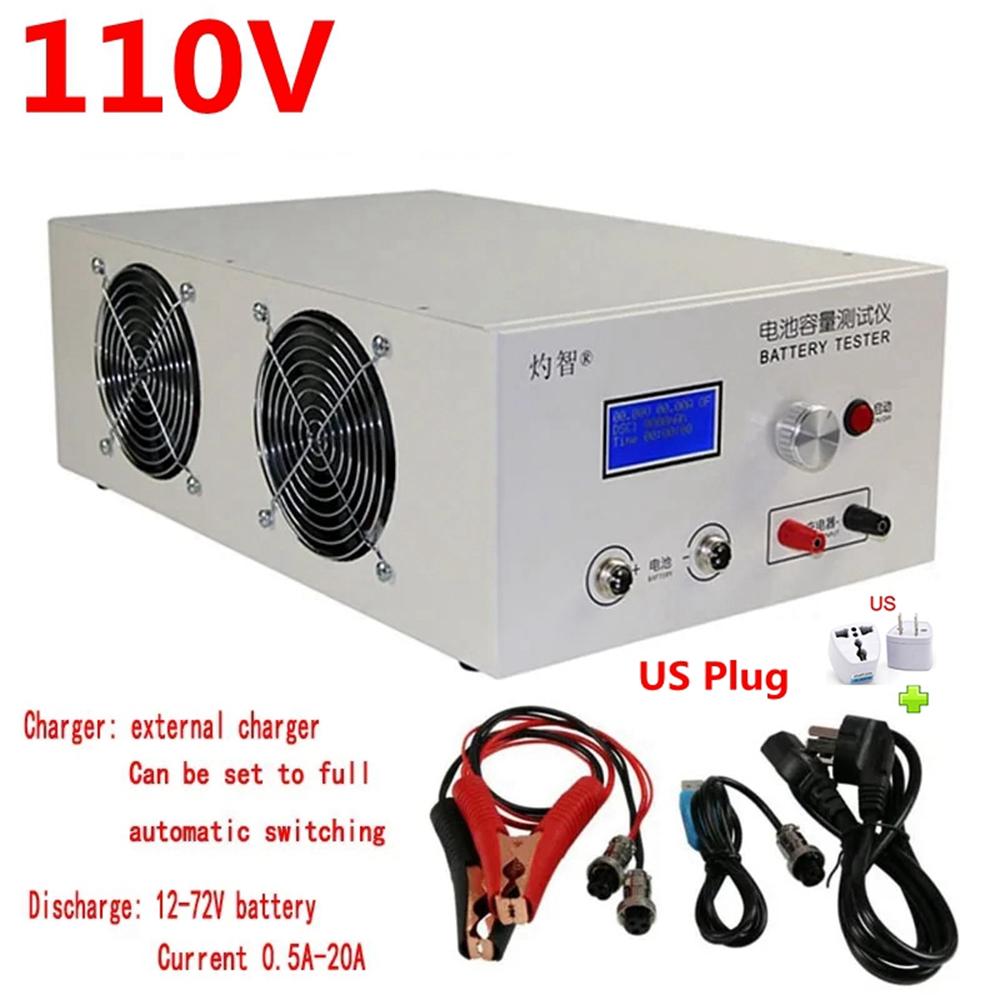

2.Voltage: 100-240V

3.Power: 1700W

4.Packing size: 55*36*30cm

5.Weight: 9.5kg

6.Volume weight: 11.88kg

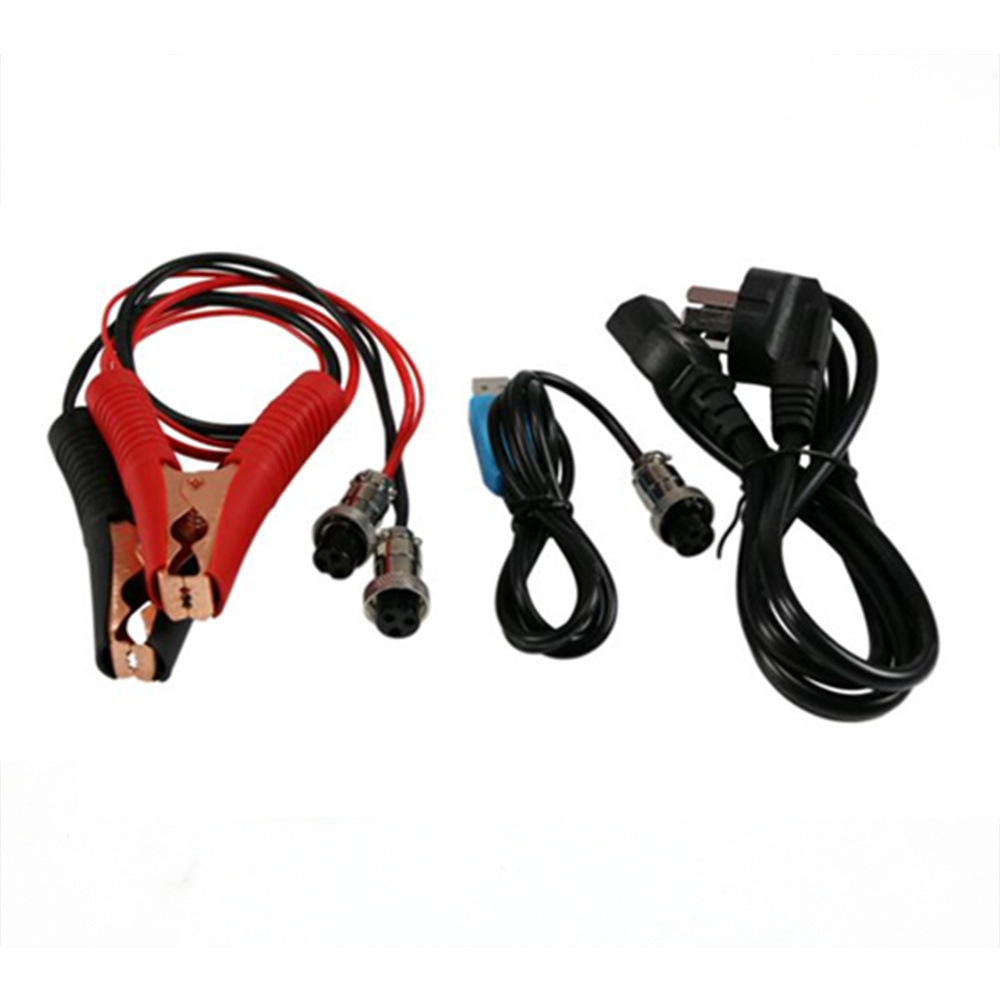

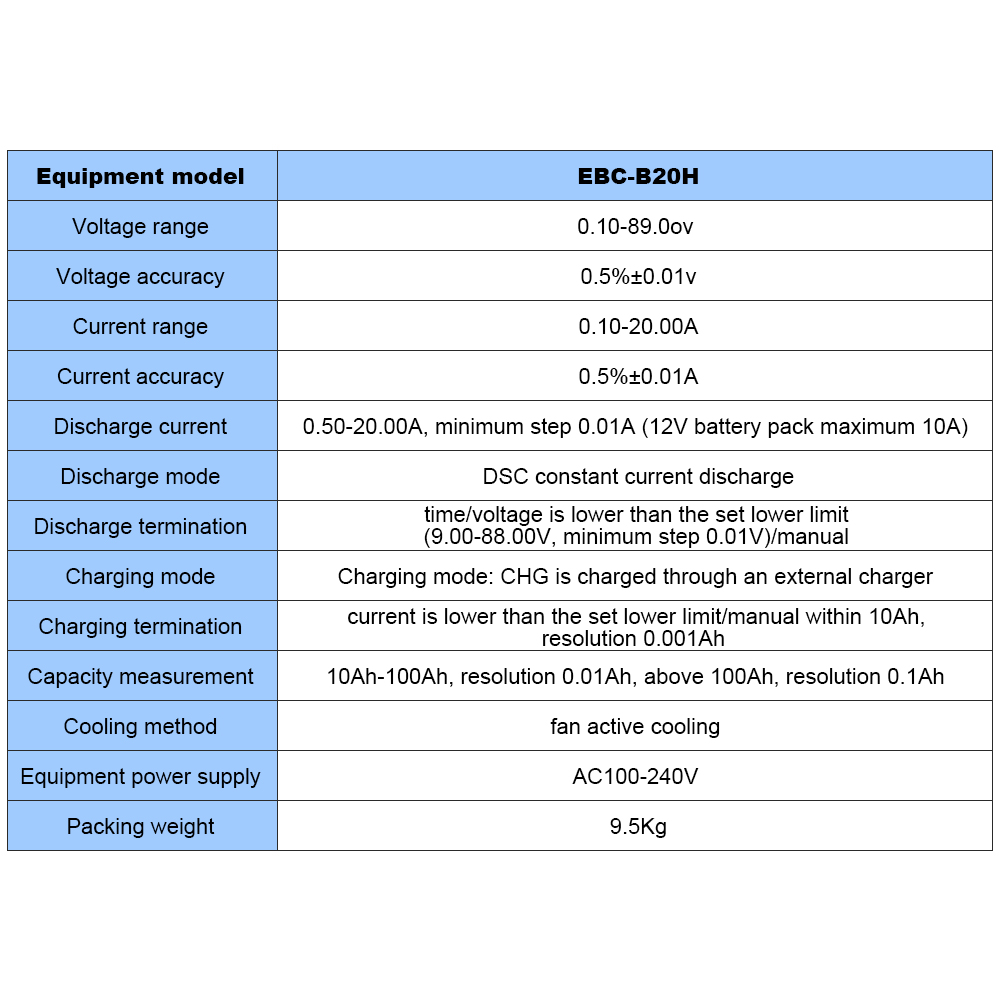

7.Bill of materials: 1pc tester, 1pc cable, 1pc power cord, 1pair of test clips

8.Power supply mode: AC 100-240V

9.Voltage setting: 9.00-88.00V, minimum step 0.01V

10.Discharge current: 0.10-20.00A, minimum step 0.01A (12V battery pack maximum 10A)

11.Discharge mode:DSC: Constant current discharge, automatic stop when the voltage is lower than the settermination voltageCHG: Charging by external charger, the current will stop automatically when the currentis lower than the set termination currentVoltage measurement:0.10-89.00V , accurate to 0.01V, error +-0.5%Current measurement:0.10V-20.00A , accurate to 0.01A, error +-0.5%Capacity measurement:Within 10Ah, resolution 0.001Ah10Ah-100Ah, resolution 0.01AhAbove 100Ah, resolution 0.1AhWiring method: four-wire detection, voltage measurement and current channel separatewiring to ensure measurement accuracyLCD display: test data of voltage, current, capacity, time, etc.Computer connection: dedicated USB to TTL serial cable.Computer control, drawing curves, calibrating measurement benchmarks, upgradingdevice firmware,cycle charging and discharging, etc.

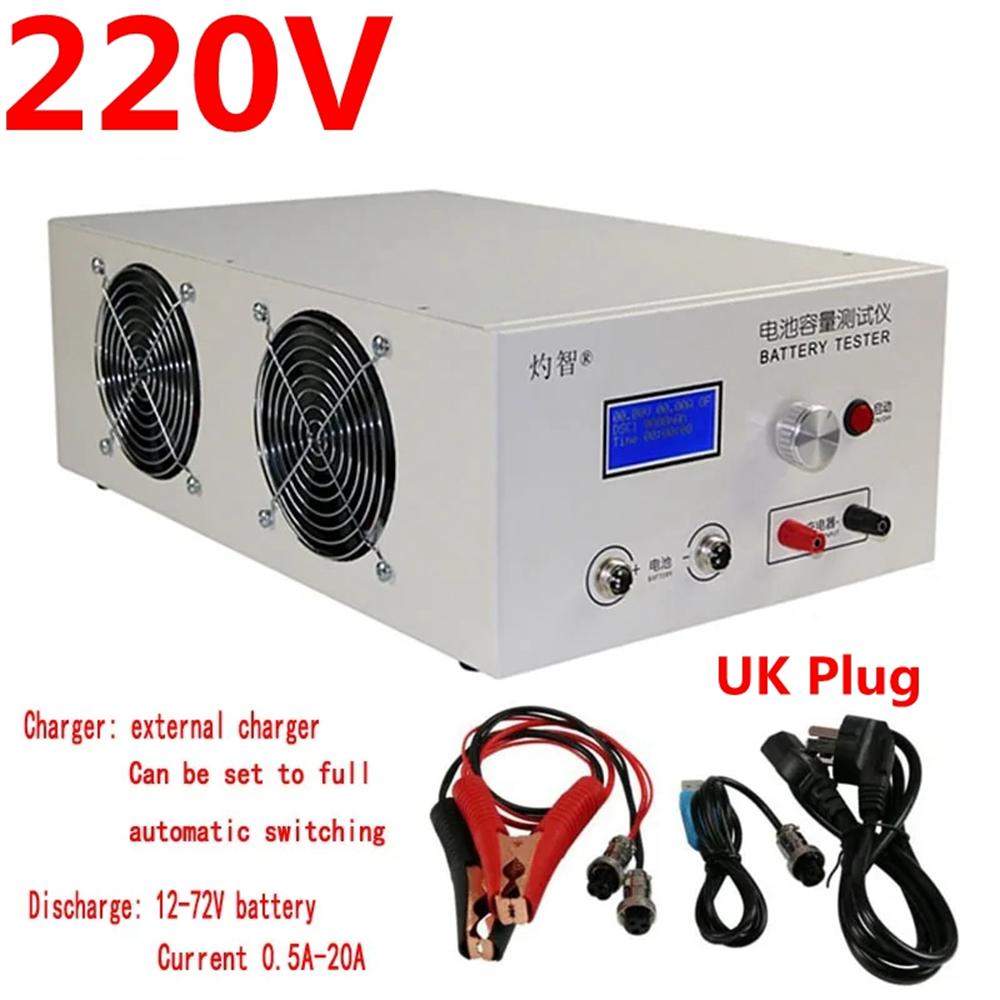

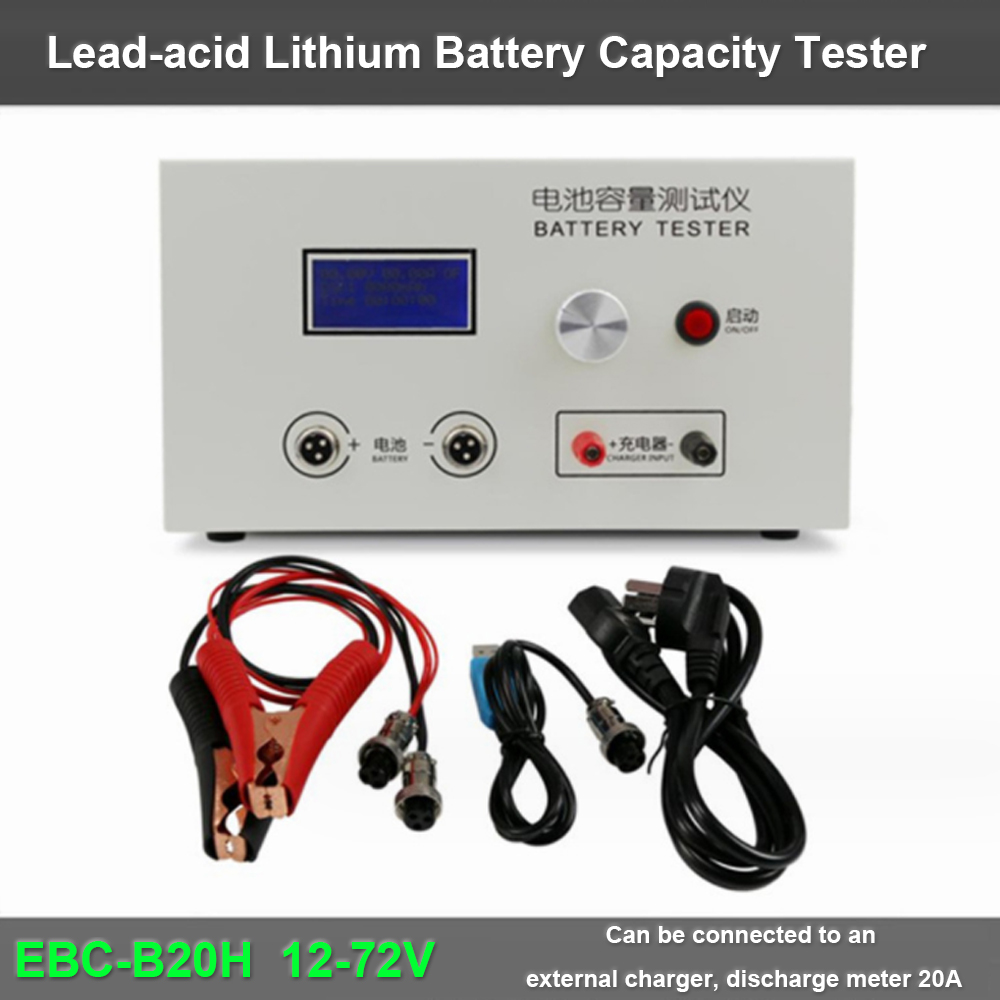

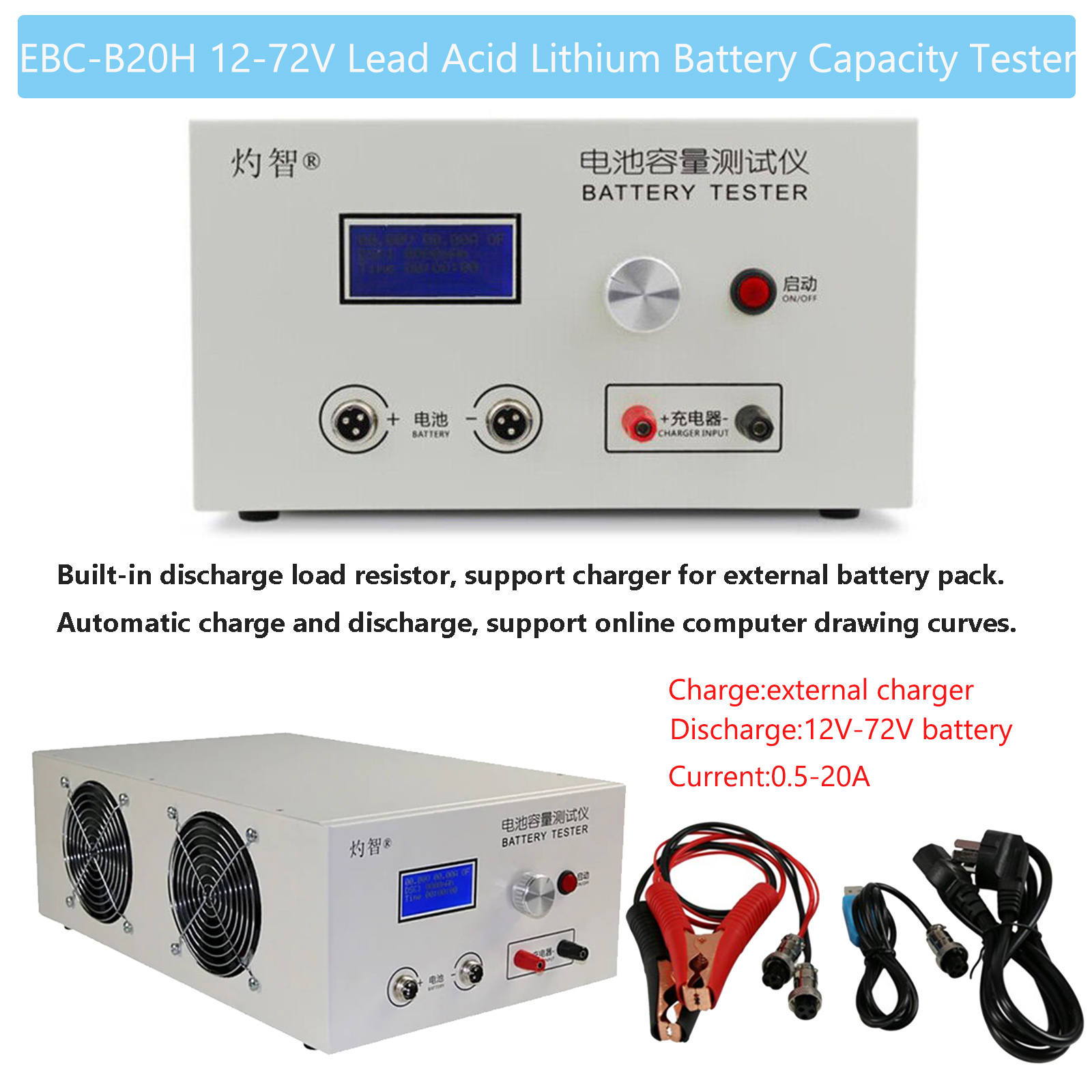

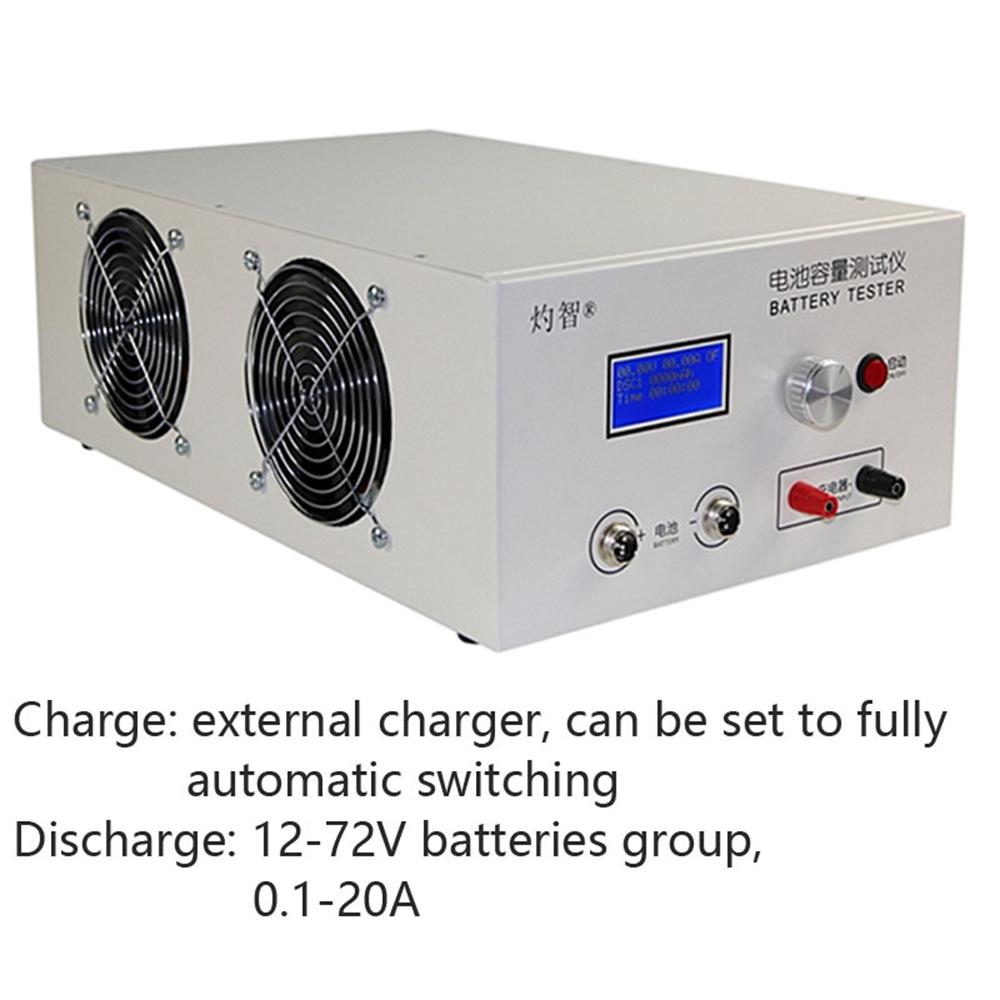

12. EBC-B20H is a battery pack capacity tester for battery capacity test in the range of12V-72V, built-in discharge load resistor, support charger for external battery pack,automatic switching charge and discharge, support computer online drawing curve .

Usage steps：

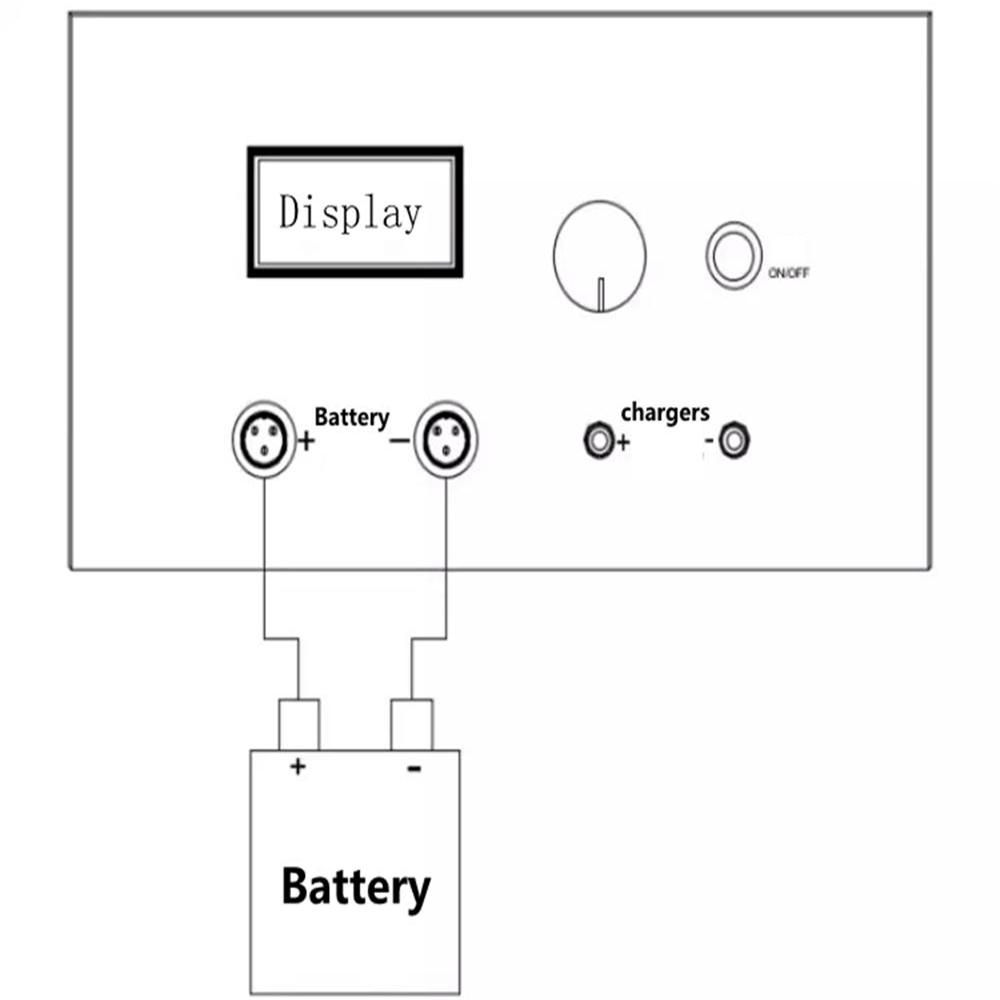

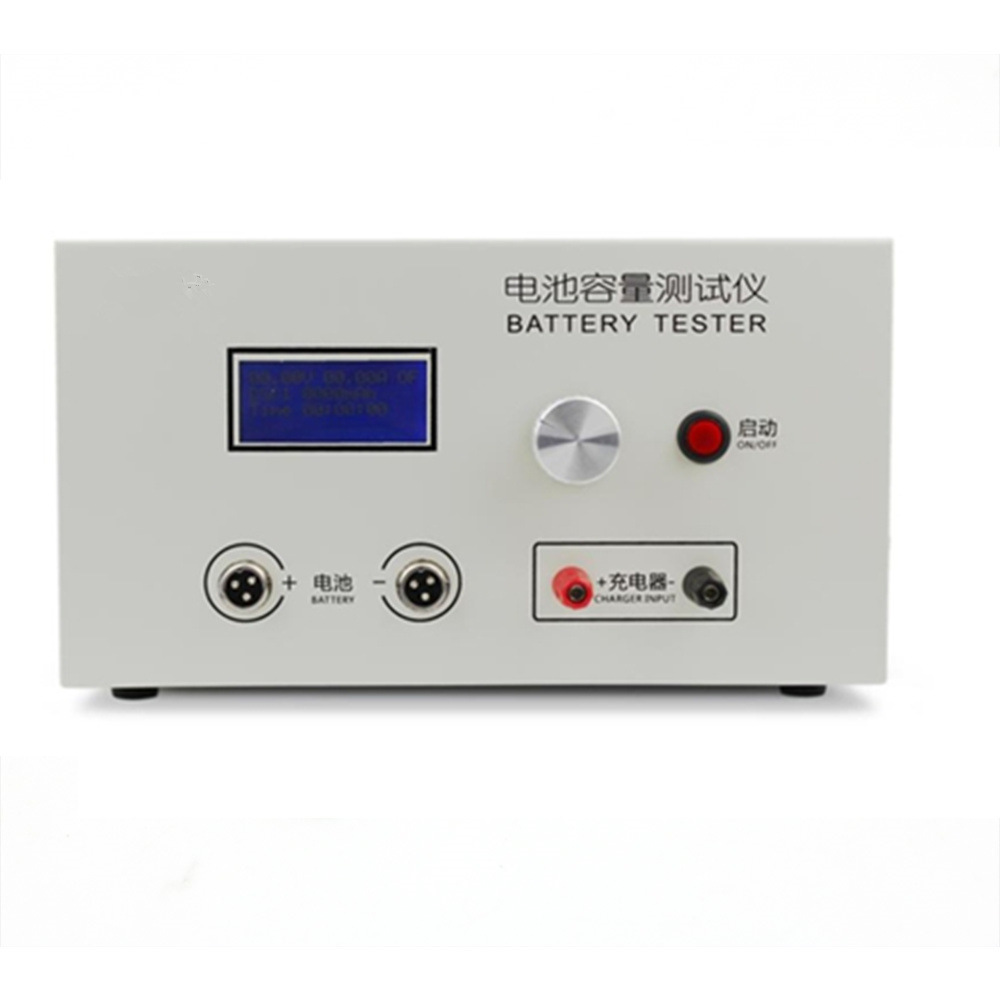

1. During the discharge test , connect the battery pack to the "battery" connector of the tester through the clamp wire.

2. In the charging test , in addition to connecting the battery pack, the output end of the charger supporting the battery pack needs to be connected to the “charger” interface of the tester. Turn on for charging. When it is detected that the charging current is less than the set value, it is determined to be full and the charging is turned off. (The tester does not control the charging current and voltage, only for detection and on-off control).

3. Automatic charging and discharging , the tester supports setting up to 5 steps, each step can be charging mode (requires external charger), or discharging mode. The charging and discharging test can be performed automatically by setting multiple steps.

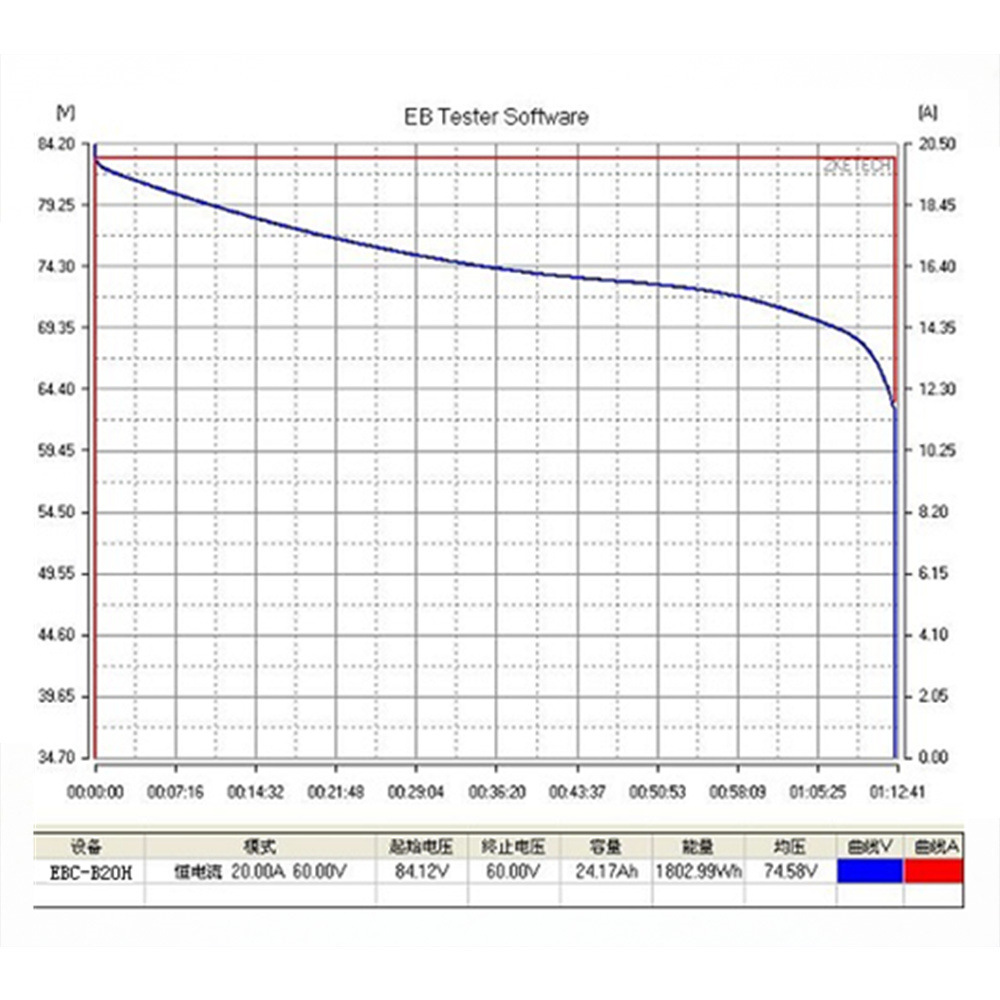

When connected to a computer, it can be started by software control and record the voltage and current curve.

Product details :

1. a tester

2. One online line

3. A power cord

4. Pair of test clamps
