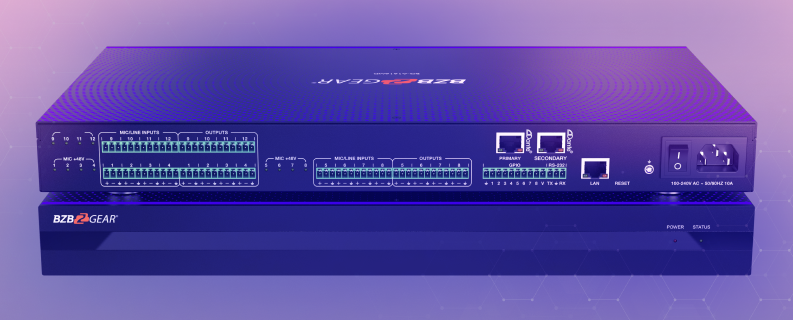

The BG-A1616MD Digital Audio Processor is a versatile solution designed for video conferences, distance learning, and telemedicine applications. With its advanced features and intelligent algorithms, this processor delivers exceptional audio quality and seamless control. It is equipped with 12-ch MIC/linear inputs, 12-ch linear outputs, and two DANTE ports for low-latency audio processing. This powerful processor is ready to use immediately, ensuring hassle-free installation and project implementation.

Advanced Audio Processing Features

The BG-A1616MD Digital Audio Processor incorporates a range of advanced audio processing features. It includes full-band Adaptive Echo Cancellation (AEC), which effectively eliminates echoes for clear and resonant sound. The Adaptive Noise Suppression (ANS) technology reduces background noise, ensuring clean audio signals. The Automatic Gain Control (AGC) feature adjusts the microphone input levels automatically, maintaining a consistent volume. Additionally, the Auto Mixer function allows you to prioritize microphone inputs when multiple microphones are used simultaneously. These features work together to provide a high Signal-to-Noise ratio and deliver exceptional audio quality.

Seamless Audio Signal Routing

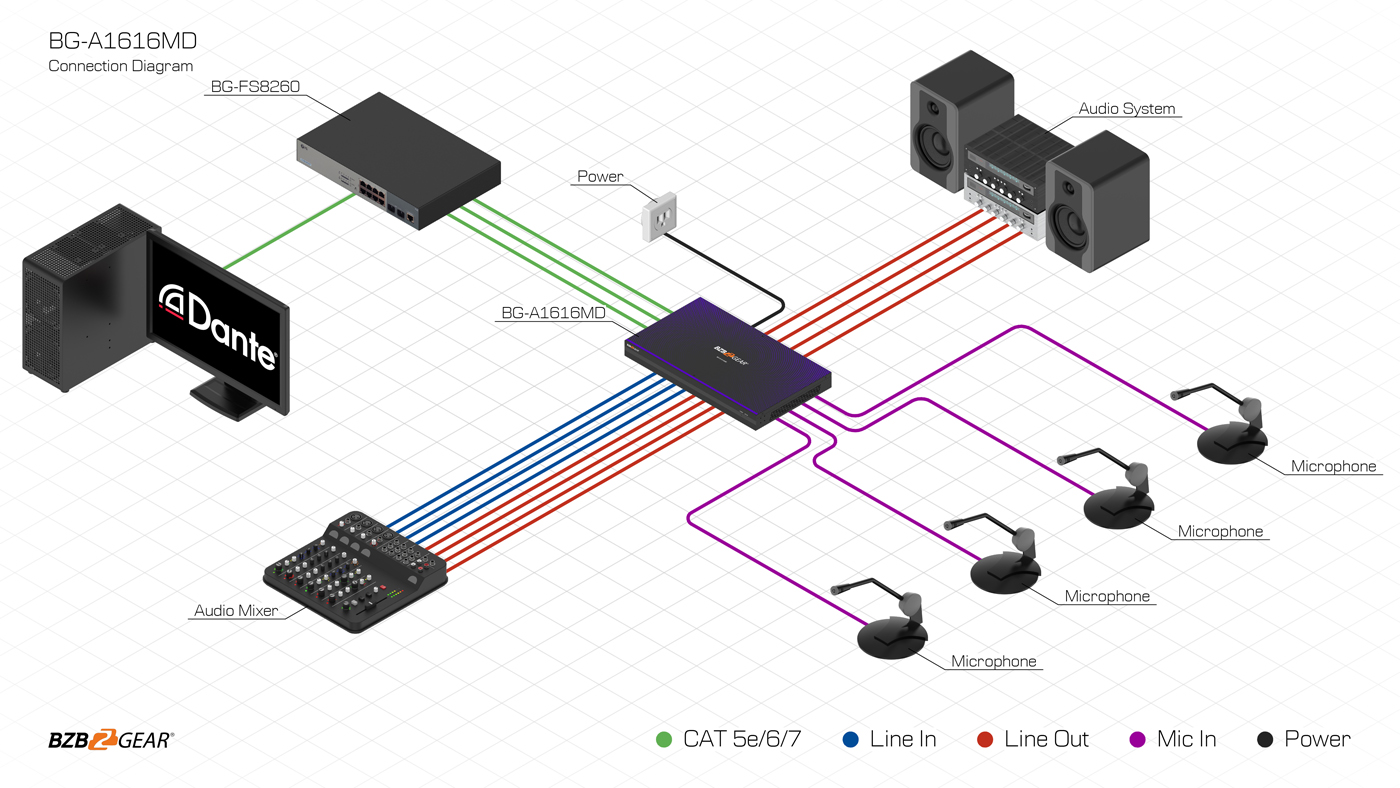

With the BG-A1616MD, seamless audio signal routing is made easy. It offers 12-ch balanced/unbalanced MIC/linear inputs and 12-ch balanced/unbalanced linear outputs, allowing for efficient and flexible audio routing. The processor is equipped with standard DANTE network audio interfaces, enabling low-latency communication. It also incorporates adaptive feedback suppression, full-band acoustic echo cancellation, and dynamic adaptive noise reduction technologies. These technologies effectively eliminate unwanted audio artifacts and background noise, ensuring clear and pristine audio during conferences, learning sessions, or telemedicine consultations.

Fine-tuning Audio Signals with DSP Modules

The BG-A1616MD provides an array of digital signal processing modules that allow you to fine-tune your audio signals. The processor includes modules such as Expander, Equalizer, Compressor, Auto Gain Control, Limiter, High Pass Filter, Low Pass Filter, and Delay. These modules enable you to customize and optimize the audio to your specific requirements. The intuitive interface facilitates easy configuration, volume adjustment, audio meter monitoring, and scene control. With these features, you have precise control over your audio signals and can create an optimal listening experience.

Versatile Connectivity Options

The BG-A1616MD offers versatile connectivity options to accommodate various setups. It supports a 48V phantom power supply for all 12-ch MIC inputs, ensuring compatibility with a wide range of microphone types. The processor operates at a 48KHz sampling rate and performs 24-bit A/D or D/A conversion, guaranteeing high-fidelity audio reproduction. Additionally, it provides an 8-ch programmable GPIO function, enhancing flexibility and control in your audio setup. The processor seamlessly integrates with both Windows 7 and Windows 10 platforms, and its standard RJ45 interface control allows for easy integration into existing setups.

Advanced Control Capabilities

The BG-A1616MD is equipped with advanced control capabilities through RS-232 serial command control. This feature enables precise and comprehensive control over the audio processor, allowing for fine-grained adjustments and customization.
