Description

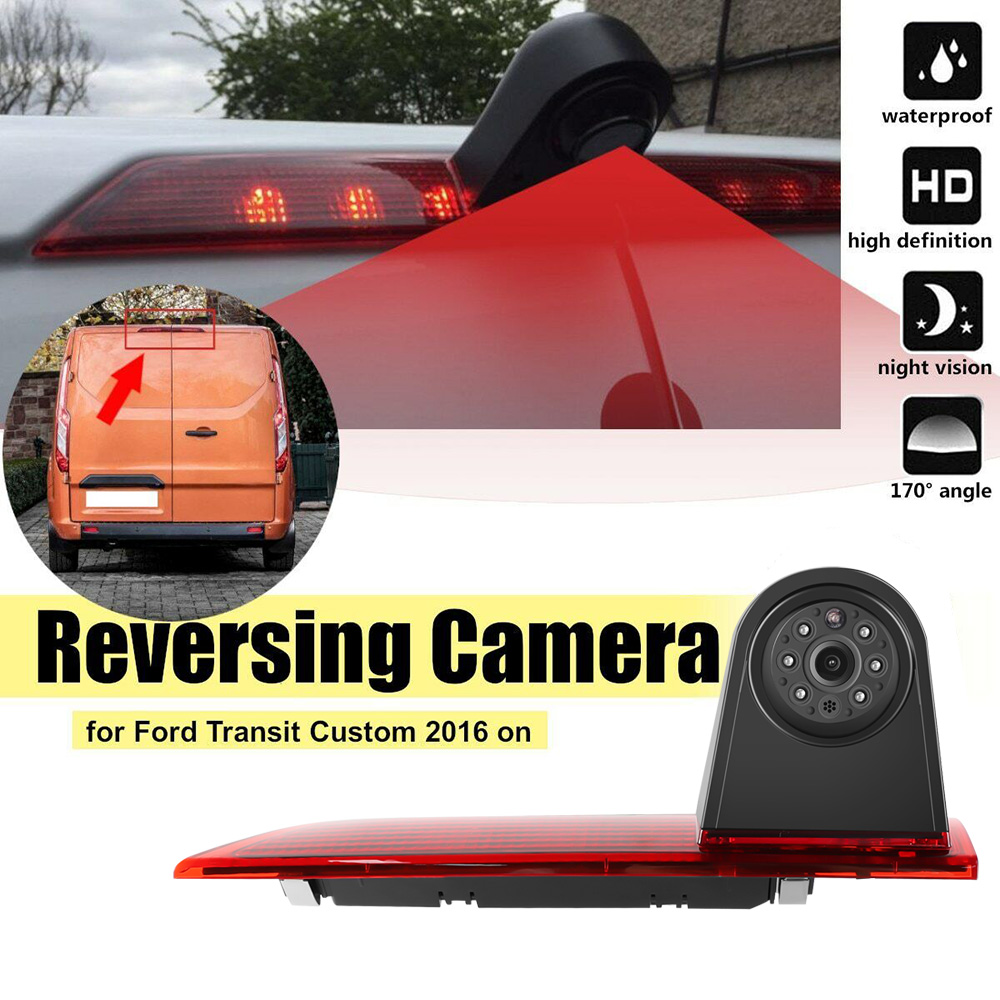

Vehicle Specific Rear View Camera Brake Light for Ford Transit Custom 2012-2016

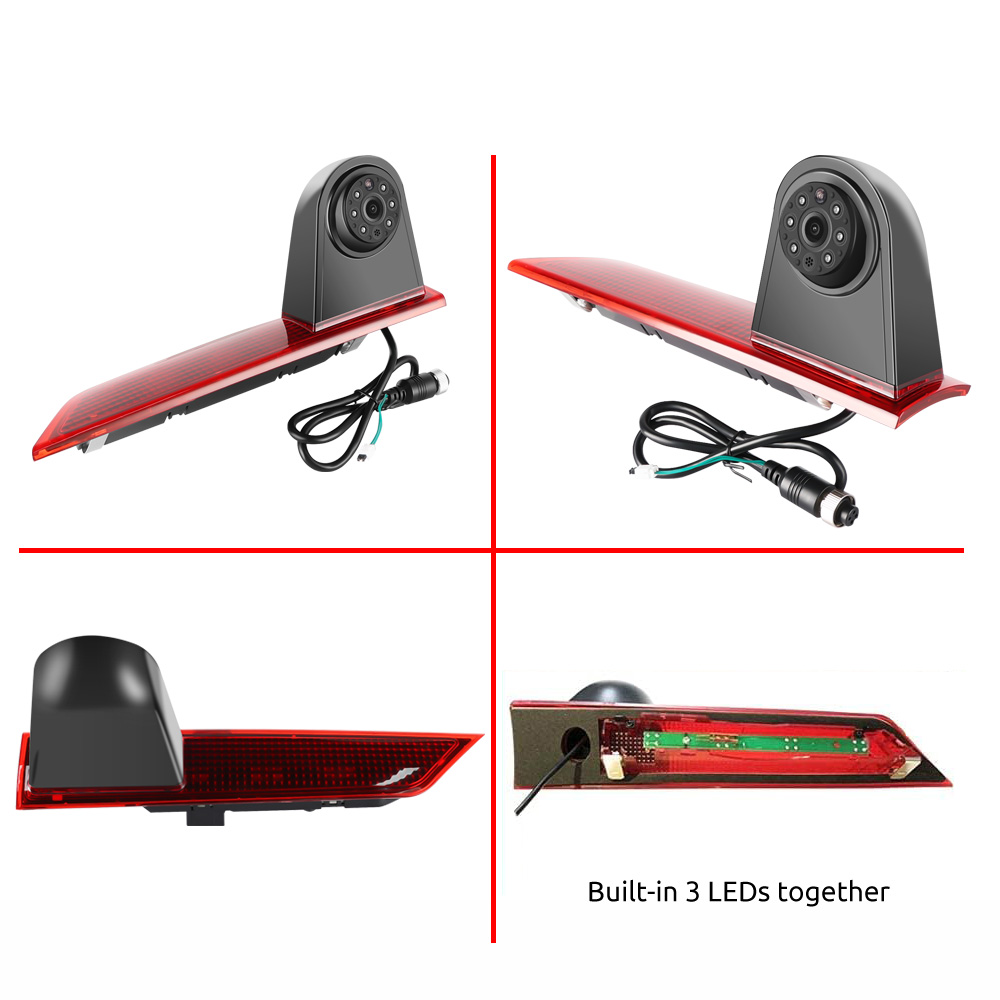

【Set】 Rear view camera transporter with 3. Brake lamp(LED lighting)for Ford Custom.

【Transporter】 The cameras are the perfect solution in the sprinter class. Optimised camera housing for all vans, Ford Custom Rear View Camera Assists you in manoeuvring your van safely in confusing urban areas or at the campsite.

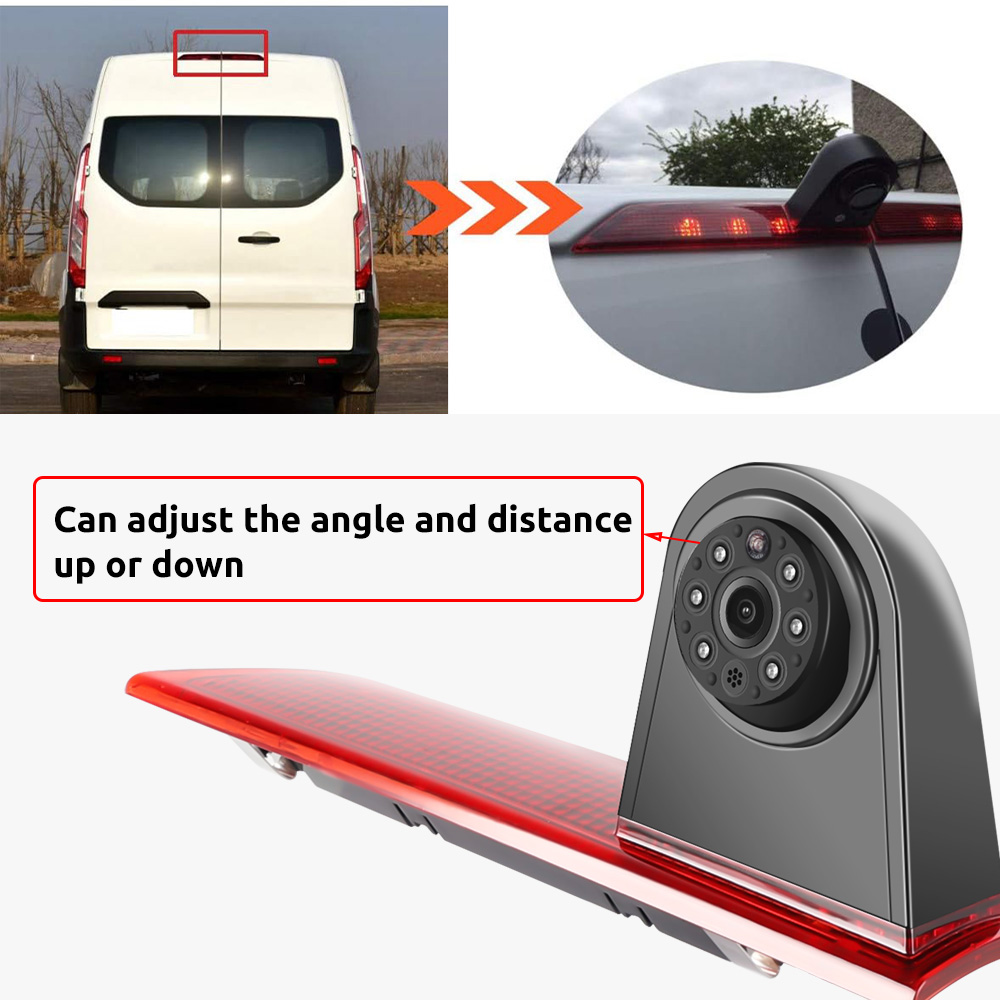

【Quality camera of CMOS】 NTSC, resolution 720 x 480 pixels, detection angle: 170 degrees, voltage 12V, camera lens flexibly adjustable for optimal visibility.

【Installation without drilling or sealing】 Top quality with CCD lens. Perfect visibility even at night. IP68 rating, waterproof, viewing angle 170-degree wide angle lens.

【Easy mounting】 You take the outer cover of your 3. Brake light off and use the special Ford Custom rear view camera. The connection cable is fed into the vehicle interior, where the supplied 8m cable with anti-vibration screw plug is connected.

Specification:

Image sensor: 1/3 PC2099CMOS

Resolution: 720*480 pixels

TV lines: 700TVL

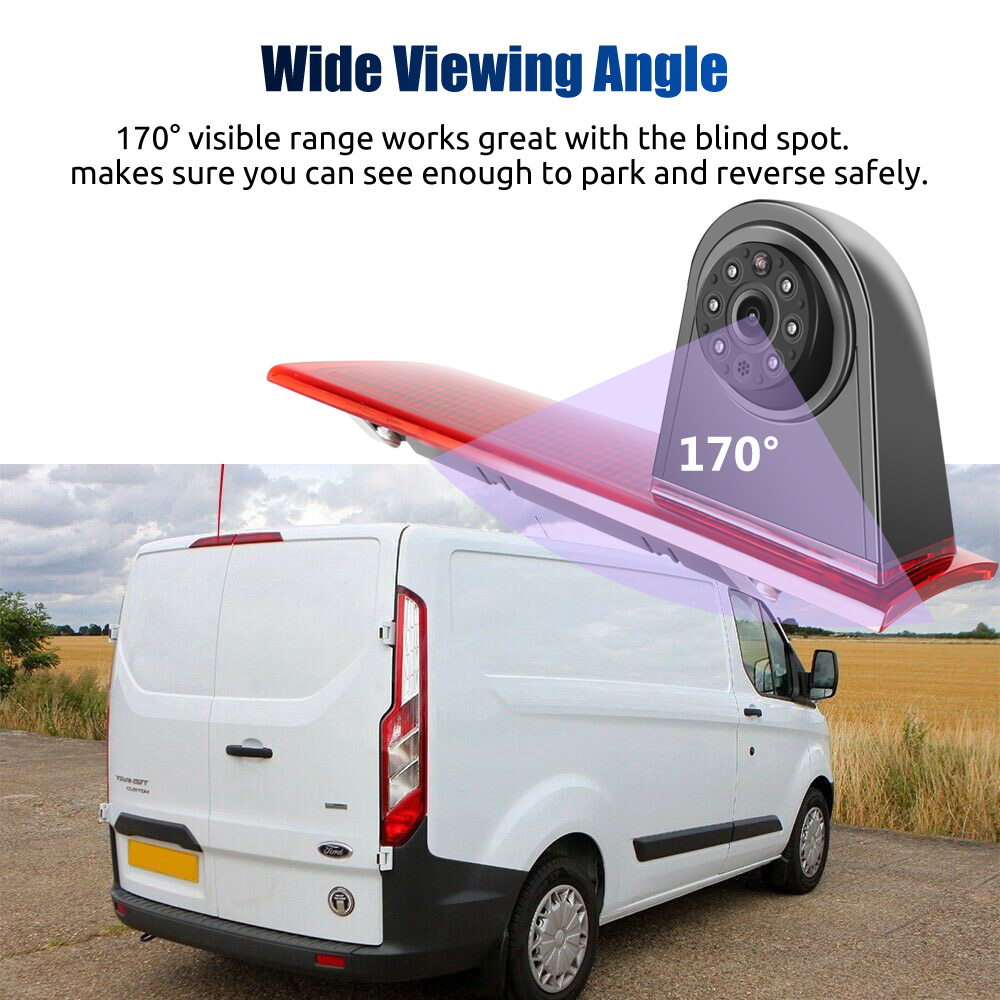

Detection angle: 170°

Material Camera housing: plastic

Minimum lighting: 0.1 Lux

Video standard: PAL Voltage: 12V

Ambient temperature range: -20°C to 75°C

Power consumption: <2 W

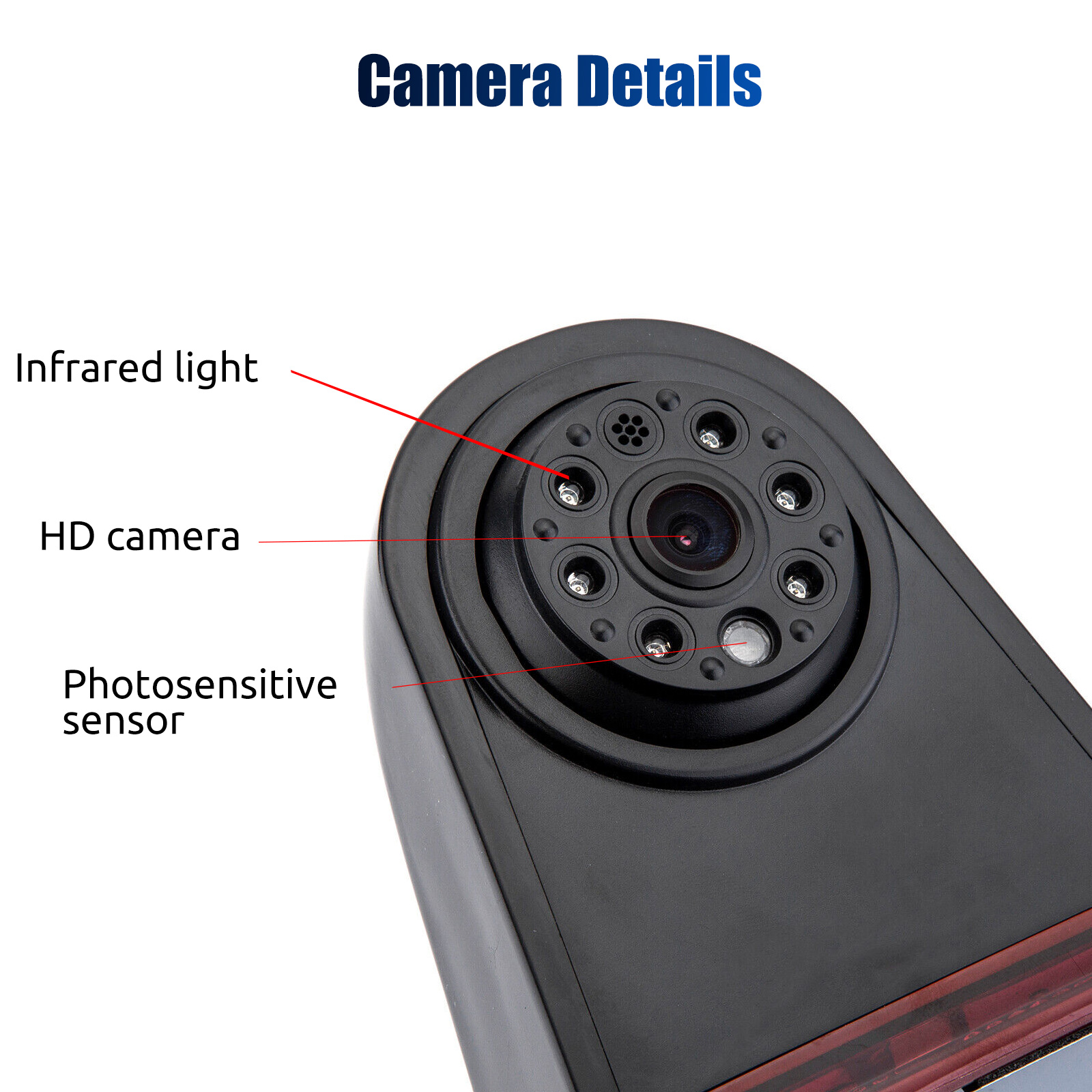

Night vision: 6 infrared diodes with brightness sensor

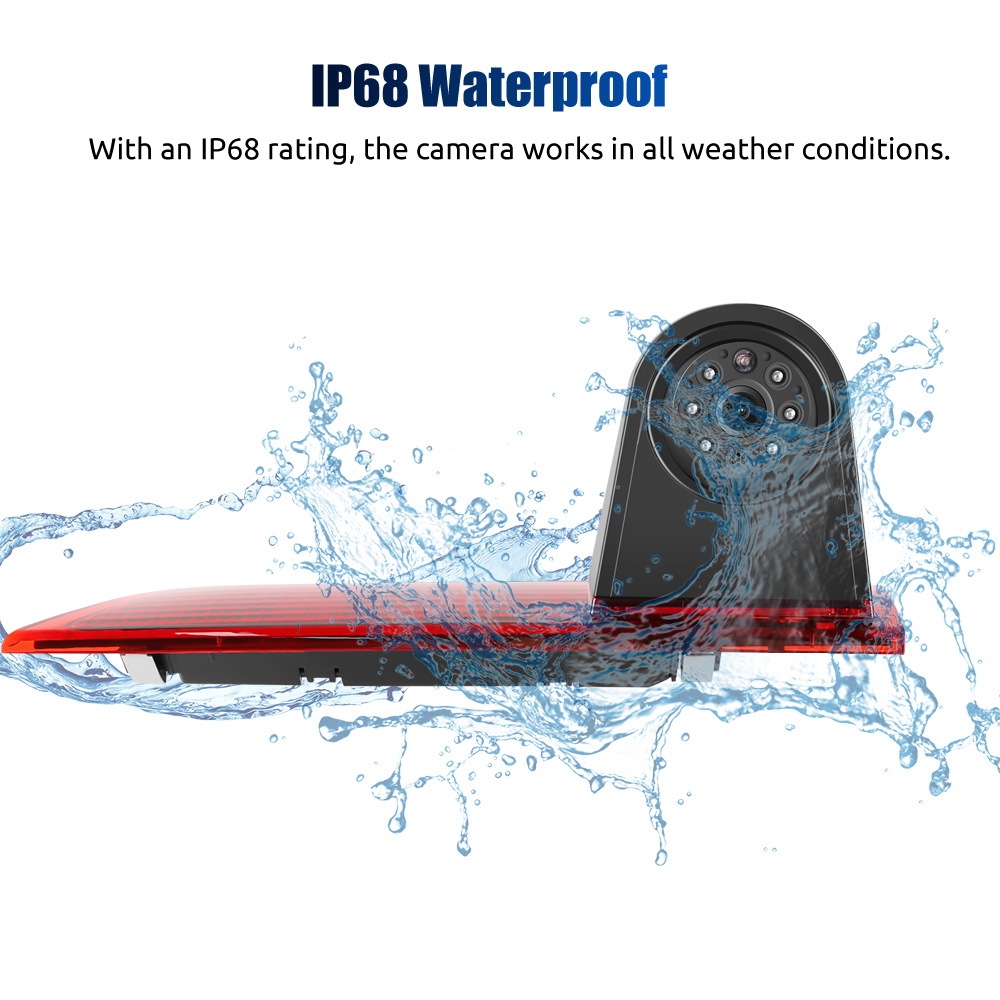

IP68 Spitzwasserschutz

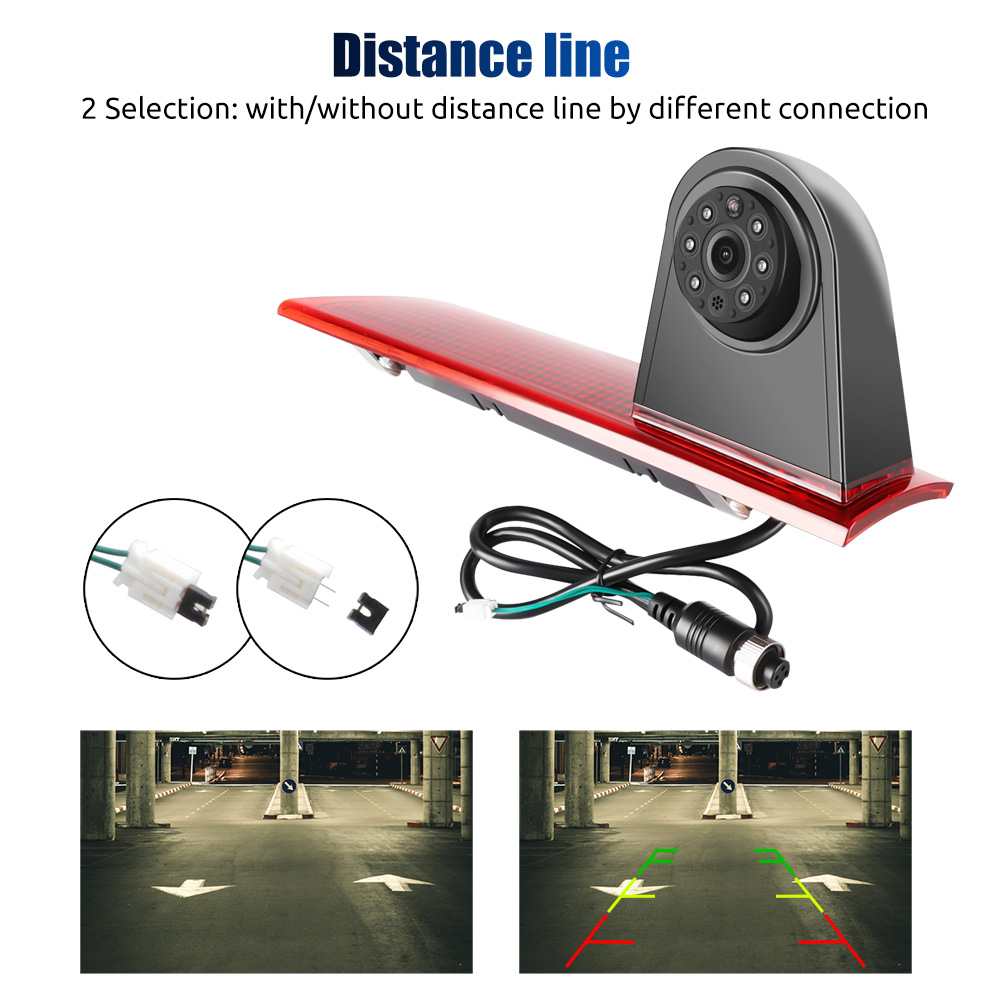

Distance lines: optional

incl. 8m cable

Installation instructions:
Remove brake light
Insert lighting unit in camera
Reinstall camera with brake light
Connect the power supply cable to the reversing light
Lay the video cable in the vehicle to the monitor

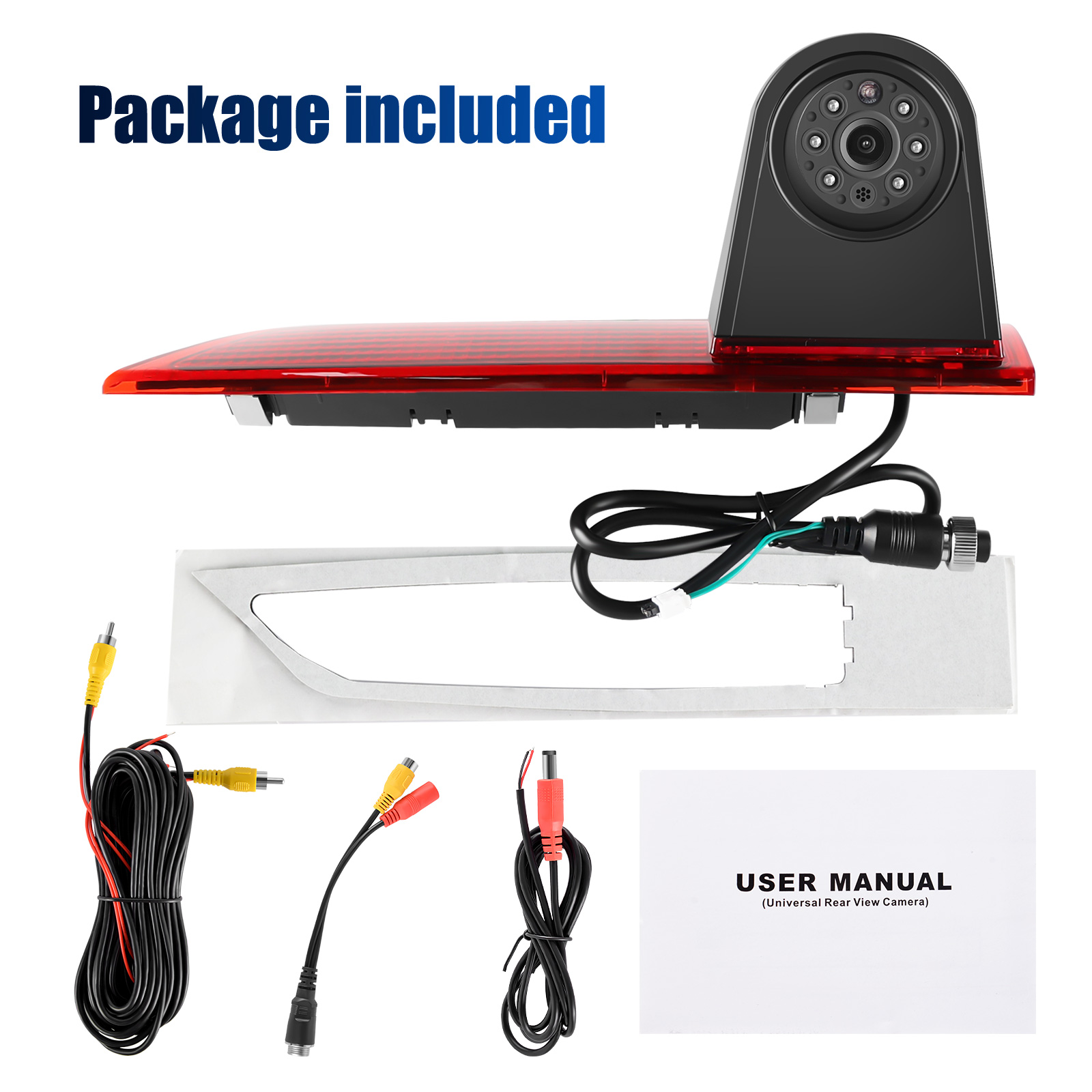

Package Included:
1x Reversing Camera Integrated in Brake Light
1x 8m/26ft RCA Video Cable
1x Adapter Cable
1x Power Cable
