Product Details
Product features:
1. Use of high-quality materials, quality assurance

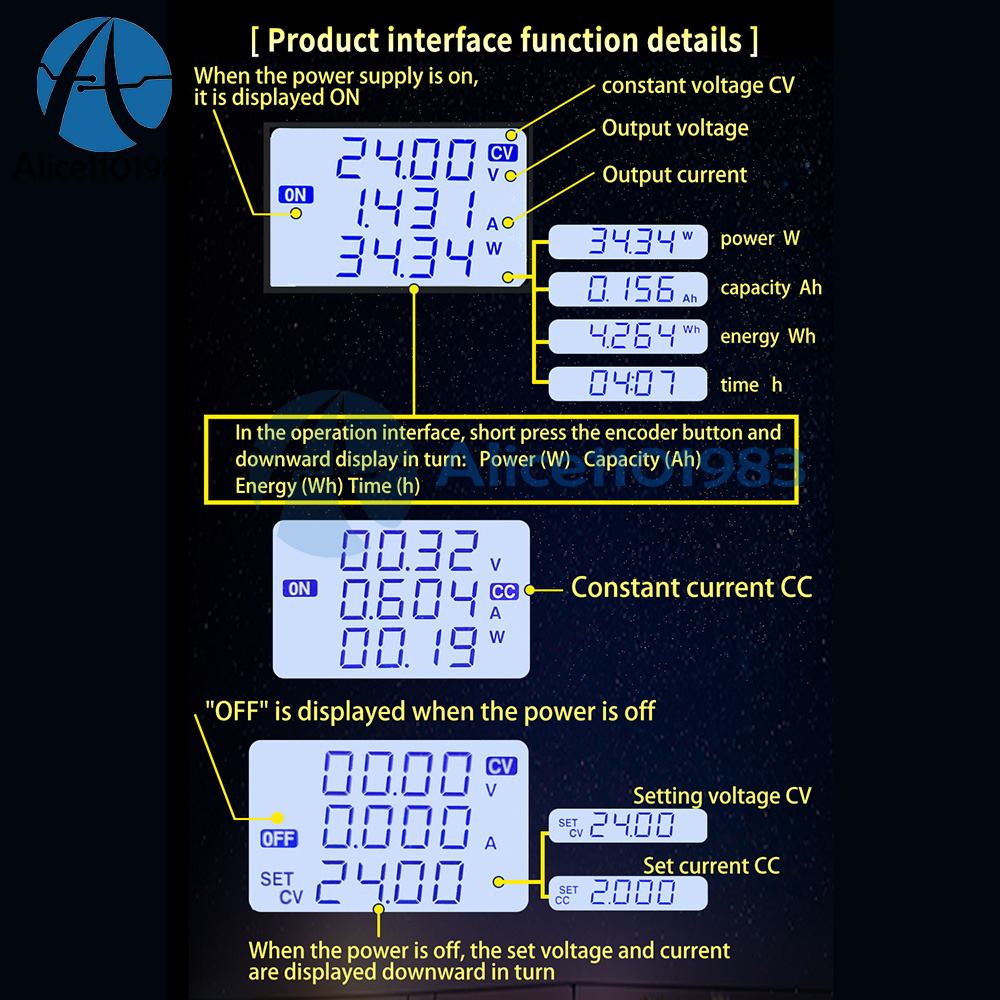

2. Large screen display, the state is clear at a glance, simple operation, smooth experience

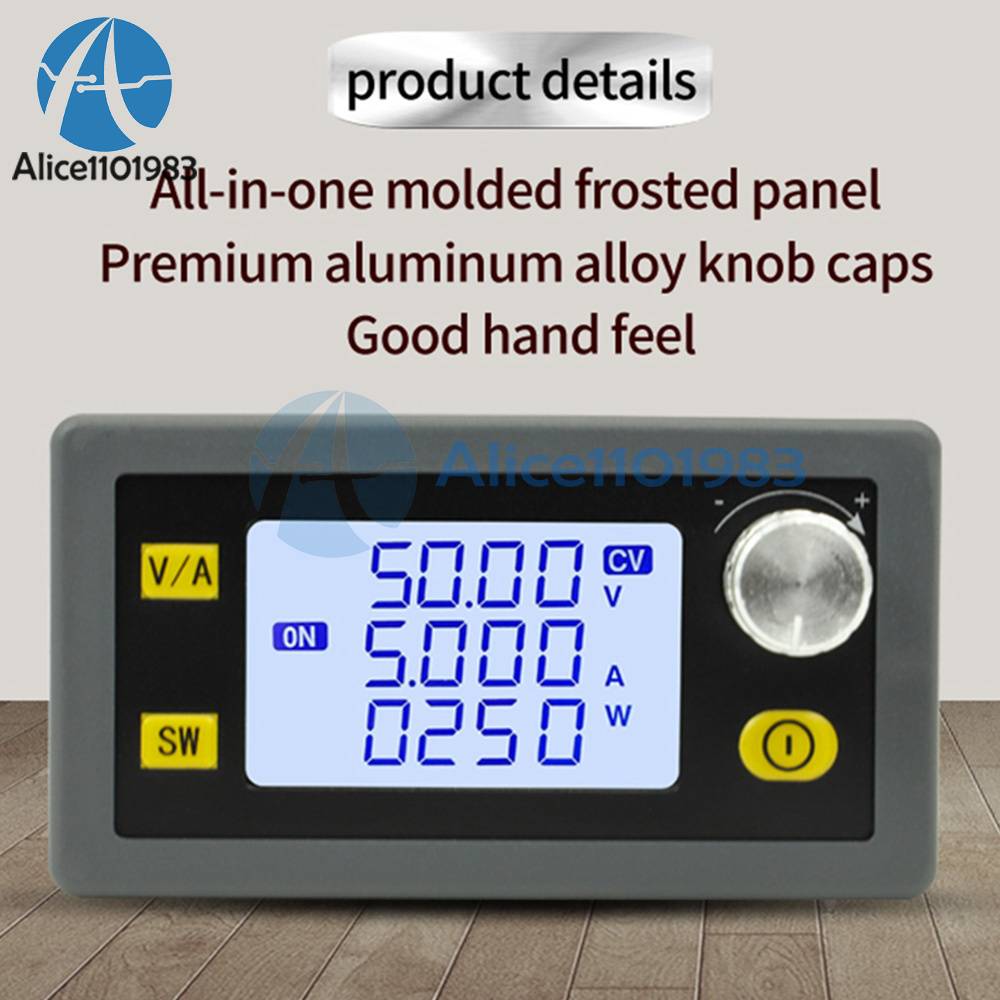

3. One-piece molding frosted panel, high-quality aluminum alloy knob cap

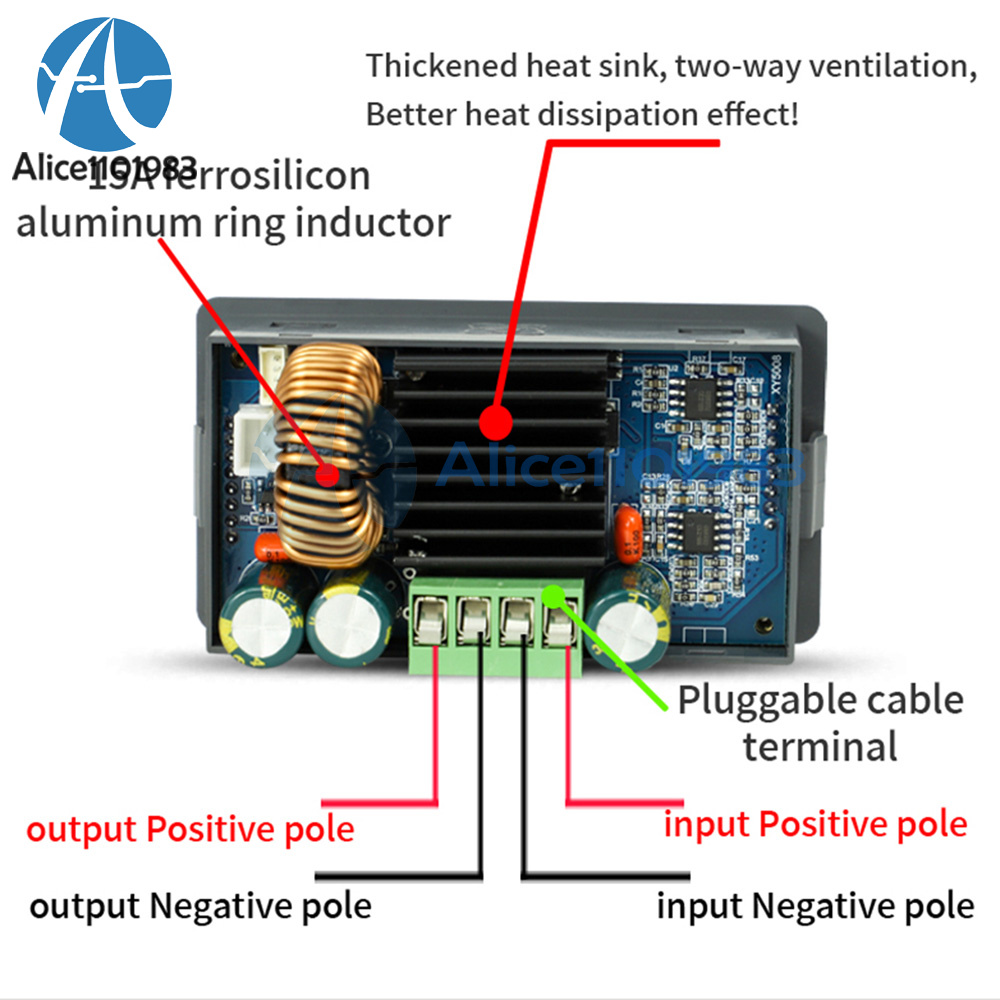

4. Intelligent temperature control fan, automatic start and stop; thickened heat sink, two-way ventilation
5. Exquisite appearance, easy to use
1. Use of high-quality materials, quality assurance
2. Large screen display, the state is clear at a glance, simple operation, smooth experience
3. One-piece molding frosted panel, high-quality aluminum alloy knob cap
4. Intelligent temperature control fan, automatic start and stop; thickened heat sink, two-way ventilation
5. Exquisite appearance, easy to use

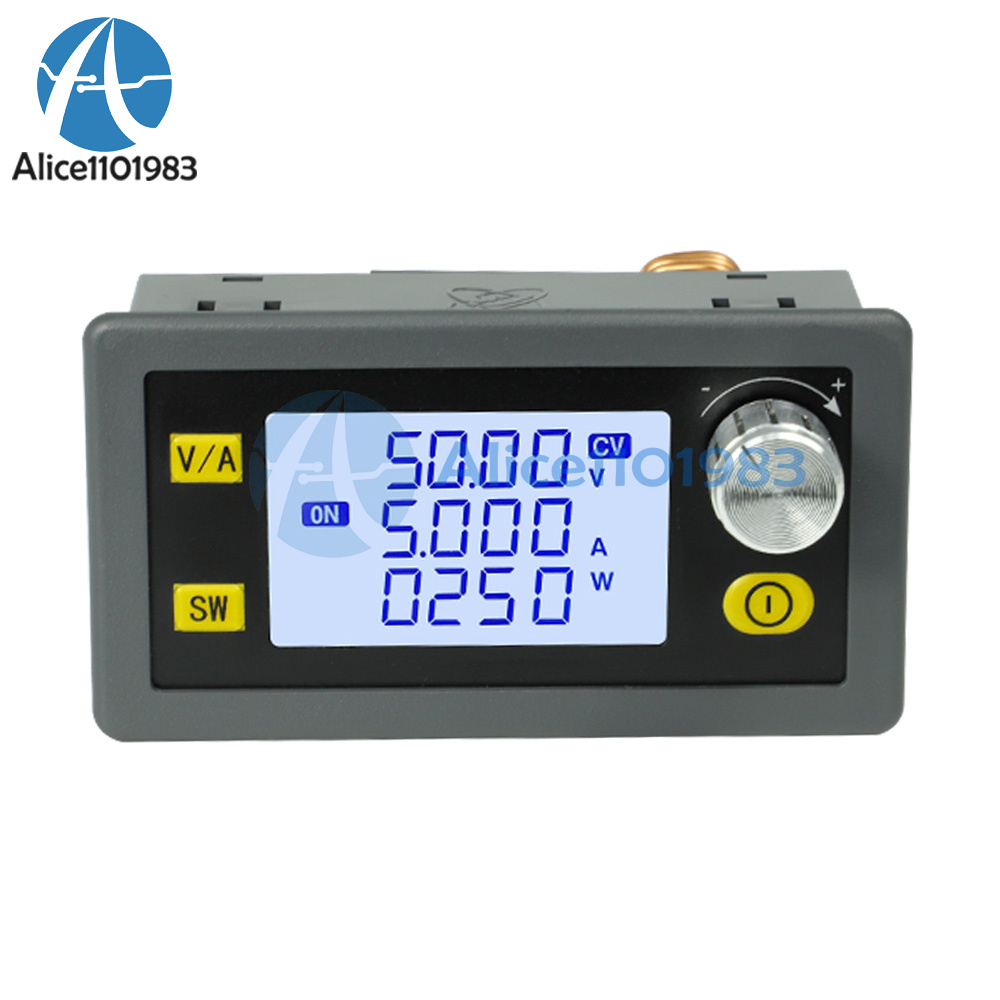

Product name: CNC DC buck power supply
Parameters:
Product Model: XY5008E
Input voltage: 6.0~55V
Output voltage: 0.0~50V
Output current: 0.000~8.100A
Voltage accuracy: +0.4% + 1 word
Output power: 0~400W
Current accuracy: +0.5%+3 words
Voltage resolution: 0.01V .
Current resolution: 0.001A
Conversion efficiency: about 95%
Soft start: Yes
Product Model: XY5008E
Input voltage: 6.0~55V
Output voltage: 0.0~50V
Output current: 0.000~8.100A
Voltage accuracy: +0.4% + 1 word
Output power: 0~400W
Current accuracy: +0.5%+3 words
Voltage resolution: 0.01V .
Current resolution: 0.001A
Conversion efficiency: about 95%
Soft start: Yes

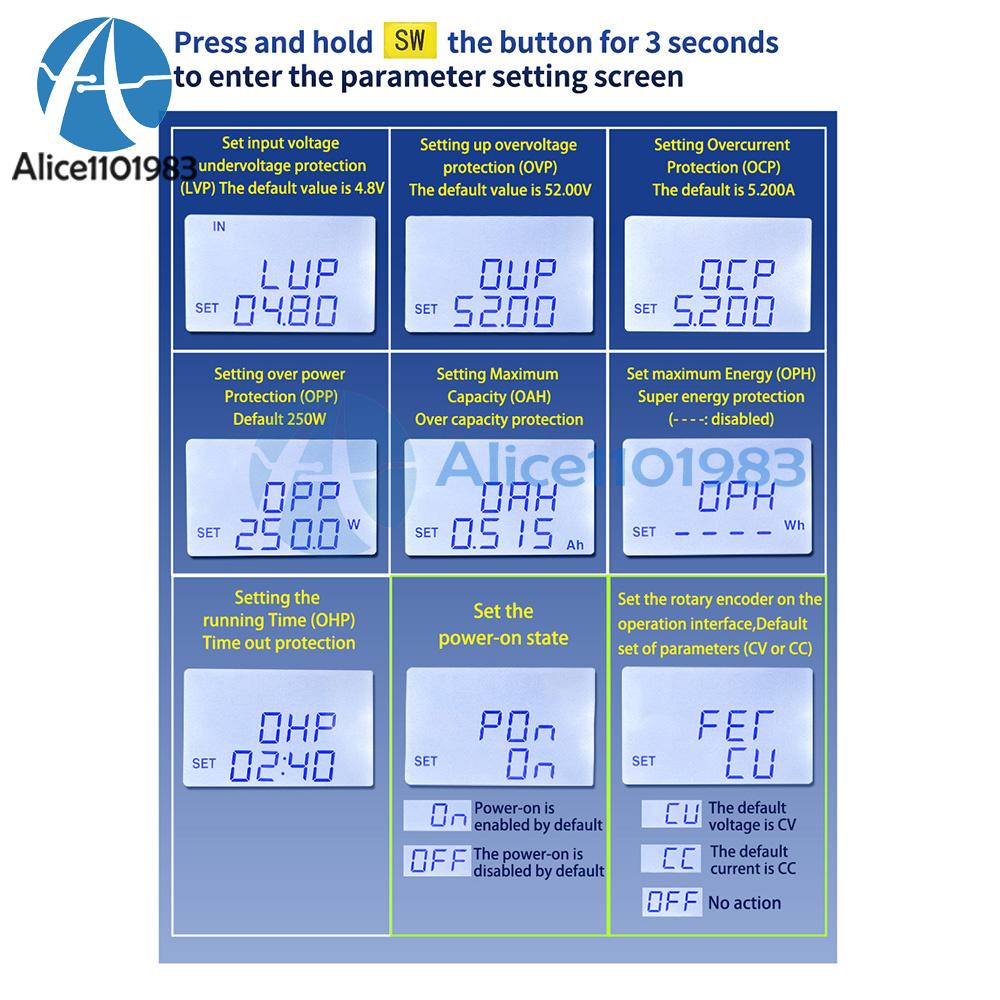

About protection mechanism.
Input anti-reverse connection: Yes
Output short-circuit protection: Yes
Input undervoltage protection: (4.8-30V adjustable, default 4.8V)
Output over-voltage protection: (0-52V adjustable, default 52V)
Output overcurrent protection: (0-8.2A, default 8.2A)
Output over power protection: (0-410W, default 410W)
Over temperature protection: Yes, default 100°C
Timeout protection: (0-100H adjustable, default off)
Over-capacity protection: (0-9999AH adjustable, default off)
Super energy protection: (0-9999WH adjustable, default off)
Input anti-reverse connection: Yes
Output short-circuit protection: Yes
Input undervoltage protection: (4.8-30V adjustable, default 4.8V)
Output over-voltage protection: (0-52V adjustable, default 52V)
Output overcurrent protection: (0-8.2A, default 8.2A)
Output over power protection: (0-410W, default 410W)
Over temperature protection: Yes, default 100°C
Timeout protection: (0-100H adjustable, default off)
Over-capacity protection: (0-9999AH adjustable, default off)
Super energy protection: (0-9999WH adjustable, default off)
Parameters:
Product Model: XY5005E
Input voltage: 6.0~55V
Output voltage: 0.0~50V
Output current: 0.000~5.000A
Voltage accuracy: +0.4% + 1 word
Output power: 0~250W
Current accuracy: +0.5%+3 words
Voltage resolution: 0.01V .
Current resolution: 0.001A
Conversion efficiency: about 95%
Soft start: Yes
Product Model: XY5005E
Input voltage: 6.0~55V
Output voltage: 0.0~50V
Output current: 0.000~5.000A
Voltage accuracy: +0.4% + 1 word
Output power: 0~250W
Current accuracy: +0.5%+3 words
Voltage resolution: 0.01V .
Current resolution: 0.001A
Conversion efficiency: about 95%
Soft start: Yes
About protection mechanism.
Input anti-reverse connection: Yes
Output short-circuit protection: Yes
Input undervoltage protection: (4.8-30V adjustable, default 4.8V)
Output over-voltage protection: (0-52V adjustable, default 52V)
Output overcurrent protection: (0-5.0A adjustable, default 5.0A)
Output over power protection: (0-250W adjustable, default 250W)
Over temperature protection: Yes, default 100°C
Timeout protection: (0-100H adjustable, default off)
Over-capacity protection: (0-9999AH adjustable, default off)
Super energy protection: (0-9999WH adjustable, default off)
Input anti-reverse connection: Yes
Output short-circuit protection: Yes
Input undervoltage protection: (4.8-30V adjustable, default 4.8V)
Output over-voltage protection: (0-52V adjustable, default 52V)
Output overcurrent protection: (0-5.0A adjustable, default 5.0A)
Output over power protection: (0-250W adjustable, default 250W)
Over temperature protection: Yes, default 100°C
Timeout protection: (0-100H adjustable, default off)
Over-capacity protection: (0-9999AH adjustable, default off)
Super energy protection: (0-9999WH adjustable, default off)
Parameters:
Product Model: XY5008E Upgraded
Input voltage: 6.0~55V
Output voltage: 0.0~50V
Output current: 0.000~8.100A
Voltage accuracy: +0.4%+1 word
Output power: 0~400W
Current accuracy: +0.5%+3 words
Voltage resolution: 0.01V
Current resolution: 0.001A
Conversion efficiency: about 95%
Soft start: Yes
Product Model: XY5008E Upgraded
Input voltage: 6.0~55V
Output voltage: 0.0~50V
Output current: 0.000~8.100A
Voltage accuracy: +0.4%+1 word
Output power: 0~400W
Current accuracy: +0.5%+3 words
Voltage resolution: 0.01V
Current resolution: 0.001A
Conversion efficiency: about 95%
Soft start: Yes
Product Model: XY5005E Upgraded
Input voltage: 6.0~55V
Output voltage: 0.0~50V
Output current: 0.000~5.000A
Voltage accuracy: +0.4% + 1 word
Output power: 0~250W
Current accuracy: +0.5%+3 words
Voltage resolution: 0.01V
Current resolution: 0.001A
Conversion efficiency: about 95%
Soft start: Yes
Input voltage: 6.0~55V
Output voltage: 0.0~50V
Output current: 0.000~5.000A
Voltage accuracy: +0.4% + 1 word
Output power: 0~250W
Current accuracy: +0.5%+3 words
Voltage resolution: 0.01V
Current resolution: 0.001A
Conversion efficiency: about 95%
Soft start: Yes
About protection mechanism:
Input anti-reverse connection: Yes
Output short-circuit protection: Yes
Input under-voltage protection: (4.8-30V adjustable, default 4.8V)
Output over-voltage protection: (0-52V adjustable, default 52V)
Output overcurrent protection: (0-8.2A, default 8.2A)
Output over power protection: (0-410W, default 410W)
Over temperature protection: Yes, default 100°C
Timeout protection: (0-100H adjustable, default off)
Over-capacity protection: (0-9999AH adjustable, default off)
Super energy protection: (0-9999WH adjustable, default off)
Input anti-reverse connection: Yes
Output short-circuit protection: Yes
Input under-voltage protection: (4.8-30V adjustable, default 4.8V)
Output over-voltage protection: (0-52V adjustable, default 52V)
Output overcurrent protection: (0-8.2A, default 8.2A)
Output over power protection: (0-410W, default 410W)
Over temperature protection: Yes, default 100°C
Timeout protection: (0-100H adjustable, default off)
Over-capacity protection: (0-9999AH adjustable, default off)
Super energy protection: (0-9999WH adjustable, default off)
Add rich input interface, but prohibit two or more interfaces at the same time access
The front of the shell with invisible air inlet, a reasonable air cooling structure, can effectively take away the heat inside the shell, so that the power supply efficient and reliable operation
The front of the shell with invisible air inlet, a reasonable air cooling structure, can effectively take away the heat inside the shell, so that the power supply efficient and reliable operation
Package list:
Adjustable voltage regulator * 1
Adjustable voltage regulator * 1
