Product Description

Features:

1. Immediate use as new 12V small battery，not included.

2. The heart chip, Analog Devices AD584JH which was genius AD IC, but was taken from used equipment,and all tested good before shipment.

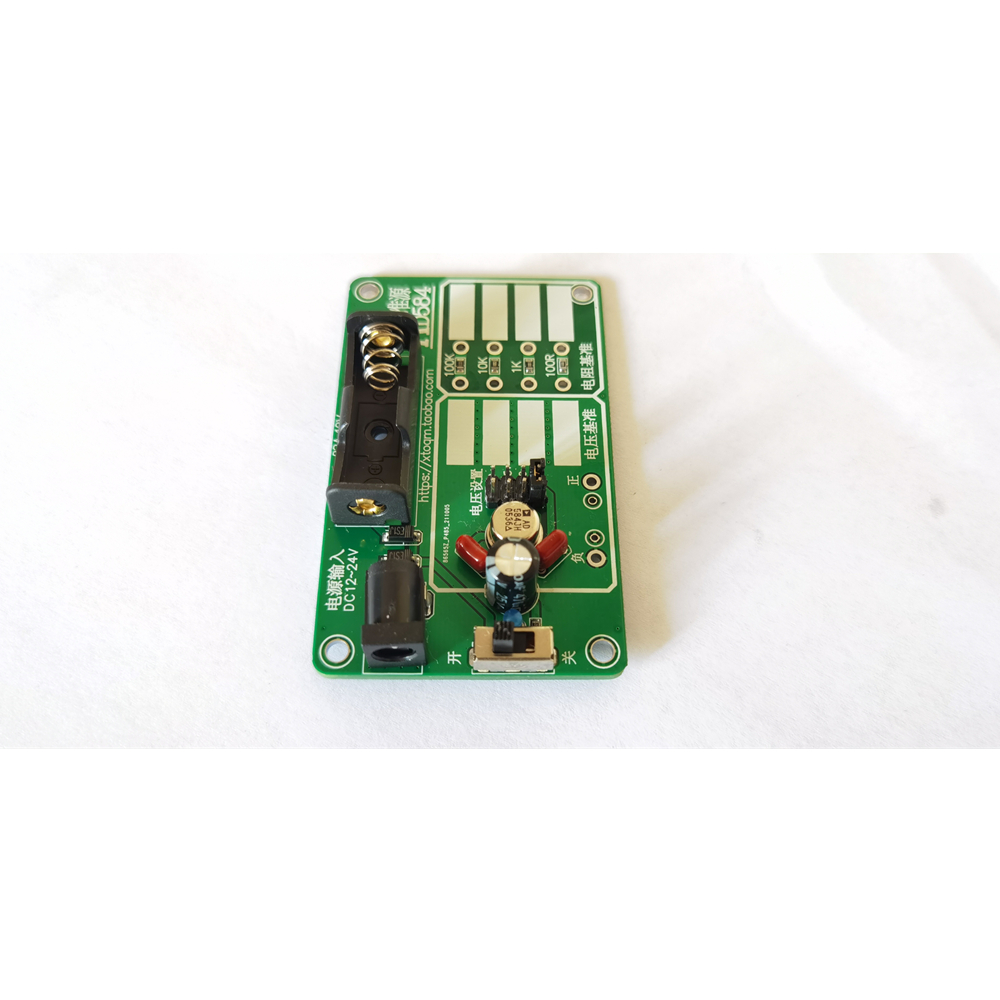

3. All in one small module, using easy to find battery on board.

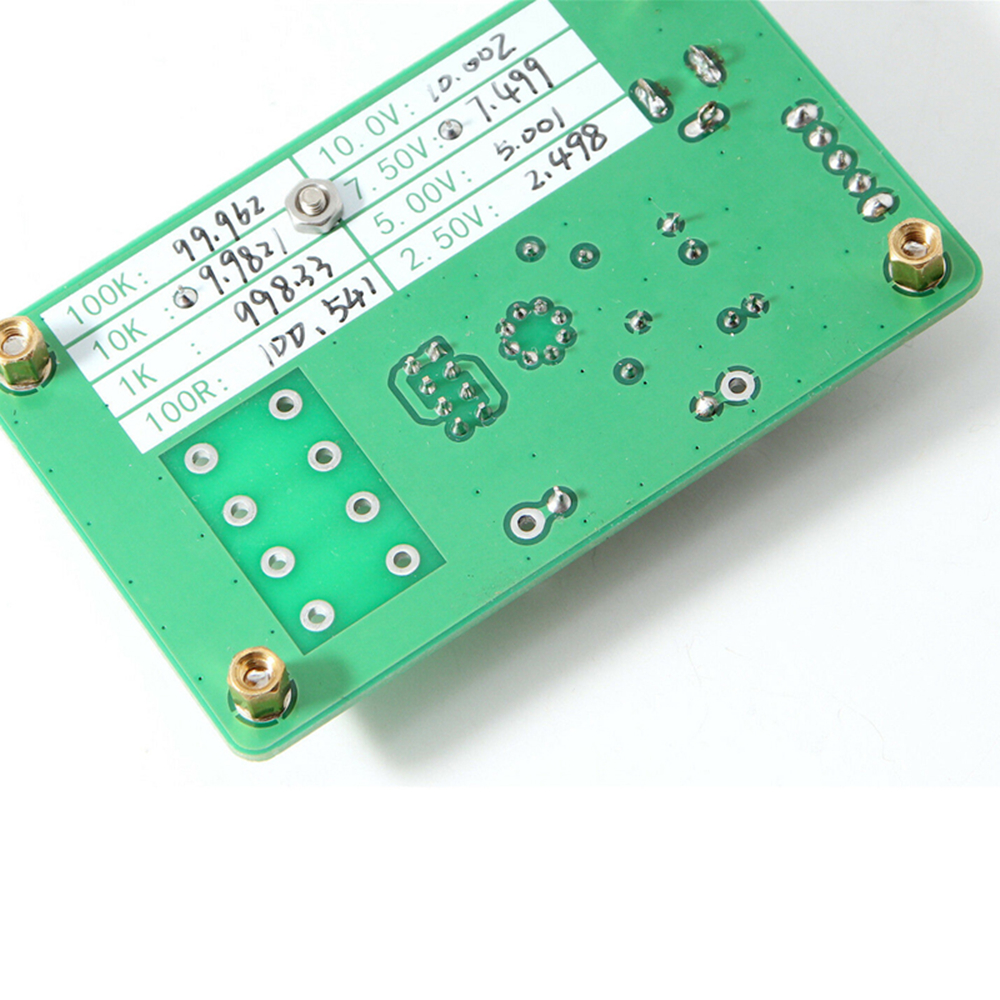

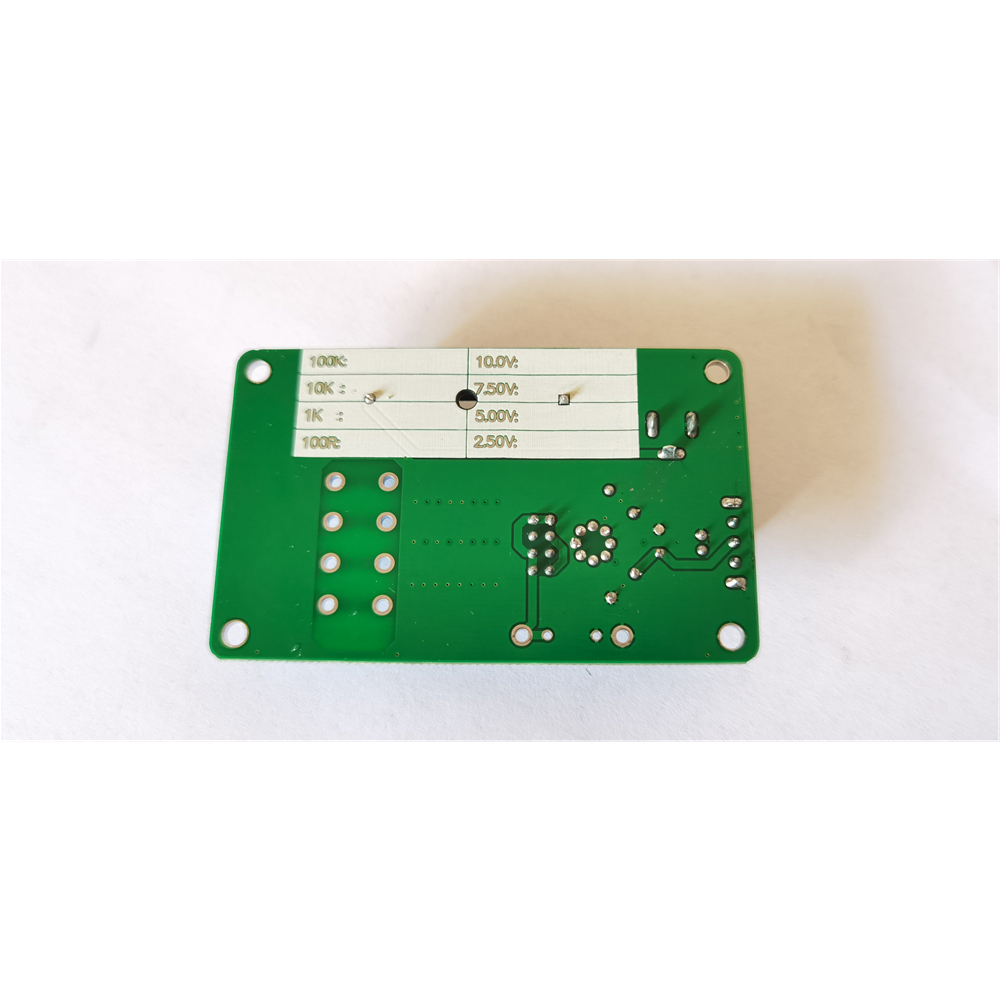

4. All are checked with measured values written on board.


Specification:

Size: 6 X 9cm.

Accuracy: 4 and a half (0.0001).

Temperature drift: 15ppm / ℃.

Factory calibration: 6½-Digit Keithley 2000 Multimeter calibration, the measured voltage marked on the shield shell.

Output voltage: 2.5V / 5V / 7.5V / 10V by jumper selected 100K/10K/1K/100R precision resistors on board for reference.


Package Include:

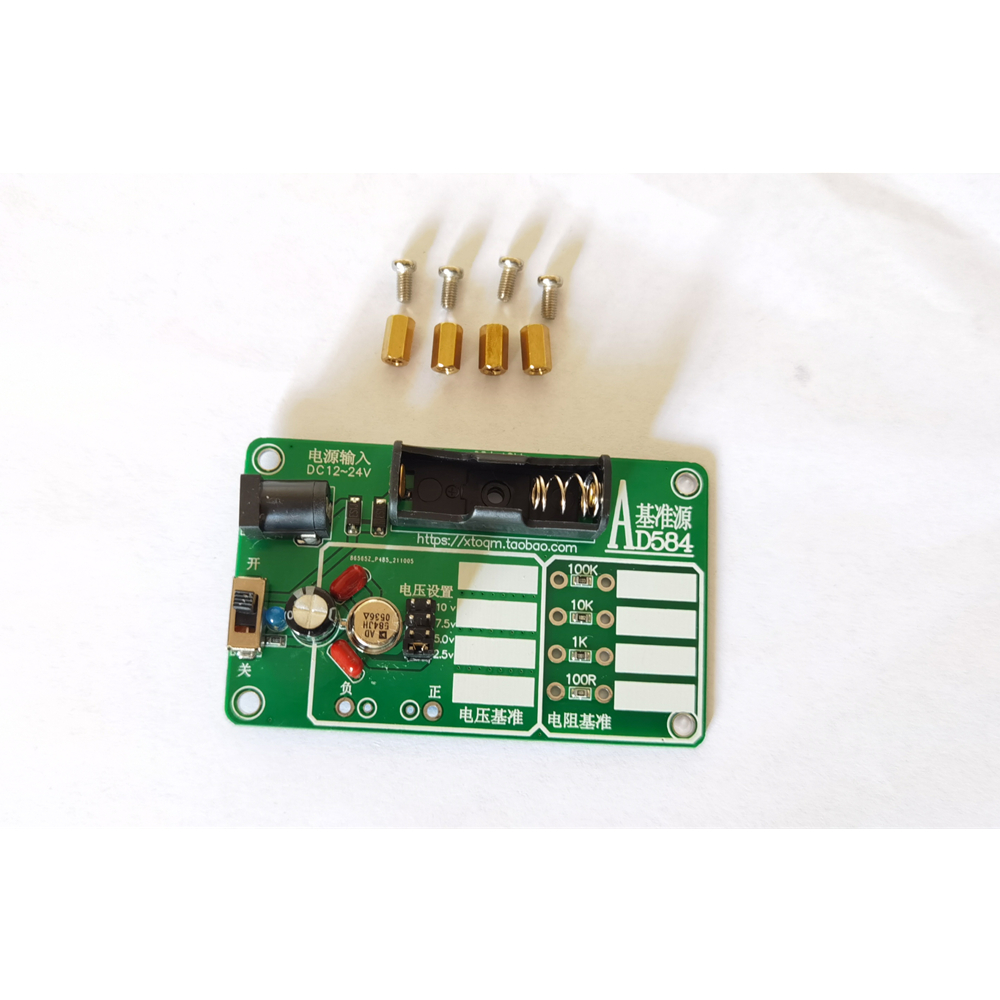

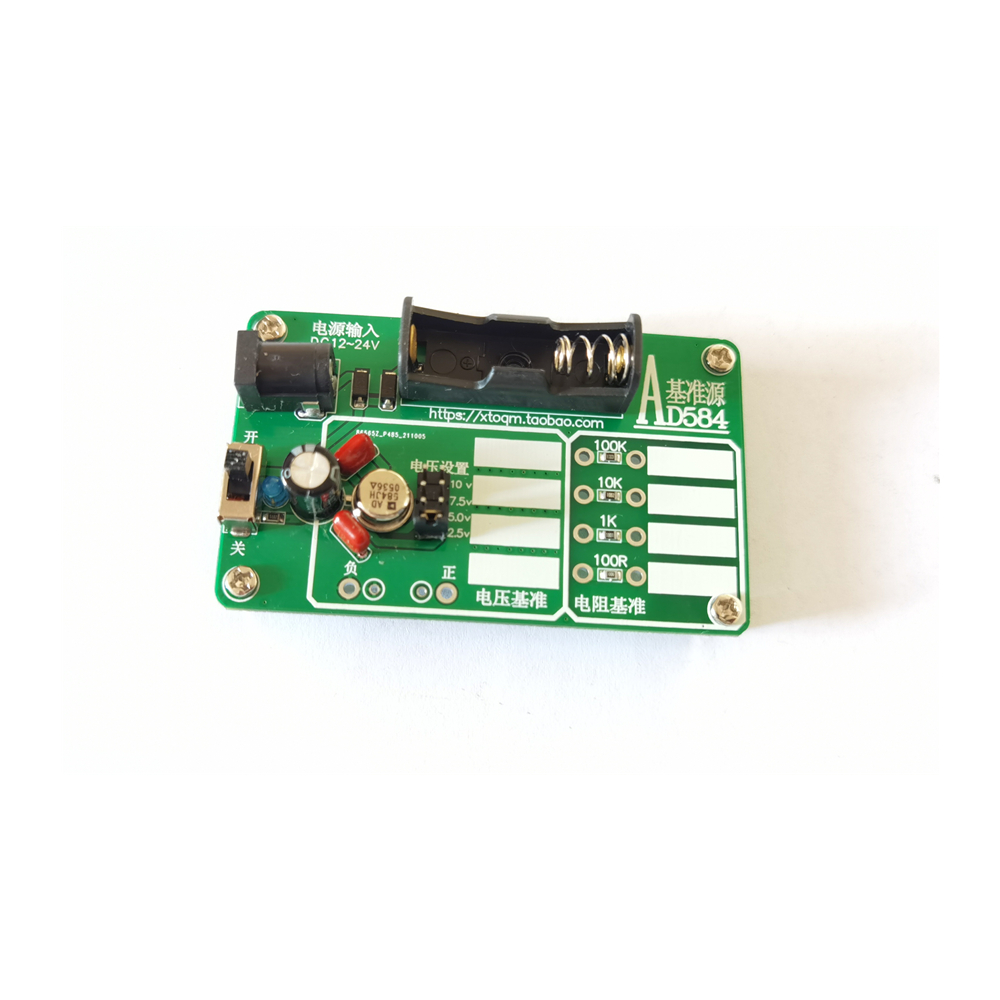

AD584JH voltage reference module X 1

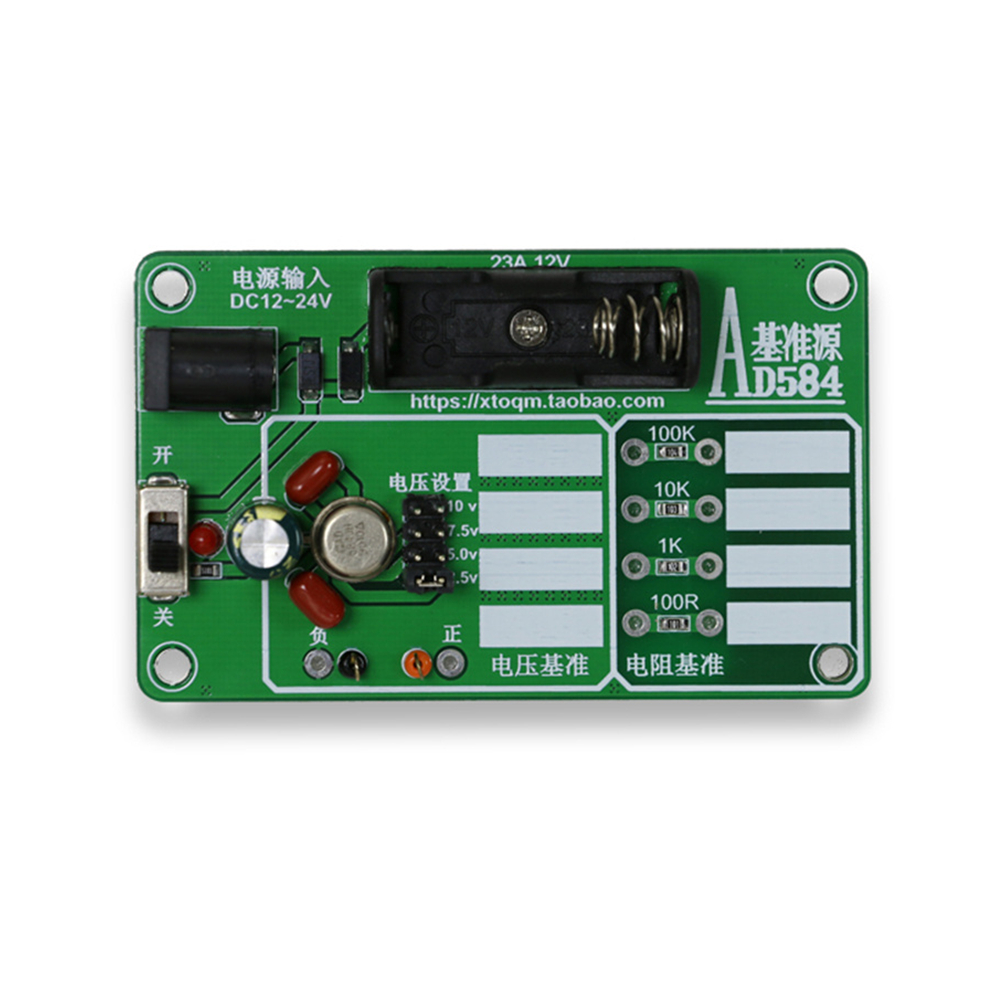

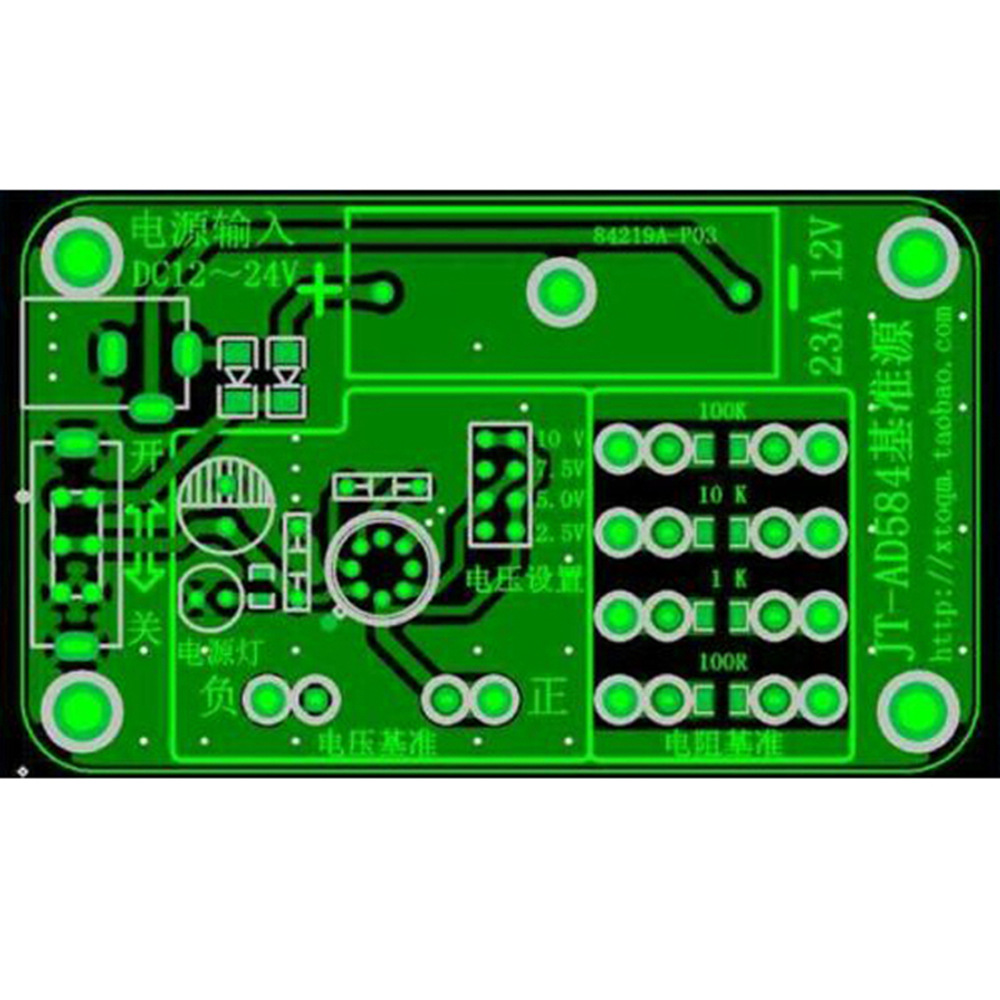

Note:The input voltage can be 12V-24V (for players with high accuracy requirements, 23A 12V battery power can be used), the input and output positions are marked on the board, and the position of the jumper cap can be changed to obtain different output voltages. The output voltage is divided into four levels: 2.5V, 5.0V, 7.5V, 10.0V

The reference voltage value uses AD584JH 5% error, and the resistance value uses a precision resistance of 100 ohms 1K 10K 100K. The measured value with 1% error is normal. Those who mind, shoot carefully.

Measured voltage 10V=9.95V 7.5V=7.46V 5V=4.97V 2.5V=2.48V
