LAUNCH X431 Creader CRP919E Code Reader OBD2 Scanner Full System Diagnostic Tools 2 Years Free Update
A/F TPMS DPF IMMO 31 Reset +CANFD For GM after 2020 / DIOP + Active Test + 11 Languages
LAUNCH CRP919E OBD2 Scanner Full System Diagnostic Tool Key Coding Bidirectional
2023 New Elite Version. All-around upgraded of LAUNCH CRP909/909x/909e
- 2023 Newest Bidirectional Control/Active Test: access vehicle-specific subsystem, send a command to perform specific test and functions to test their working status, such as open/close the Sunroof, turn on the radiator fan and etc. PS: this function is newly released for free to greatly meet customers' demand, which brings this device unbeatable value. (Kindly send your VIN to check compatibility as the function vary on cars.)
- NEW CANFD & DoIP protocols, covering 100+ car brands in total from the US, EU, and Asia, and still expanding.
- 31+ commonly-used service functions, following clear instructions to complete car maintenance projects much faster. *See details on page.
- OE-level All System Diagnosis: One touch Scan all the on-board system and read ECU information to receive fault code and then execute further analyze and maintenance.
- And the complete diagnostic functions you’d expect from a pro-level car scanner: record and playback live data in text & merged graph; fully-features obd2 tests; auto-generated diagnostic report; easy wireless online update among many others.
- Intuitive 4 in 1 Live Data Graph, Rugged Rubber Grip, boot up in seconds...
- 2-Year Software Upgrade (No Fee) to keep this scan tool regularly enhanced, bring bug fixes, and add more car models to the coverage.
Supports 11 Languages: It supports 11 languages, including English, French, Italian, Japanese, Spanish, German, Russian, Portuguese, Korean, Traditional Chinese, and Polish.
BETTER Settings: top-of-the-line software & hardware of the same product range:
- Android 10.0 OS – a mature and highly-refined system for ever smoother operation.
- 4-Core Processor – much higher processing speed; gets your results without delay.
- 3G/32G Memory – enough storage space to handle more files and clients’ data.
- 6100mAh Battery – can run for 5+ continuous hours before requiring a recharge.
- 7” Touch Screen – a large, crisp, color screen, with an intuitive user interface.
NOTE:2023 New function, Bi-Directional Control (Same function as x431 V device)
Advanced Full Bi-directional Test(Active Test):Features with full Bi-directional control that can drive solenoids and actuators for active testing, sending commands to the system/component to test its operating status without using the vehicle controls, let you quickly understand whether a specific system, component, or subsystem is operating normally, it enables to accurately and pinpoint issues and greatly improve diagnostic efficiency.
FOR EXAMPLE: If the vapor emission system failure may be due to the EVAP cleaning valve may have been opened or closed after being stuck or short circuit, you can use our LAUNCH 919E scanner to send the command to the vehicle ECU to perform EVAP tests, then diagnose the DTC and read the data stream. Can determine which part of the circuit, control unit, and actuator fails through comparative analysis.
Commonly-Used Active Tests including:
- EVAP Vent / Purge Solenoid;
- Fuel Injector Test;
- Cycling A/C Clutch Relay;
- Cycling ABS Motor Pump;
- Cooling Fan Test;
- Window/Light/Door Lock Actuators/Headlamp Test/Sunroof/Operate mirrors/Turn on the sound horn;
And also can perform other actuation test functions including Modulate the throttle,Turn Off ACC Lane Keeping Assist System (LKAS) ; Turn ON/OFF Front and Rear side ACM Solenoid, Left clutch electromagnetic coil test,Acceleration Device Test,Oil Pressure Control Test DYNAMIC camera aiming,Brake Vacuum Pump, Inlet and Outlet Valve tests, Open Brakes tests, Parking Brake Motors, Wheel Speed Sensor Supply, PARKING BRAKE tests, etc.
*Actuation test functions vary by the vehicle system.
- The LAUNCH CRP919E Car Reader meets the following protocols:
-ISO 14230-4 (KWP2000)
-ISO 11898-1:2015(CAN-FD)
-ISO 13400( DoIP)
-ISO 15765-4 (CAN)
-ISO 9141-2 (ISO)
-ISO 14229 (UDS)
-SAEJ 1850 (VPW & PWM)
ALL SYSTEMS Diagnosis on Your OBD1/OBD2/EOBD/JOBD Vehicles
LAUNCH CRP919E automotive scanner Read and erase codes for all available systems, turn off MIL light (Indicator light), display live data in text, graph & analog for easy data review.
Engines
Auto Transmission
Airbags
Immobilizer
ABS ESP system
Cruise Control system
Gateway
Body Systems
Steering system
TPMS system
Rain Sensors
4WD System Stabilizer
Intelligent Parking Assist
Audio Radio Systems
Air Conditioning
Central Locking
Electric Windows
Heated Rear Window
Xenon Headlights
Wash Wipe
Fuel Burning Heater
Seat & Door Motor system
Electronic Throttle system
Electronic Spark System ......
LAUNCH CRP919E obd2 scanner support 31 most used Maintenance Functions:
1. Steering Angle Reset
Reset the steering angle to zero to keep the car running straight.
2. Injector Coding
Write the new injector code into the car system for the correct cylinder injection quantity.
3. IMMO Matching
Disable any lost keys and add new keys. **ONLY for cars with an easy IMMO system.
4. DPF Regeneration
Especially works for D-P-F system with D-P-F regeneration, D-P-F component replacement teach-in and D-P-F teach-in after replacing the engine control unit.
5. A/C relearn
The vehicle air conditioner replaces the electronic control unit, replaces the actuator or the memory of the electronic control unit memory is lost, and requires air conditioning initialization learning.
6. ABS Bleeding
Help exhaust the air after repair the ABS pump system.
7. AdBlue Reset
Reset urea after the diesel exhaust treatment fluid is replaced or filled up.
8. Throttle Matching
Initialize the throttle actuators to the default state.
9. TPMS Reset
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
10. Tire Reset
Set the size parameters of the modified or replaced tire.
11. AFS Headlamp Reset
Initialize the adaptive headlamp system.
12. Sunroof Initialization
Initialize the sunroof when locked off or closed.
13. Battery Reset
Register the battery after replacement.
14. Seat Calibration
Calibrate the memory in replaced or repaired seats.
15. Oil Reset
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
16. A/F Reset:
Set or learn Air/Fuel ratio parameters.
17. GEARBOX LEARN
Help complete the gearbox self-learning to improve gear shifting quality.
18. Transport Mode
Deactivate the transport mode.
19. Windows Calibration
Perform door window matching to recover ECU initial memory.
20. Language Change
Change vehicle system language.
21. Suspension Reset
Adjust the vehicle body height sensor for level calibration.
22. NOx Sensor Reset
Reset catalytic converter learned value stored in ECU.
23. Stop/Start Reset:
Set up the automatic start-stop function in ECU.
24. Coolant Bleeding
Activate the electronic water pump.
25. Brake Reset
It is important in the maintenance of electronic braking system's safety and efficiency.
26.Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.
27. RESET EGR
EGR Adaption is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.
28. RESET HVOLBAT
High Voltage Battery Detection is used for high voltage battery diagnosis and status information
detection.
29. RESET ENGPBM
Engine Power Balance Monitoring is used to monitor crankshaft acceleration in the power stroke of each cylinder, to determine the relative power provided by each cylinder.
30. RESET GPF
31. RESET ICCS
ALL 10 Mode OBDII/EOBD Functions:
1.Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
2.Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
3.Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4.I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5.Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7.O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8.On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
9.Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
LAUNCH CRP919E Features:

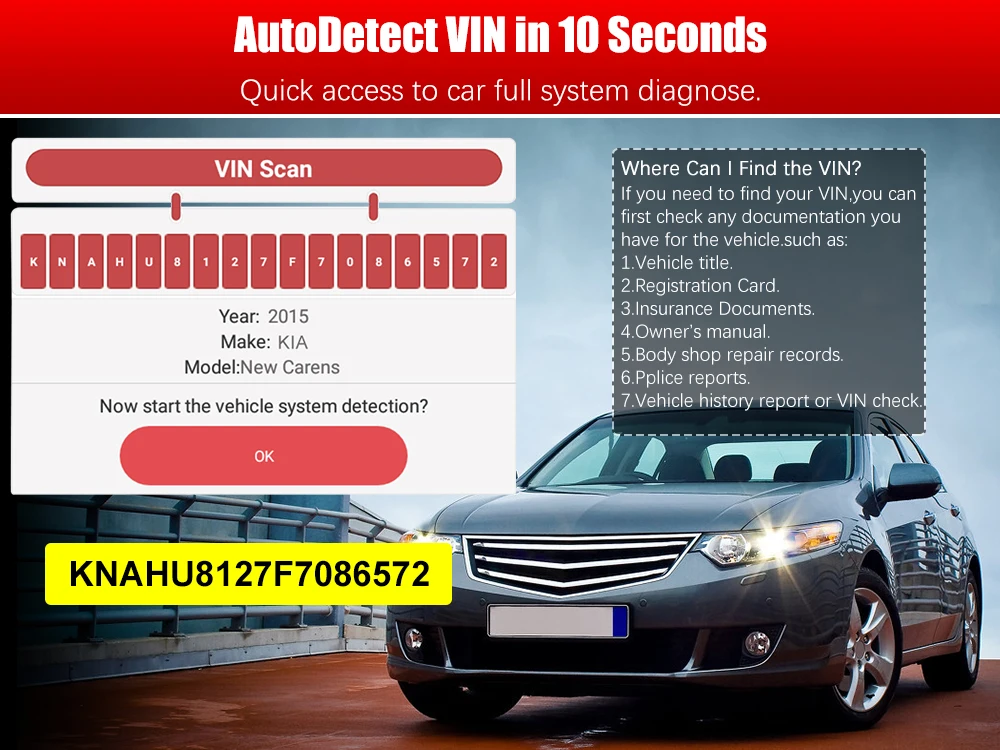

>>>Professional Fast Identifies VIN Number:
Once connect with car OBD2 port , CRP919 will AutoDetect car Vin number. Give you a quick access to start the vehicle system detection.
>>>Perfect Performs Vehicle Battery Analysis
>>>Perfect Performs Vehicle Battery Analysis
For 12V car, SUV, Van, Light Truck, Pickup. Detect real-time data from 12V batteries and display BATTERY DATA with fluctuations ranging from 8V to 16V. The discharge voltage of a normal battery is about 12V, the starting voltage is generally 12V, and the charging voltage is about 14V.
>>>One-Key I/M Checking
It support one-key I/M checking for all available emission systems.Help your car pass the emission test simpler.
LAUNCH X431 CRP919E Technical Support
LAUNCH Technical team offer free support for you, once you meet any problem, you can
1.Upload Could Feedback
2.Share Diagnose report 3.Contact with customer service directly
>>>Other Feature of LAUNCH X431 CRP919E
LAUNCH X431 CRP919E Technical Support
LAUNCH Technical team offer free support for you, once you meet any problem, you can
1.Upload Could Feedback
2.Share Diagnose report 3.Contact with customer service directly
>>>Other Feature of LAUNCH X431 CRP919E
1.DTC Library: Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.
2.Diagnostic Feedback: Use this option to submit the vehicle issue to us for analysis and the report can be saved offline.
2.Diagnostic Feedback: Use this option to submit the vehicle issue to us for analysis and the report can be saved offline.
3.Diagnose Report Share & Printed: you can share the diagnose report to your email ,then printed via computer.
Deep Dive into Auto Diagnostics with Live Data Graphing, Record, Playback, Sharing.
CRP919E OBD2 scanner can do deep dive into auto diagnostics and also generate the Live Data Stream.
Live Data Stream Graphing provides very detailed data stream data, it could include the change of Accelerator Pedal Position Sensor1 , Actual Output Shaft Speed , Clutch A Actuator Motor , Vehicle Battery and so on. Graphical data allows you to analyze the data changes of each module more clearly and easily, and it is easier to see the problems in it.
Live Data Stream Record allow you to record the live data stream and view the data of a certain point in a targeted manner. So that you can view the data more clearly.
Live Data Stream Playback. After you have recorded the data for a period of time, if you want to view and analyze the data just recorded, you need to use data stream playback function to help you. You can view the data at any time you recorded. Then you can choose " Combine", " Report" and " Record".
Live Data Stream Sharing will let you share any data status and content you want to display anytime, anywhere. You can send it to your friend or mechanic to help you solve complex problems.
Review / Share / email / record / replay / print DATA REPORT
One-Click Generate Health Report
- Health Report will scan all vehicle modules and give you a status list for each module's condition. Also known as Global Test or Full Scan .This diagnostic tool can automatically generate a diagnostic report when diagnostic work is successfully finished. The reports are saved to the internal memory for later review. The reports are able to be saved in PDF format, and as the tablet is equipped with WIFI, these can be emailed to the office or directly to the customer.
CRP919E Car Supported List: " SAME AS THE LAUNCH X431 V PRO"
For Abarth, For Accura, For Alfa Remeo, For Audi, For BMW, For Bugatti, For Buick, For Cadillac,
For Chevrolet, For Chrysler, For Citoren, For Dacia, For Daewoo, For Daihatsu, For Dodge,
For Eurford, For Fiat, For Ford, For GM, For Gmsa, For Honda, For Hyundai, For Ifiniti,
Isuzu, For Jaguar, For Jeep, For Kia, For Lancia, For Landrover, For Lexus, For Lincoln,
For Mahindra(Indian), For Maruti(Indian), For Maserati, For Mazda, For Mercedes, For Mini,
For Mitsubishi, For Nissan, For Nissangtr, For Opel, For Peugeot, For Porsche, For Renault,
For Renault Samsung, For Saab, For Seat, For Skoda, For Smart, For Sprinter, For Ssangyong,
For Subaru, For Suzuki, For Tata(Indian), For Tlisuzu, For Toyota, For Vauxhall, For Volvo,
For VW, For VAZ
NOTE: These special function NOT for all car models, if you are confused,
you can send your car brand, model and release year to me, I will check for you.
Technical Detailed
• Screen Size:7" Touch Screen
• Operating System:Android 5.0
• Resolution:1024*600 pixels
• Battery Capacity:6000mAh
• RAM: 3GB
• ROM: 32GB
• Size:251.4mm x 150.6mm x 40.4mm
• OBD II Input voltage range: 9~18V
• Charging via: DC 5V charging cable & power adaptor or Diagnostic cable through connection to vehicle's DLC
• Working Temperature: -10 to 50 (14 to 122 )
• Storage Temperature: -20 to 70 (-4 to 158 )
Packing List
1. CRP919E Diagnostic Tool x1
2. OBD II Diagnostic Cable x 1
3. DC 5V Charging Cable x 1
4. US Plug Adapter x1;EU Plug Adapter x1;UK Plug Adapter x1
5. Multilingual Quick Start Guide x 1
6. User Manual x 1
7. Carrying Case x 1
