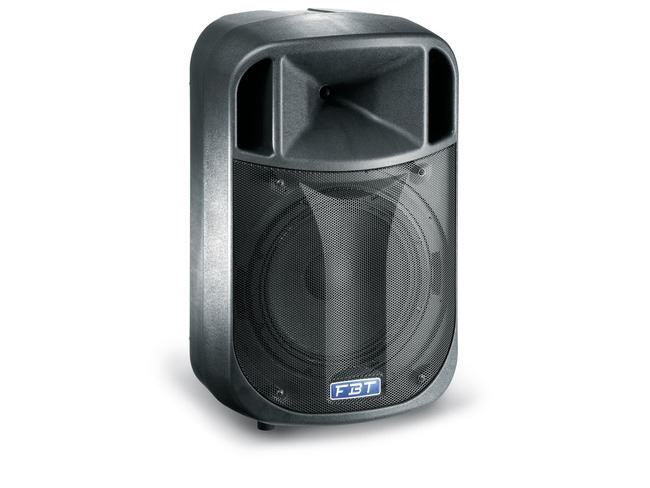

FBT J12 12 Inch Passive Speaker, 300w @ 8 Ohms

Product Description

Description:

Product DescriptionThe FBT J12 series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black finish the FBT J12 series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor. With the use of optional accessories the FBT J12 speakers can be mounted on mic stands for many nearfield monitor applications, live sound and as a studio monitor. The FBT J12 is of two way design incorporating an 12" low frequency woofer and 1" HF custom driver. Cabinet dispersion is 90Â°H x 60Â°V allowing for wide pattern coverage. The internal crossover is at a fixed frequency of 2kHz. With a frequency range of 55Hz - 20kHz the FBT J12 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 127dB. A front face steel grille protects the speaker from external damage. Ideal for fixed installations the FBT J12 speaker system have an impedance of 8 Ohm. The two M10 fly points built into the cabinets along with the optional mounting brackets allow the FBT J12 speakers to be surface mounted on walls or ceiling. For portable or fixed use the FBT J12 speakers can be mounted on mic stands by using the optional adapters for vertical mounting. Rear panel connections feature 2 x Neutrik Speakon NL4.

Features:

Key Features:

2-way passive sound reinforcement system
Polypropylene enclosure
1 x 12" custom woofer
1 x 1" high frequency driver
300W RMS recommended amplifier
150W long term power
600W short term power IEC 268-5
2 x M10 suspension points
Internal passive crossover filter
Input panel with
2 x Speakon NL4 Completely manufactured in Italy

Applications:

Band P.A.
Personal monitor
Small theatres
Auditoriums
Piano bar
DJ Stage
monitor
Conference rooms Fixed installations in live
clubs
Pubs
Gyms

Specification:

Configuration:2 Way
Frequency response:55Hz - 20KHz -6dB
Low frequency woofer:12" - 2" Voice Coil
High frequency driver:1" - 1" Voice Coil
Maximum SPL cont/peak:123 / 127dB
Dispersion:90 x 60 Degrees H x V
Crossover frequency:2 KHz
Input connector:2 Speakon NL4 In & Thru
Net Dimension (WxHxD):410 x 663 x 387 mm
Net Weight:14.1 KG
Transport Dimension (WxHxD):495 x 740 x 475 mm
Transport Weight:17.2 KG
Recommended Amplifier:300w RMS
Long term power:150w
Short term power:600w
Recommended HP filter:45Hz -24dBoct
Sensitivity (@1W/1m):98dB
Impedance:8 Ohm

FBT J12 12 Inch Passive Speaker, 300w @ 8 Ohms
